23 LEXA

Specifications

Model	Retrieve	Gear Ratio	Ball Bearing	Max Drag (Ld.)	Reel Weight (Oz)	Line Capacity Mono(Ld./Yd)	Line Capacity Braid(Ld./Yd)	Recovery (In/Turn)

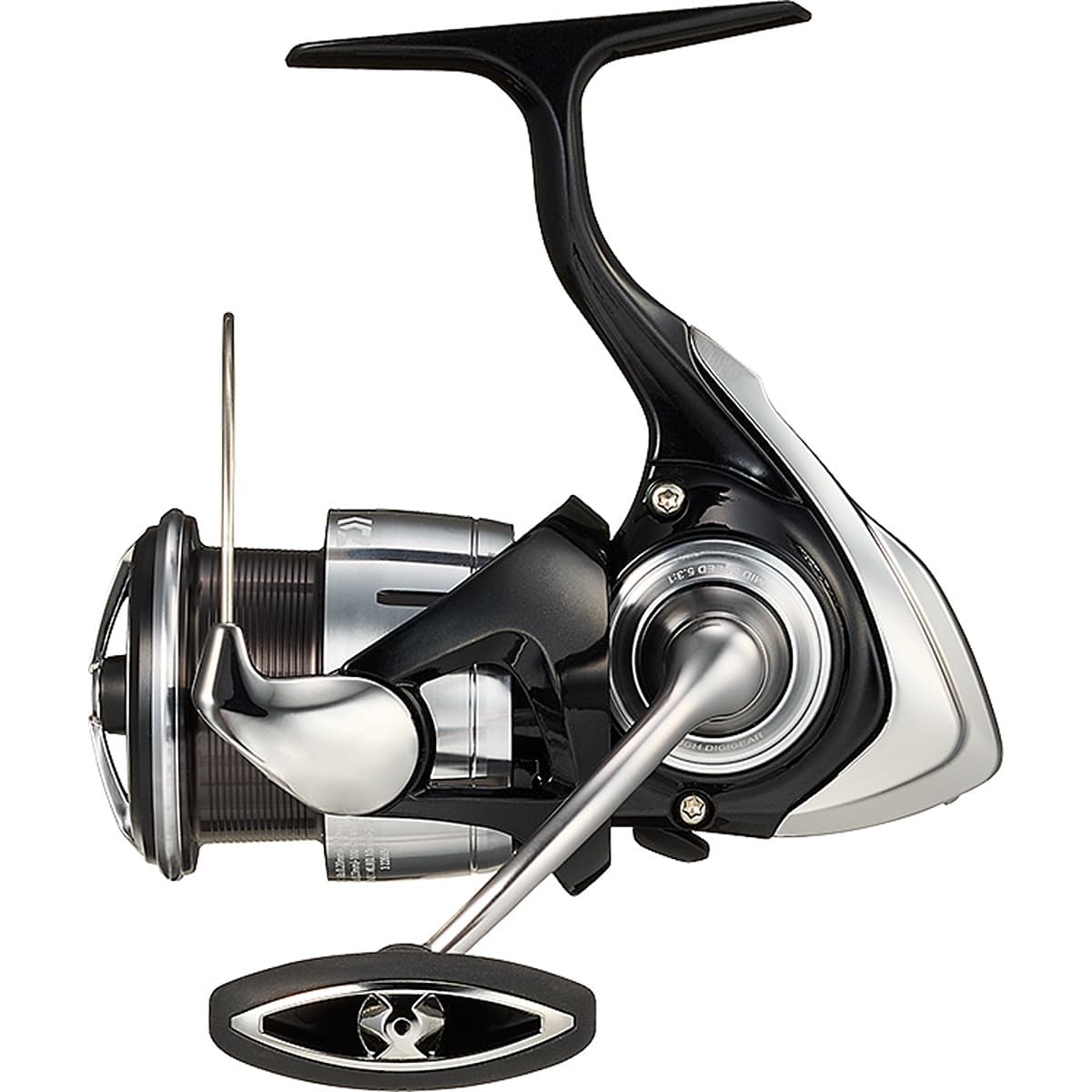

LT2500	Left/Right	5.3	5+1	22.1	7.8	4/160, 6/110	10/220	30

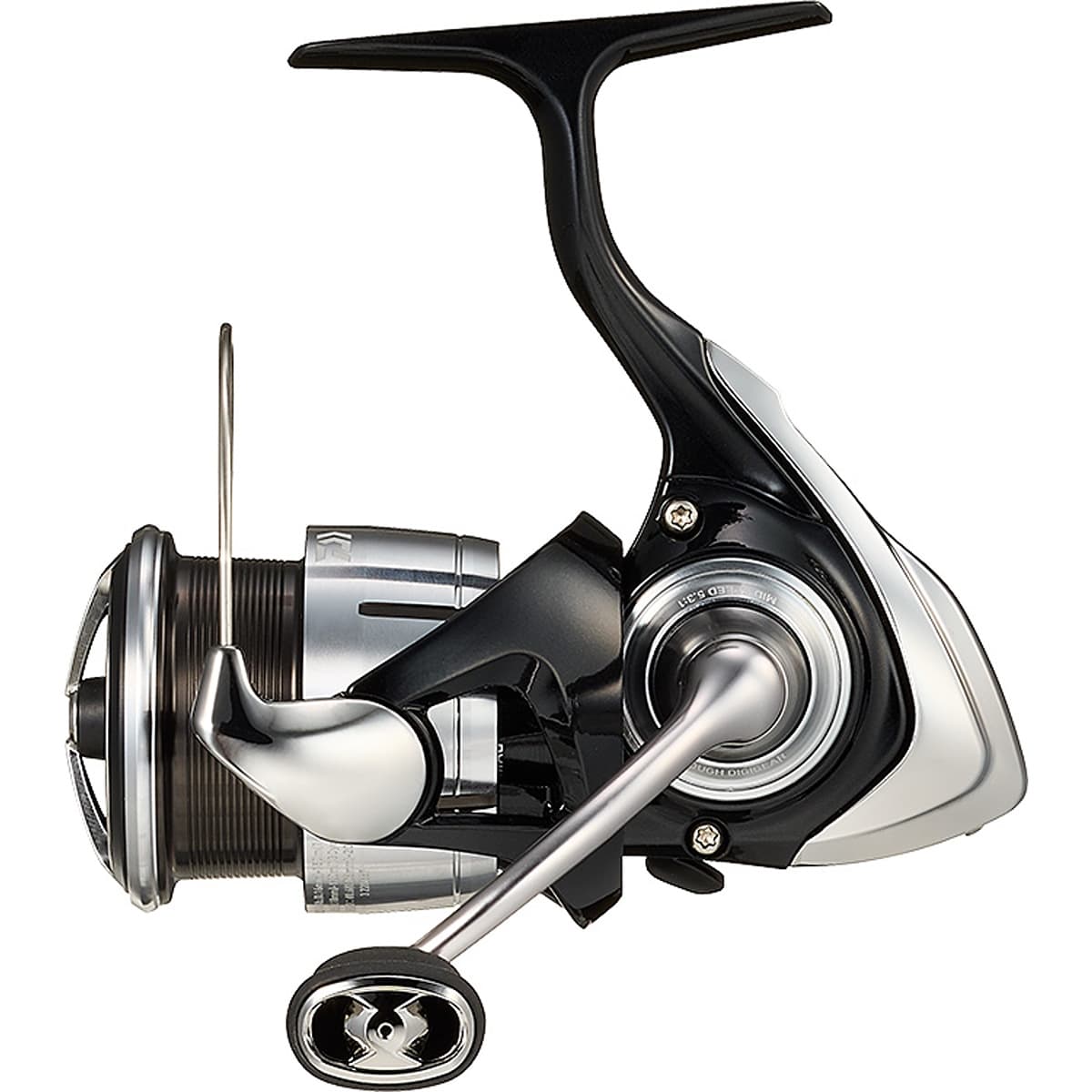

LT2500S	Left/Right	5.3	5+1	11	7.6	2.5/160, 4/110	8/220	30
LT2500-XH	Left/Right	6.2	5+1	22.1	7.8	4/160, 6/110	10/220	34

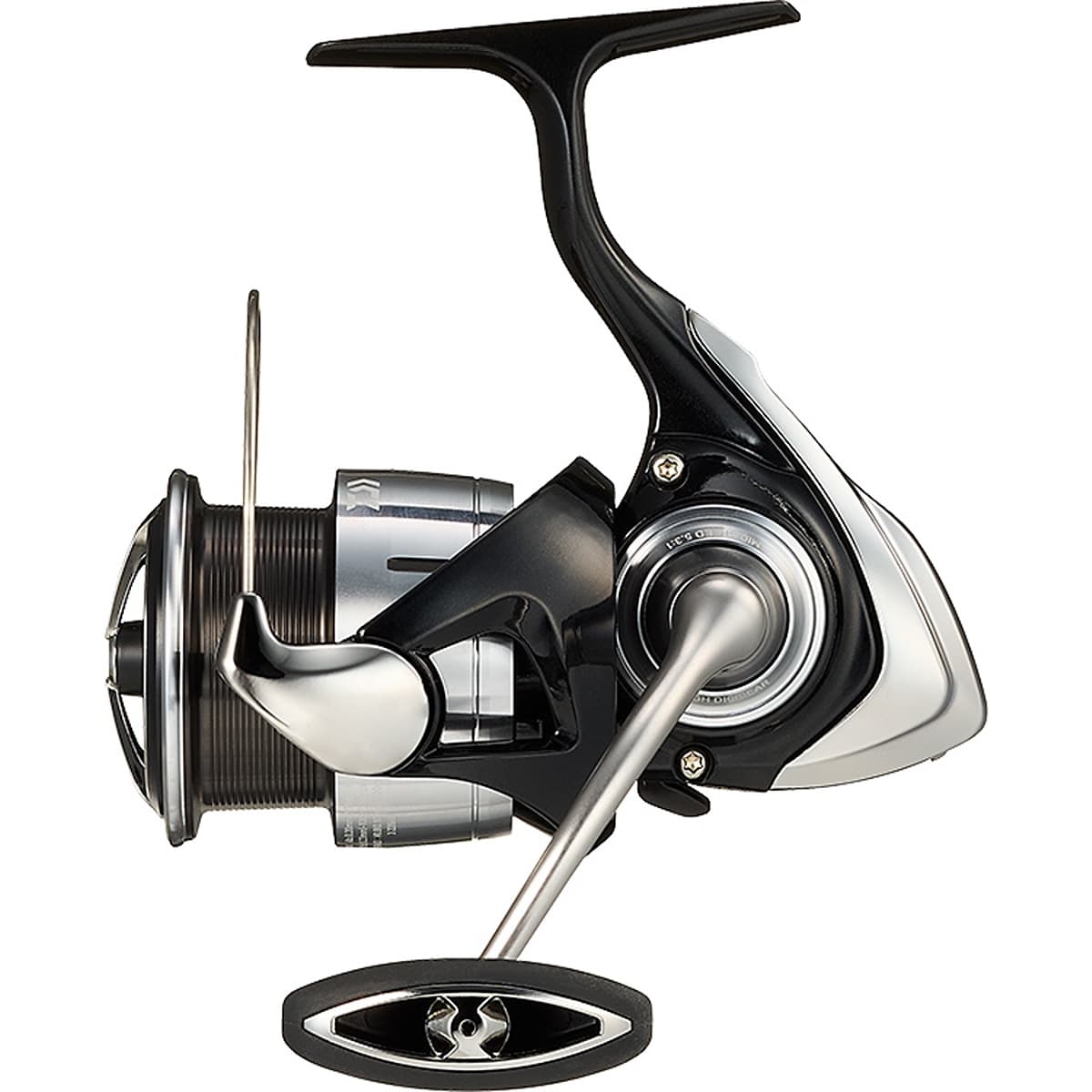

LT3000S-C	Left/Right	5.3	5+1	22.1	8.1	4/160, 6/110	10/220	31

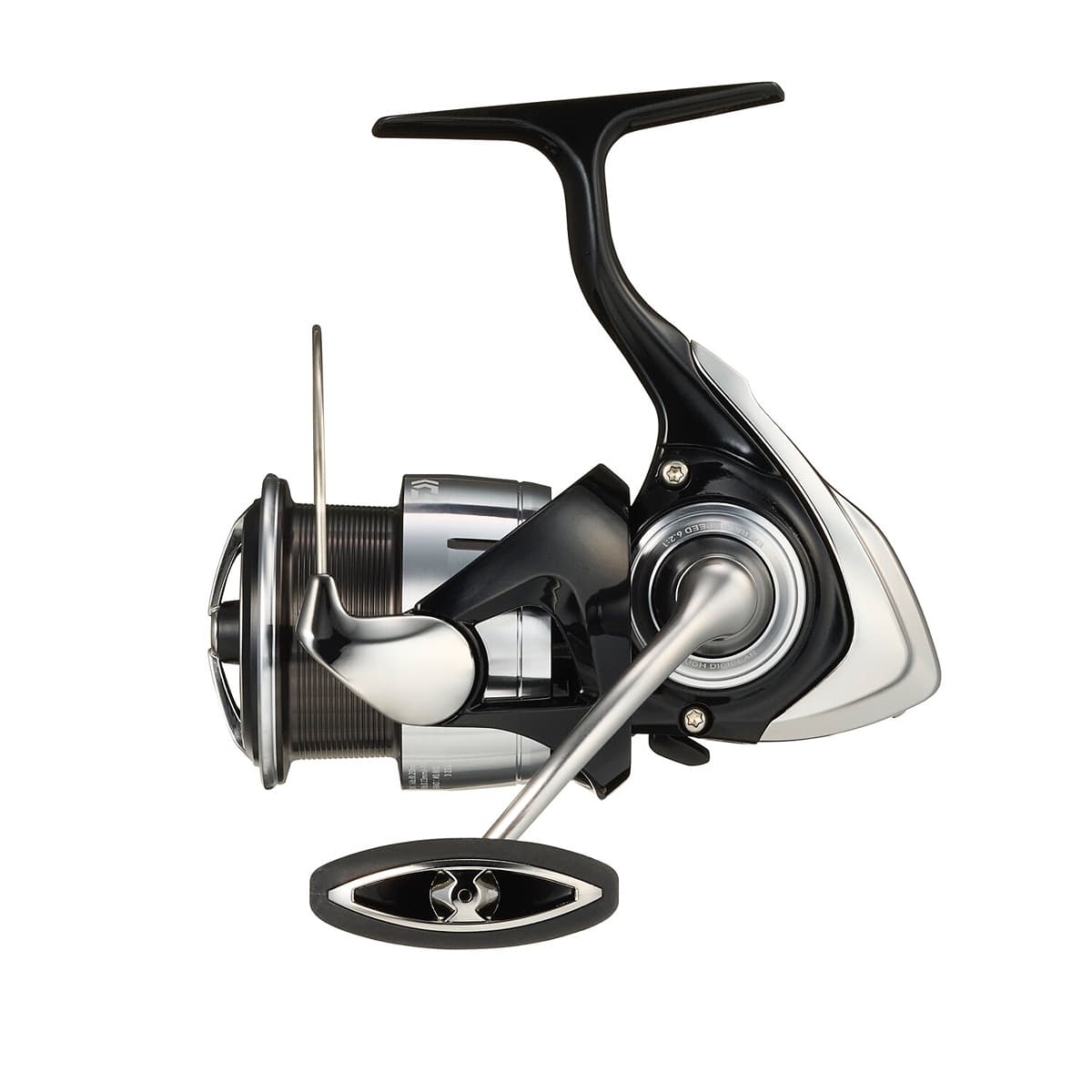

LT3000S-CXH	Left/Right	6.2	5+1	22.1	8.1	4/160, 6/110	10/220	37
LT3000	Left/Right	5.2	5+1	22.1	8.6	6/160, 10/110	12/220	30

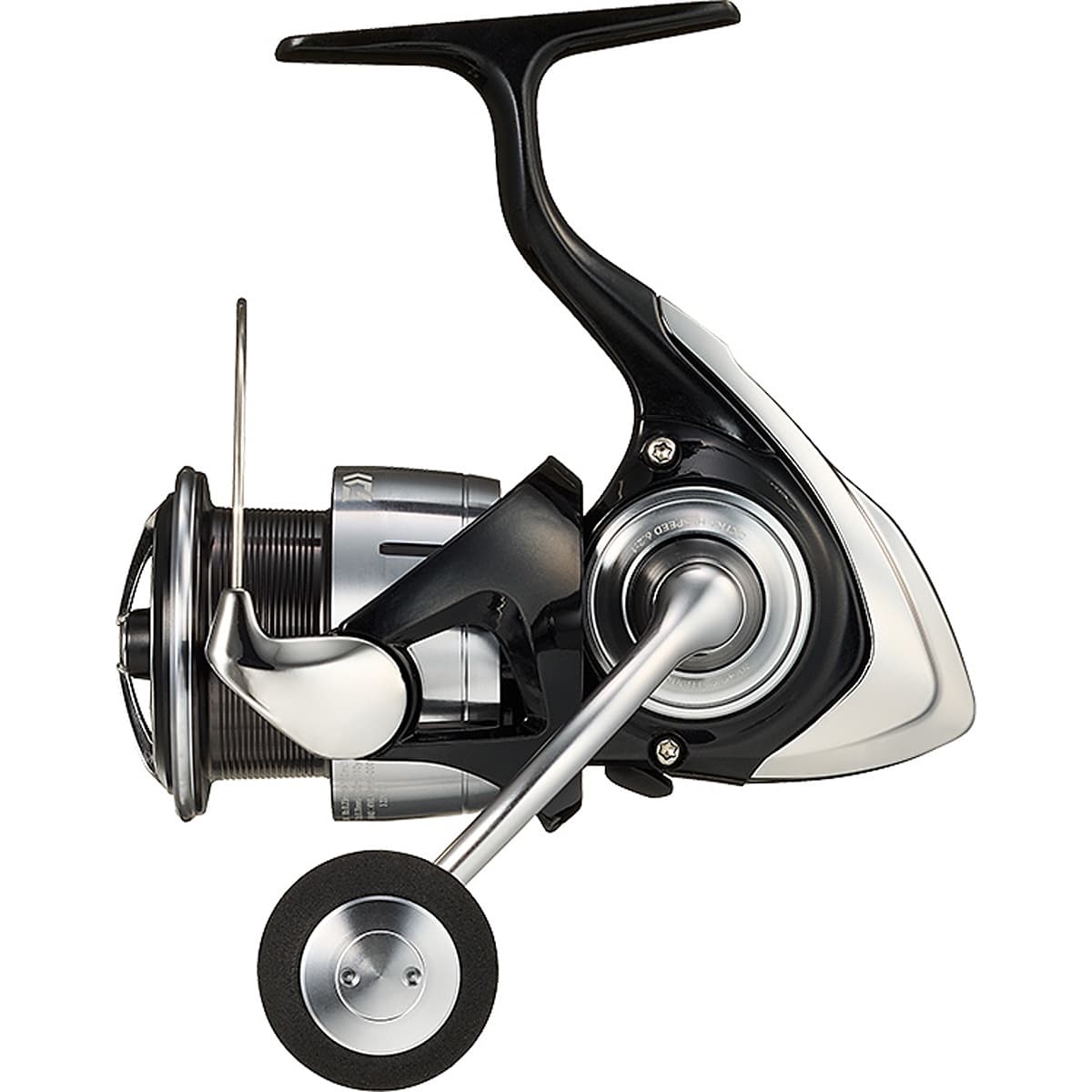

LT3000-XH	Left/Right	6.2	5+1	22.1	8.6	6/160, 10/110	12/220	37

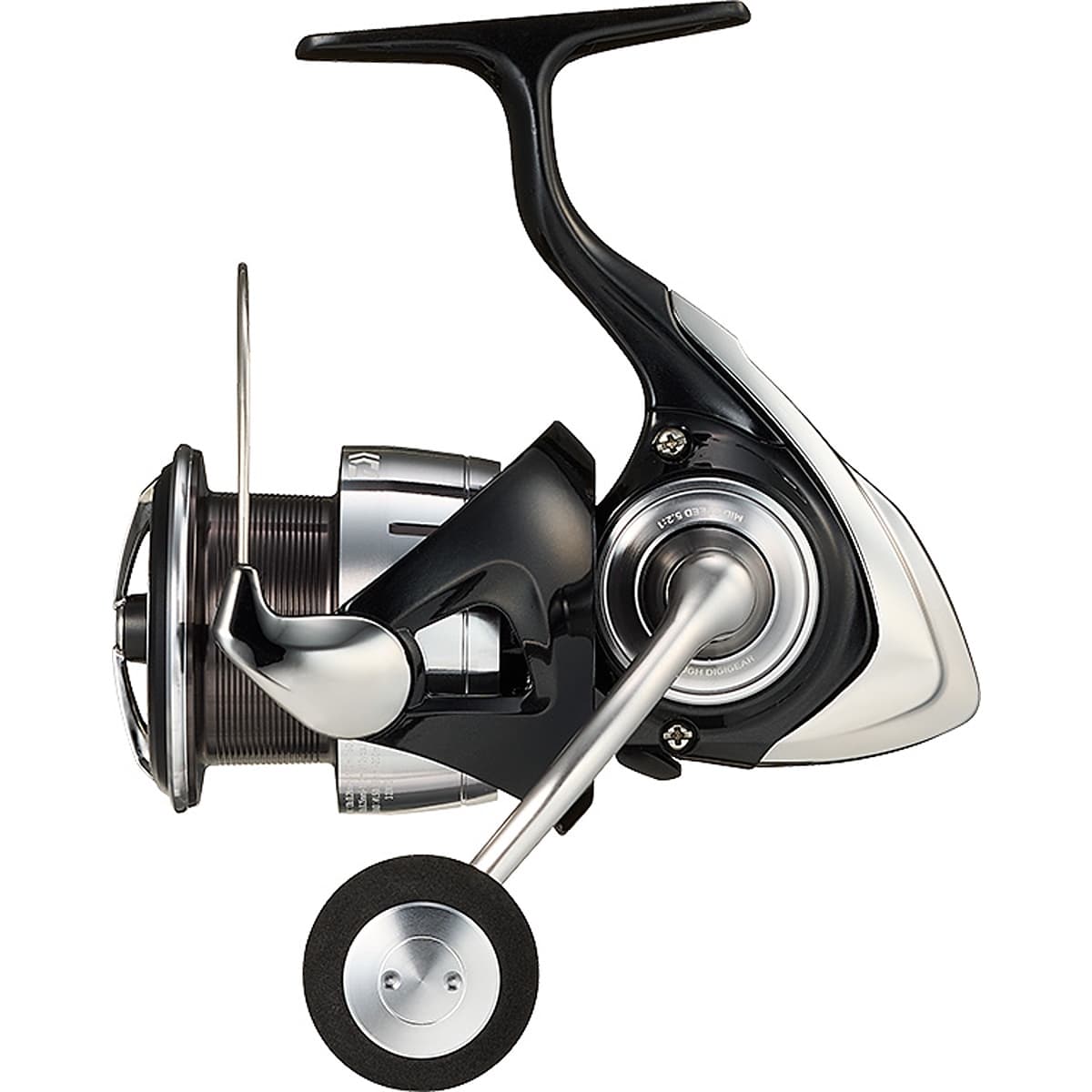

LT4000-C	Left/Right	5.2	5+1	26.5	9	10/160, 12/140	16/220	32

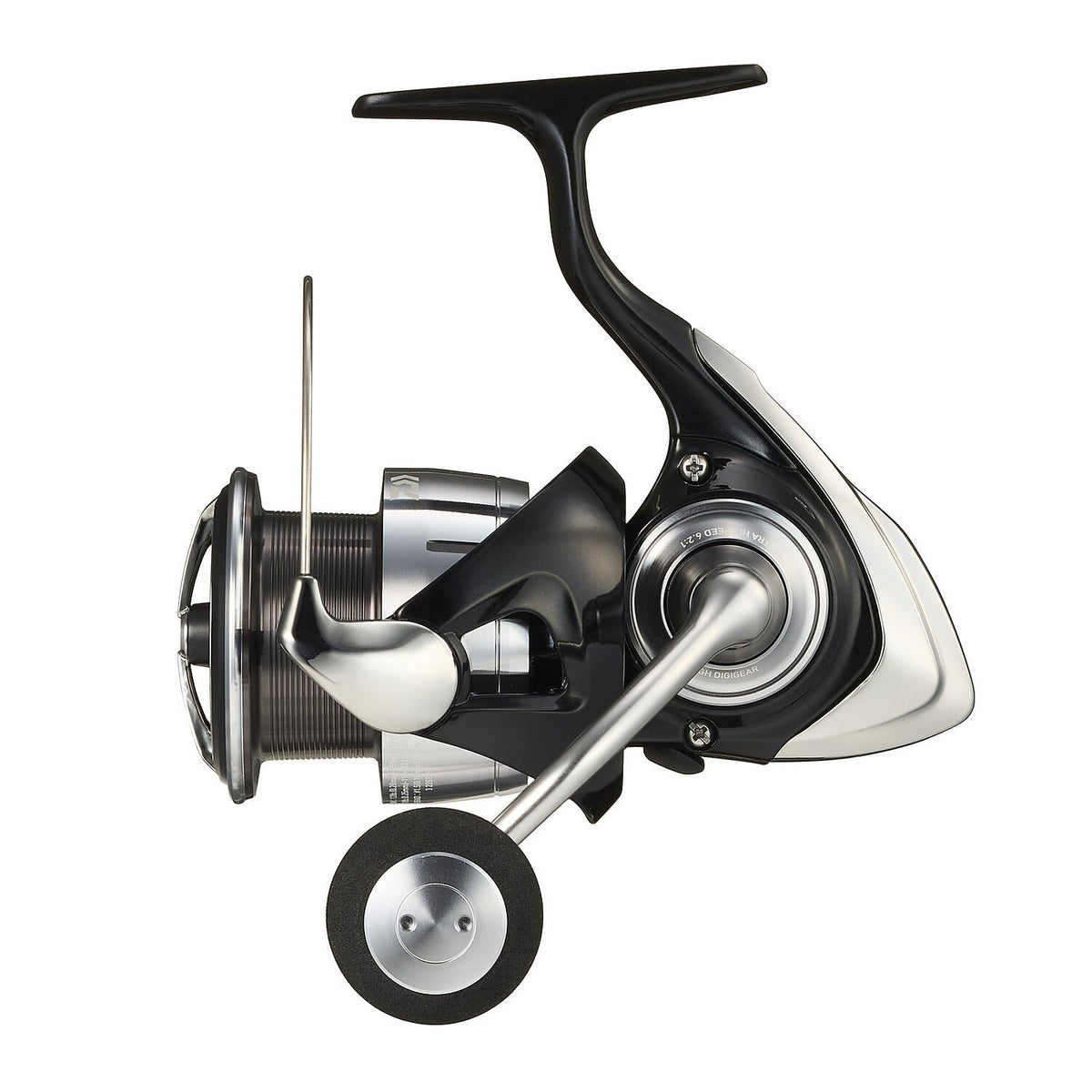

LT4000-CXH	Left/Right	6.2	5+1	26.5	9	10/160, 12/140	16/220	39

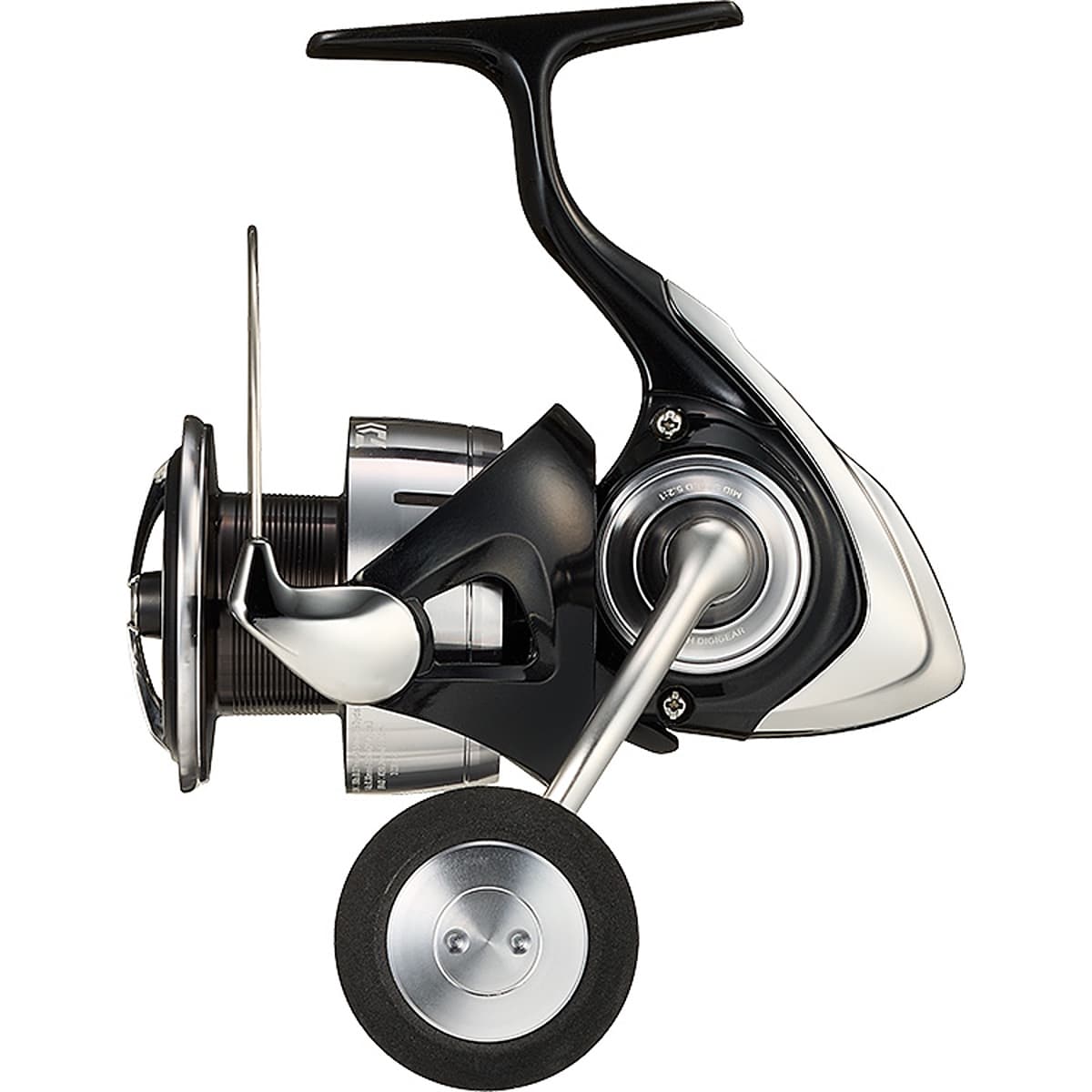

LT5000-C	Left/Right	5.2	5+1	26.5	9.9	12/250, 16/160	20/330	34

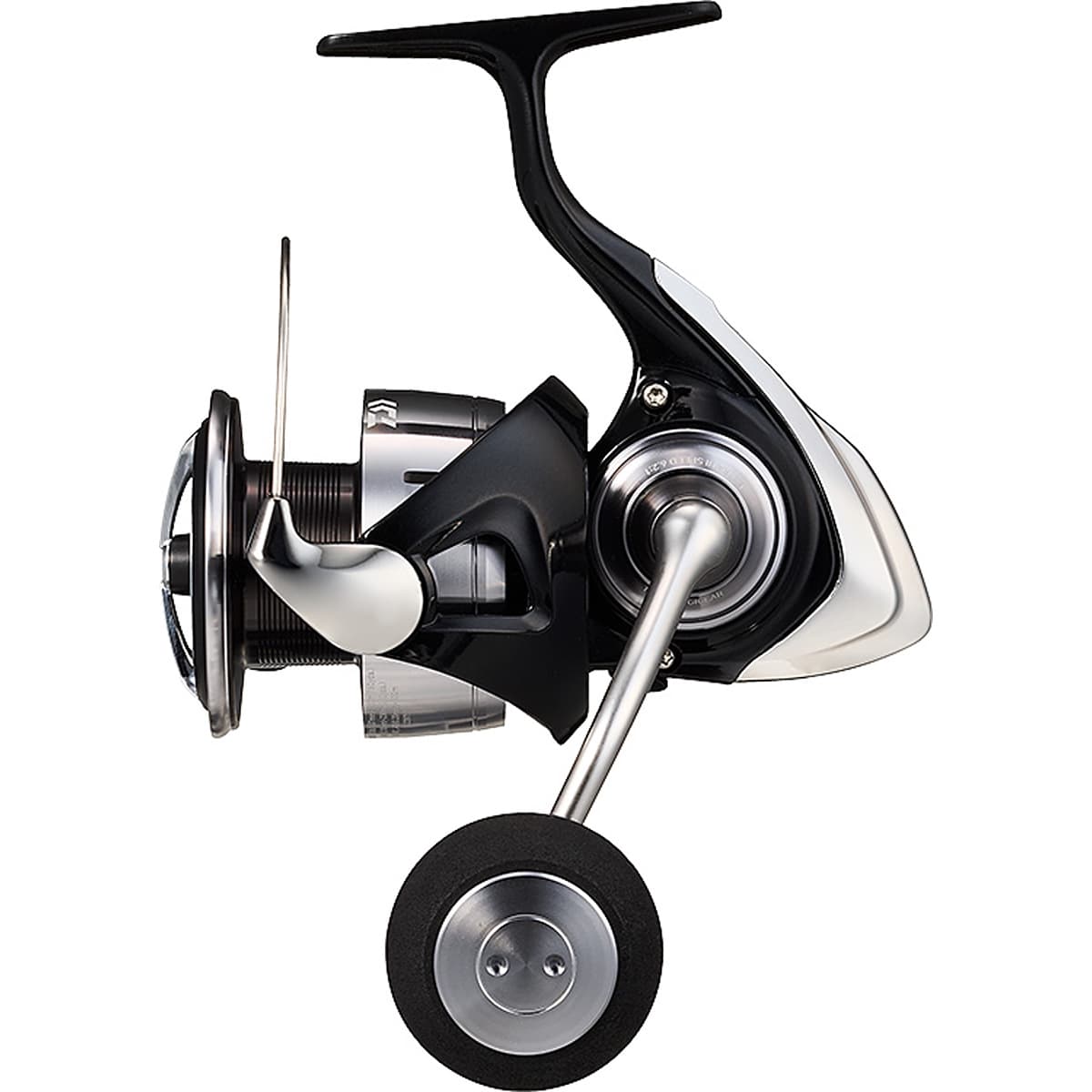

LT5000-CXH	Left/Right	6.2	5+1	26.5	9.9	12/250, 16/160	20/330	41

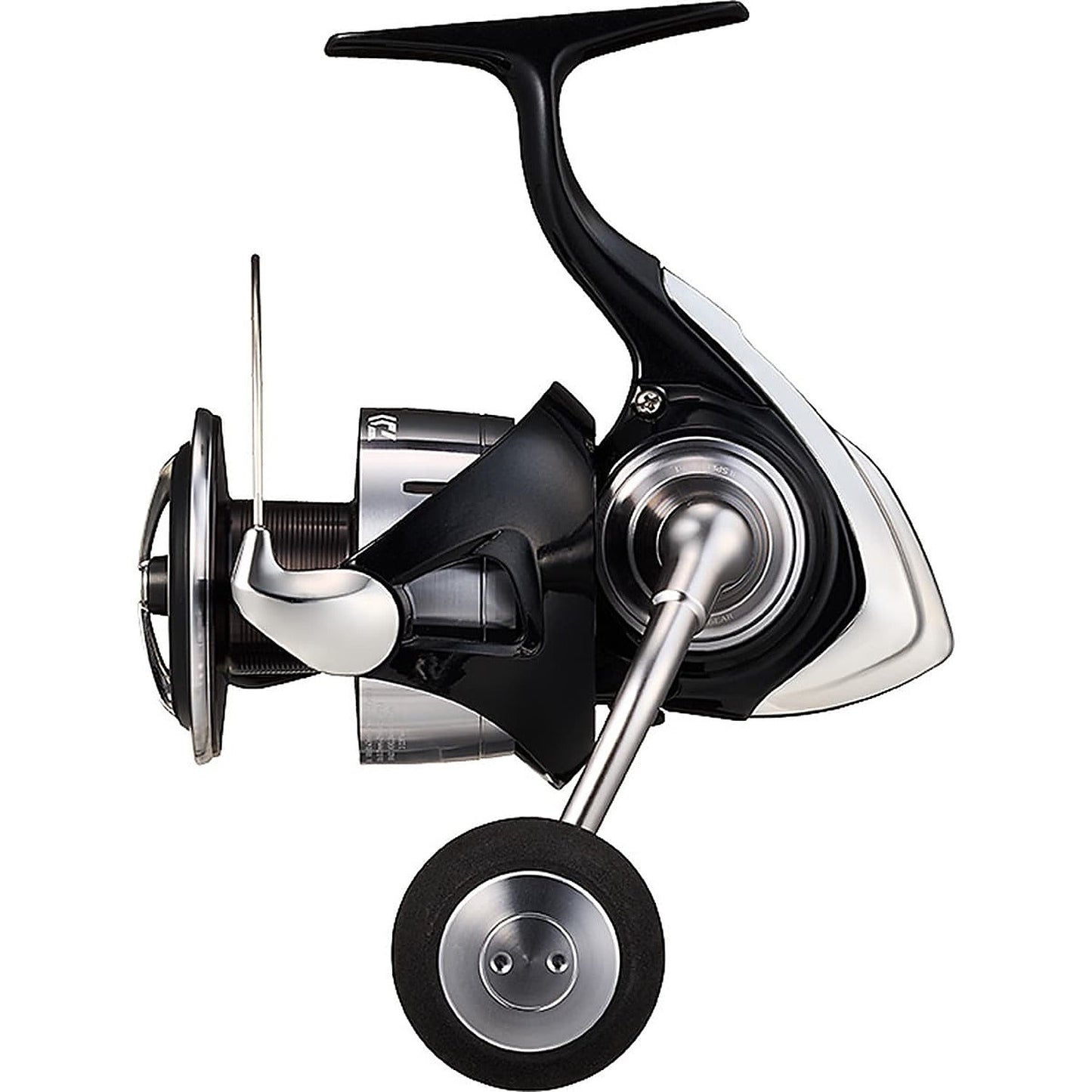

LT6000D-H	Left/Right	5.7	5+1	26.5	12.9	16/270, 25/160	35/330	40

Scroll for more→

AIRDRIVE ROTOR

Low inertia is the key.
The newly developed AIRDRIVE ROTOR is made from ZAION. Maintaining the strength of the rotor from 18 EXIST, DAIWA has been able to reduce the weight significantly. Designed with focus to create a perfectly round structure, trouble free and flawless rotation have been achieved.
The rotor unit itself has seen a 16% weight reduction compared to the previous model (Based on 2500 size reel) and will set the standard for what future rotor design of small spinning reels will be.

AIRDRIVE BAIL

Trouble free future.
DAIWA has constructed a bail smaller in diameter whilst providing required strength to achieve a further weight reduction to the front unit. In comparison to 18 EXIST, AIRDRIVE BAIL reduces the weight of the bail by 33% (compared to 2500 size).
DAIWA has adjusted the angle of bail setting to improve the line movement into the roller. Careful attention was given to the roller and slider and individual design alterations were done for each size of 22 EXIST, perfectly adjusting the line management for each size of the reel.

AIRDRIVE SPOOL

Design reflects the future.
The stand out features of the AIRDRIVE SPOOL would have to be the newly shaped spool skirt and the simple single silver coloured cosmetic. Just by looking at the spool it is clear the structure has been redeveloped, reducing the weight and maximising the feeling of presence.

Reducing the spool weight creates many benefits for a reel; the total weight of reel is reduced, oscillation is improved, less resistance during winding and rotation, better balance when attached to the rod and of course the reel feels light and easy to fish.

MAGSEALED

The Mag Sealed principle is based on special magnetic oil, which has been developed by the NASA to transport fuel to the space ships based on the magnetic principle. Such oil for reel production is not available in the market. It has to be manufactured under most difficult circumstances. The embedded ferric oxide, which is necessary for the magnetic field, has a diameter of 1/100.000mm.
The molecules in this new "metal oil" are capable of changing. If they are exposed to a magnetic field, they change their shape and the oil forms a fluid seal.
Such a seal, based on the principle of liquid magnetic oil produces nearly no friction, isolates perfectly and prevents even penetration of dust particles.
The big challenge for the DAIWA engineers was the development of a reel, which is designed for the principle of the magnetic oil to generate a kind of liquid membrane that prevents water penetration.
The Mag Sealed design is based on the purpose to keep water away from a spinning reel. First of all for sea anglers this is an amazing idea - since delivers a longer life span; no corrosion and better, pro longed function. If salt water penetrates the reel and dries, it crystallizes, corrodes the gearing and affects the ball bearings. Mag Sealed halts the travel of salt particles.

ATD TYPE L

New ATD TYPE-L drag technology improves the initial drag system response. Lowering the peak drag max upon hook setting. Light tackle fishing especially requires a responsive and sensitive adjustment of the drag pressure.

ATD TYPE-L allows anglers to have more control of the drag without stress during the fight. By not overloading the line and also causing less stress to the fish, powerful fish can be tamed easily with 22 EXIST.
