CALDIA

Specifications

Model	Retrieve	Gear Ratio	Ball Bearing	Max Drag (Ld.)	Reel Weight (Oz)	Line Capacity Mono(Ld./Yd)	Line Capacity Braid(Ld./Yd)	Recovery (In/Turn)

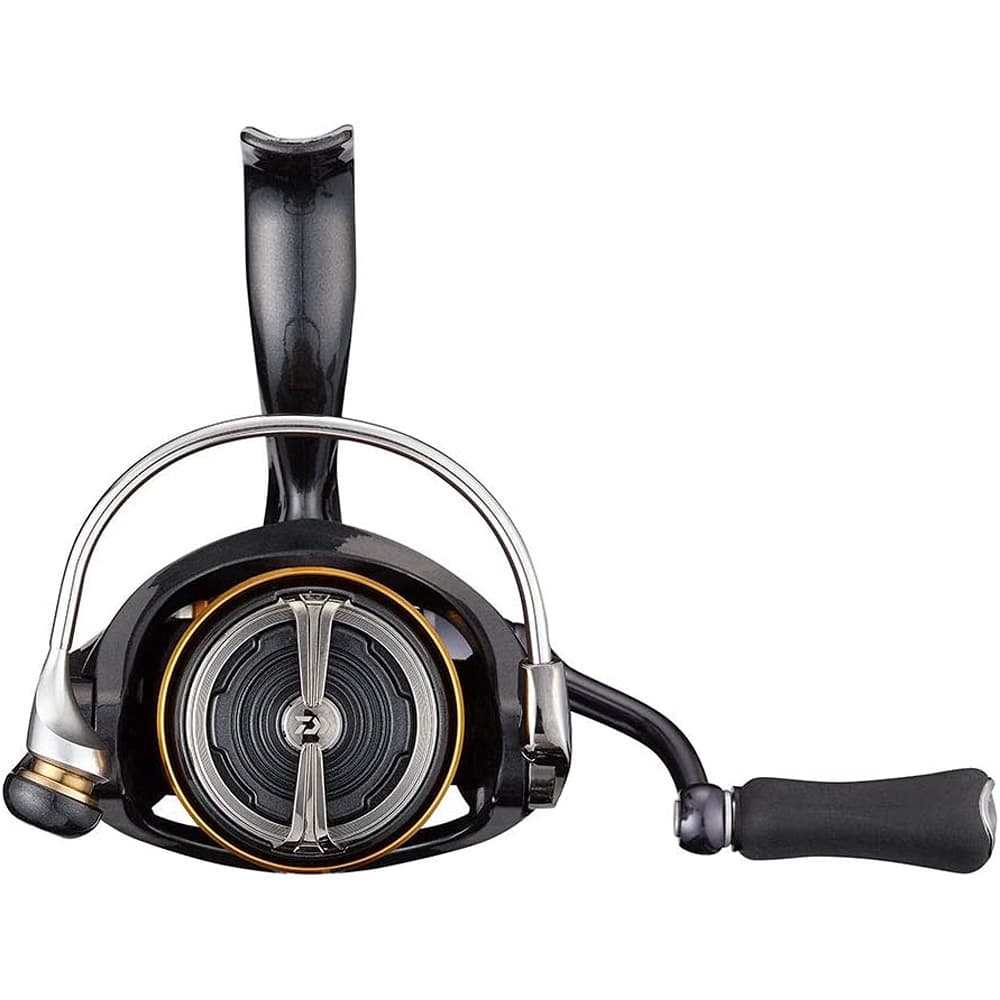

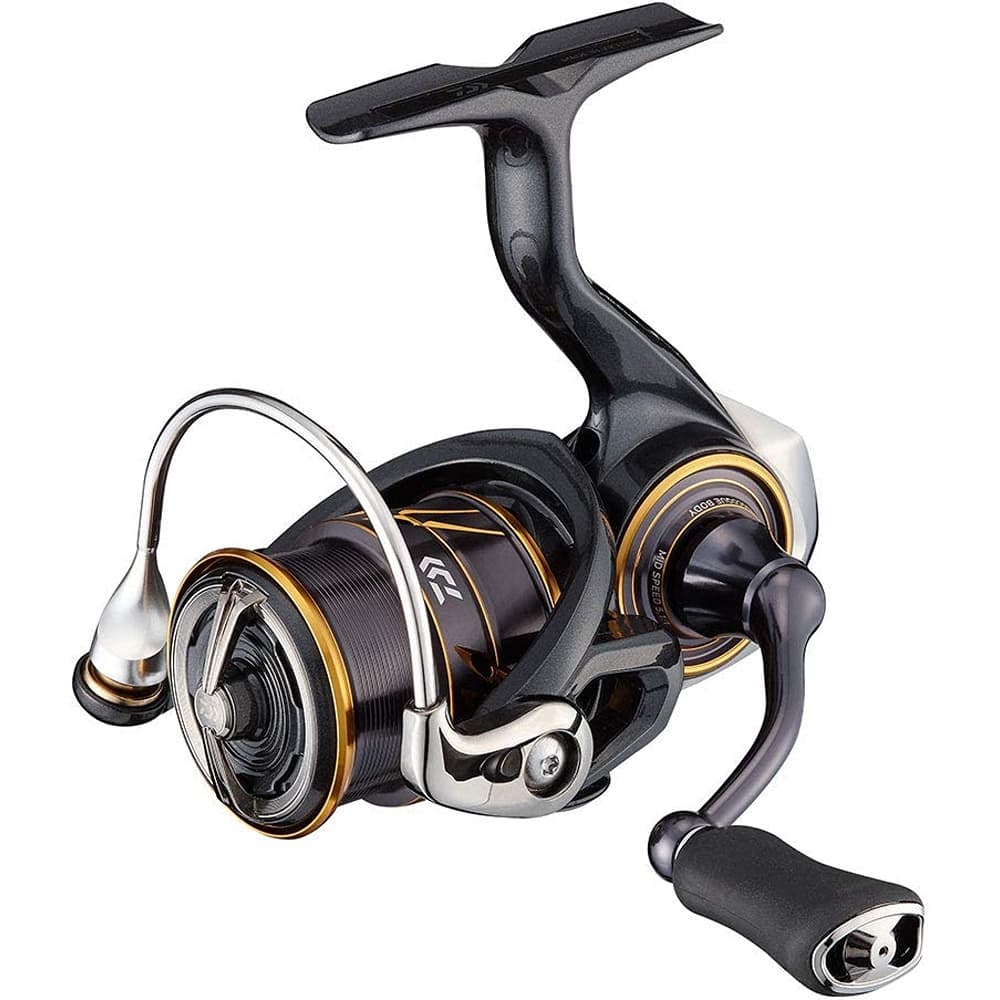

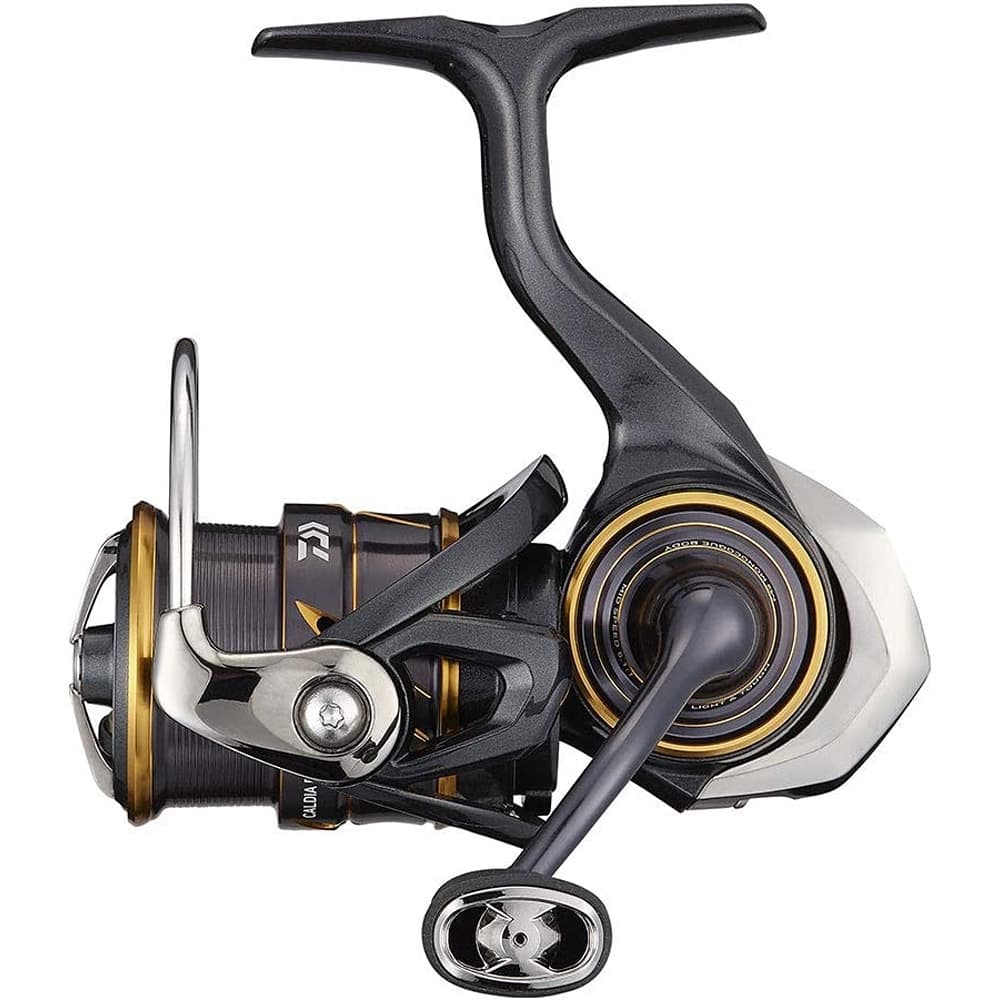

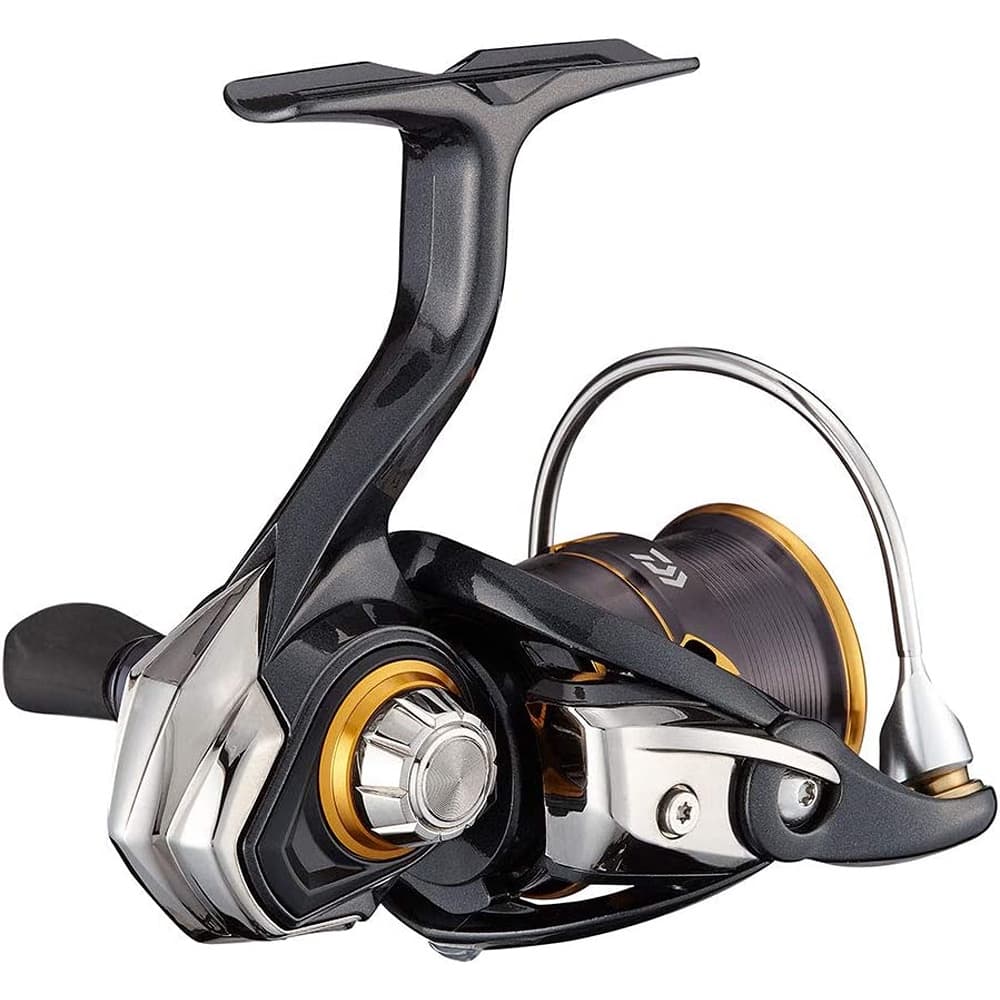

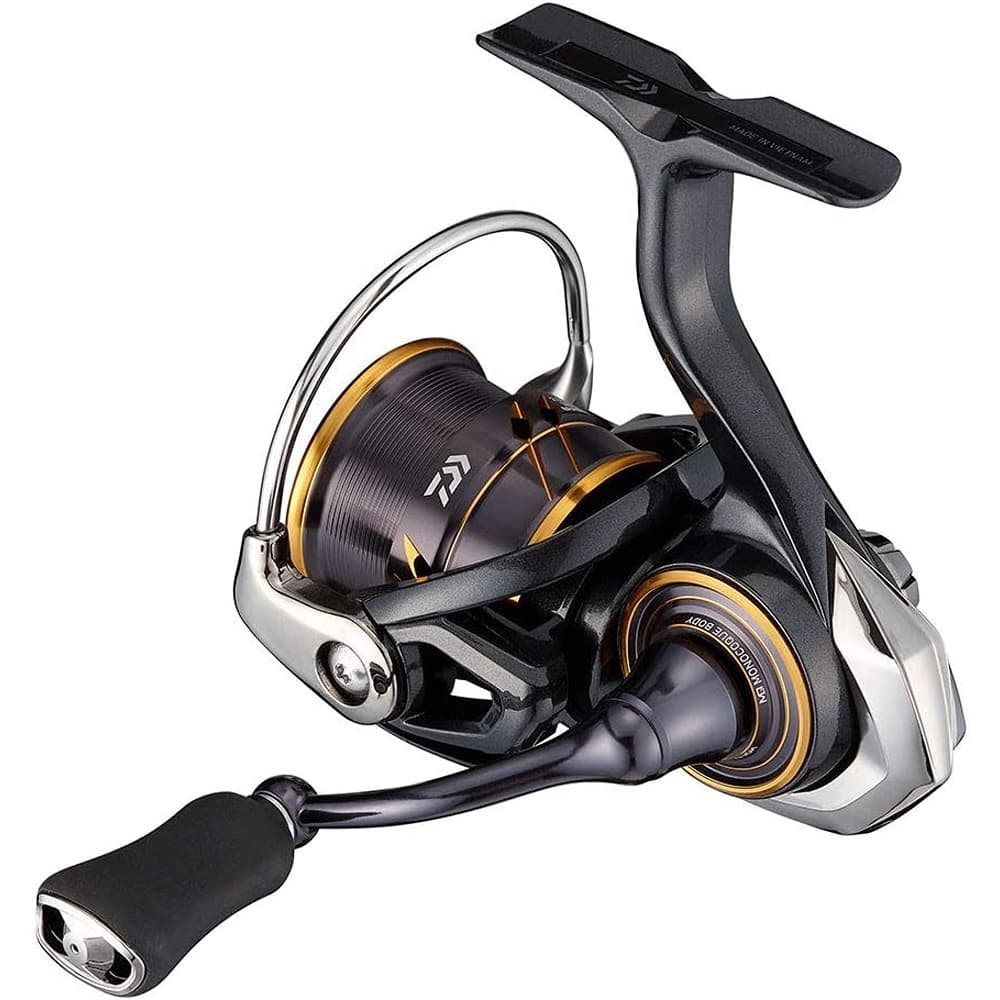

FC LT1000S	Left/Right	5.1	6+1	11	6	1.5/110, 1.8/110, 2/80	3/230, 4/220, 5/140	25

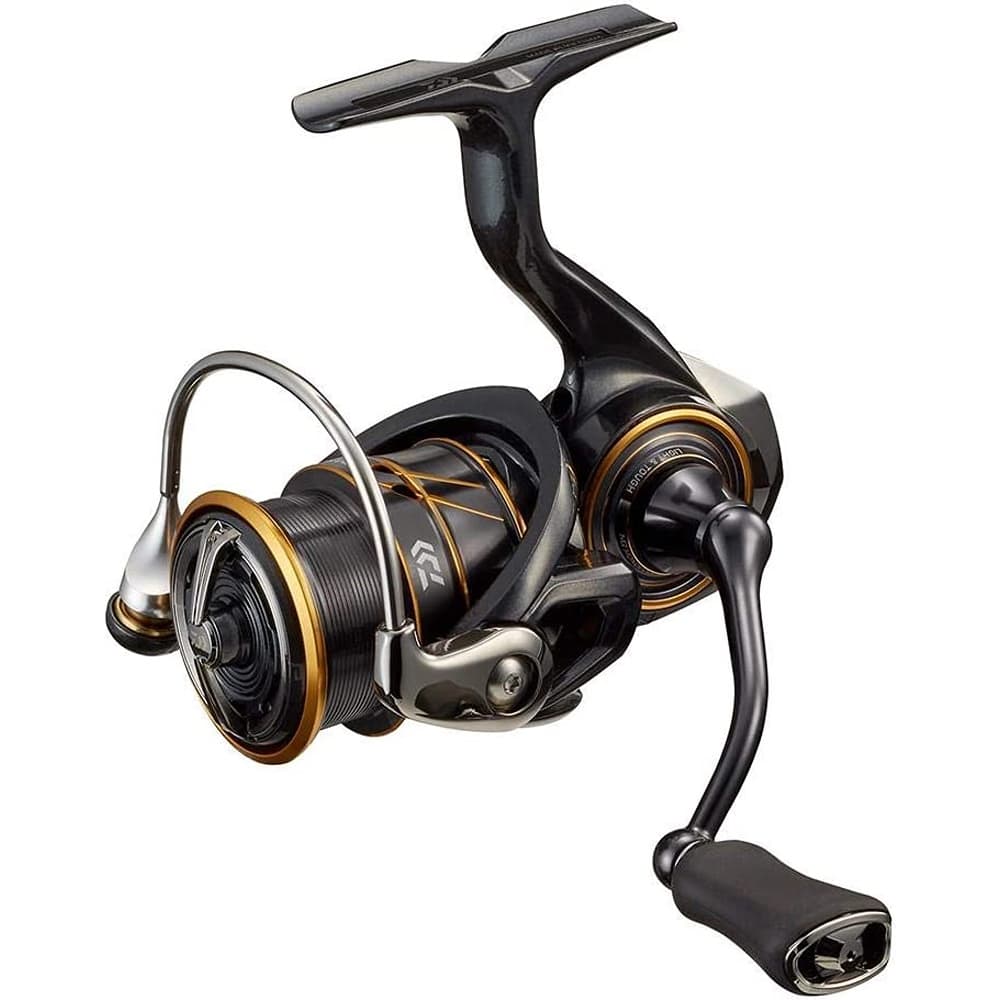

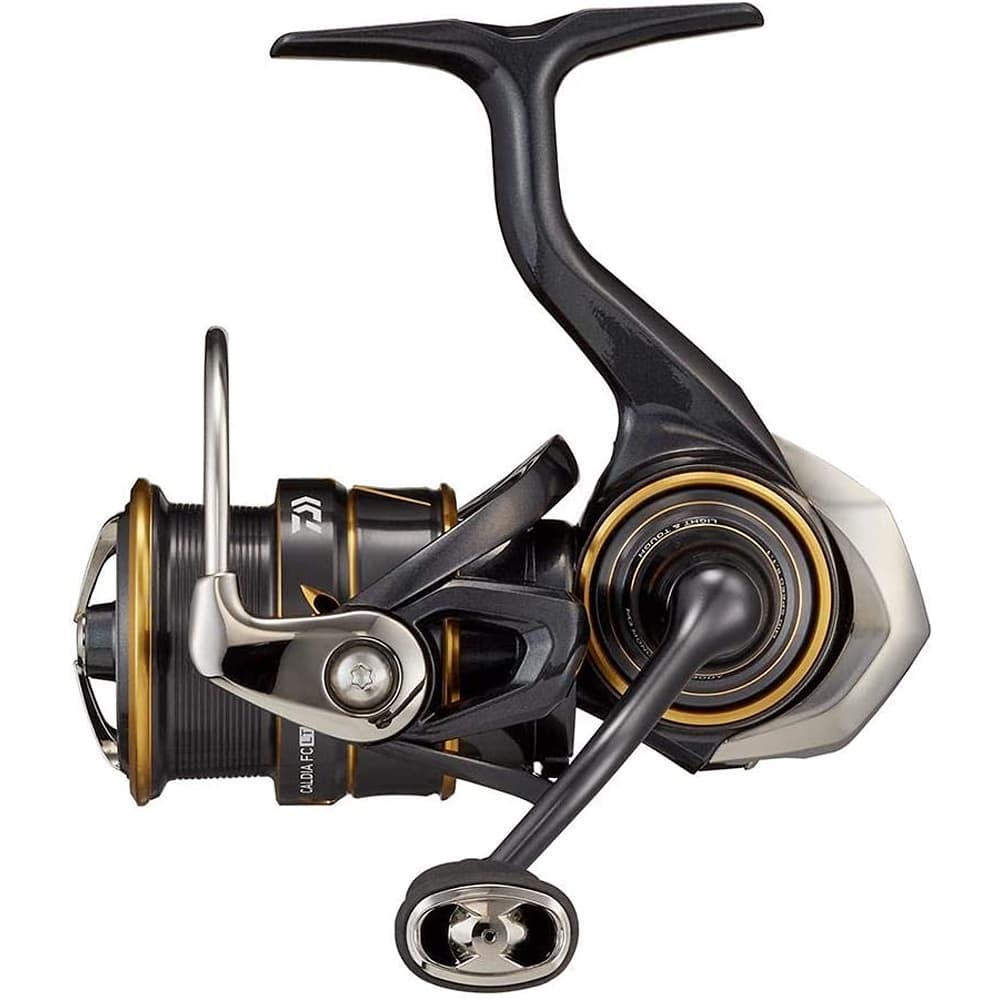

FC LT2000S	Left/Right	5.1	6+1	11	6.2	1.8/220, 2/160, 2.5/110	5/220, 6/190, 8/160	26

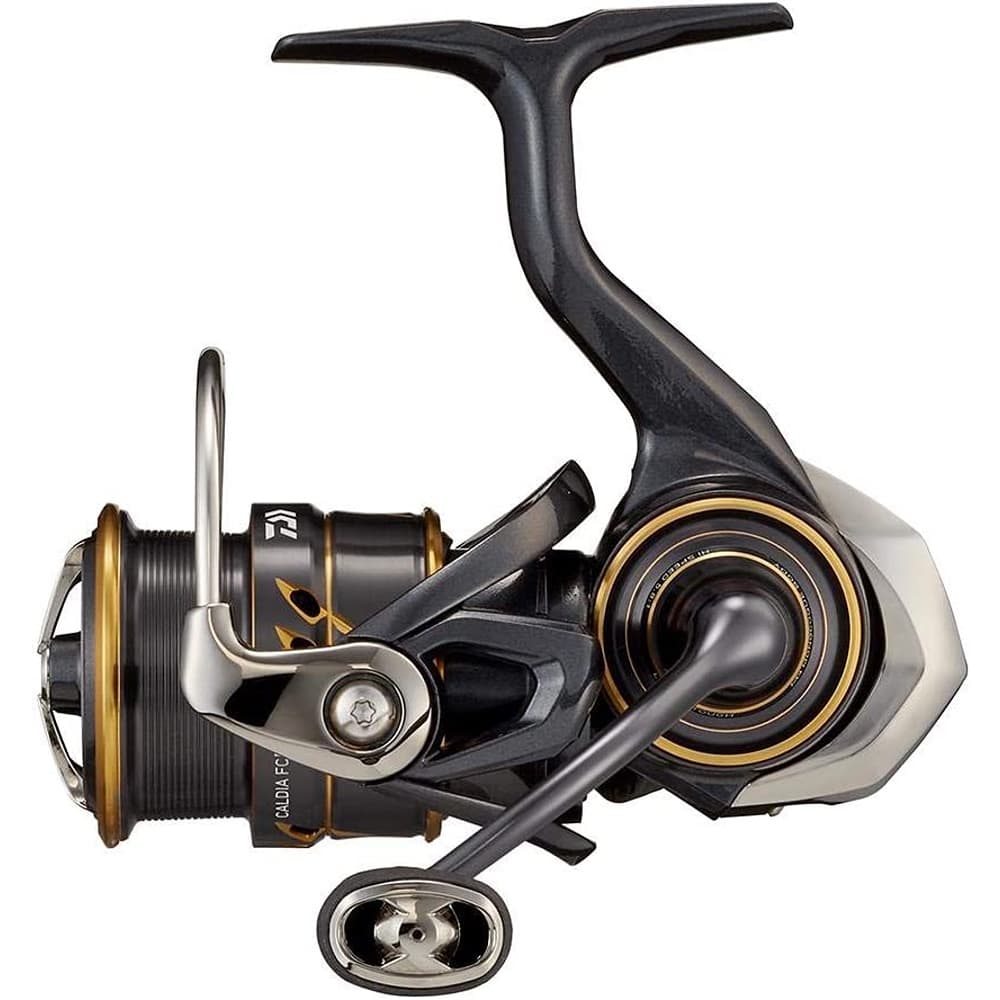

FC LT2000S-H	Left/Right	5.8	6+1	11	6.2	1.8/220, 2/160, 2.5/110	5/220, 6/190, 8/160	30

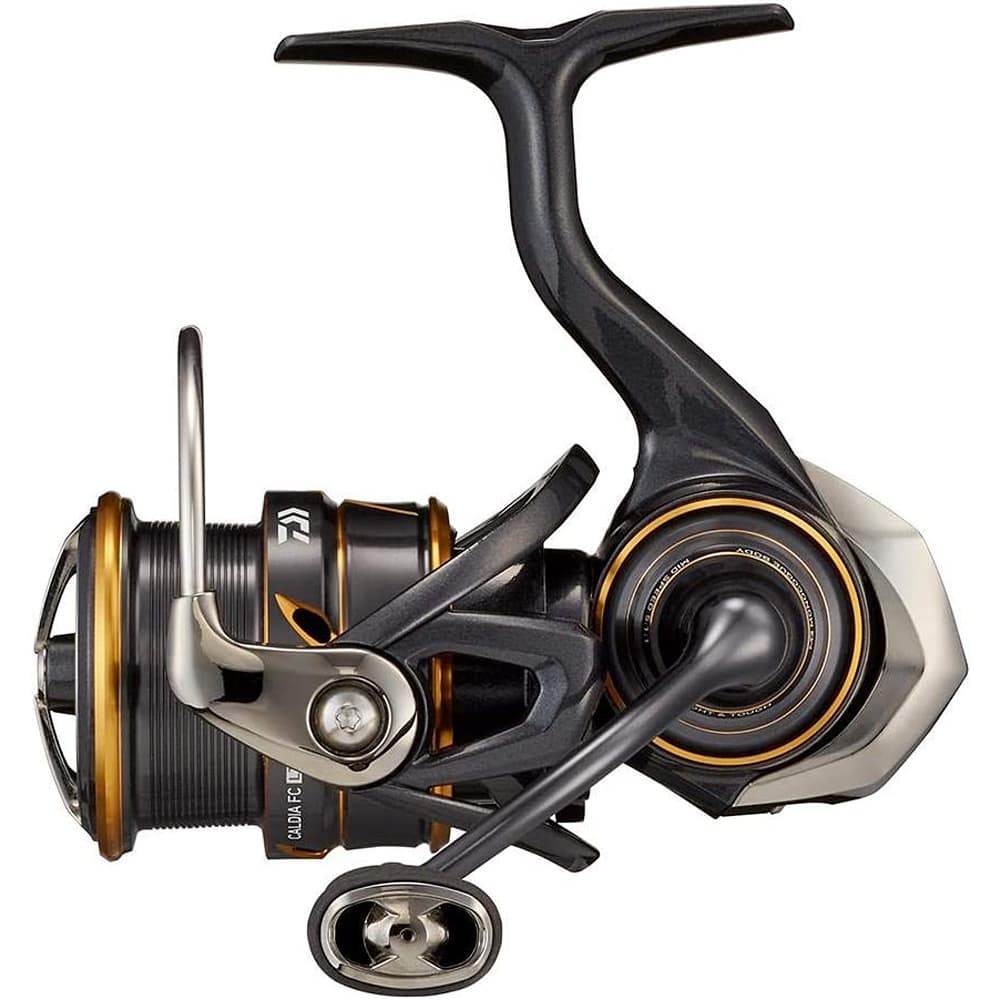

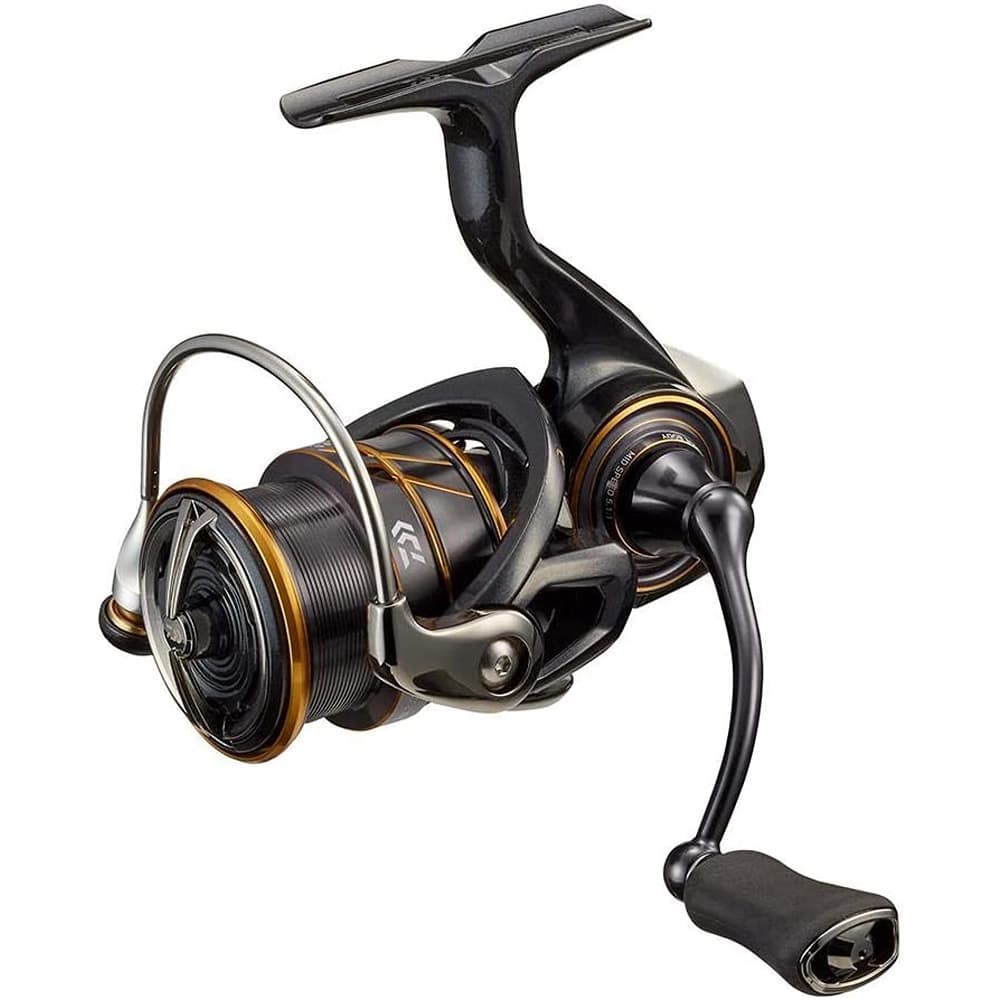

FC LT2500S	Left/Right	5.1	6+1	11	6.3	2.5/160, 3/130, 4/110	8/220, 10/210, 12/150	28

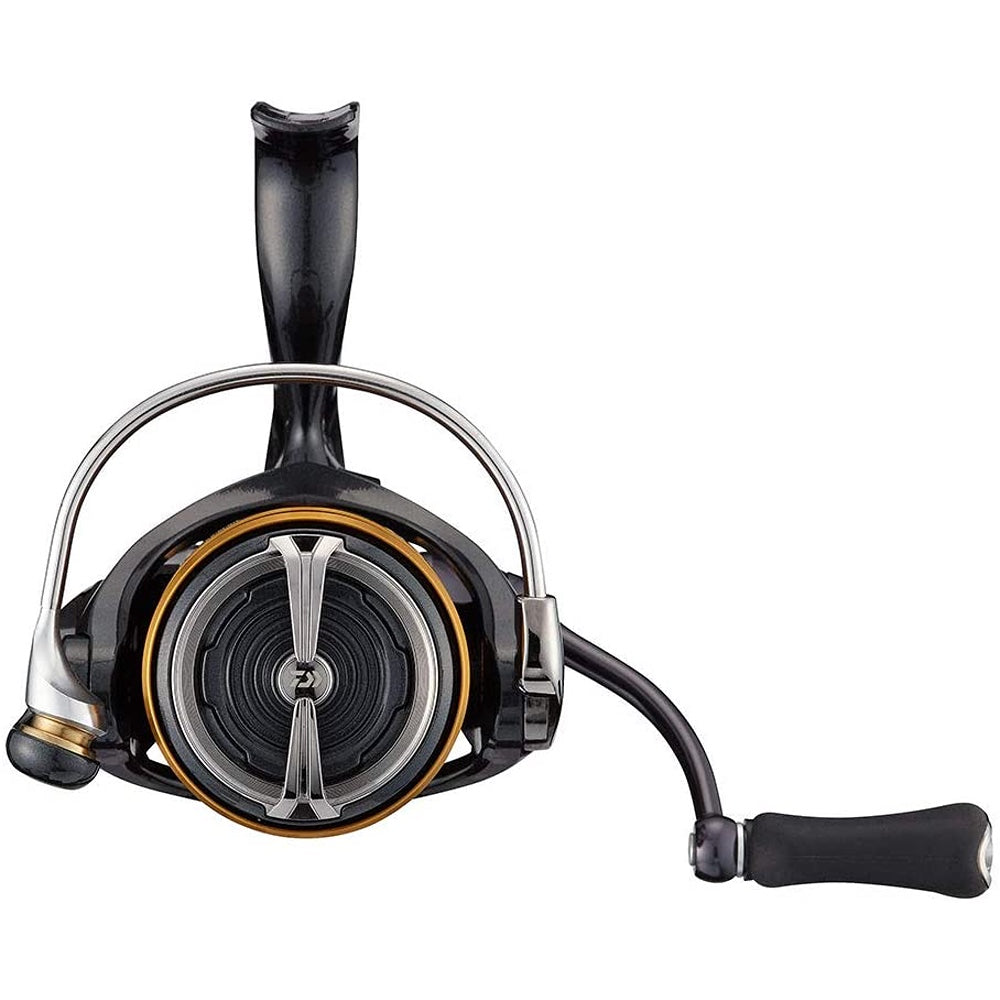

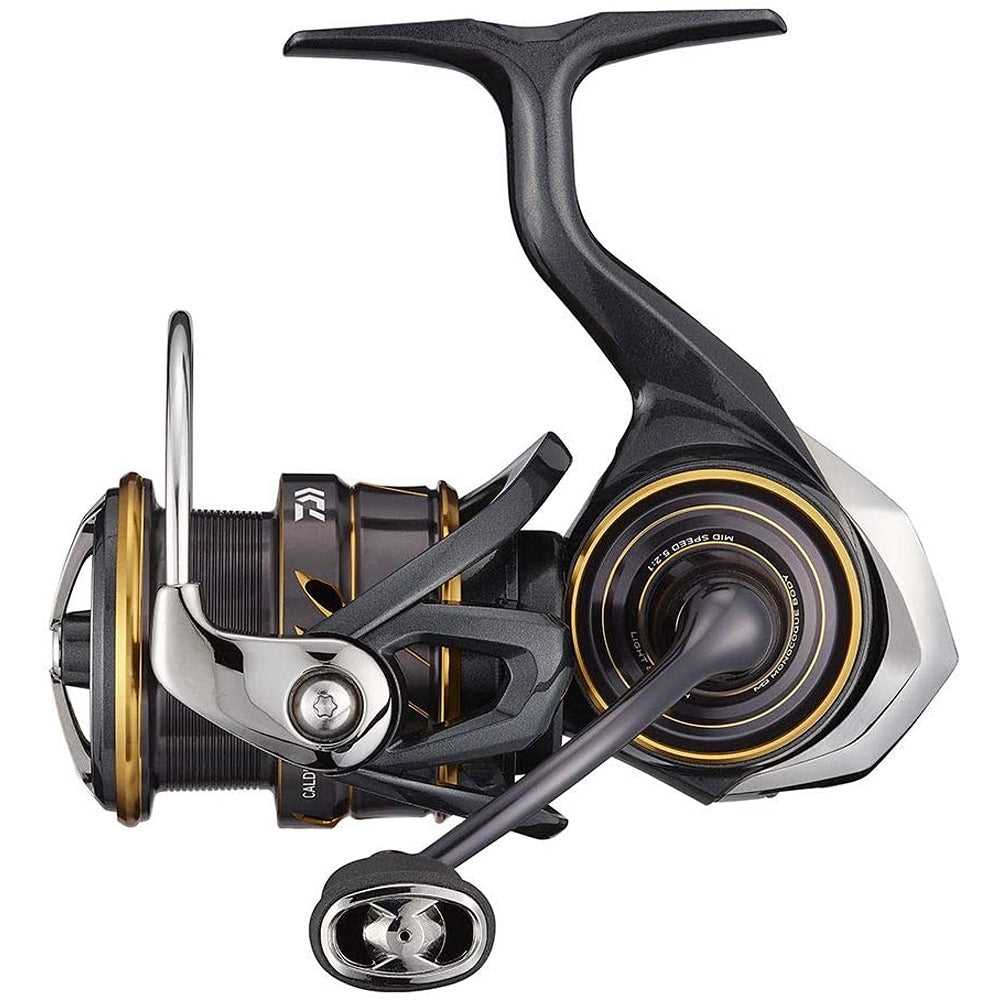

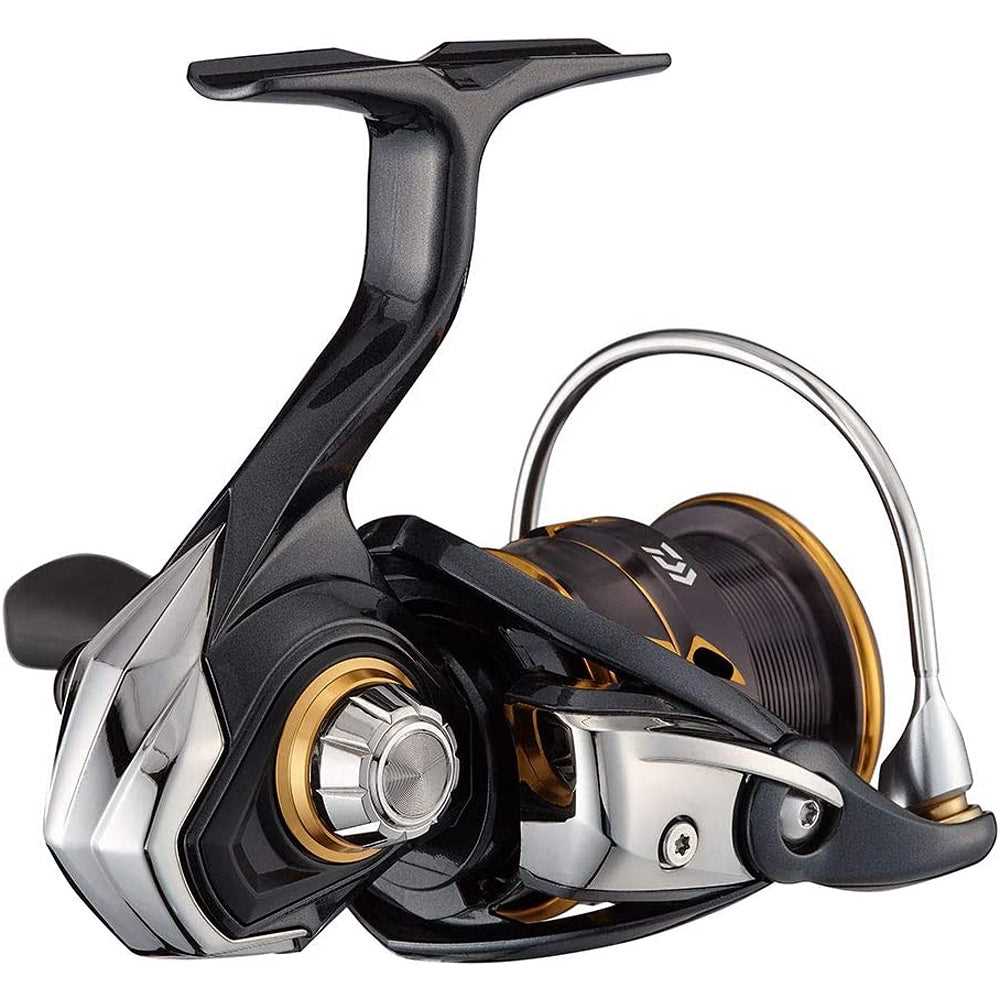

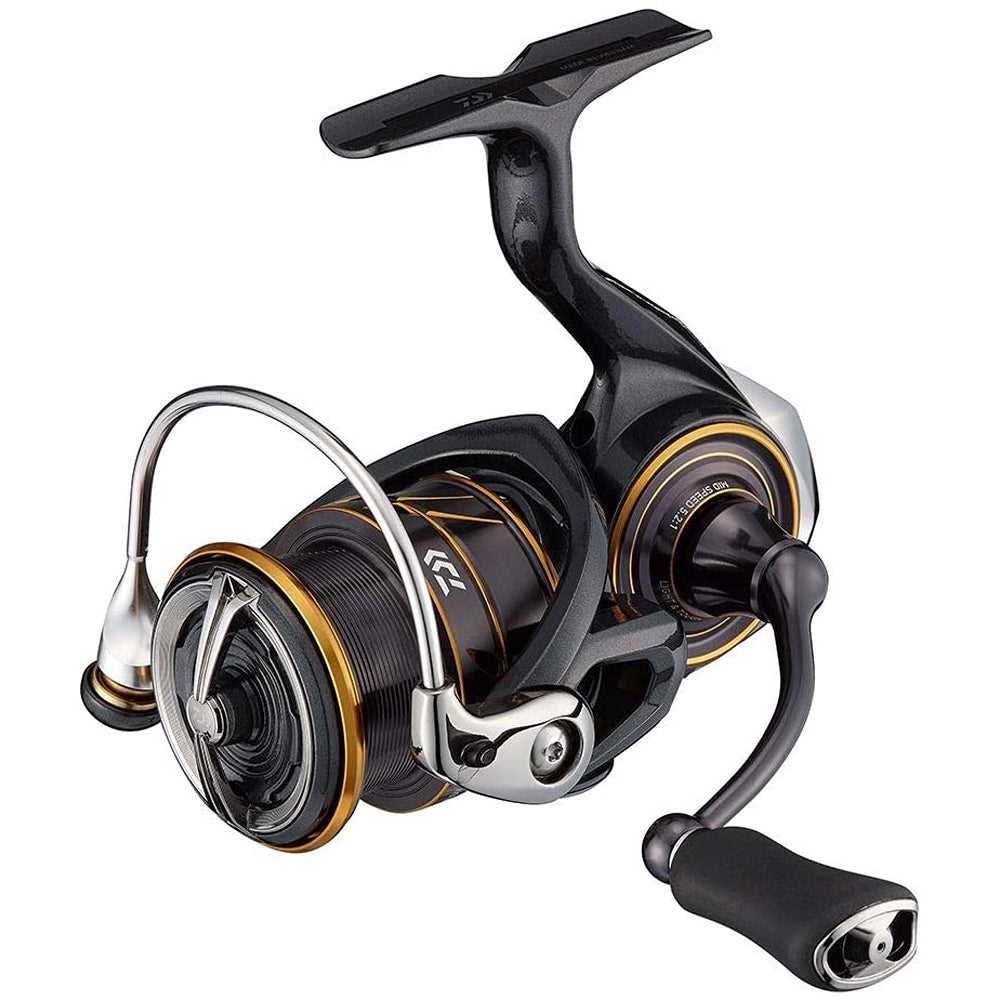

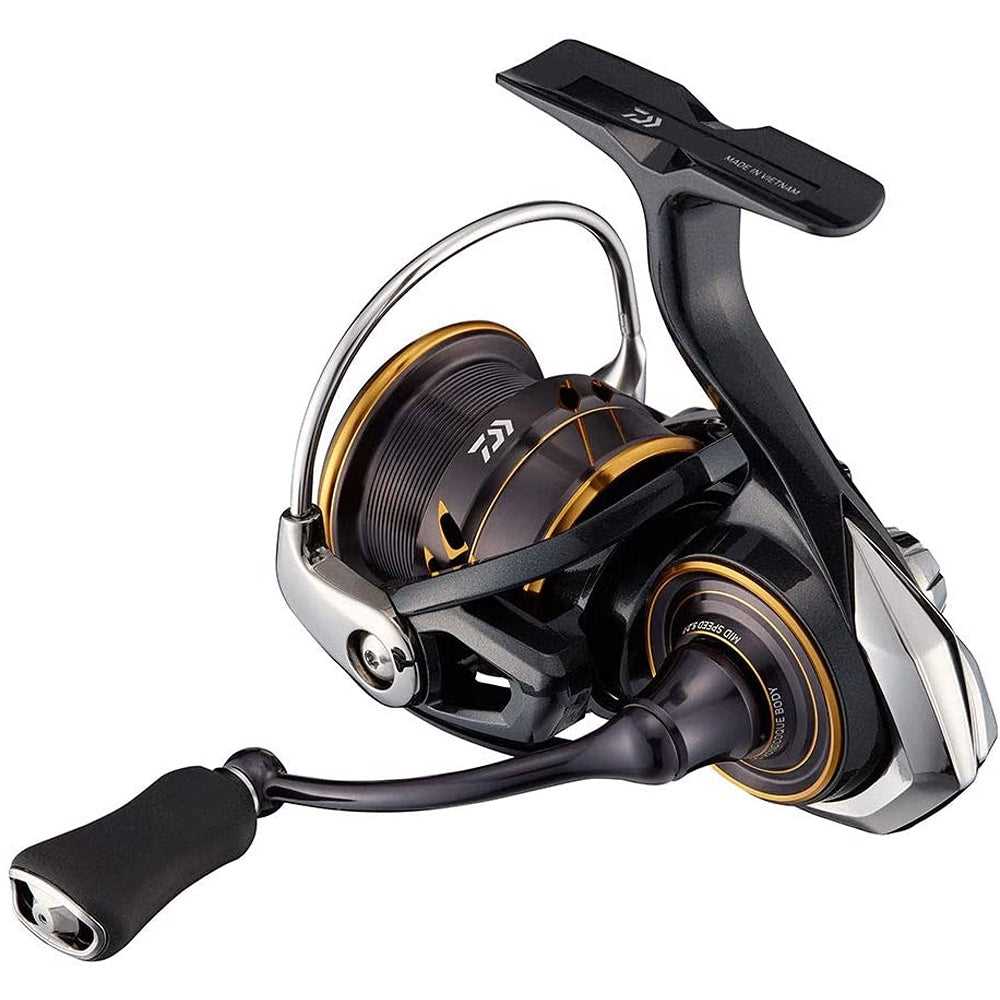

LT2500	Left/Right	5.2	6+1	22.1	6.9	2.5/250, 4/160, 6/110	8/220, 10/210, 12/150	29

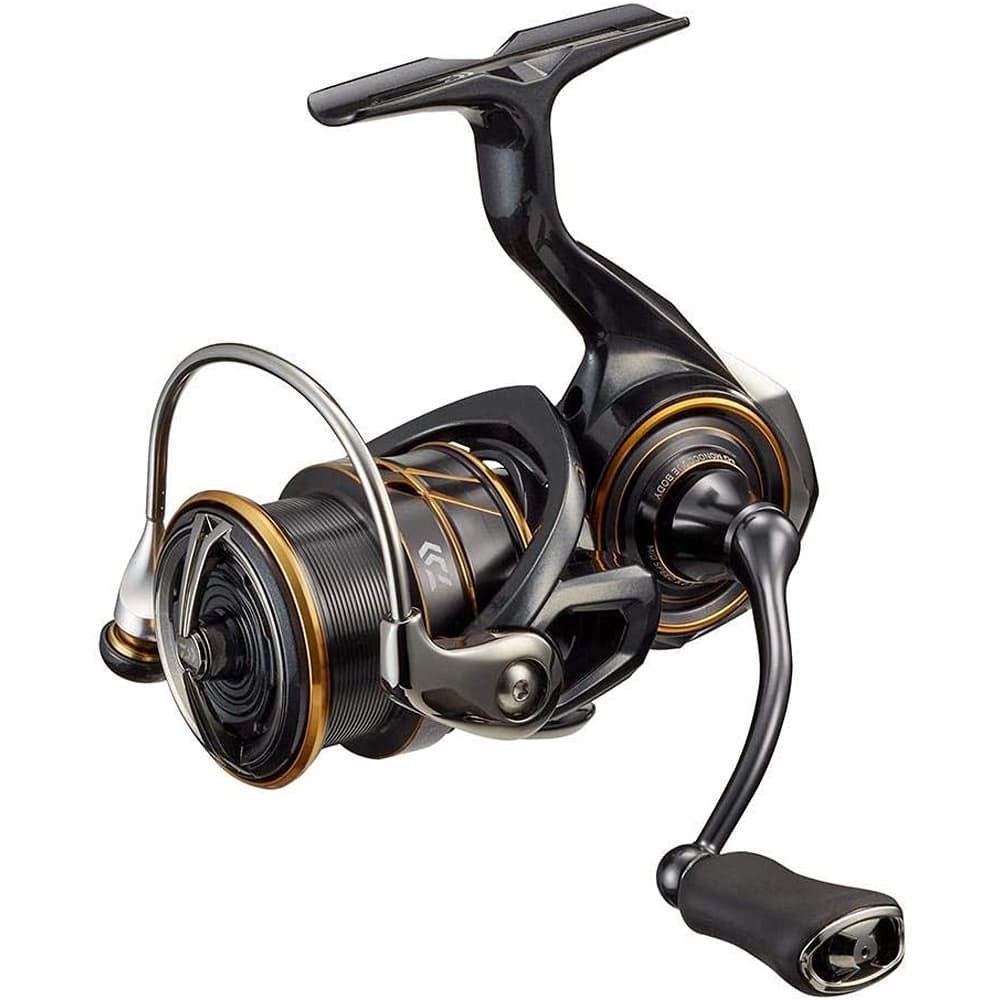

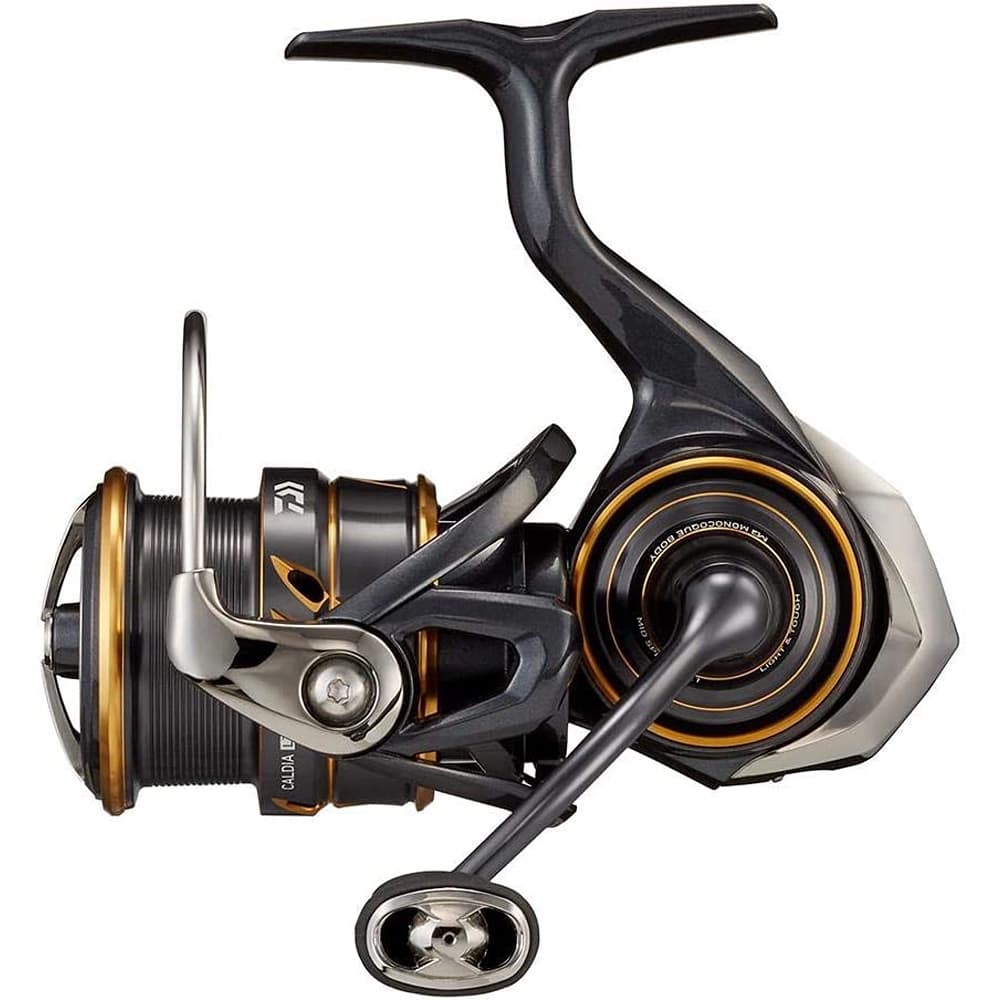

LT2500S	Left/Right	5.2	6+1	11	6.7	2.5/160, 3/130, 4/110	8/220, 10/210, 12/150	29

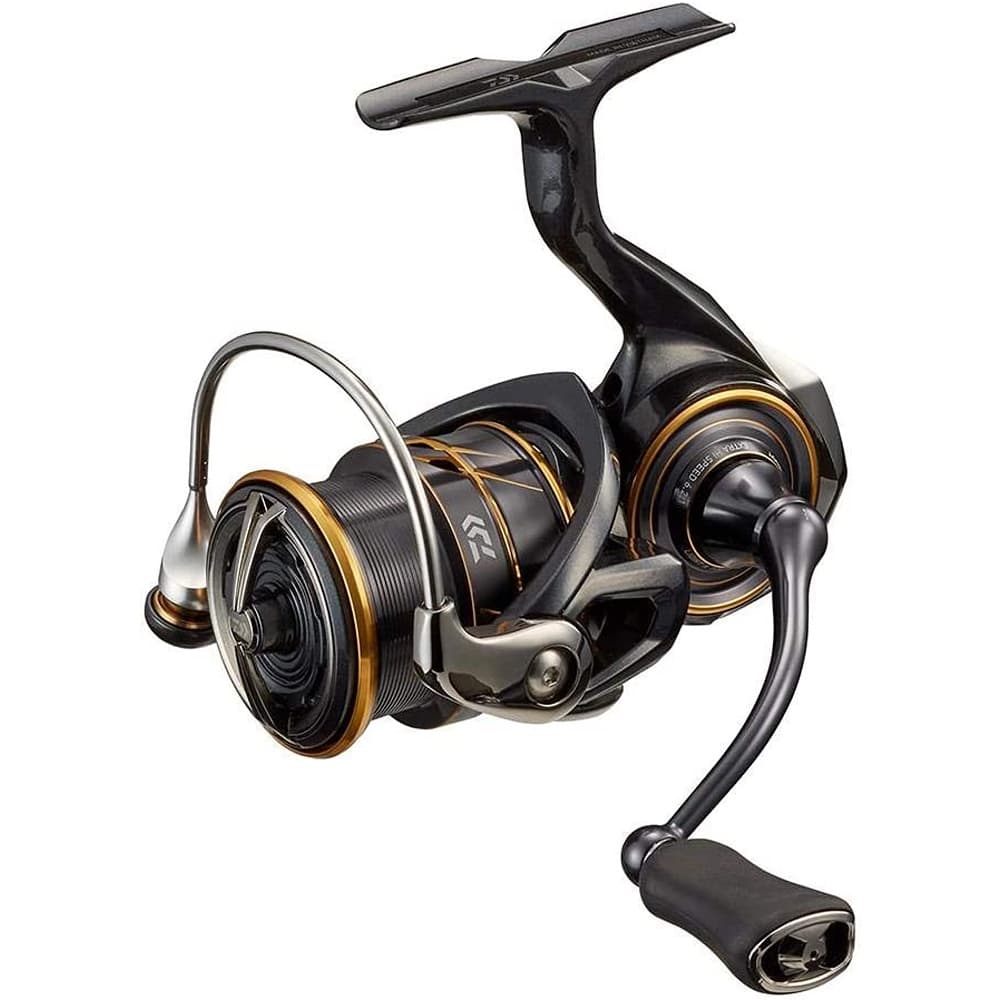

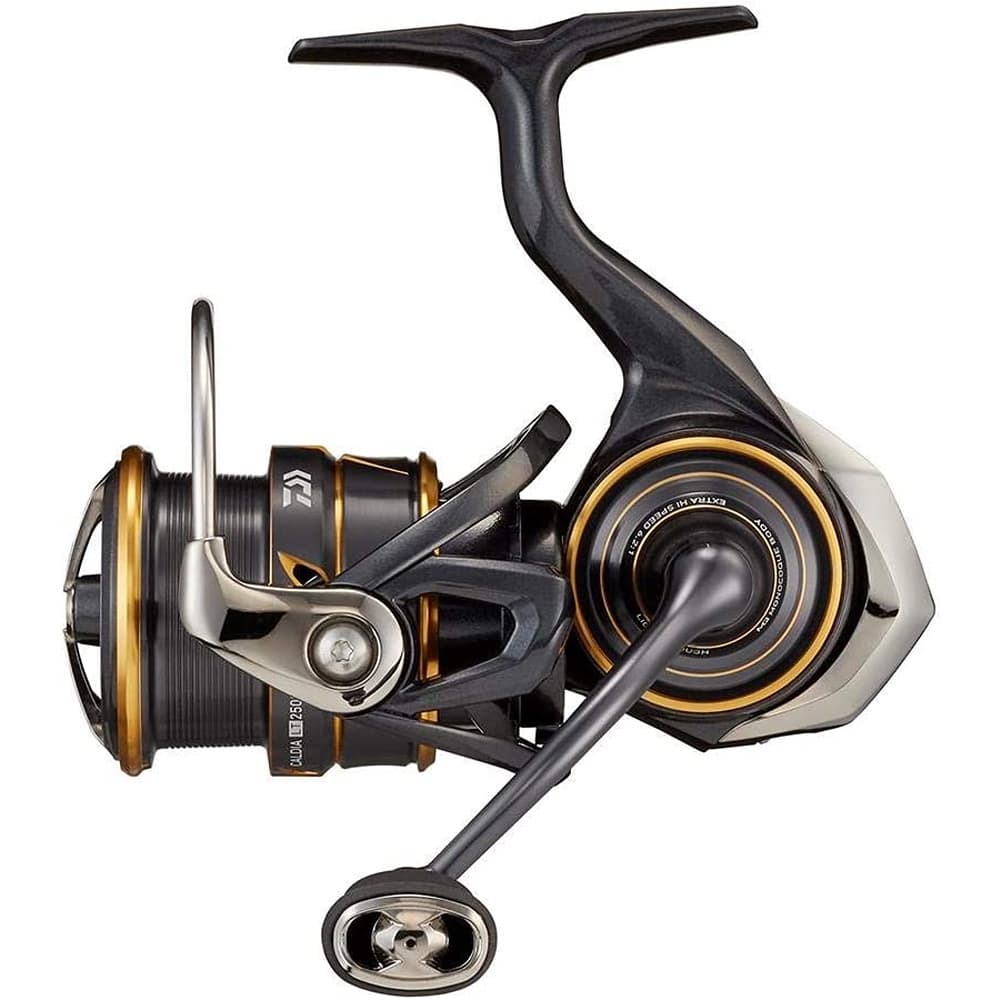

LT2500S-XH	Left/Right	6.2	6+1	11	6.7	2.5/160, 3/130, 4/110	8/220, 10/210, 12/150	34
LT3000-CXH	Left/Right	6.2	6+1	22.1	7.2	6/160, 8/130, 10/110	12/220, 15/210, 16/190	37

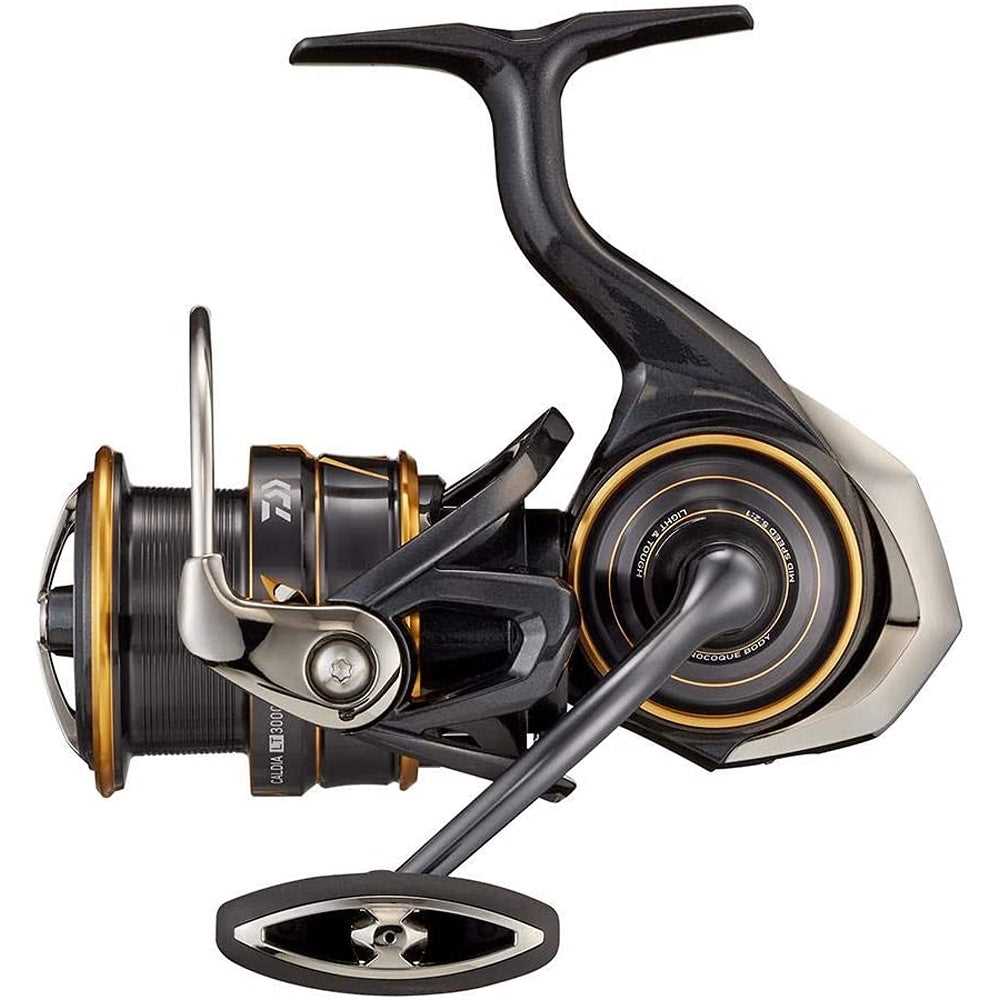

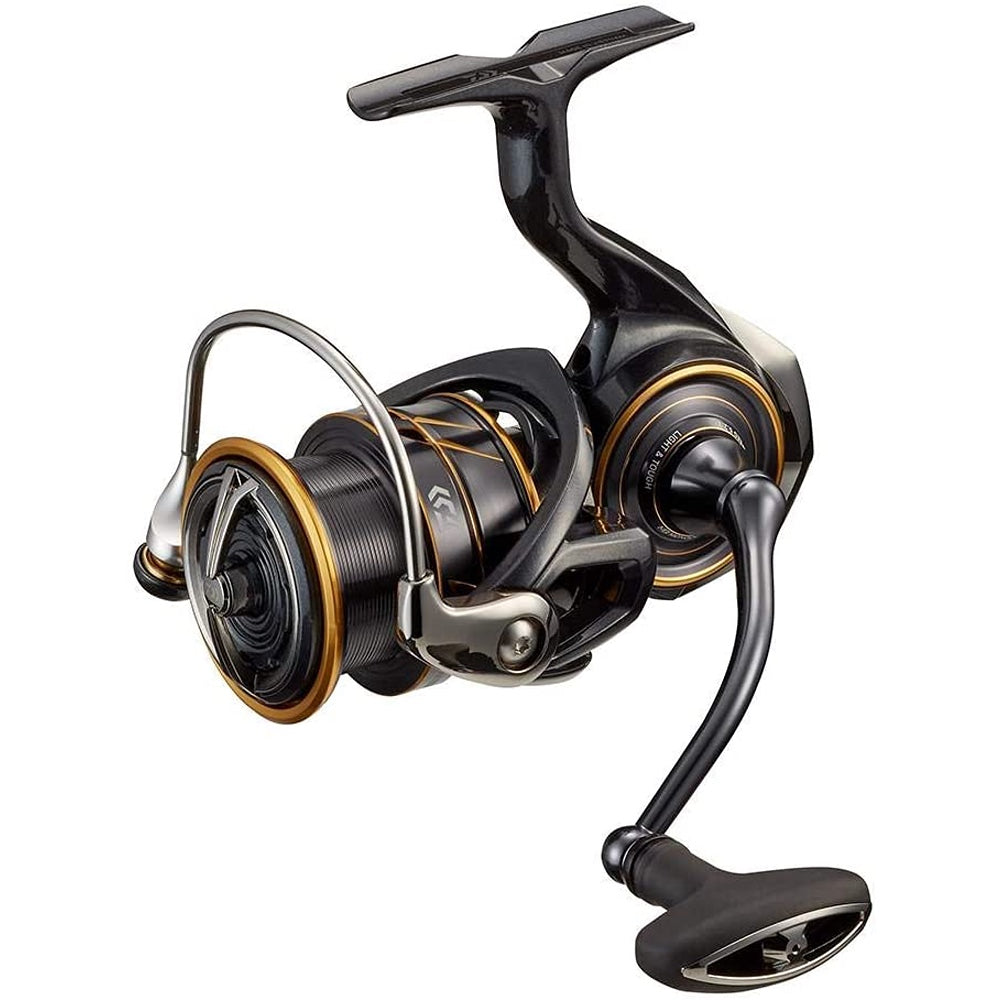

LT3000	Left/Right	5.2	6+1	22.1	7.6	6/160, 8/130, 10/110	12/220, 15/210, 16/190	30
LT3000-XH	Left/Right	6.2	6+1	22.1	7.6	6/160, 8/130, 10/110	12/220, 15/210, 16/190	37

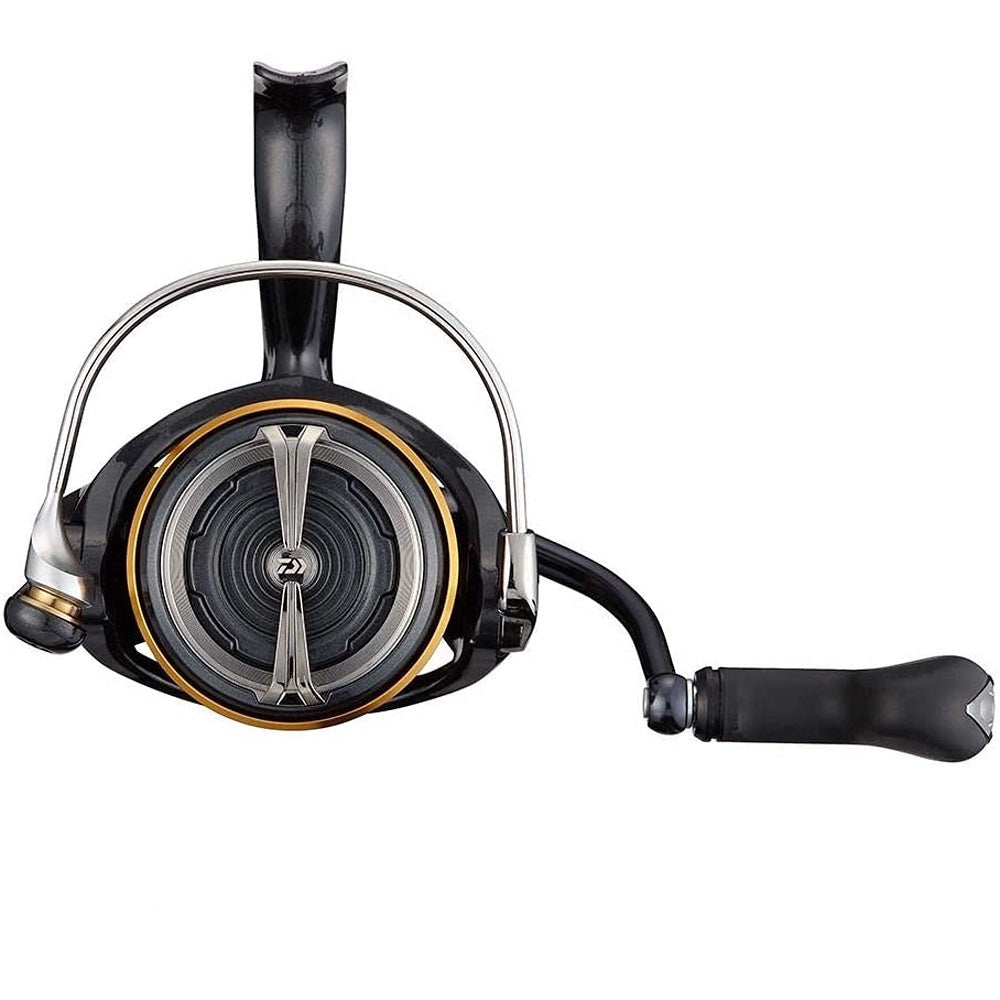

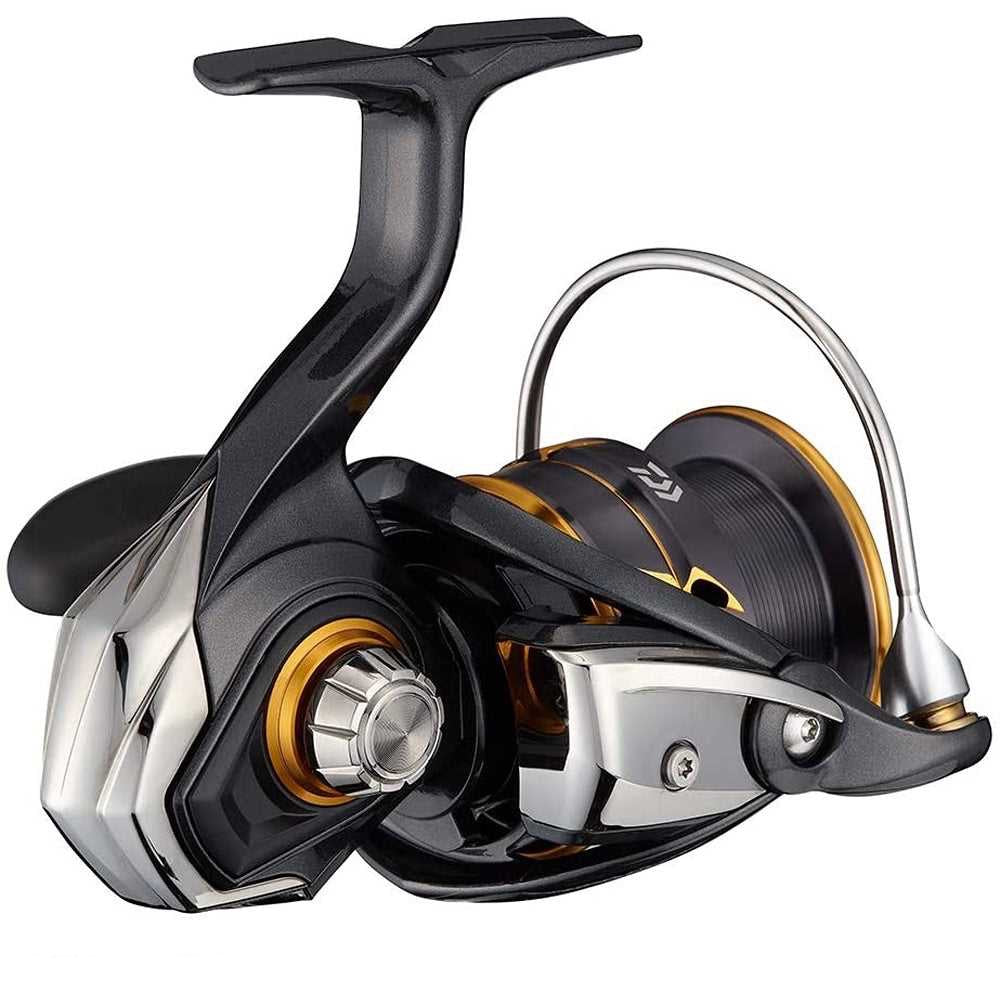

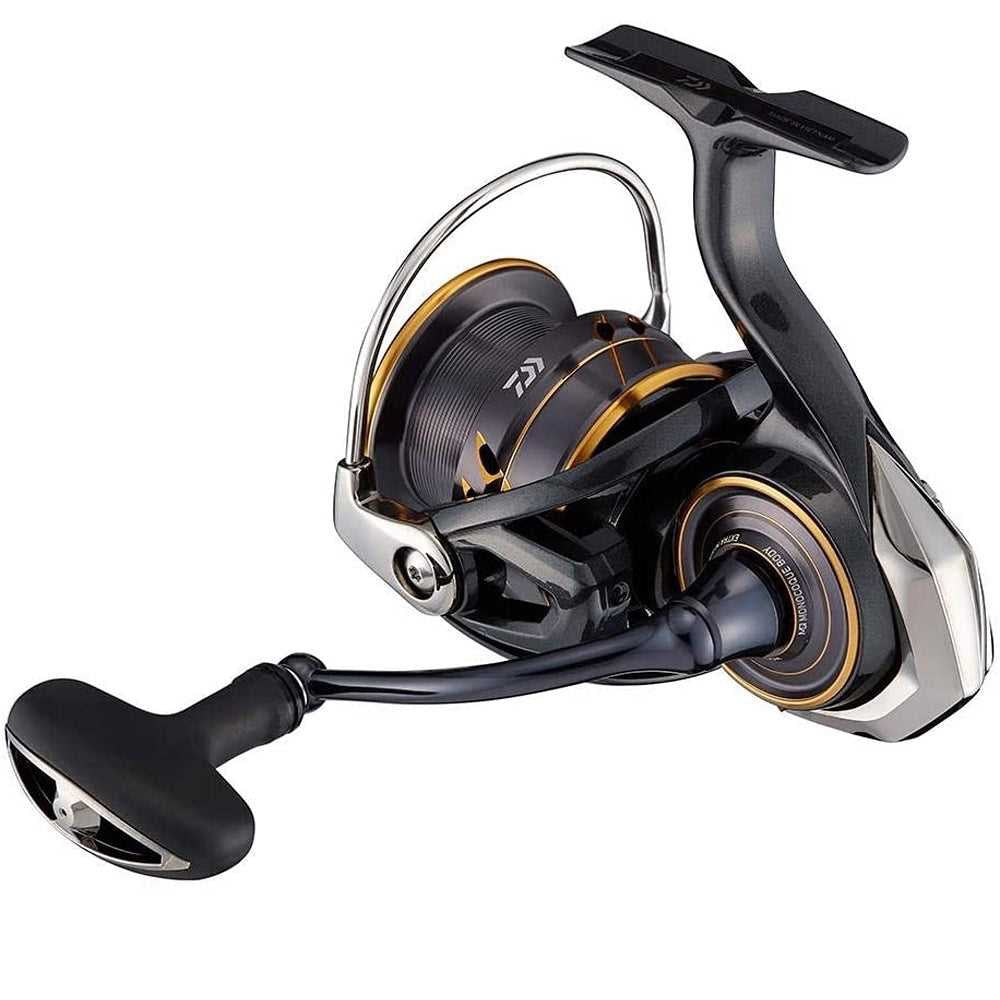

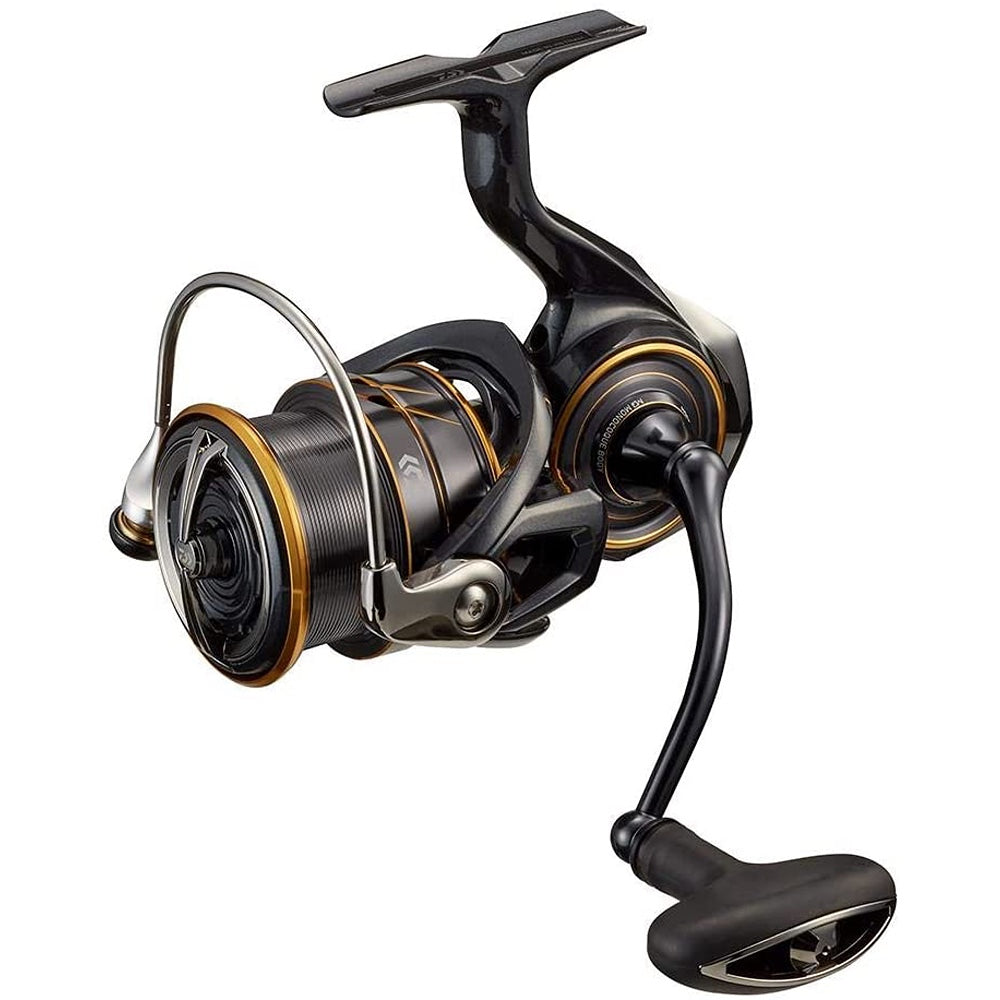

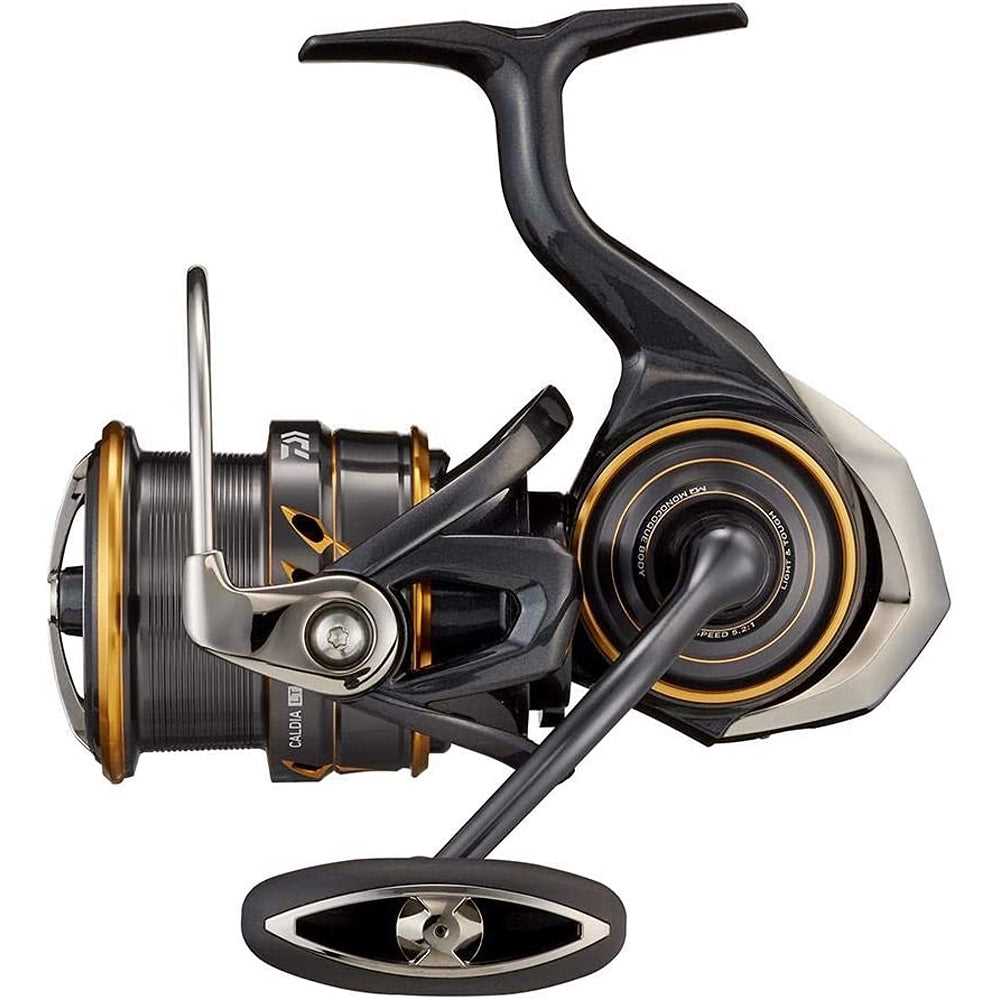

LT4000S-C	Left/Right	5.2	6+1	26.5	8.1	6/160, 8/130, 10/110	12/220, 15/210, 16/190	32

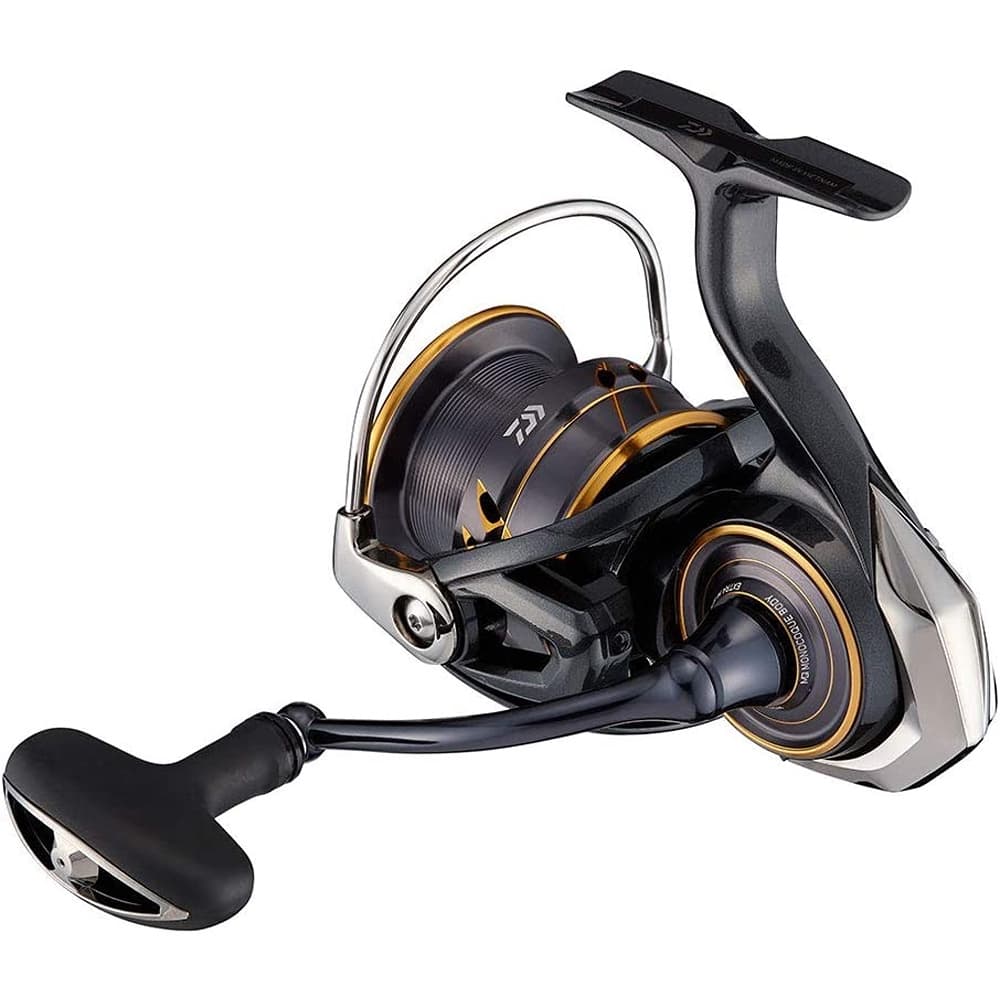

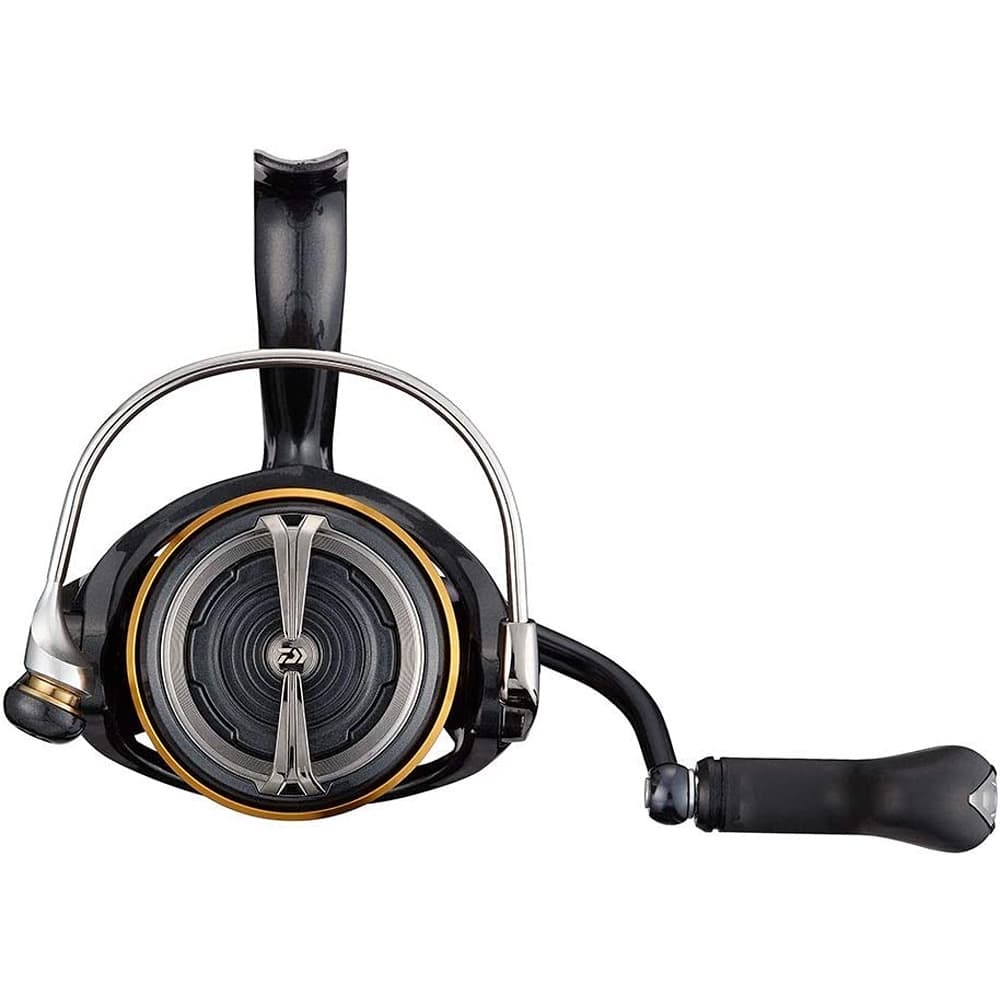

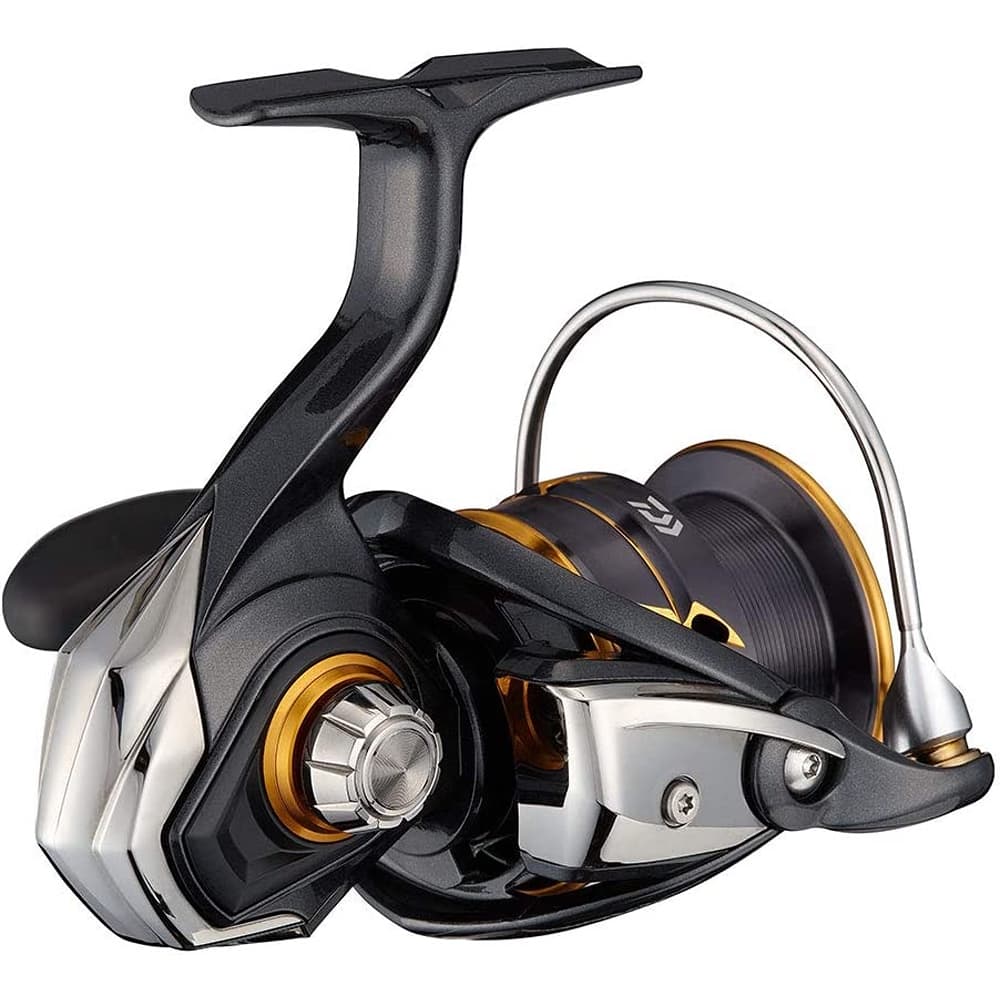

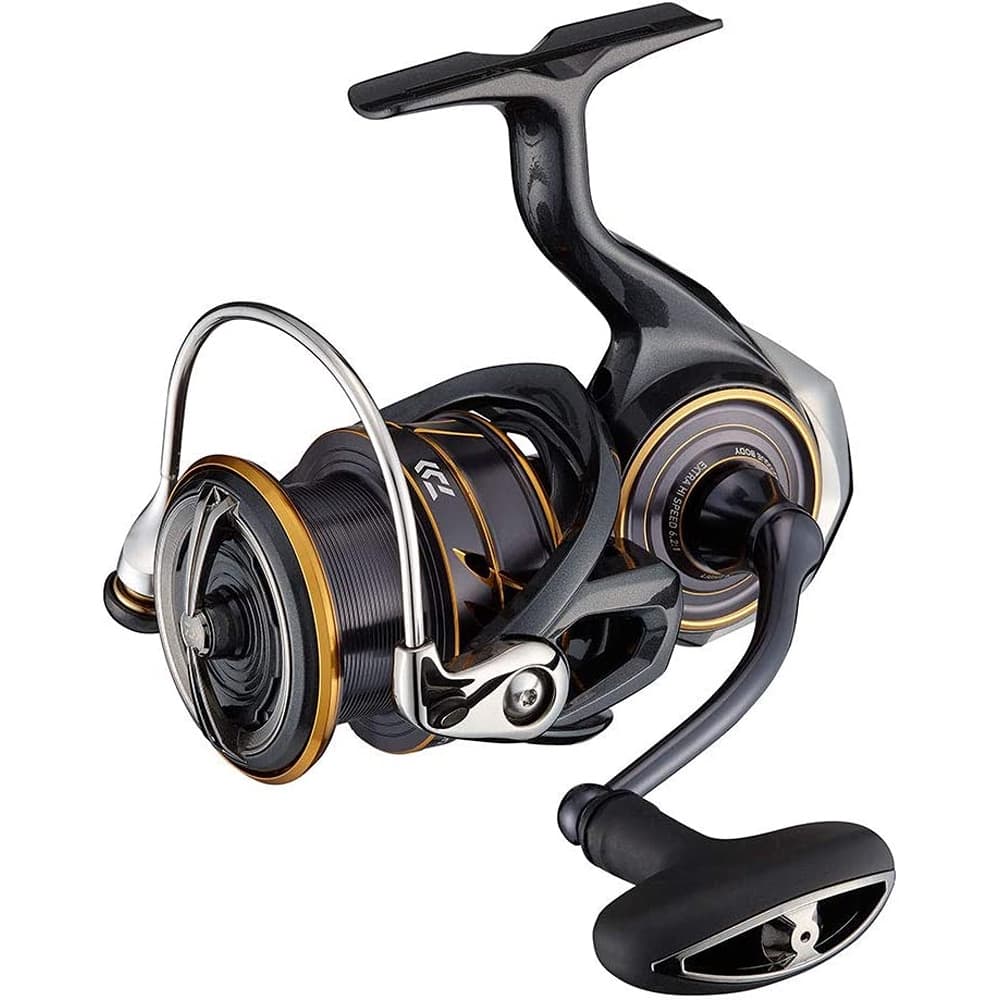

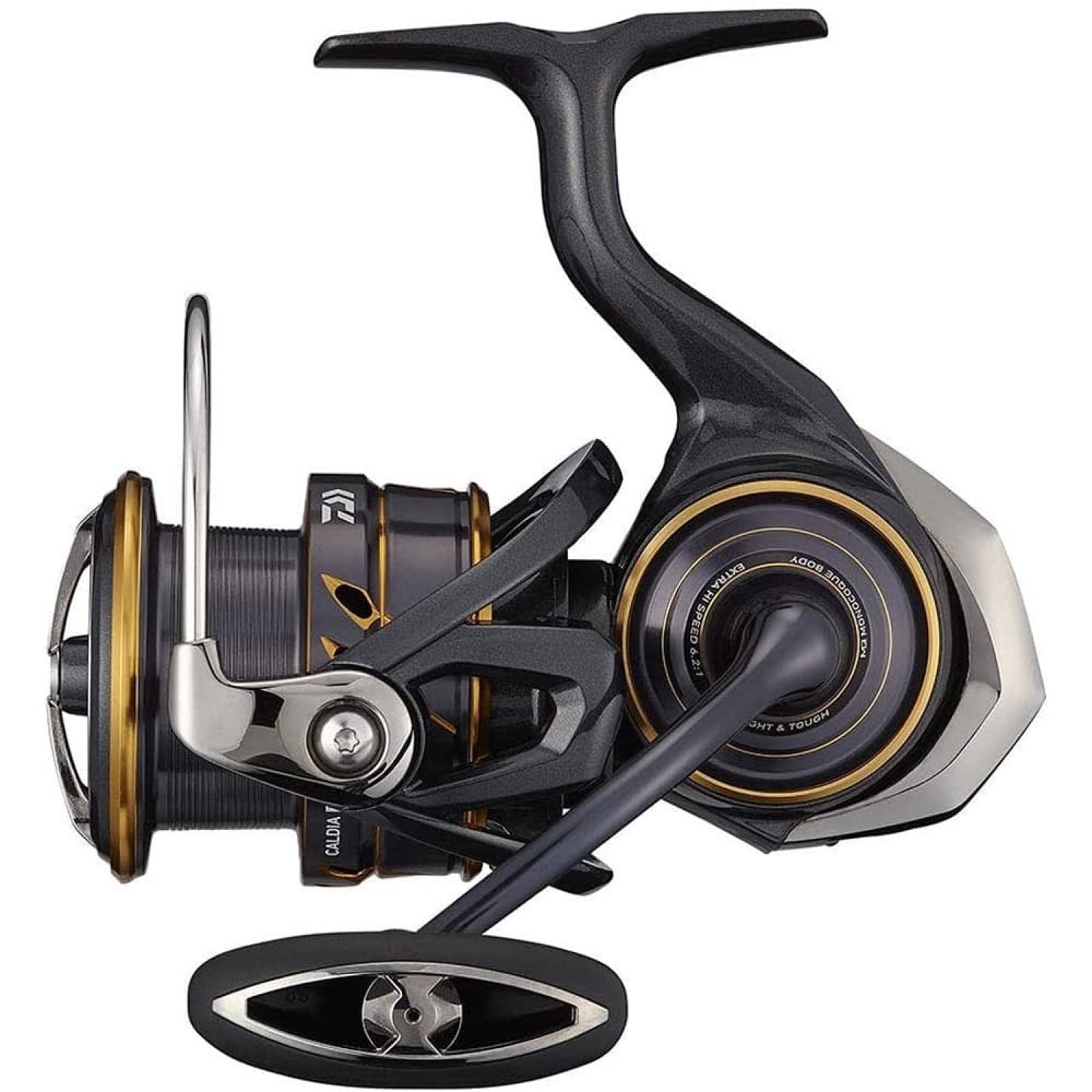

LT4000-CXH	Left/Right	6.2	6+1	26.5	8.1	8/210, 10/160, 12/140	15/340, 16/220, 20/190	39

Scroll for more→

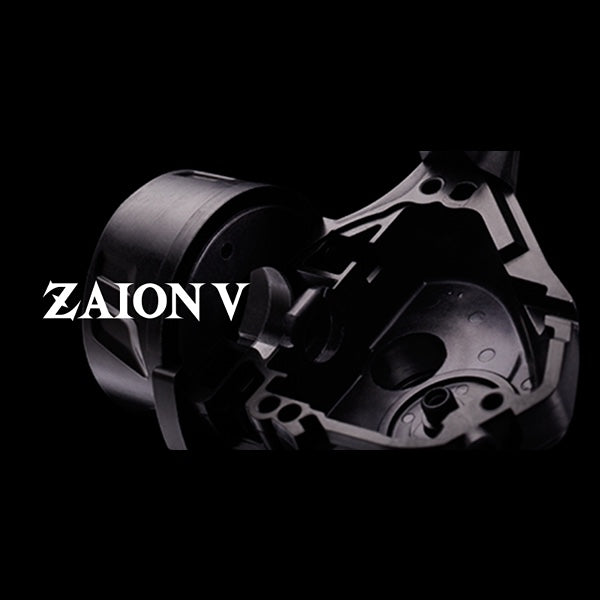

ZAION V

Lighter and stronger reels. The carbon hybrid resin developed for this purpose is ZION V (V = Versatile). By precisely controlling the amount of carbon used in the hybrid, we have achieved a high level of lightness that surpasses metal and strength that rivals metal, as well as versatility that allows it to be used in a wide range of reels. It inherits the essence of ZION, which can be said to be the MAX spec of carbon hybrid resin.

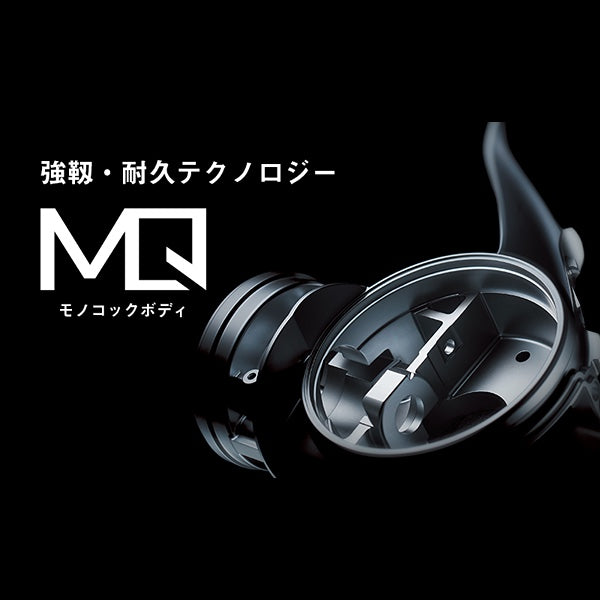

MONOCOQUE BODY

This design incorporates a one-piece frame and a one-piece threaded side plate. Because screws are not necessary to attach the side plate and hold the main gear, the interior space in the body is greater allowing for a larger more powerful gear held in place by the lighter, sturdier body rather than the traditional side plate

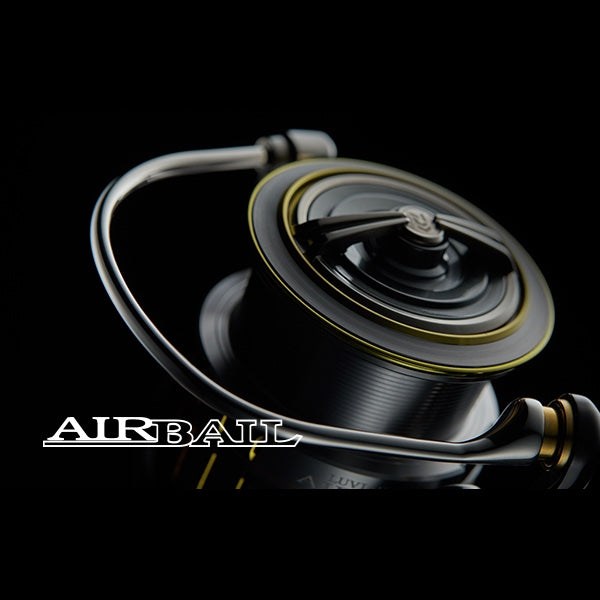

AIR BAIL

DAIWA's innovative bail design features a hollow, tubular stainless steel bail for maximum rigidity and strength with minimum weight. Due to the smooth, protrusion-free design of the Air Bail, even loose line, common after a cast slides easily down the bail onto the line roller as the reel is turned, without snagging or hanging up.

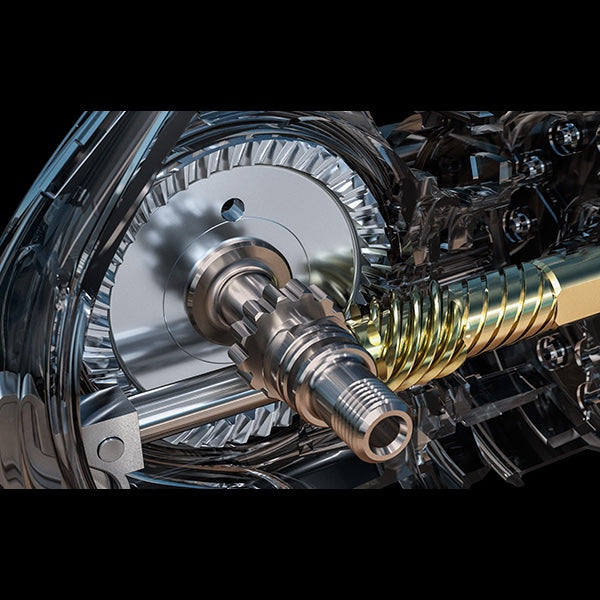

TOUGH DIGIGEAR

To withstand the harsh environment, the reel needs a strong heart to support it. Tough Digi Gear" keeps smooth rotation longer. The synergistic effect with Mag-Shield refines durability.

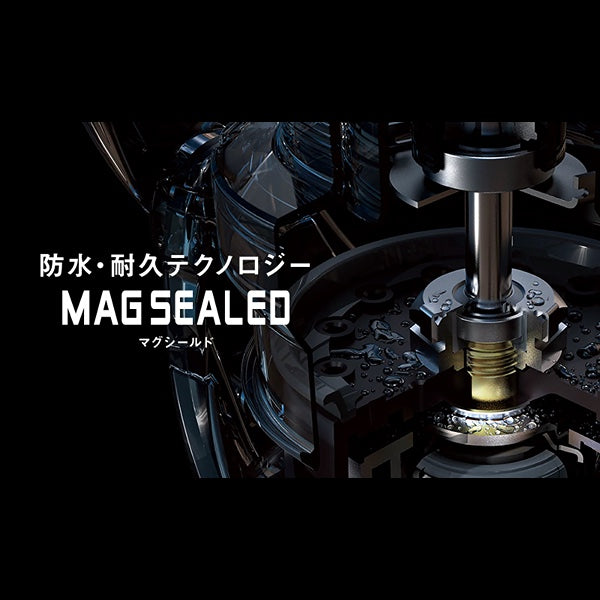

MAGSEALED

The Mag Sealed principle is based on special magnetic oil, which has been developed by the NASA to transport fuel to the space ships based on the magnetic principle. Such oil for reel production is not available in the market. It has to be manufactured under most difficult circumstances. The embedded ferric oxide, which is necessary for the magnetic field, has a diameter of 1/100.000mm.
The molecules in this new "metal oil" are capable of changing. If they are exposed to a magnetic field, they change their shape and the oil forms a fluid seal.
Such a seal, based on the principle of liquid magnetic oil produces nearly no friction, isolates perfectly and prevents even penetration of dust particles.
The big challenge for the DAIWA engineers was the development of a reel, which is designed for the principle of the magnetic oil to generate a kind of liquid membrane that prevents water penetration.
The Mag Sealed design is based on the purpose to keep water away from a spinning reel. First of all for sea anglers this is an amazing idea - since delivers a longer life span; no corrosion and better, pro longed function. If salt water penetrates the reel and dries, it crystallizes, corrodes the gearing and affects the ball bearings. Mag Sealed halts the travel of salt particles.
