Shimano

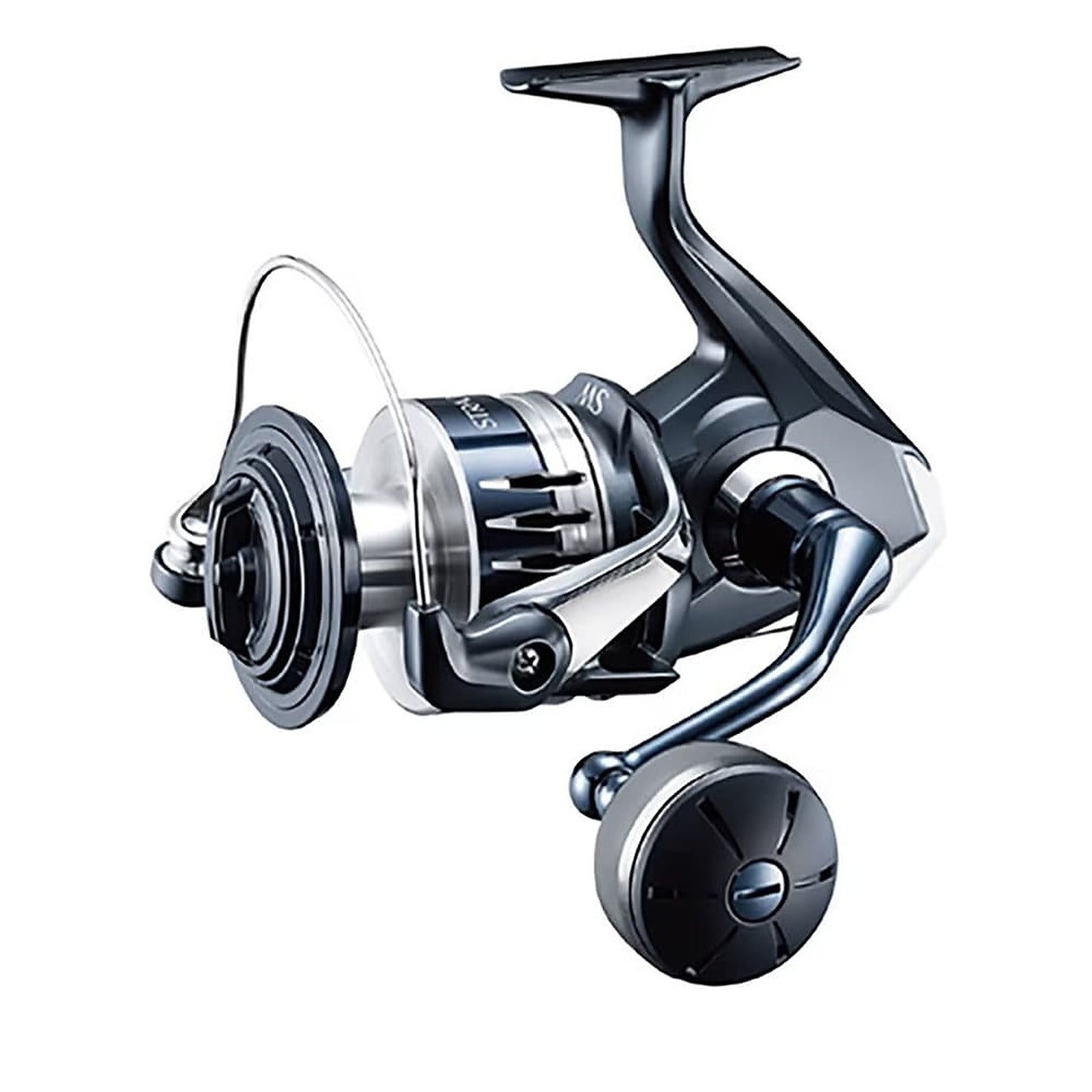

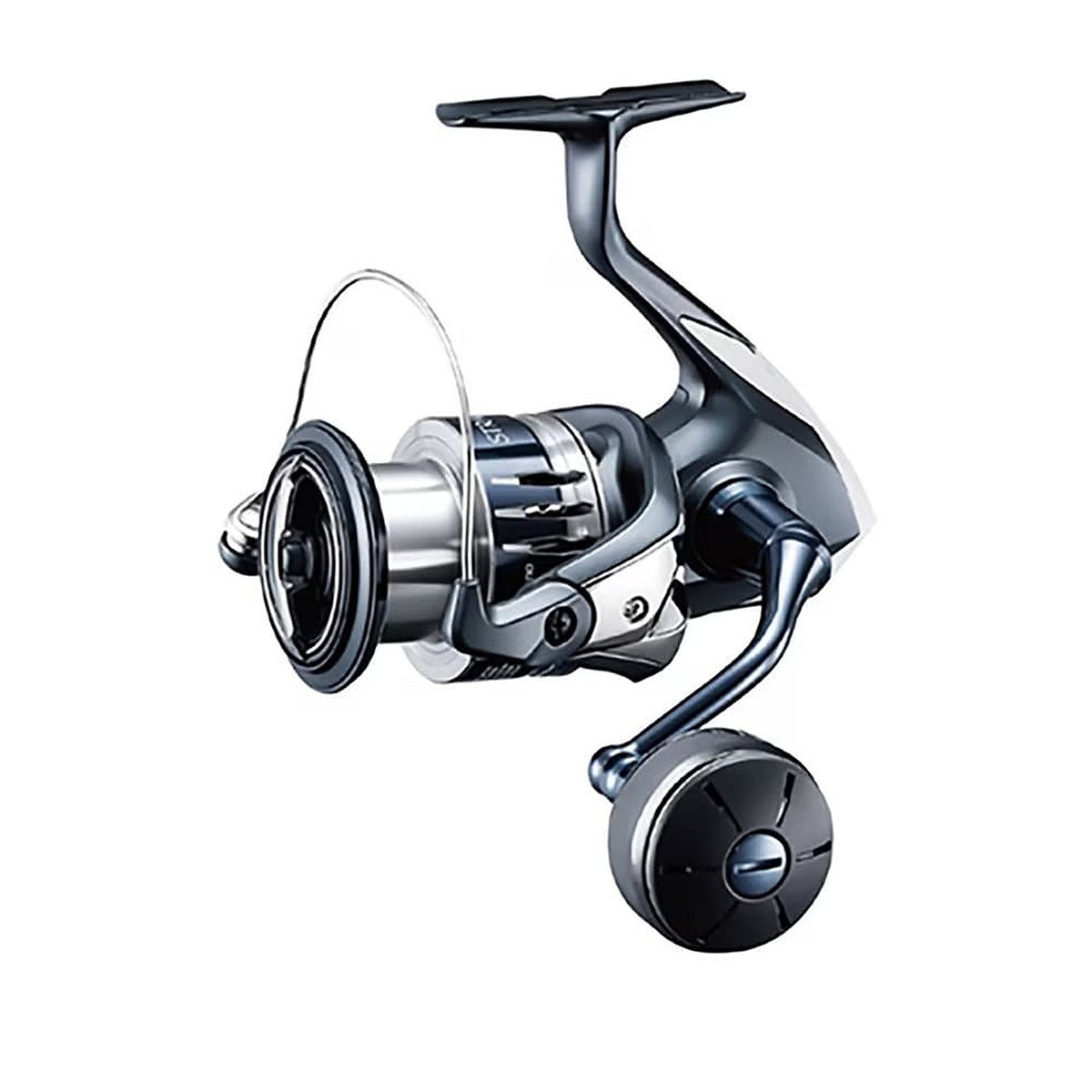

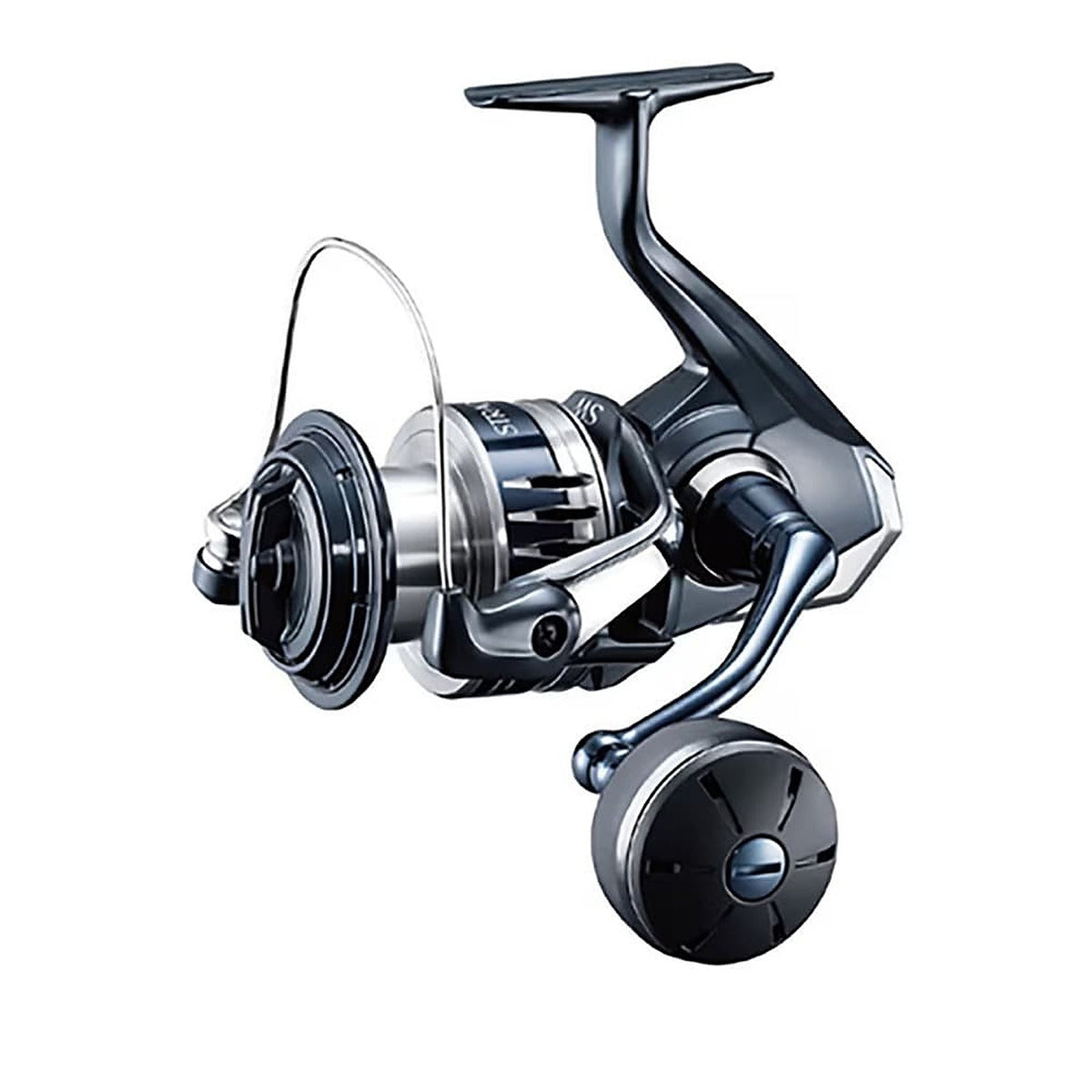

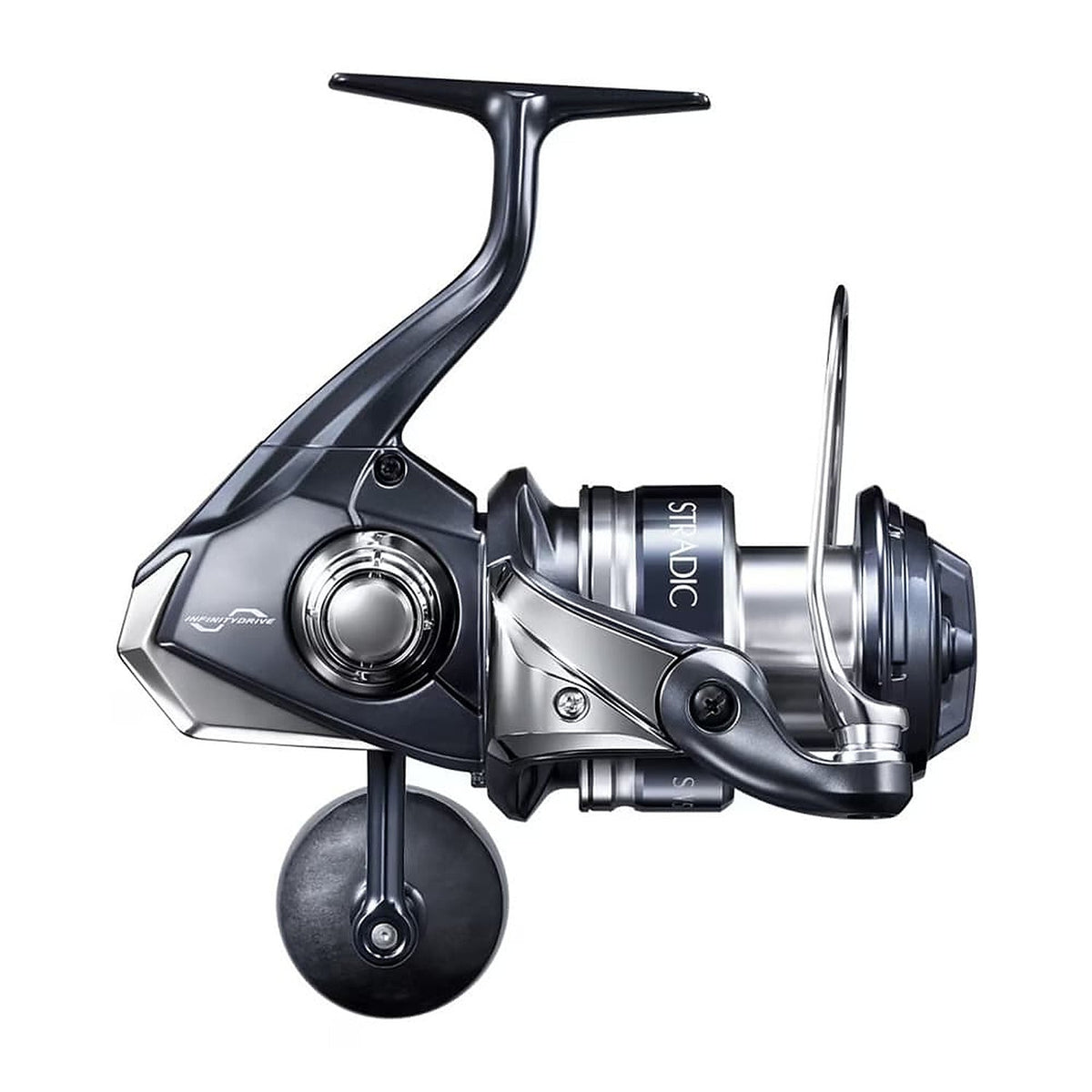

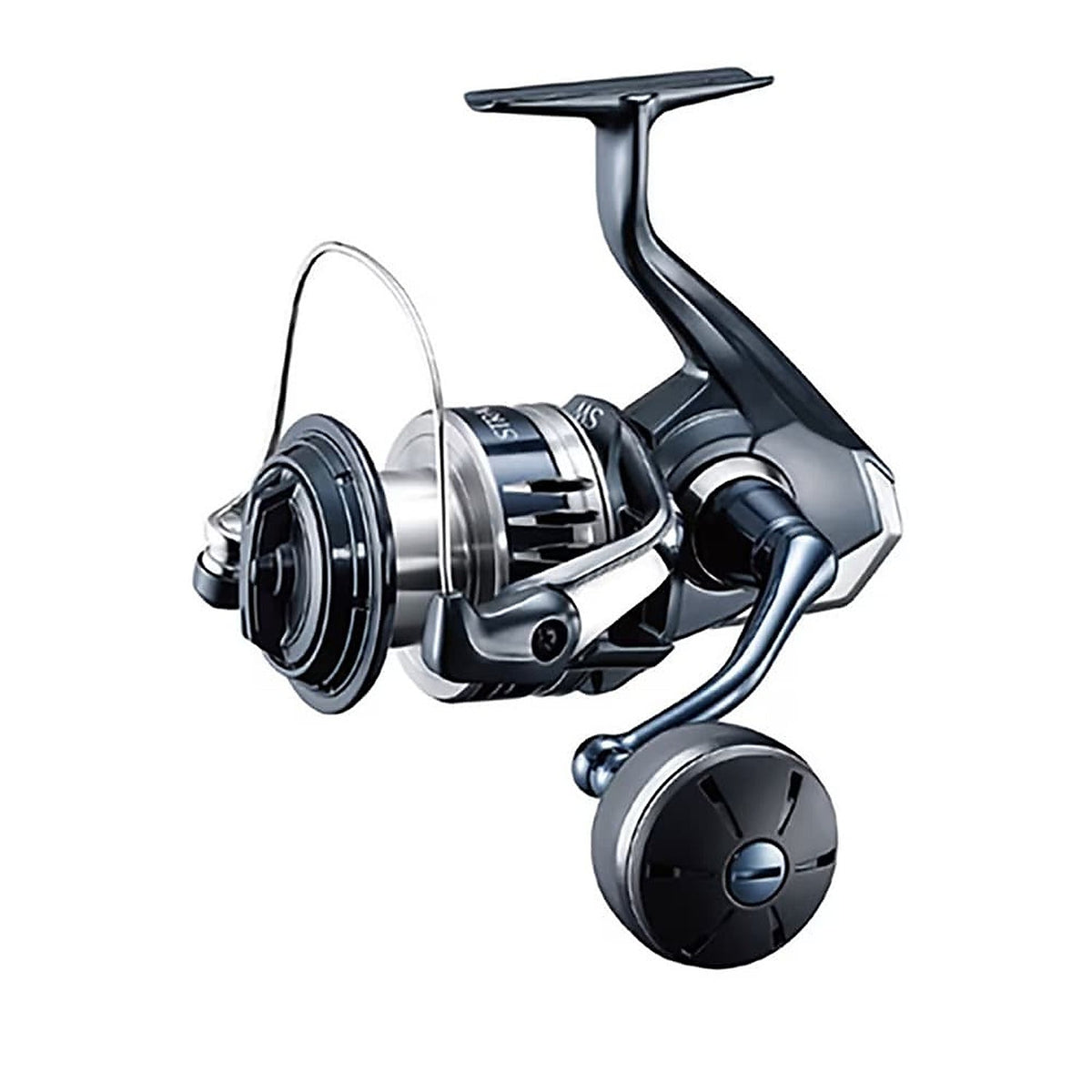

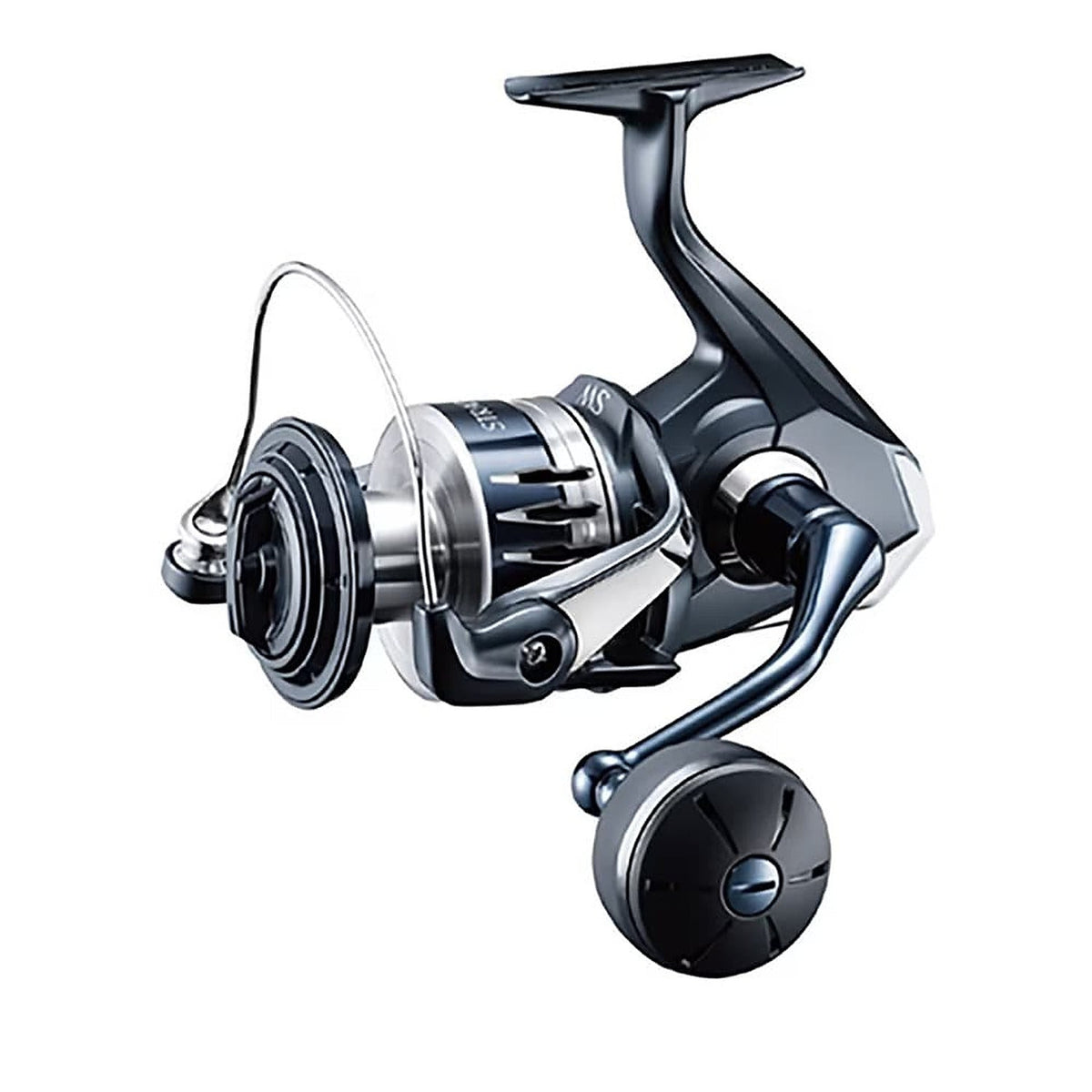

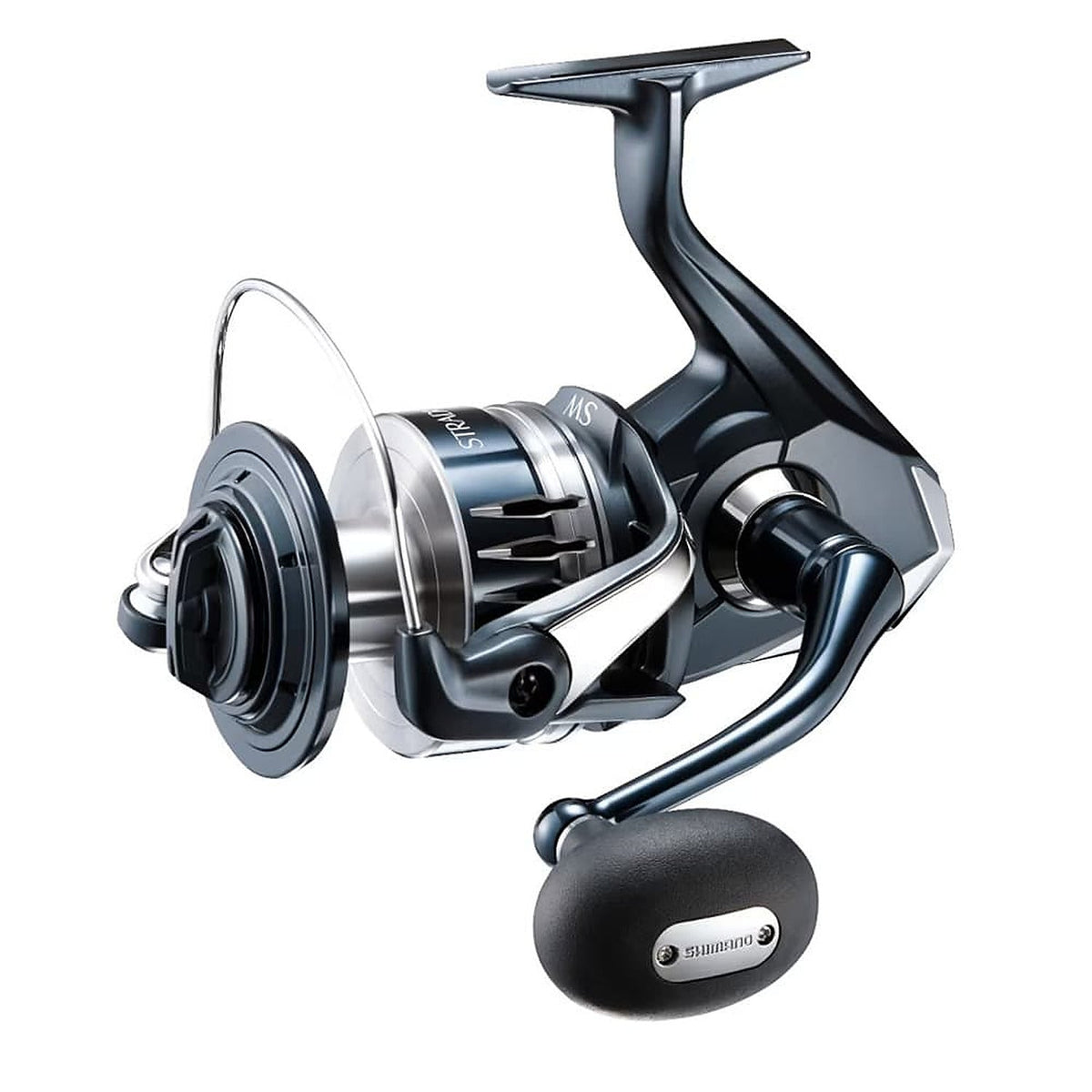

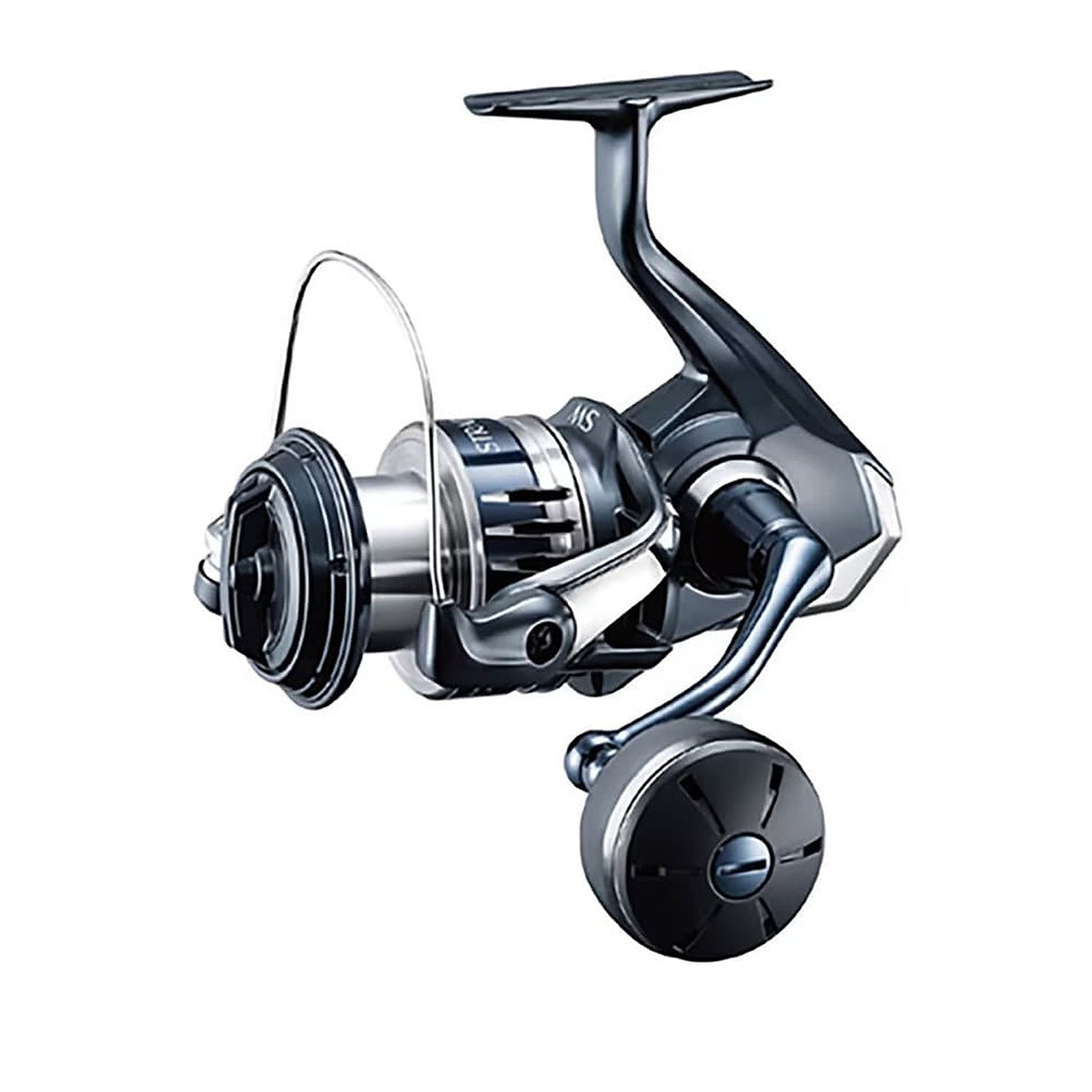

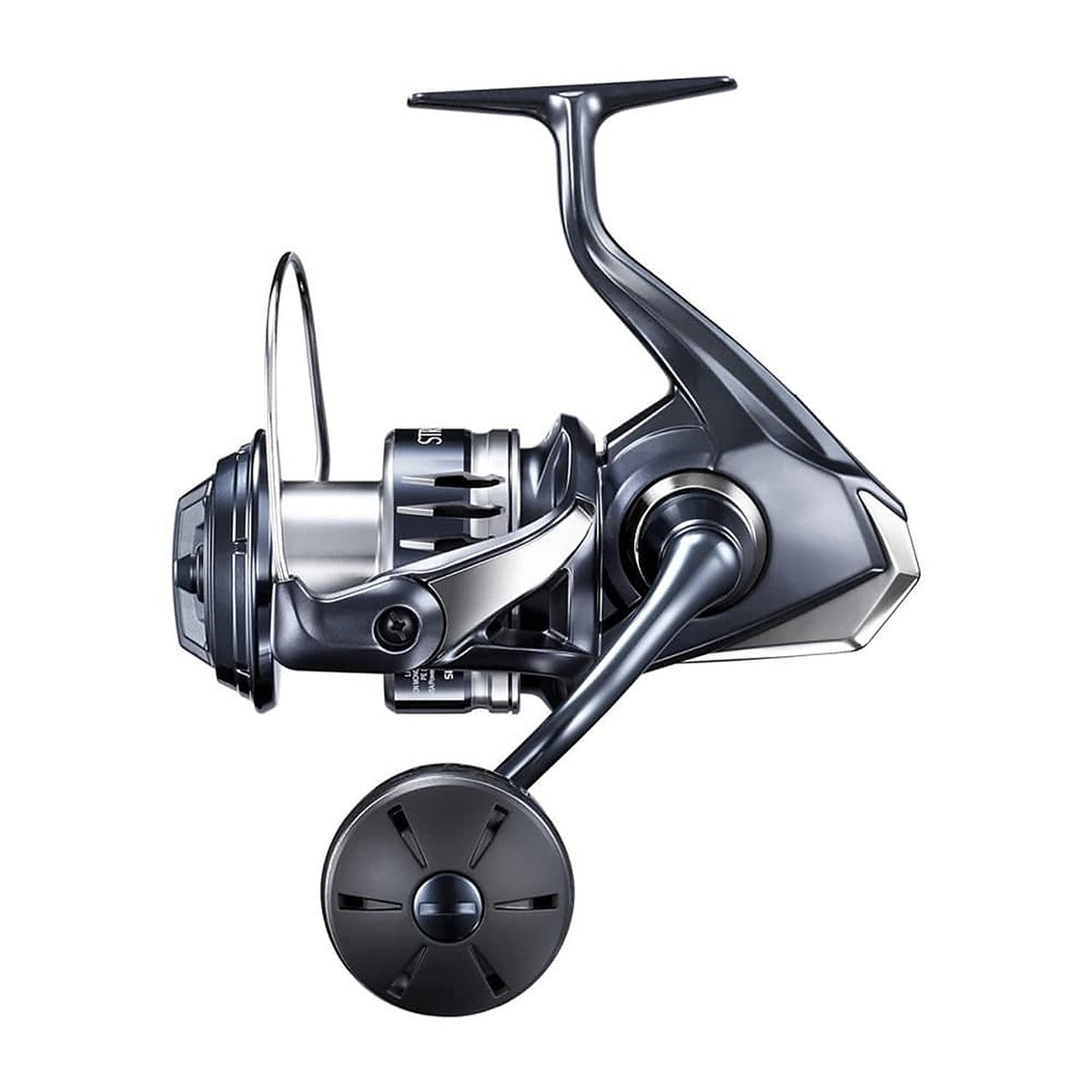

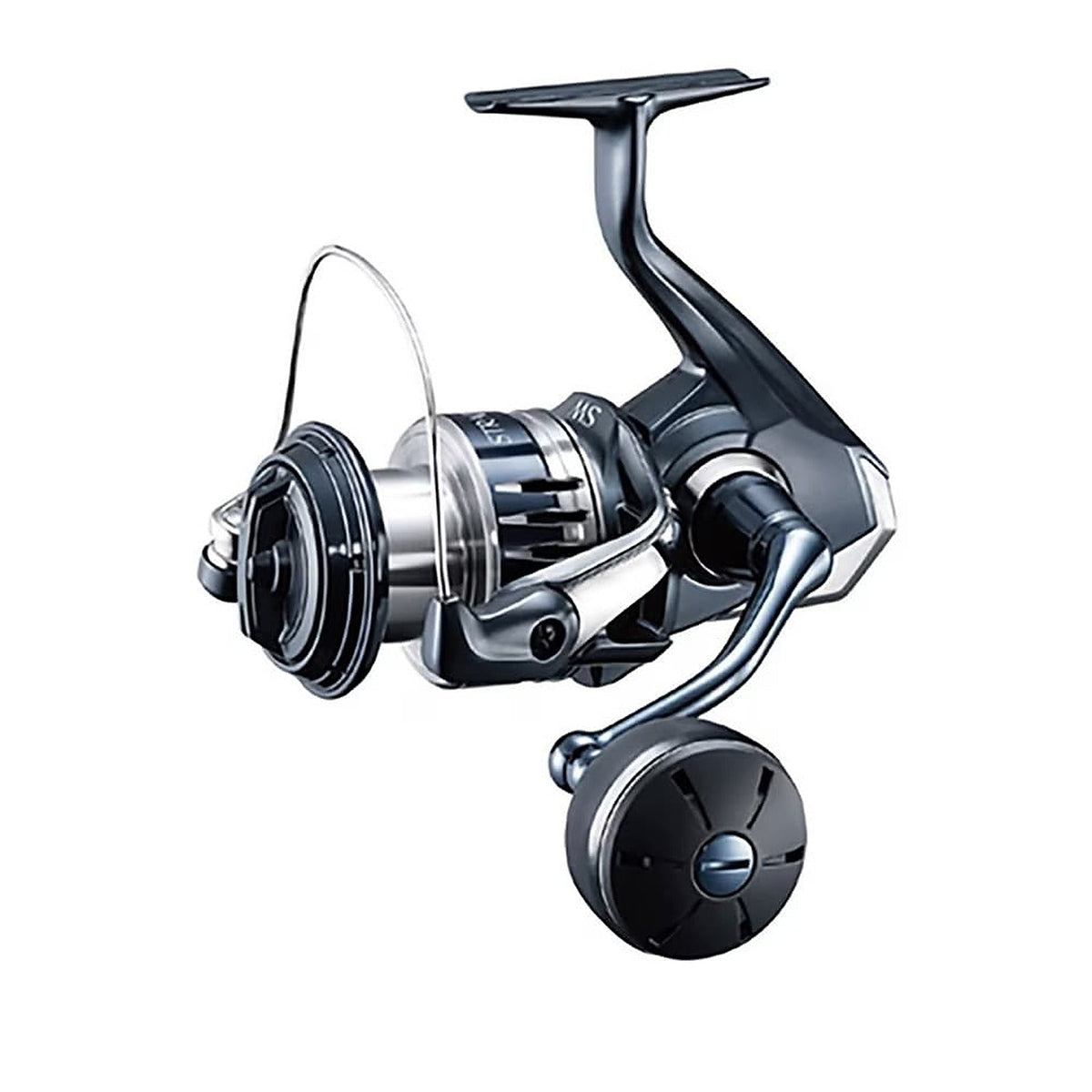

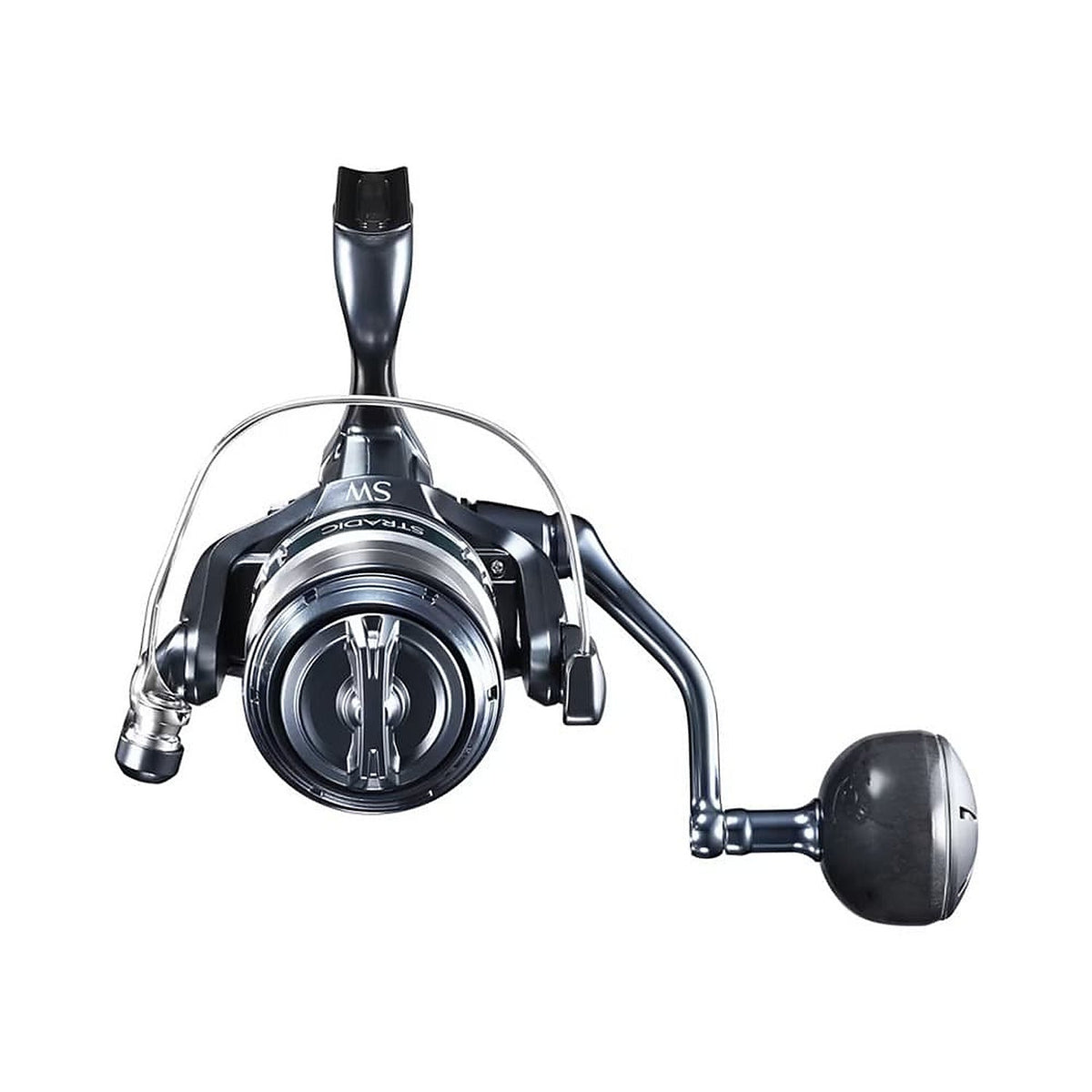

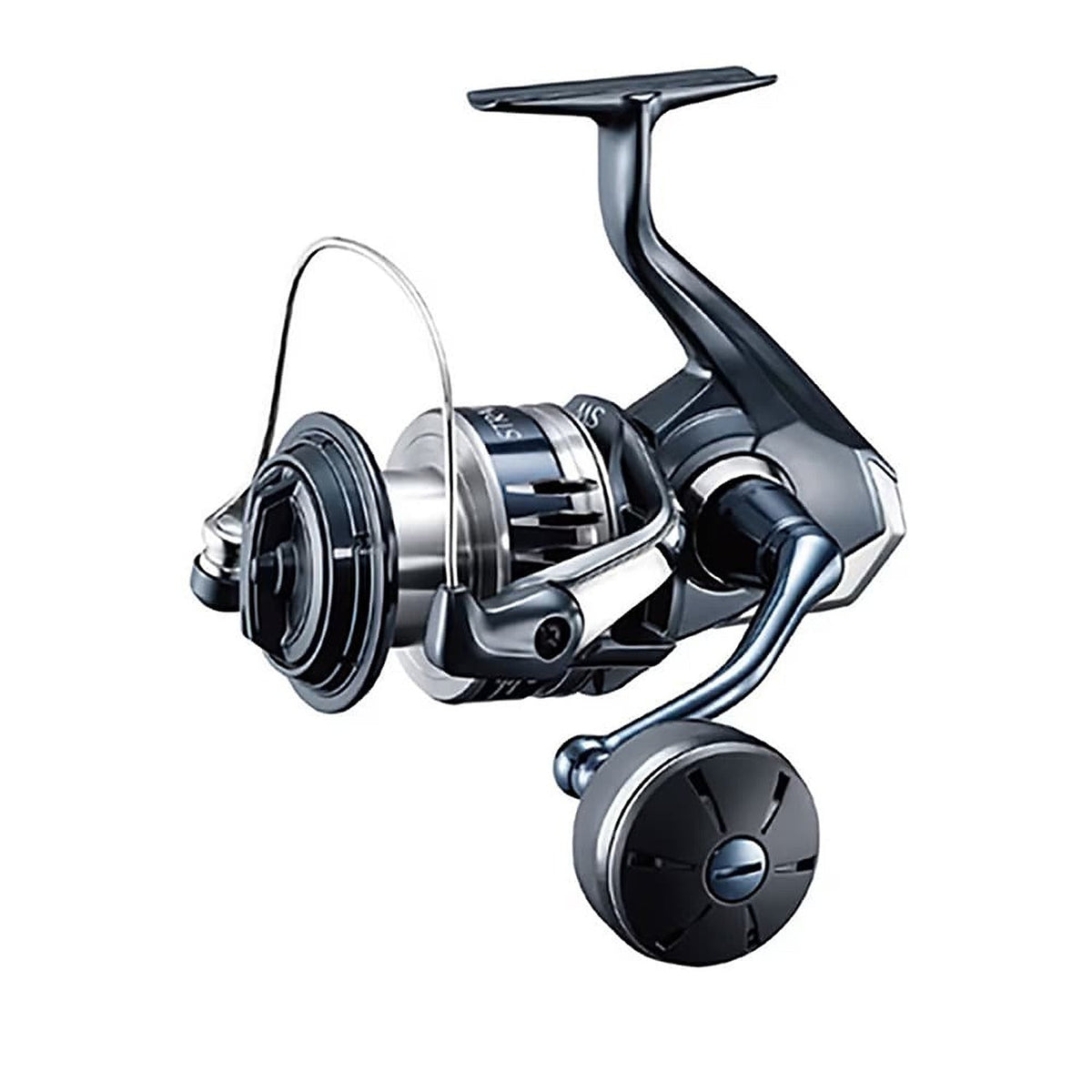

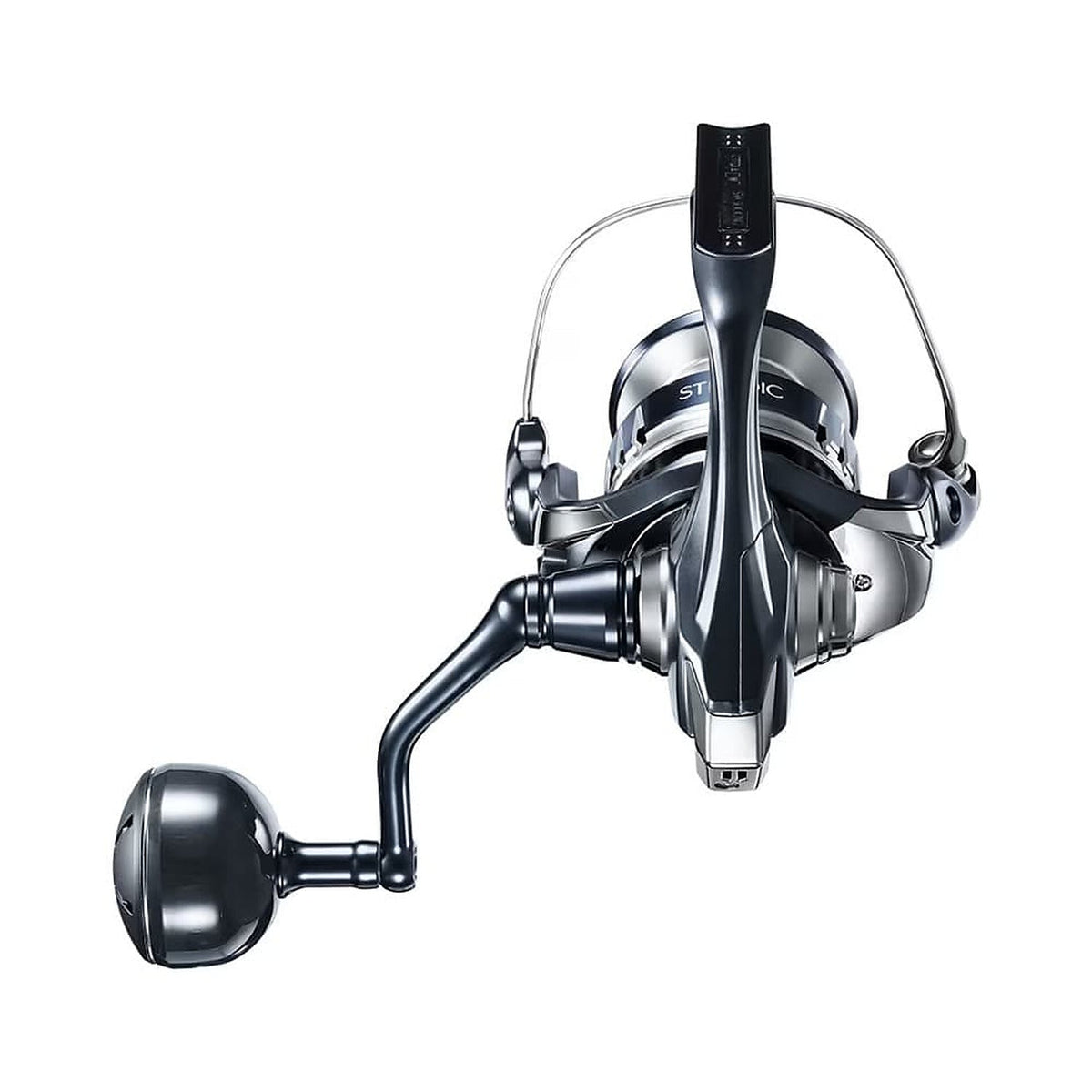

20 STRADIC SW

20 STRADIC SW

Regular price $209.99 USD
Regular price Sale price $209.99 USD
Sale Sold out
Tax included. FREE delivery on $100 minimum Shipping policy

Get it between -

Model

SKU:20-STRADIC-SW-4000HG

2020 year model

The Stradic SW series combines lightweight agility with robust power. Equipped with the Infinity Drive, it ensures smooth and powerful reeling. Additionally, its waterproof construction—featuring X-Protect and X-Shield—effectively seals out water from the body and line roller. You can confidently tackle saltwater scenarios with the same power and toughness as higher-end models.

View full details

Specifications

Model Retrieve Gear Ratio Ball Bearing Max Drag
(Ld.)
Reel Weight
(Oz)
Line Capacity
Mono(Ld./Yd)
Line Capacity
Braid(Ld./Yd)
Recovery
(In/Turn)
4000HG Left/Right 5.8 6+1 24.3 10.6 12/190, 14/160, 16/140 12/540, 16/350, 20/260 37
4000XG Left/Right 6.2 6+1 24.3 10.6 12/190, 14/160, 16/140 12/540, 16/350, 20/260 40
5000PG Left/Right 4.6 6+1 26.5 15.2 14/220, 16/160, 20/140 20/380, 35/260, 40/190 31
5000XG Left/Right 6.2 6+1 26.5 15.2 14/220, 16/160, 20/140 20/380, 35/260, 40/190 41
6000PG Left/Right 4.6 6+1 26.5 15.5 14/260, 16/210, 20/180 20/480, 35/330, 40/230 33
6000HG Left/Right 5.7 6+1 26.5 15.5 14/260, 16/210, 20/180 20/480, 35/330, 40/230 41
6000XG Left/Right 6.2 6+1 26.5 15.5 14/260, 16/210, 20/180 20/480, 35/330, 40/230 44
8000PG Left/Right 4.9 6+1 28.7 22.9 16/300, 20/250, 25/160 35/450, 40/330, 50/270 37
8000HG Left/Right 5.6 6+1 28.7 22.8 16/300, 20/250, 25/160 35/450, 40/330, 50/270 42
10000HG Left/Right 5.6 6+1 28.7 23.3 20/330, 25/230, 30/180 40/440, 50/330, 65/270 46
14000XG Left/Right 6.2 6+1 33.1 24.7 30/210, 35/170, 40/150 65/330, 100/220, 150/180 53

Scroll for more→

HAGANE GEAR

A block of metal is pressed under high pressure and finished to micron-level precision without cutting. This unique technology, known as precision cold forging, produces gears that are hard, tenacious, and smooth to wind.

MICRO MODULE GEAR 2

A block of metal is pressed under high pressure and finished to micron-level precision without cutting. This unique technology, known as precision cold forging, produces gears that are hard, tenacious, and smooth to wind.

X SHIP

X-Ship provides improved gear durability. By supporting the pinion gear on both ends with bearings, the pinion gear maintains precise alignment with the drive gear. This means the gears will stay in the same position under the heaviest loads. The added benefit is that friction between the spool shaft and gear are eliminated. This will enhance the casting performance of the reel with lighter lures, and allow for longer casts.

HAGANE BODY

The HAGANE Body is a metal reel body with high rigidity. The body rigidity and impact resistance virtually eliminates body flexing. The result transforms the angler's actions directly into cranking power. It's efficiency through strength.

INFINITY DRIVE

The Infinity Drive structure is a more advanced version of the conventional X-SHIP structure that created exceptionally light winding. The main shaft, which had previously been supported by the pinion gear, is now supported by a new and unique low-friction bushing that significantly decreases frictional resistance. In addition, the main shaft has undergone a proprietary surface treatment and special processing to drastically reduce rotational torque, constructing a reel that can actively wind even under heavy loads.
