Daiwa

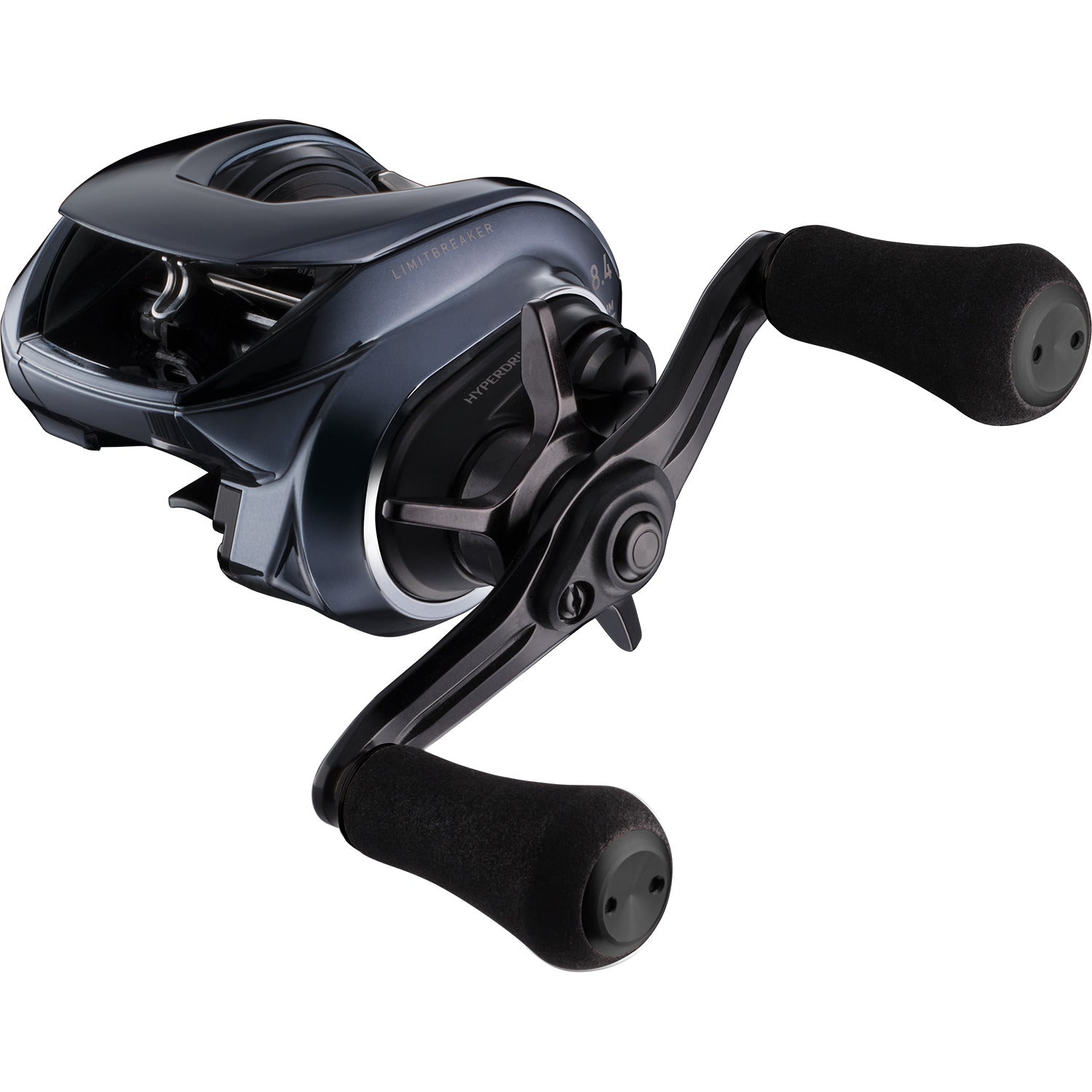

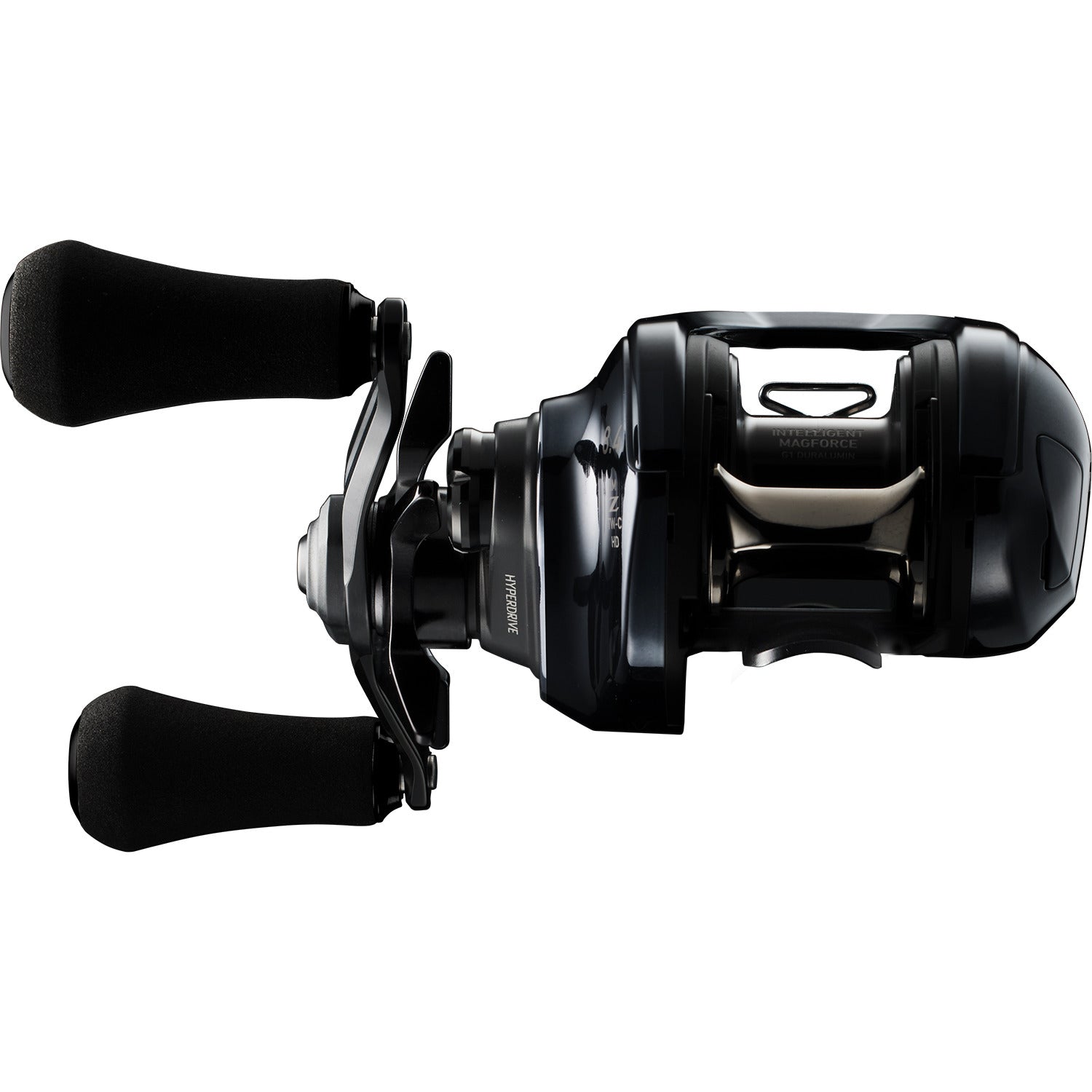

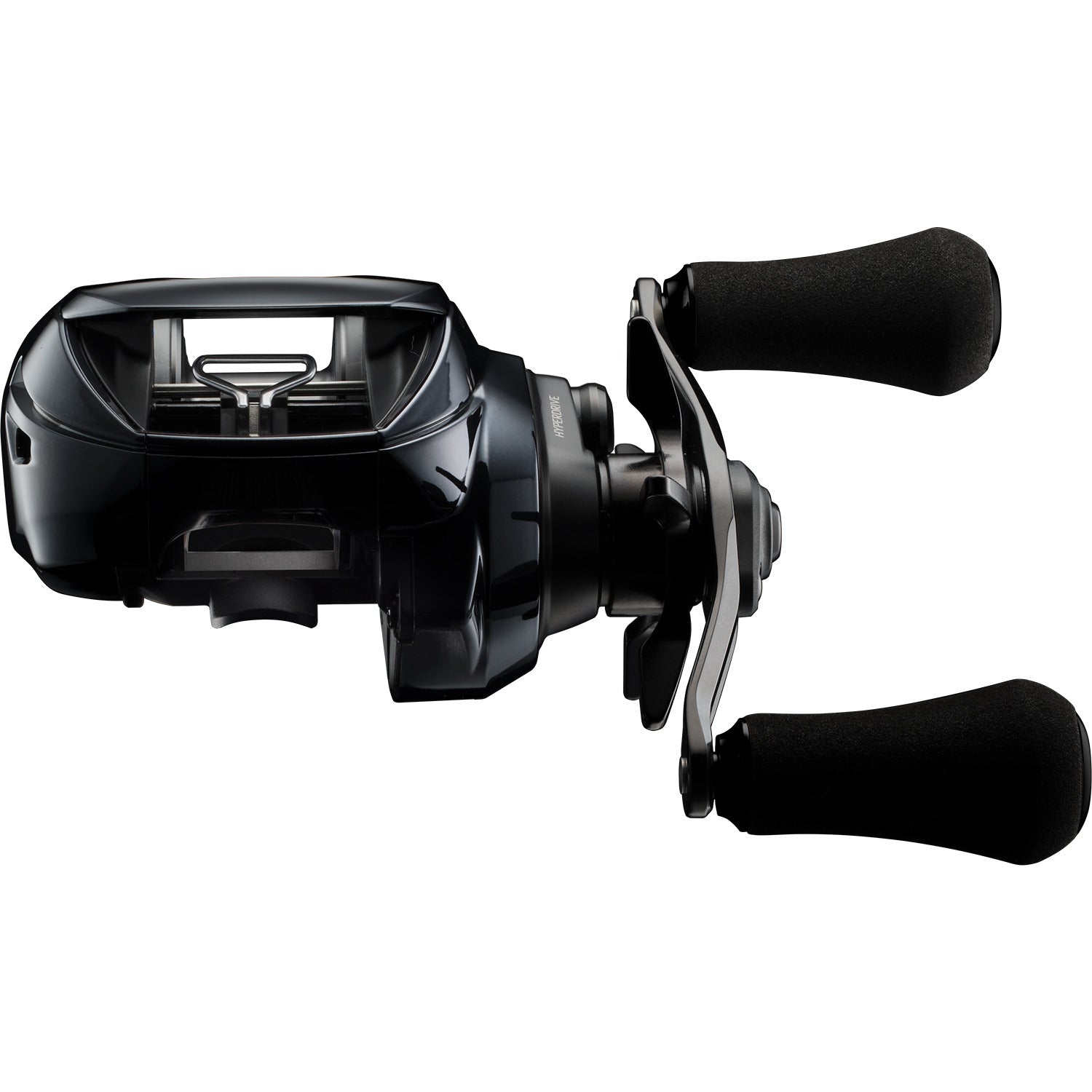

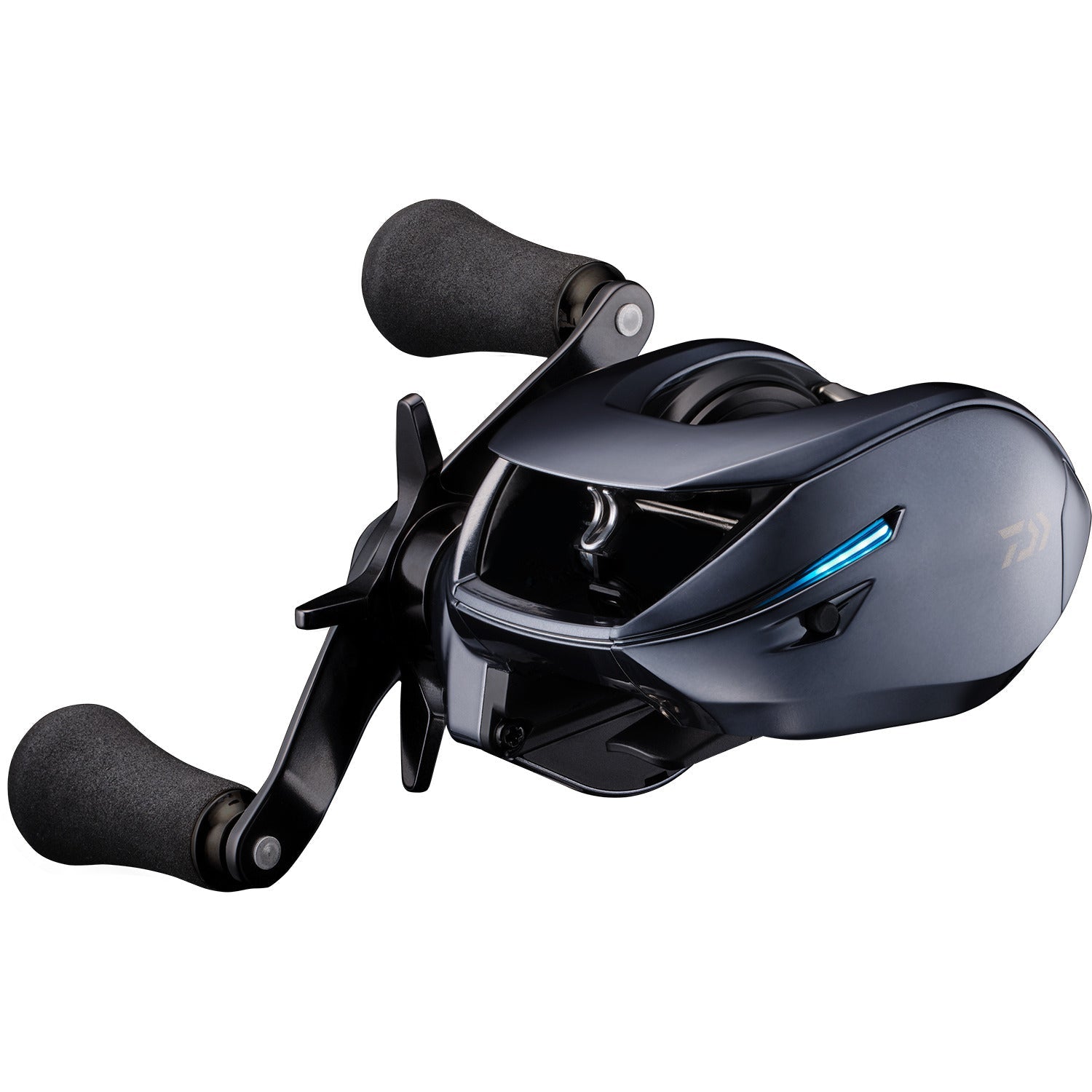

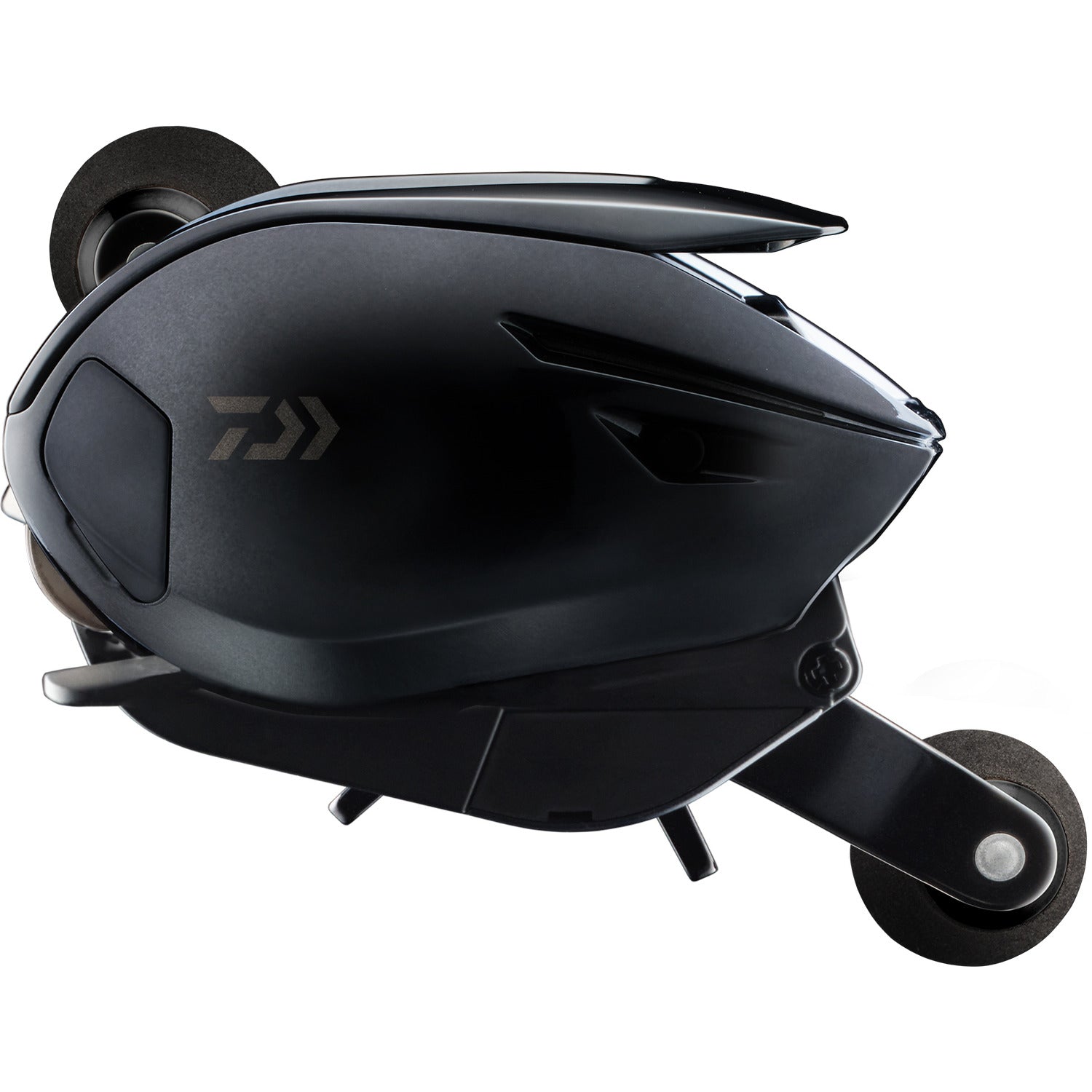

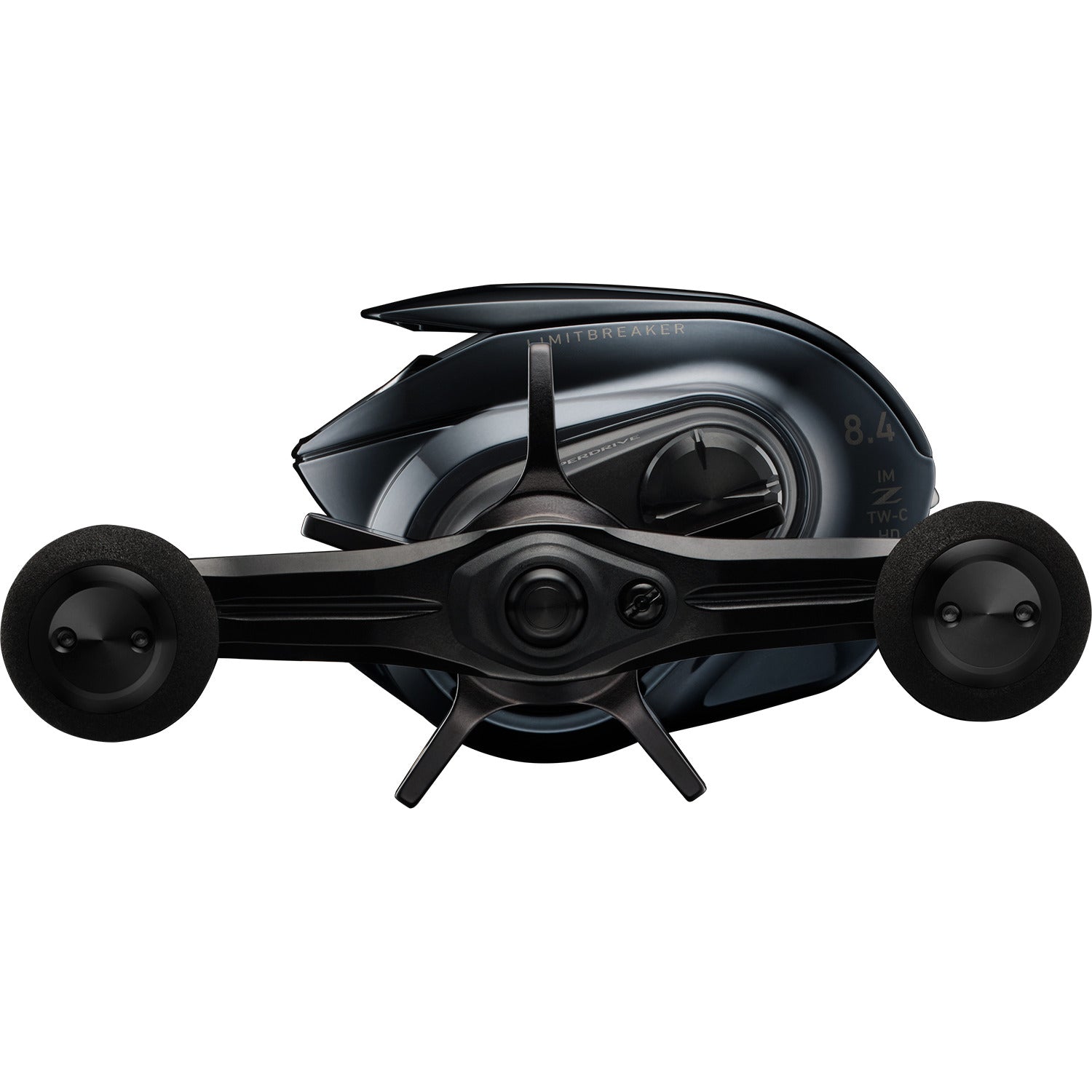

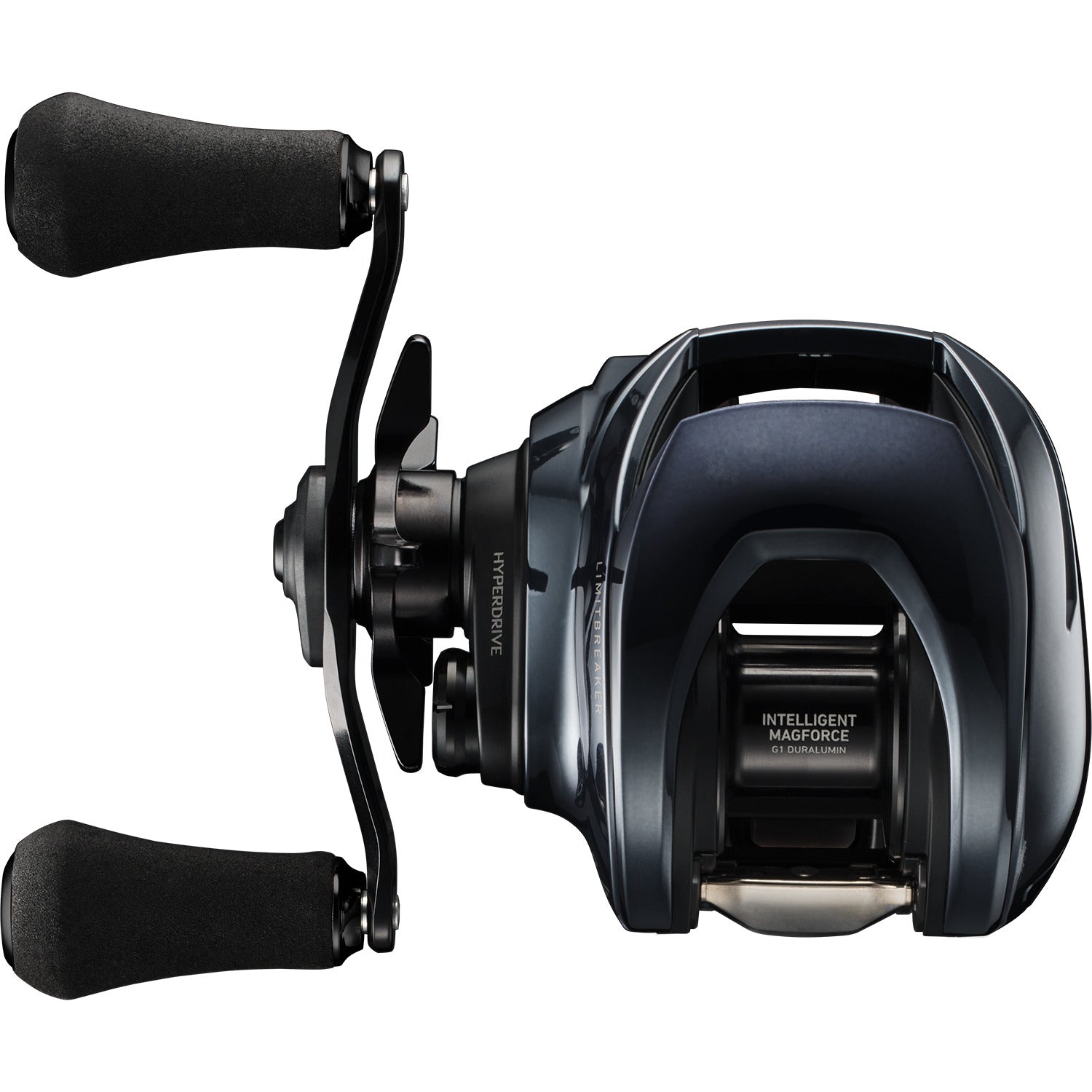

23 IM Z LIMITBREAKER TW HD-C

$787.99 USD

Sale Sold out

Taxes included. FREE delivery on $100 minimum Shipping policy

Get it between -

Model XH RIGHT XH LEFT

SKU:23-IMZ-LIMITBRKR-TW-HDC-XH-R

2023 year model

Daiwa's digitally braked flagship baitcaster. The IM Z Limitbreaker pairs an intelligent brake with a heavy-duty TW housing so anglers can throw big baits far, all day, without a backlash.

IM digital brake system that adapts the brake force through the cast
Hyperdrive Digigear with Hyper Double Support for a lasting, smooth retrieve
TWS (T-Wing System) for low-friction line release
Heavy-duty HD-C spool for big baits and heavy line
ATD drag for smooth pressure on hard-running fish

The most advanced brake Daiwa has ever built.

View full details

Specifications

Model	Retrieve	Gear Ratio	Ball Bearing	Max Drag (Ld.)	Reel Weight (Oz)	Line Capacity Mono(Ld./Yd)	Line Capacity Braid(Ld./Yd)	Recovery (In/Turn)	Features
XH RIGHT	Right	8.4	12+1	15.4	8.8	14/140, 16/110, 20/100	40/110, 50/90, 65/70	39	Low-Profile
XH LEFT	Left	8.4	12+1	15.4	8.8	14/140, 16/110, 20/100	40/110, 50/90, 65/70	39	Low-Profile

Scroll for more→

HYPER DRIVE DIGIGEAR

A newly designed gear system for bait (double-shaft) reels that pursues continuous strong and smooth rotation. DAIWA's unique technology has achieved a higher engagement rate without reducing the size of the gear tooth module (size), which directly affects durability, and has realized a long-lasting initial smoothness.

HYPER DOUBLE SUPPORT

A drive support system that achieves sustained smoothness and strong, light winding. By supporting both ends of the pinion gear with two ball bearings with high precision, the input from the handle is not damped, enabling strong and light winding even when a load is applied.

HYPER TOUGH CLUTCH

This clutch system not only provides crisp on/off performance that keeps sliding thousands or tens of thousands of times, but is also extremely trouble-free even in saltwater areas with high salt concentration. It boasts a state-of-the-art insulation structure that has already resulted in a 99% reduction in the number of sticking repairs in harsh saltwater conditions, compared to our company's own.

ATD

The ATD (Automatic Tournament Drag) system operates smoothly in response to fish pulling, providing continuous, smooth performance. By focusing on initial movement and responsiveness, it allows you to concentrate on the fight without worrying about drag settings.

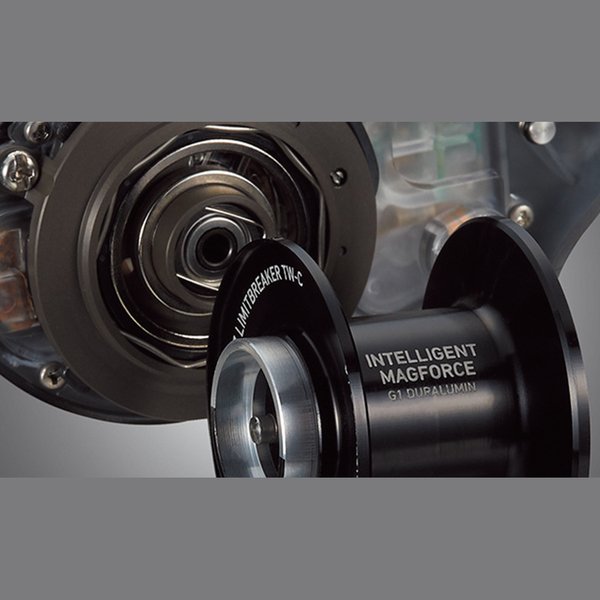

IM CONCEPT

A digitally controlled brake that senses spool rotation. In addition to adjusting brake force, it lets the angler select the brake characteristic - PE mode, long-cast mode and more - to suit the situation, the lure and the angler.
