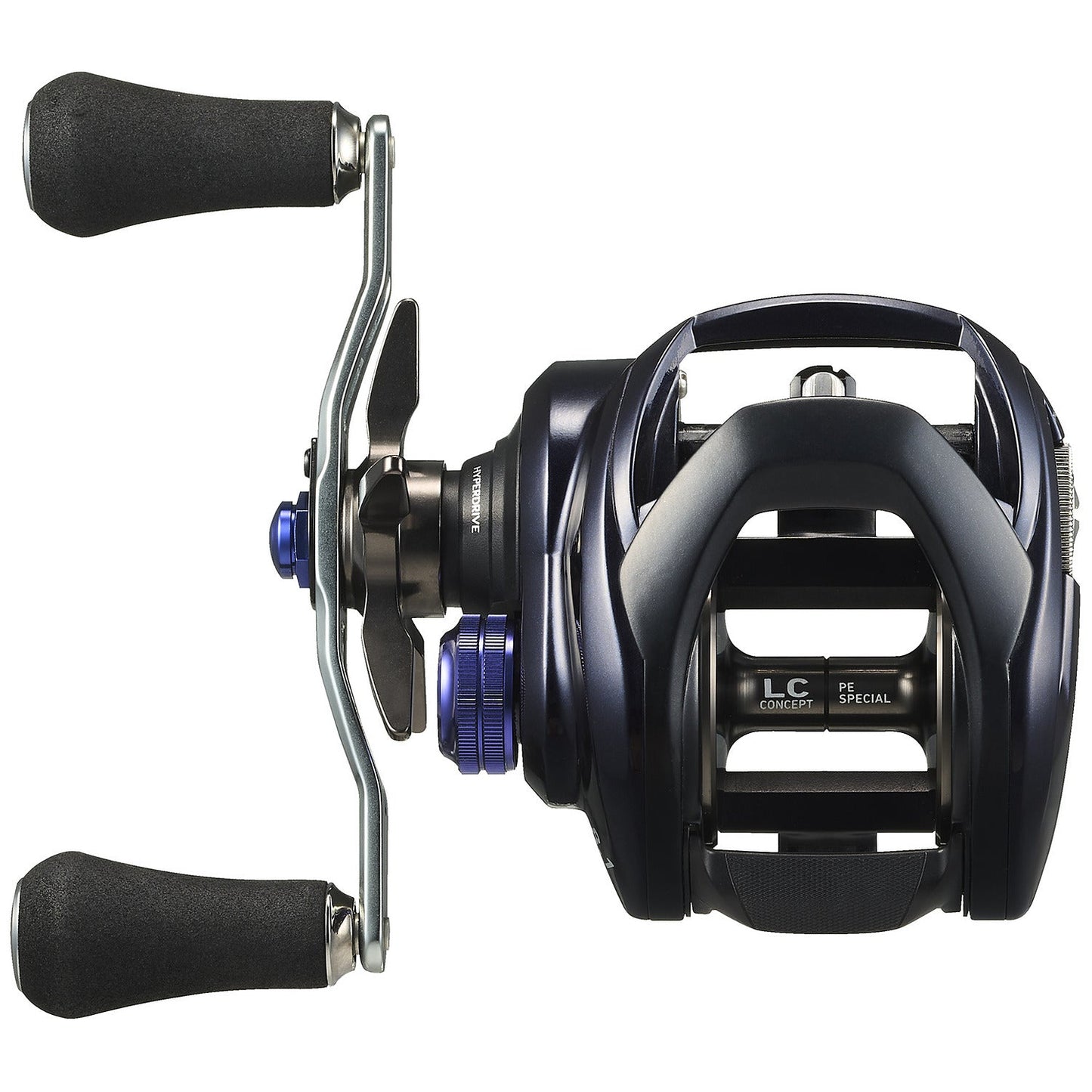

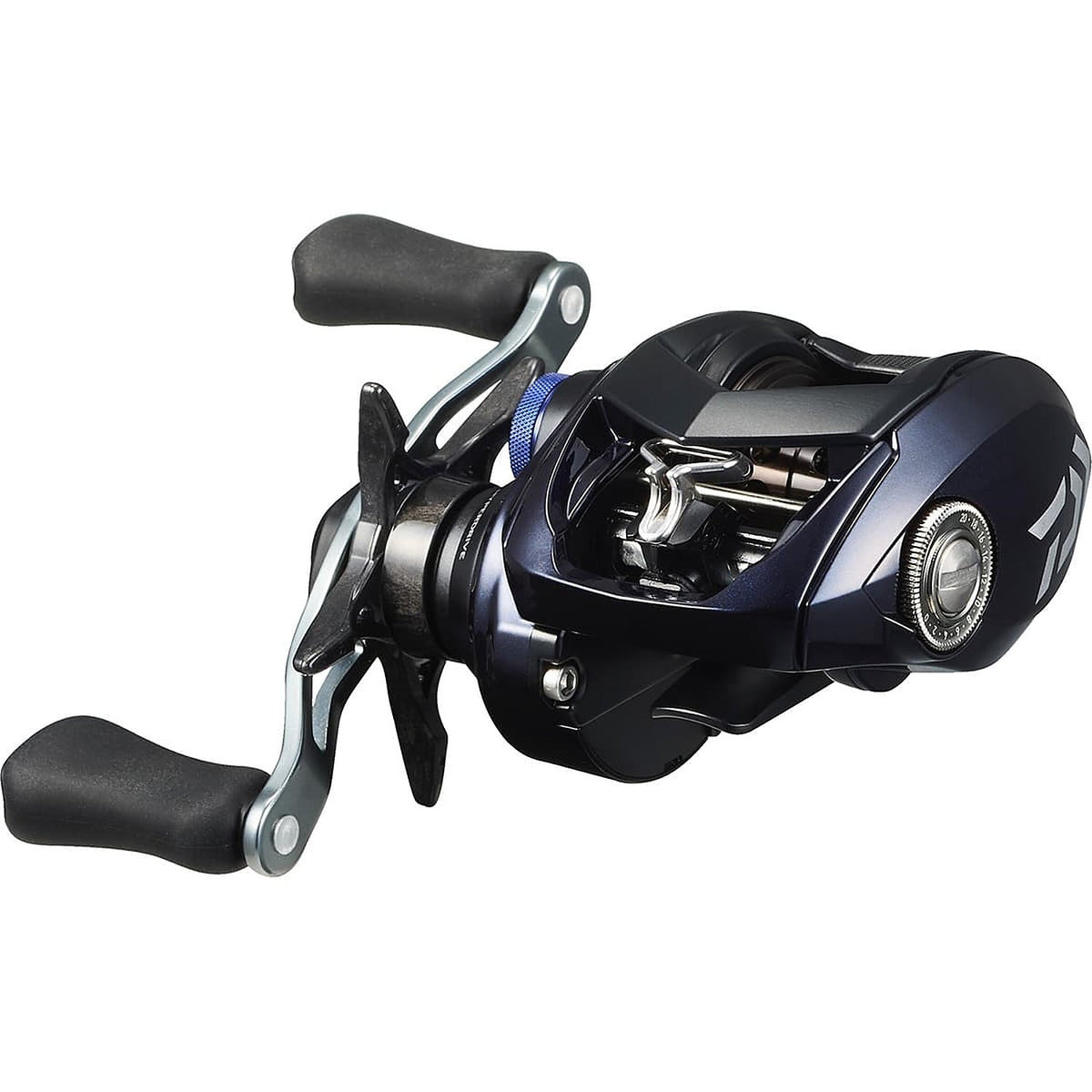

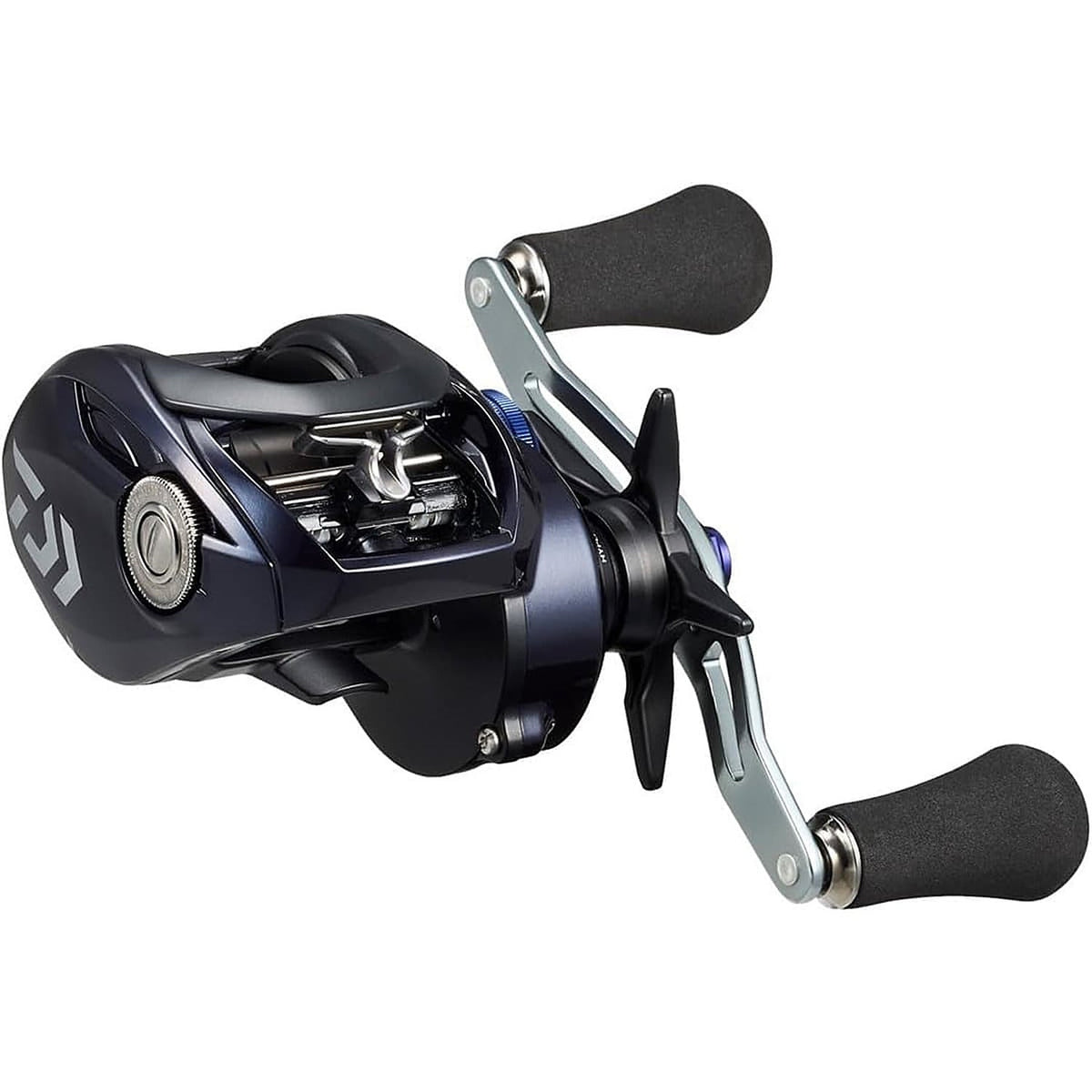

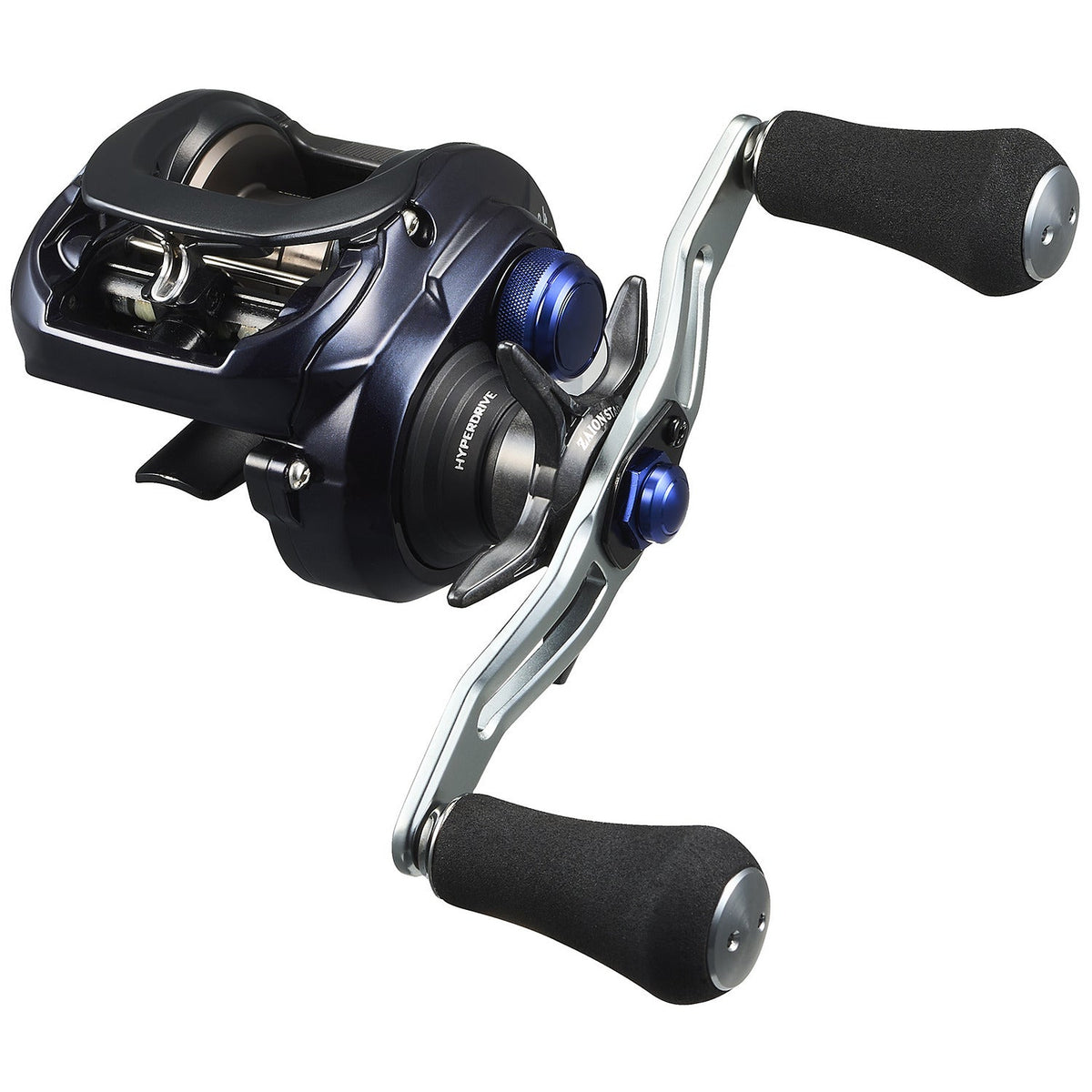

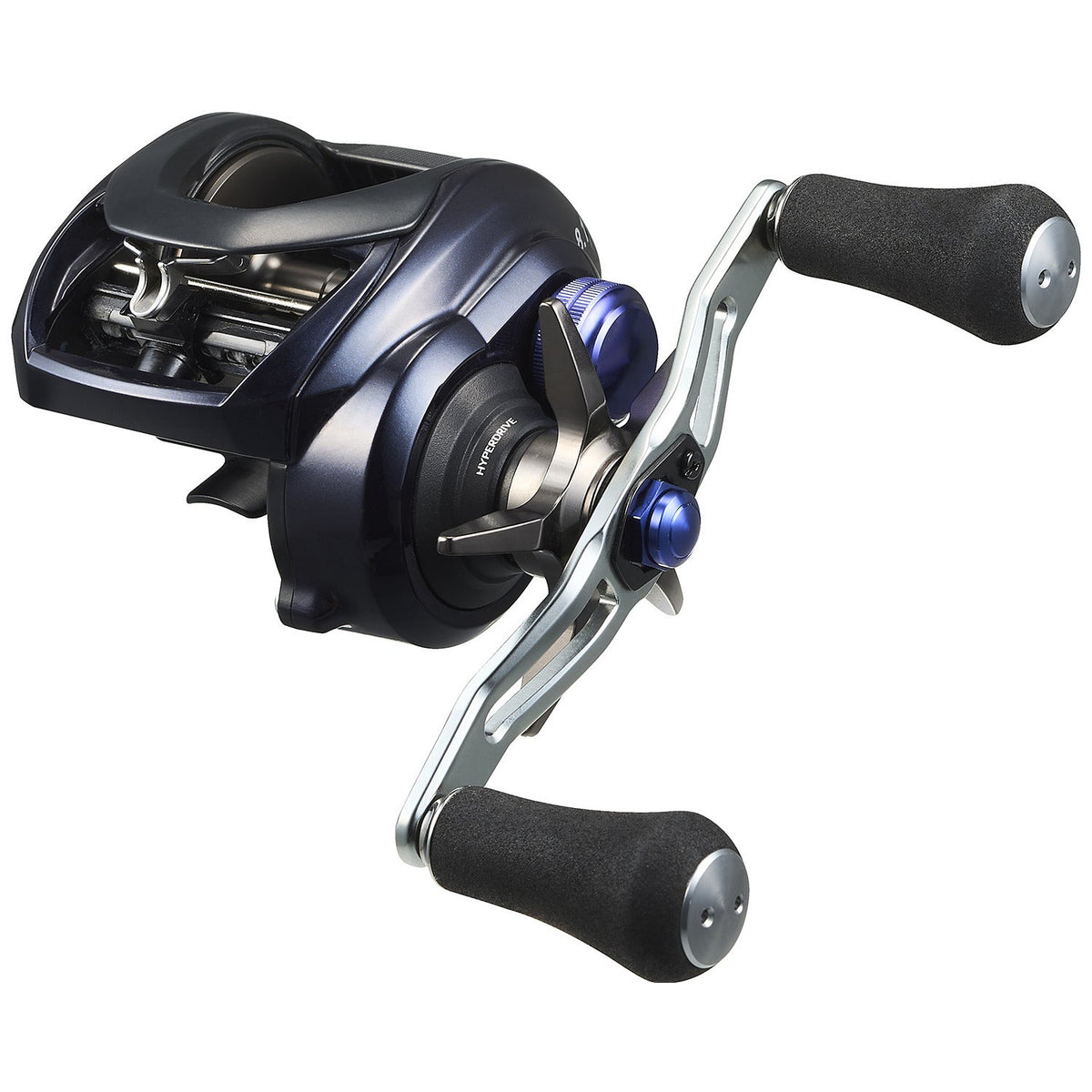

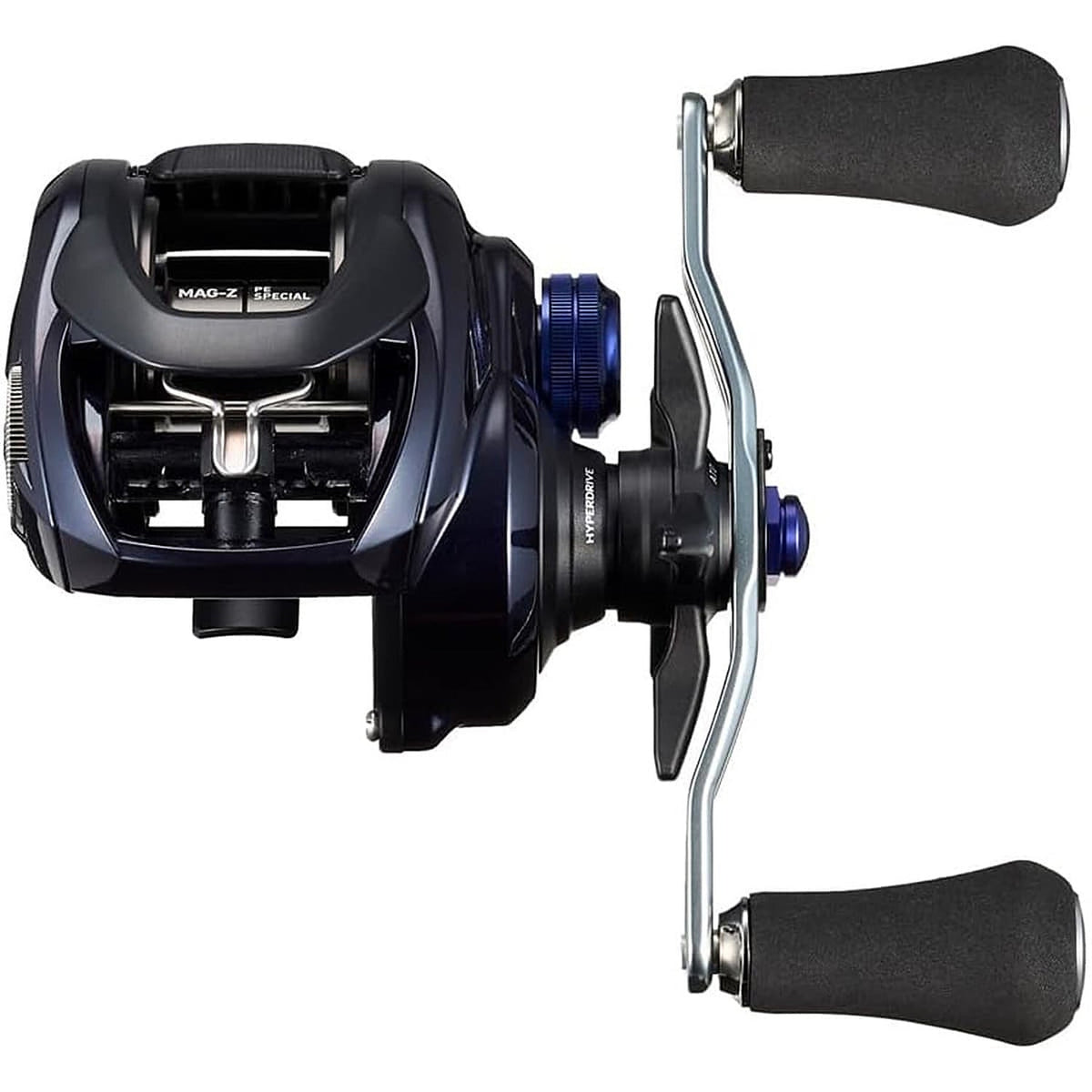

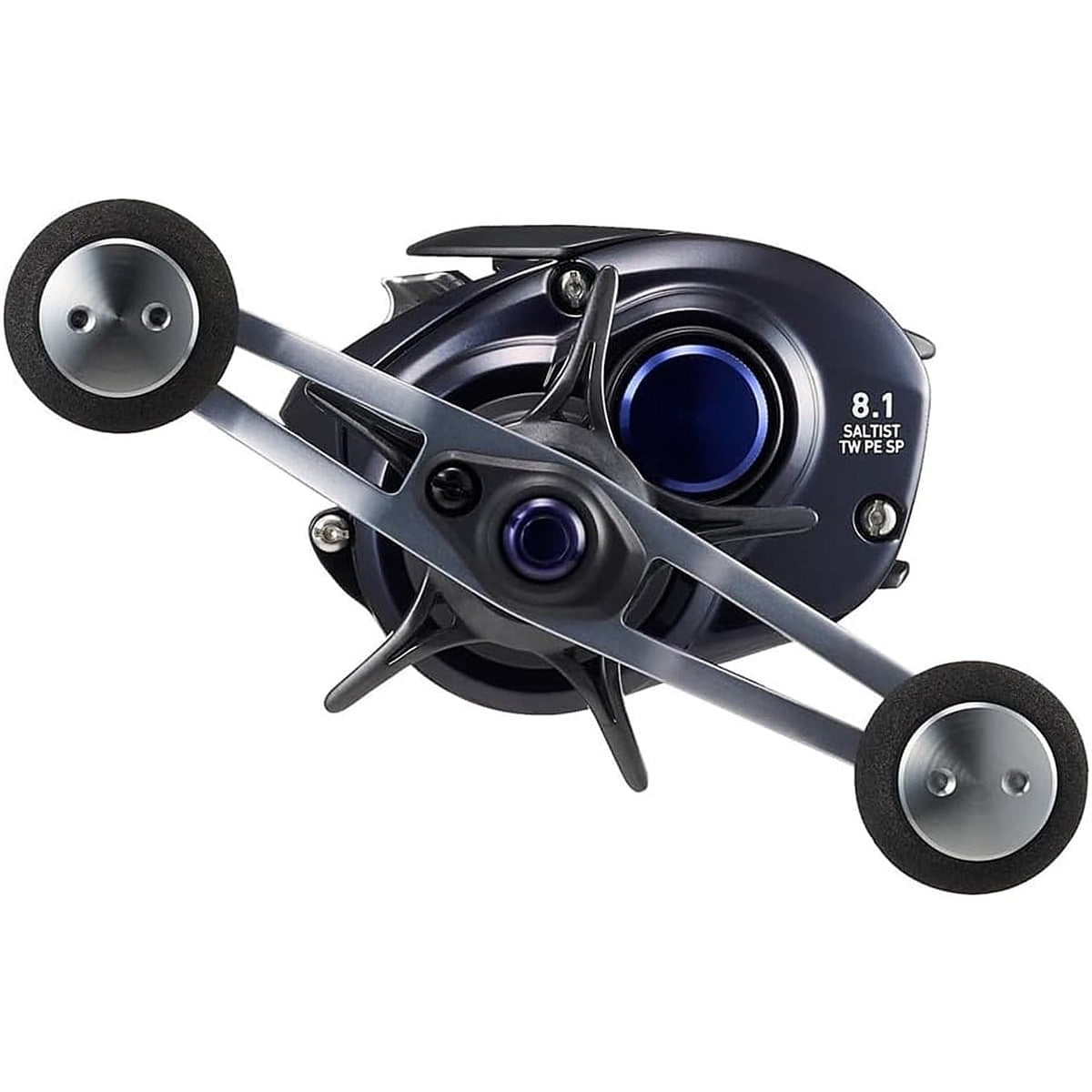

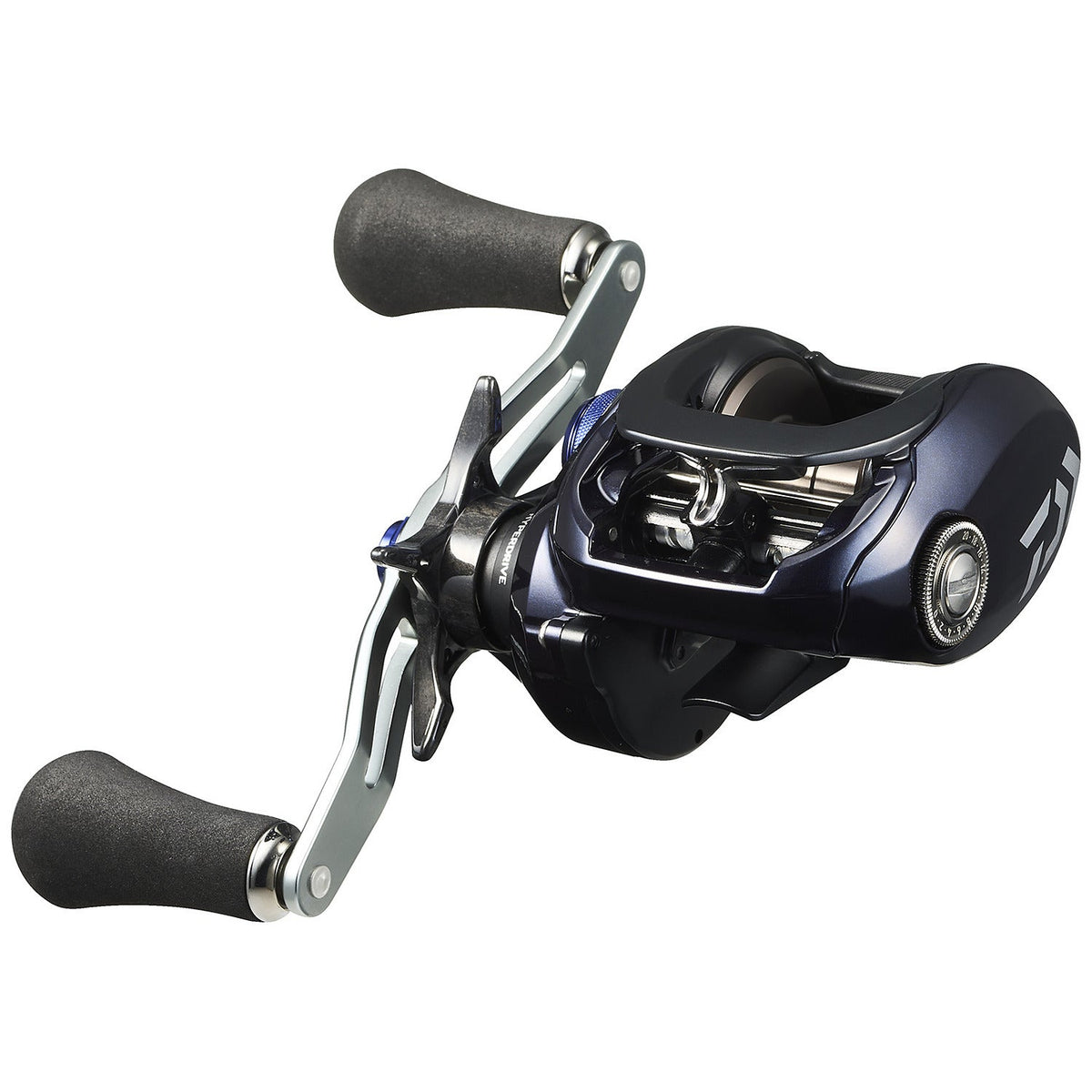

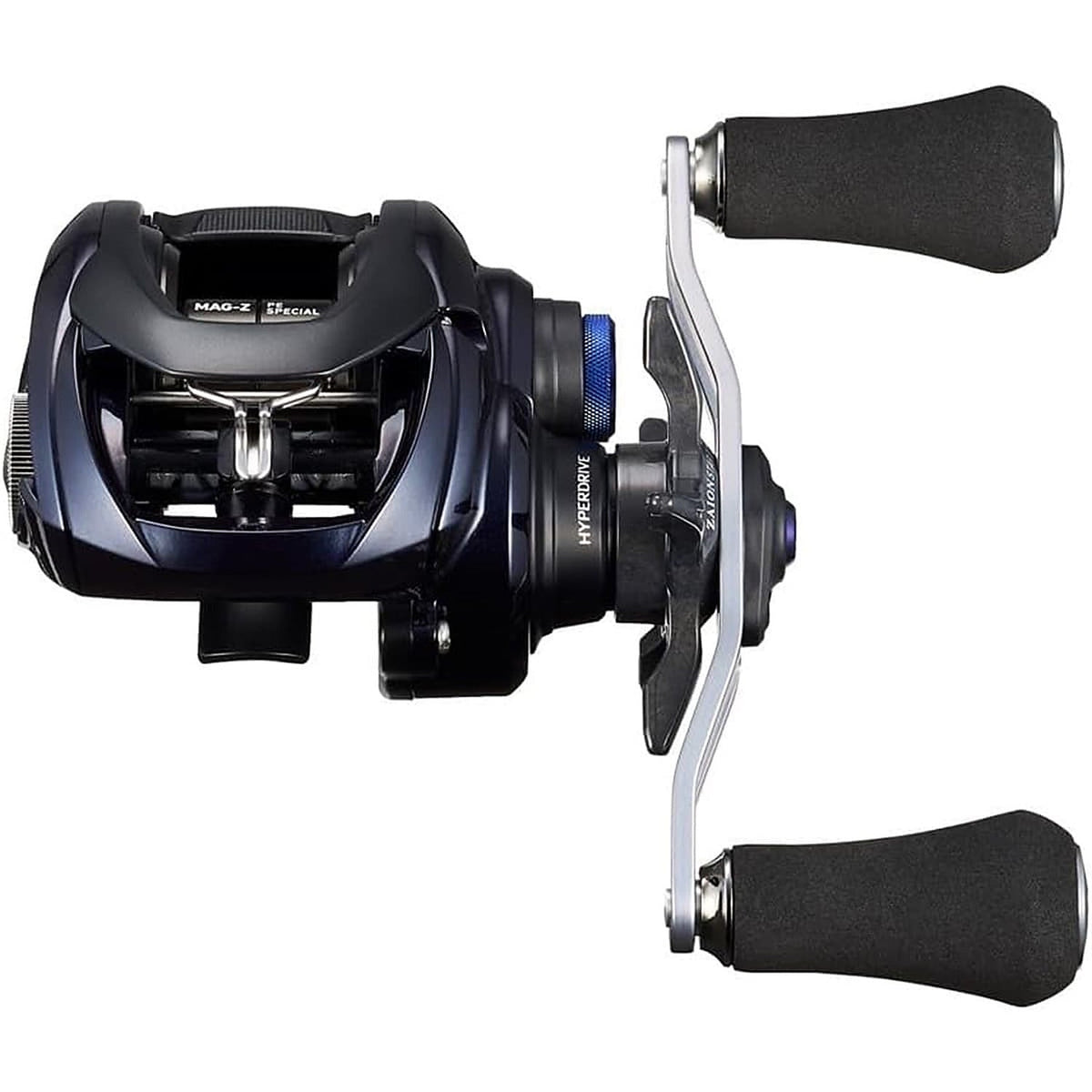

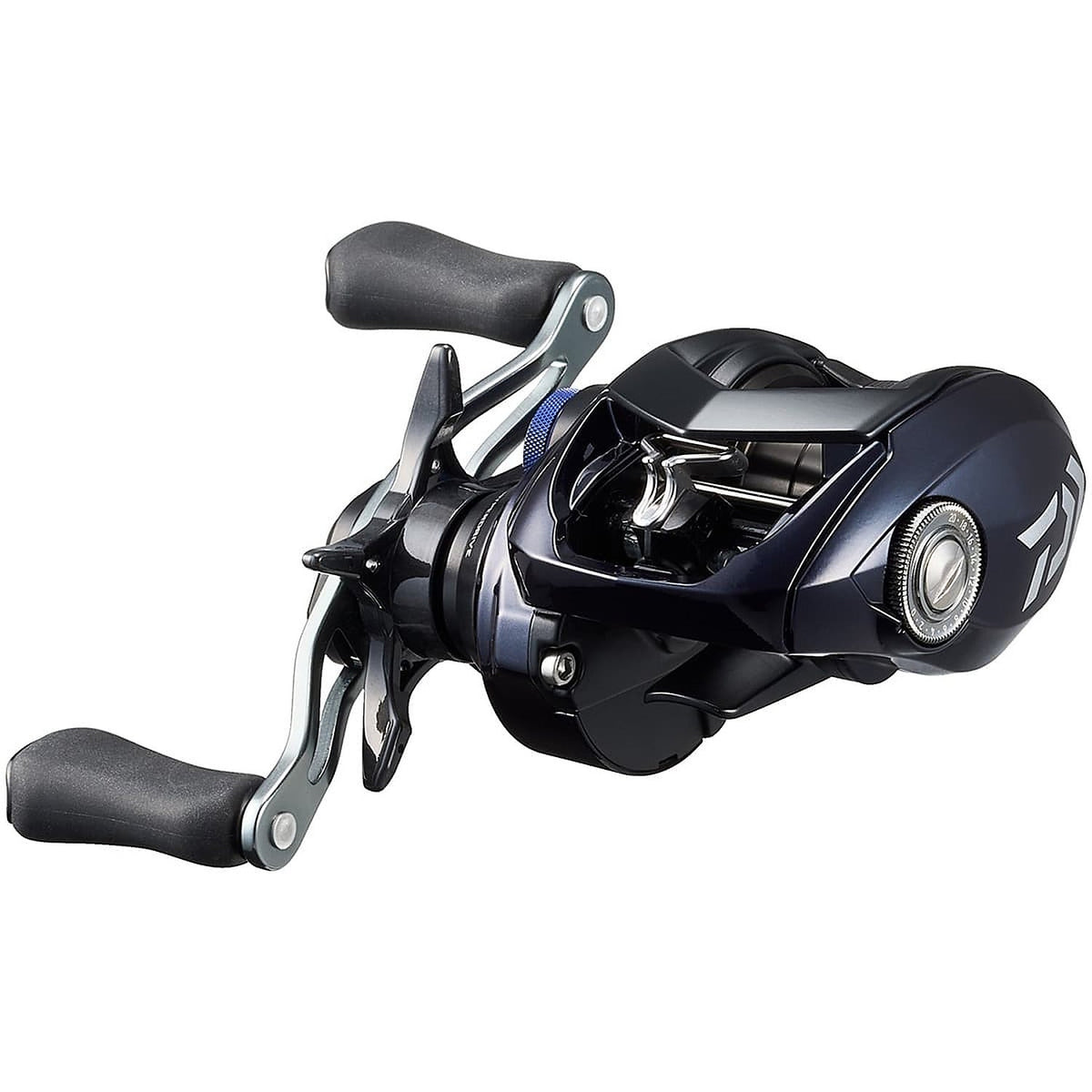

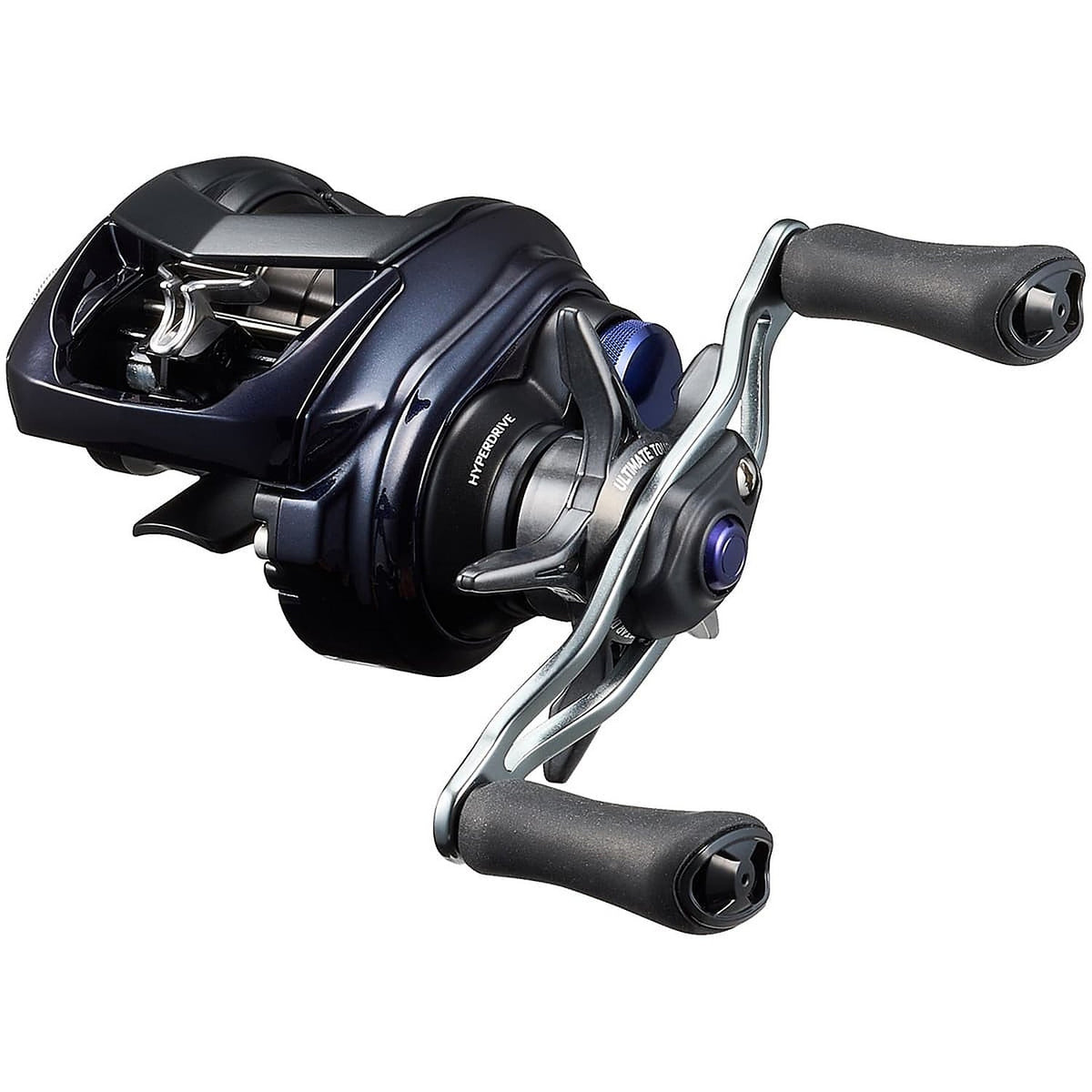

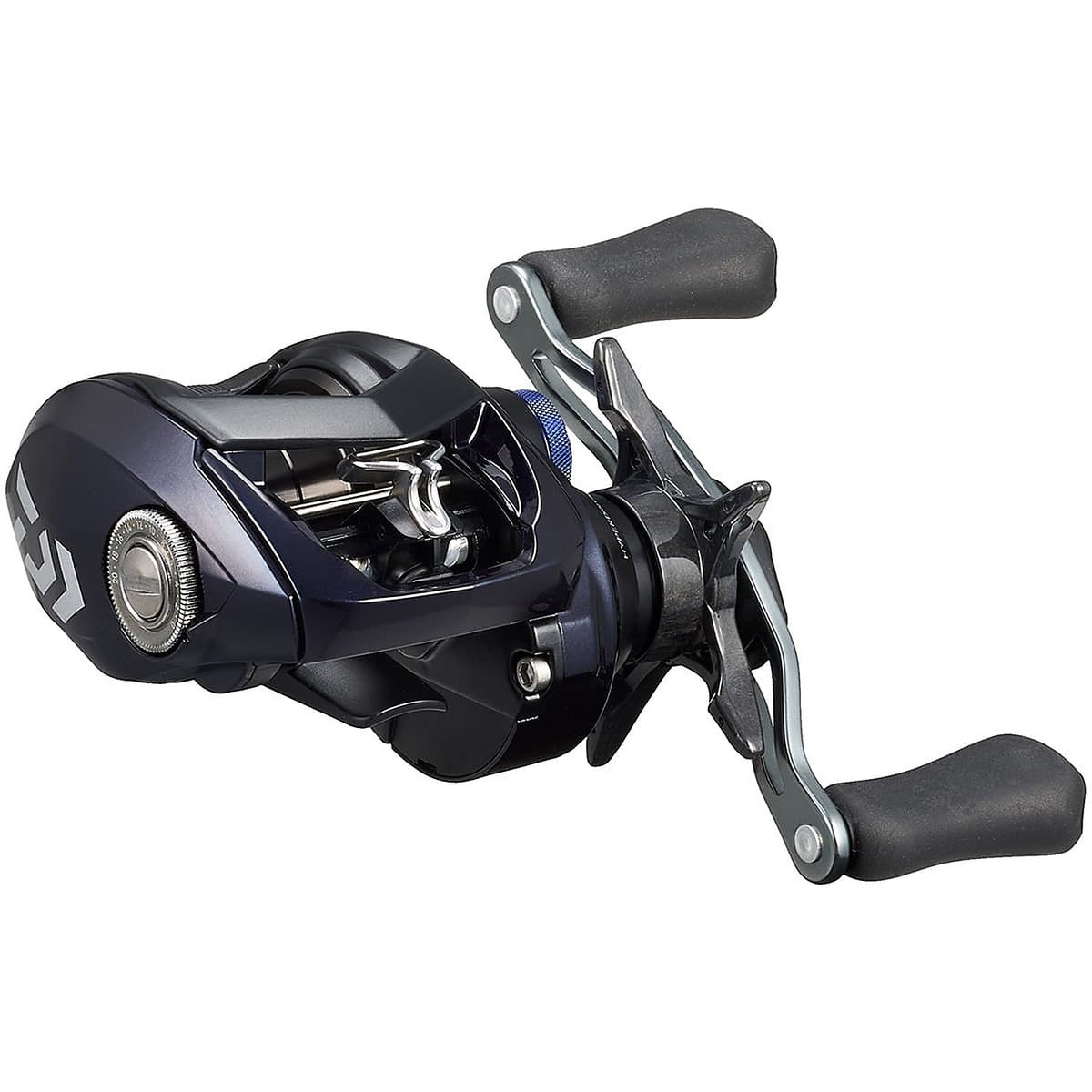

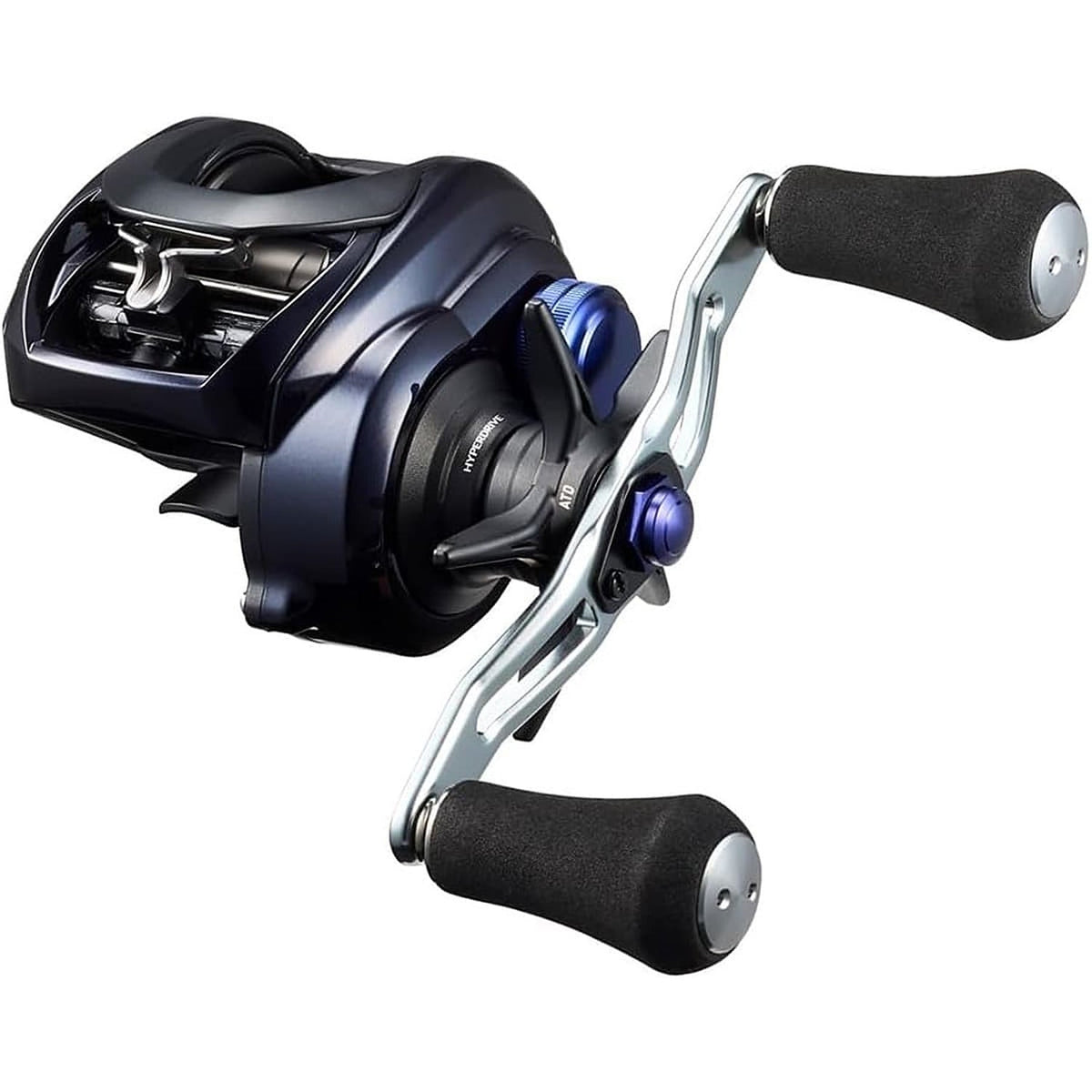

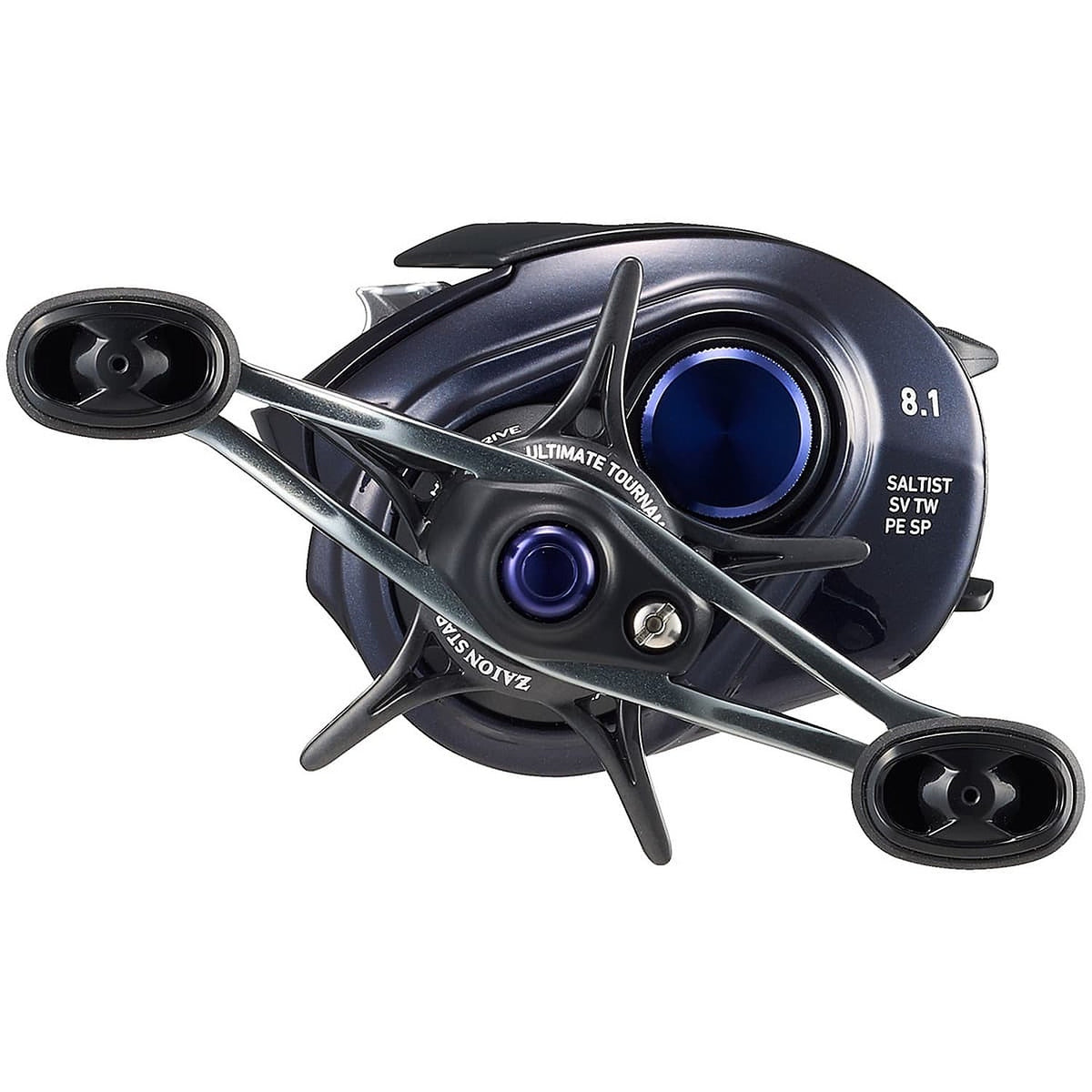

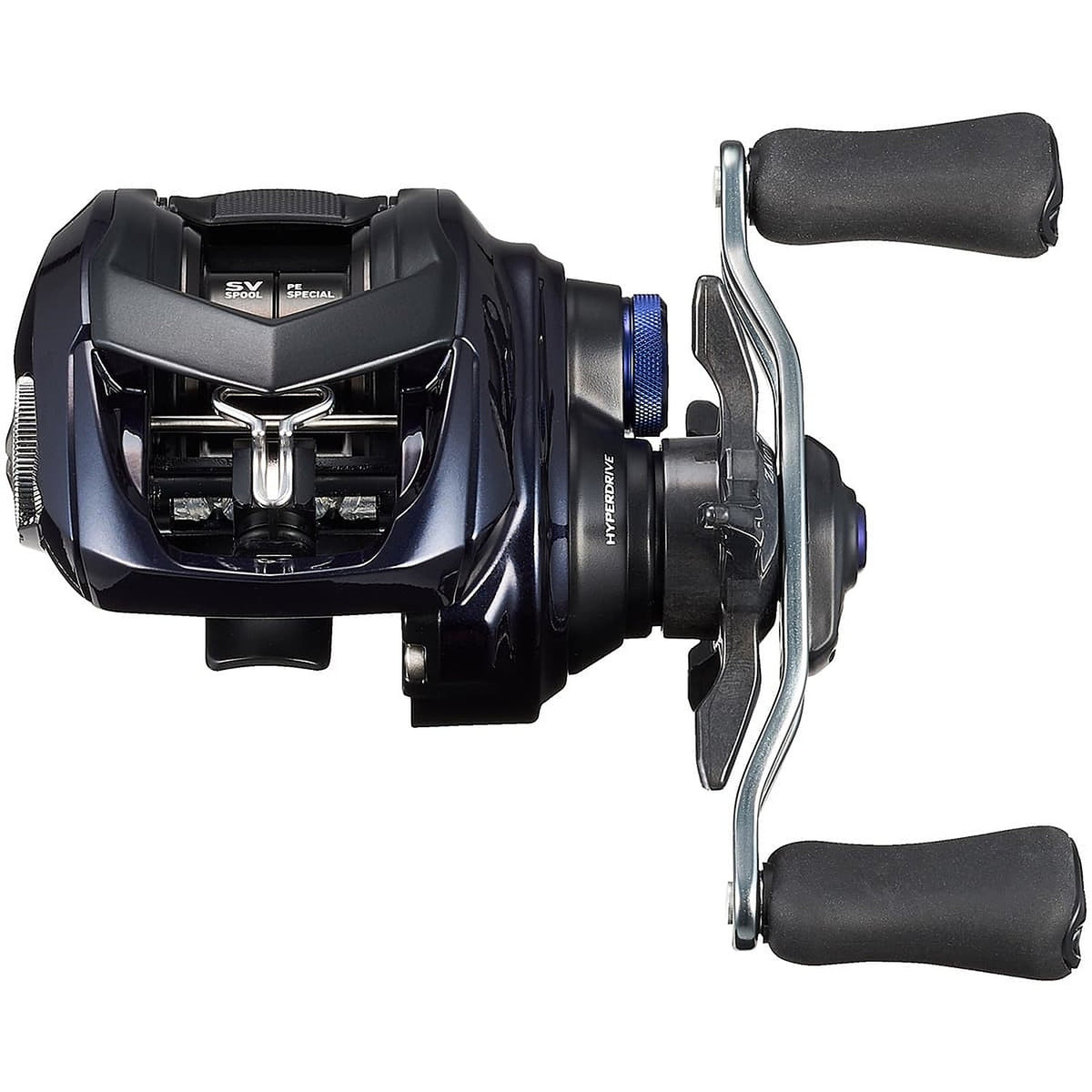

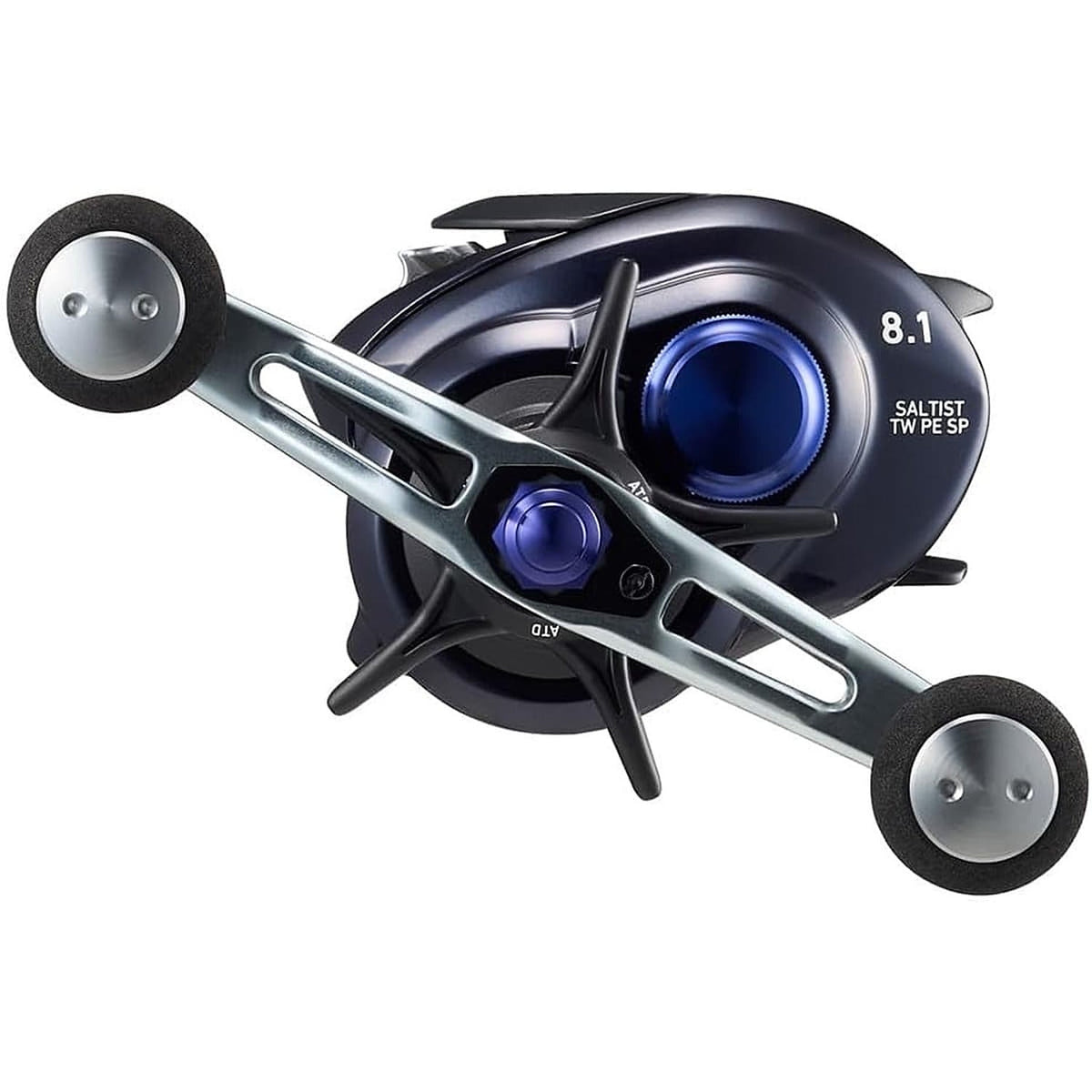

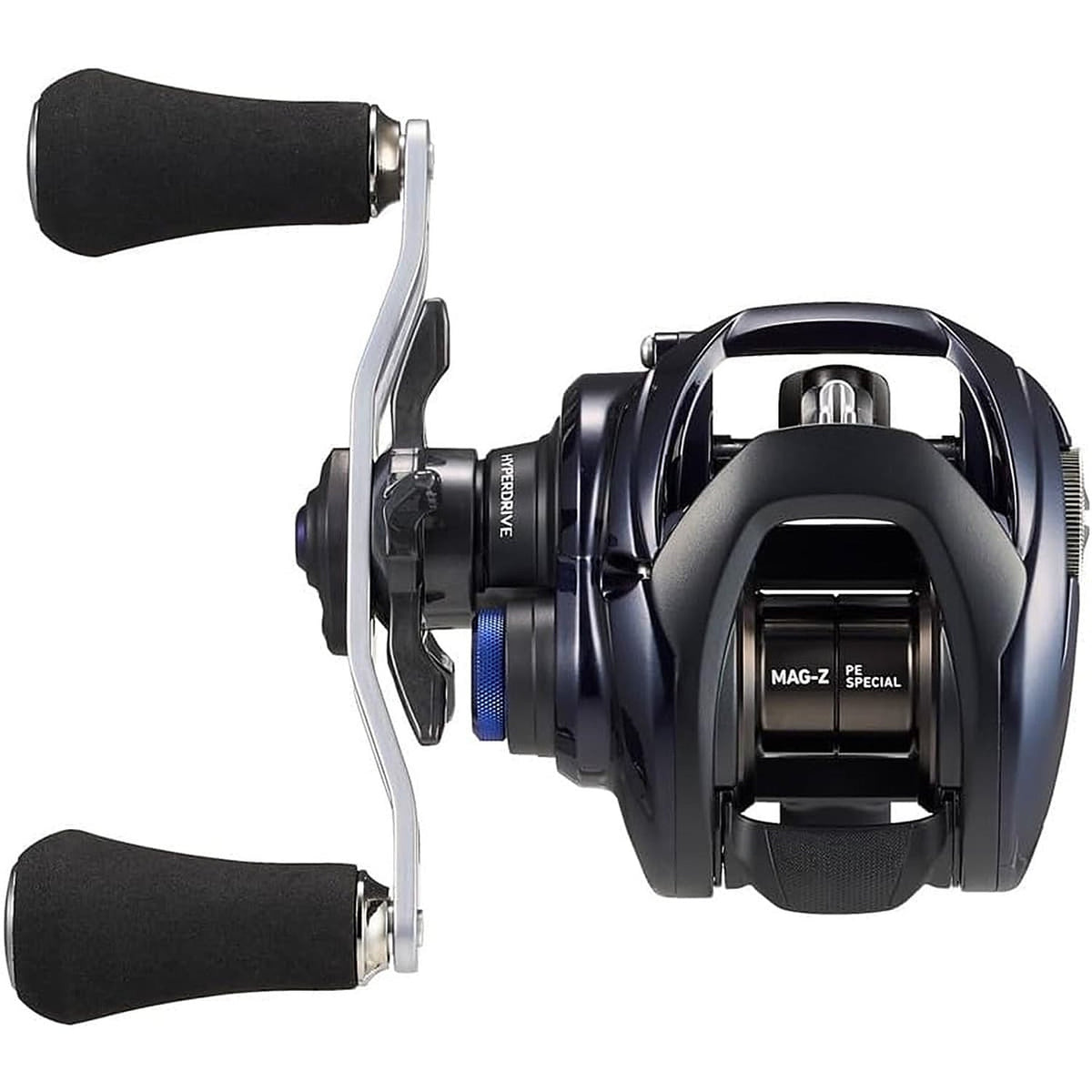

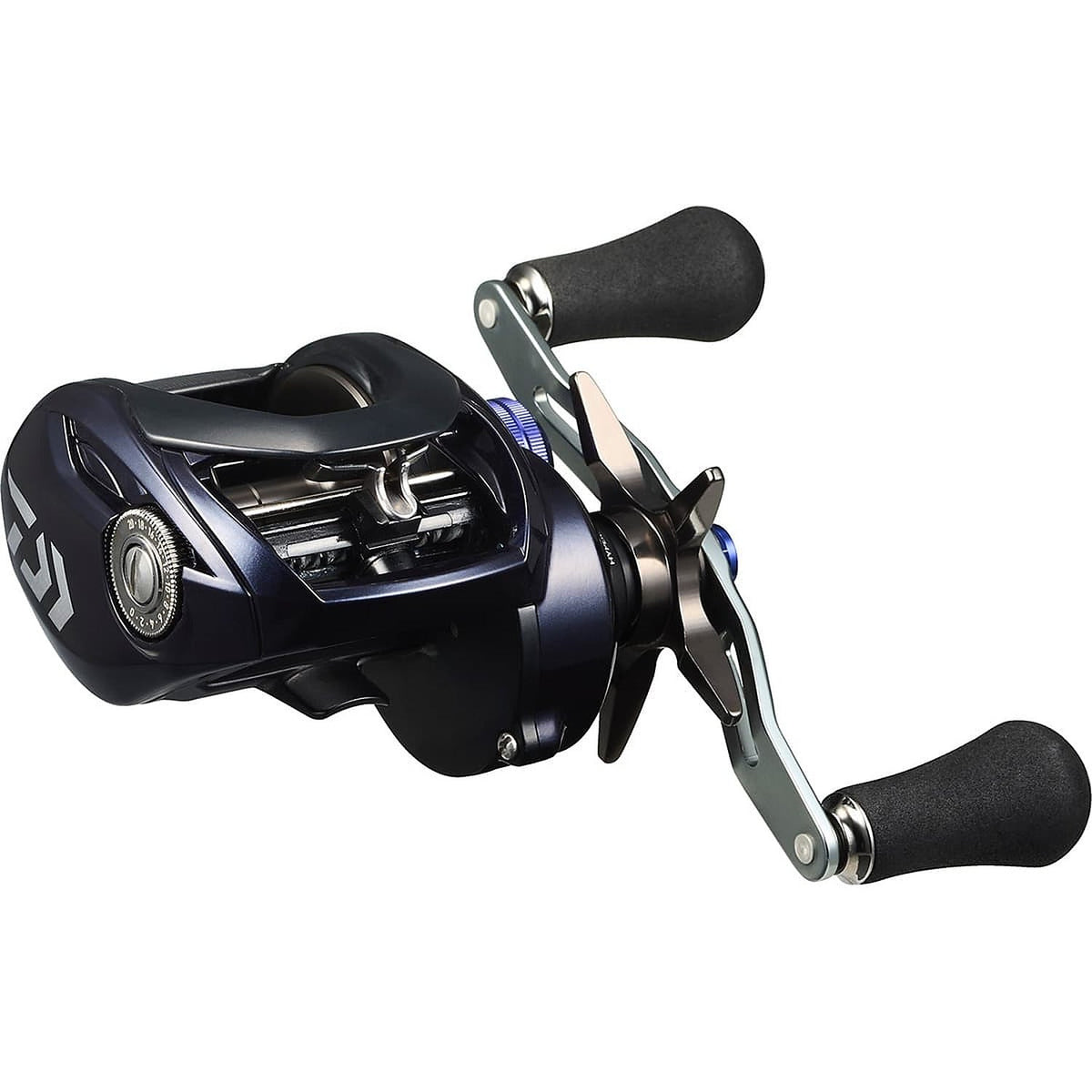

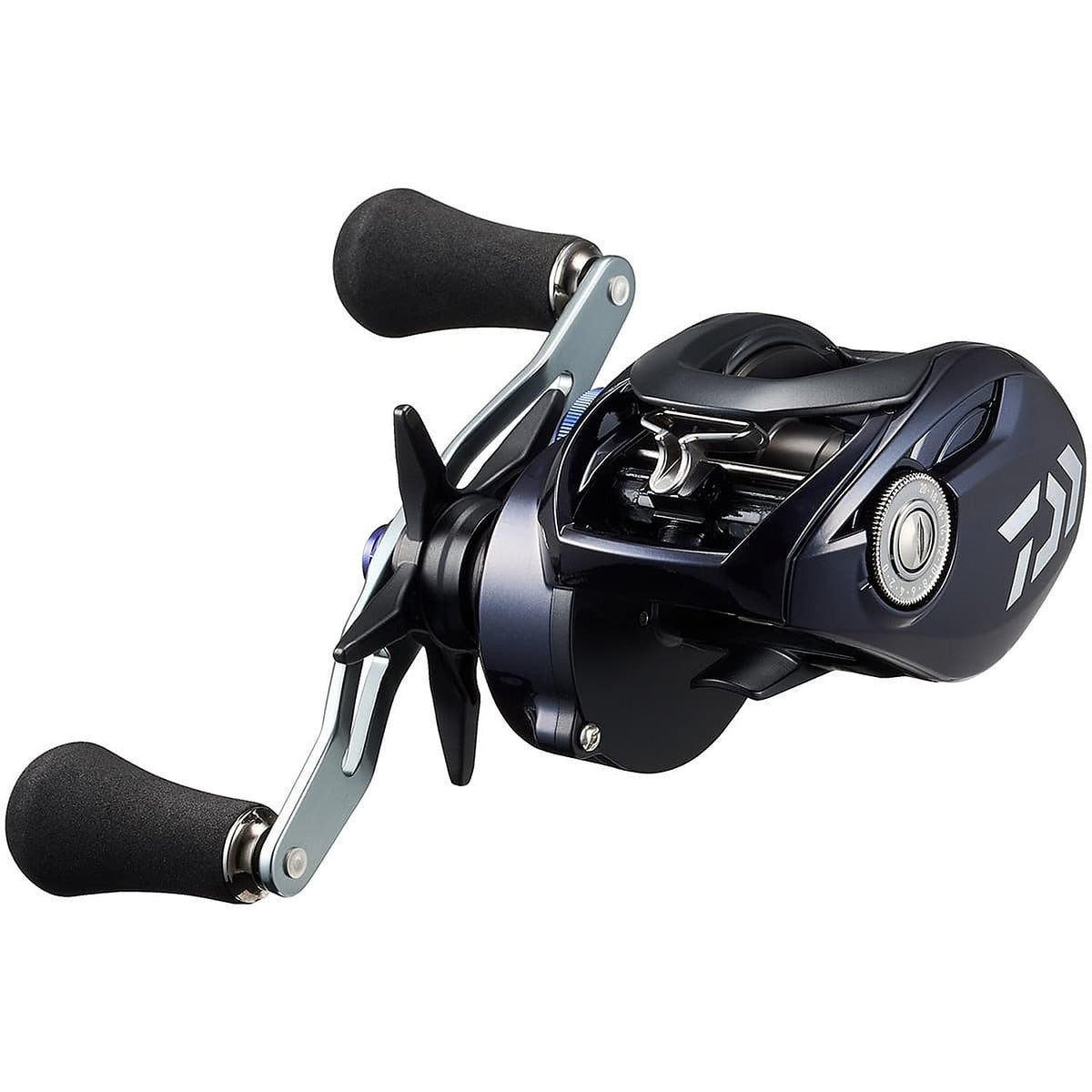

23 SALTIST TW PE SPECIAL

Specifications

Model	Retrieve	Gear Ratio	Ball Bearing	Max Drag (Ld.)	Reel Weight (Oz)	Line Capacity Mono(Ld./Yd)	Line Capacity Braid(Ld./Yd)	Recovery (In/Turn)
8.1R	Right	8.1	7+1	7.7	6.3		8/90, 10/110	30
8.1L	Left	8.1	7+1	7.7	6.3		8/90, 10/110	30
80XH	Right	8.1	7+1	9.9	6.5		10/160, 12/130	32
80XHL	Left	8.1	7+1	9.9	6.5		10/160, 12/130	32
100XH	Right	8.1	7+1	12.1	7.1		12/220, 16/160, 20/110	34
100XHL	Left	8.1	7+1	12.1	7.1		12/220, 16/160, 20/110	34
150XH	Right	8.4	7+1	13.2	7.8		20/220, 35/140	37
150XHL	Left	8.4	7+1	13.2	7.8		20/220, 35/140	37
300XH	Right	8.1	7+1	17.6	10.6		35/220, 40/160, 50/130	43
300XHL	Left	8.1	7+1	17.6	10.6		35/220, 40/160, 50/130	43
400XH	Right	8.1	7+1	17.6	11.3		35/360, 40/270, 65/200	43
400XHL	Left	8.1	7+1	17.6	11.3		35/360, 40/270, 65/200	43

Scroll for more→

HYPER DRIVE DESIGN

A next-generation design concept in bait (dual-axis) reels that significantly raises the bar for all basic performance, aiming for long-lasting high initial spinning performance. The Hyperdrive design consists of up to four technologies. Hyperdrive digital gears are a prerequisite for smooth and long-lasting rotation; hyper double supports provide gear drive for strong and light reeling; hyper-armed housing strongly supports the internal structure and prevents flexing and distortion; and an insulated structure that keeps working even in the harshest locations and drastically reduces sticking due to salt gouging. The synergistic effect of the Hyper Tough Clutch, with its insulated structure that drastically reduces sticking due to salt contamination, ensures stable performance in all kinds of fields.

HYPER DRIVE DIGIGEAR

A newly designed gear system for bait (double-shaft) reels that pursues continuous strong and smooth rotation. DAIWA's unique technology has achieved a higher engagement rate without reducing the size of the gear tooth module (size), which directly affects durability, and has realized a long-lasting initial smoothness.

HYPER DOUBLE SUPPORT

A drive support system that achieves sustained smoothness and strong, light winding. By supporting both ends of the pinion gear with two ball bearings with high precision, the input from the handle is not damped, enabling strong and light winding even when a load is applied.

HYPER ARMED HOUSING Al

The housing system firmly supports the internal structure with high rigidity and precision to produce exquisite winding comfort and power. The use of metal materials for the frame, which is the key component of the system, is a prerequisite, and in combination with side plates and set plates, enables the basic performance to continue to be demonstrated for an even longer period of time.
Aluminum alloy is used for the frame, gear side plate, and dial side set plate. The full metal housing specification realizes lightweight and strength.

HYPER TOUGH CLUTCH

This clutch system not only provides crisp on/off performance that keeps sliding thousands or tens of thousands of times, but is also extremely trouble-free even in saltwater areas with high salt concentration. It boasts a state-of-the-art insulation structure that has already resulted in a 99% reduction in the number of sticking repairs in harsh saltwater conditions, compared to our company's own.
