24 LUVIAS

Specifications

Model	Retrieve	Gear Ratio	Ball Bearing	Max Drag (Ld.)	Reel Weight (Oz)	Line Capacity Mono(Ld./Yd)	Line Capacity Braid(Ld./Yd)	Recovery (In/Turn)	Features

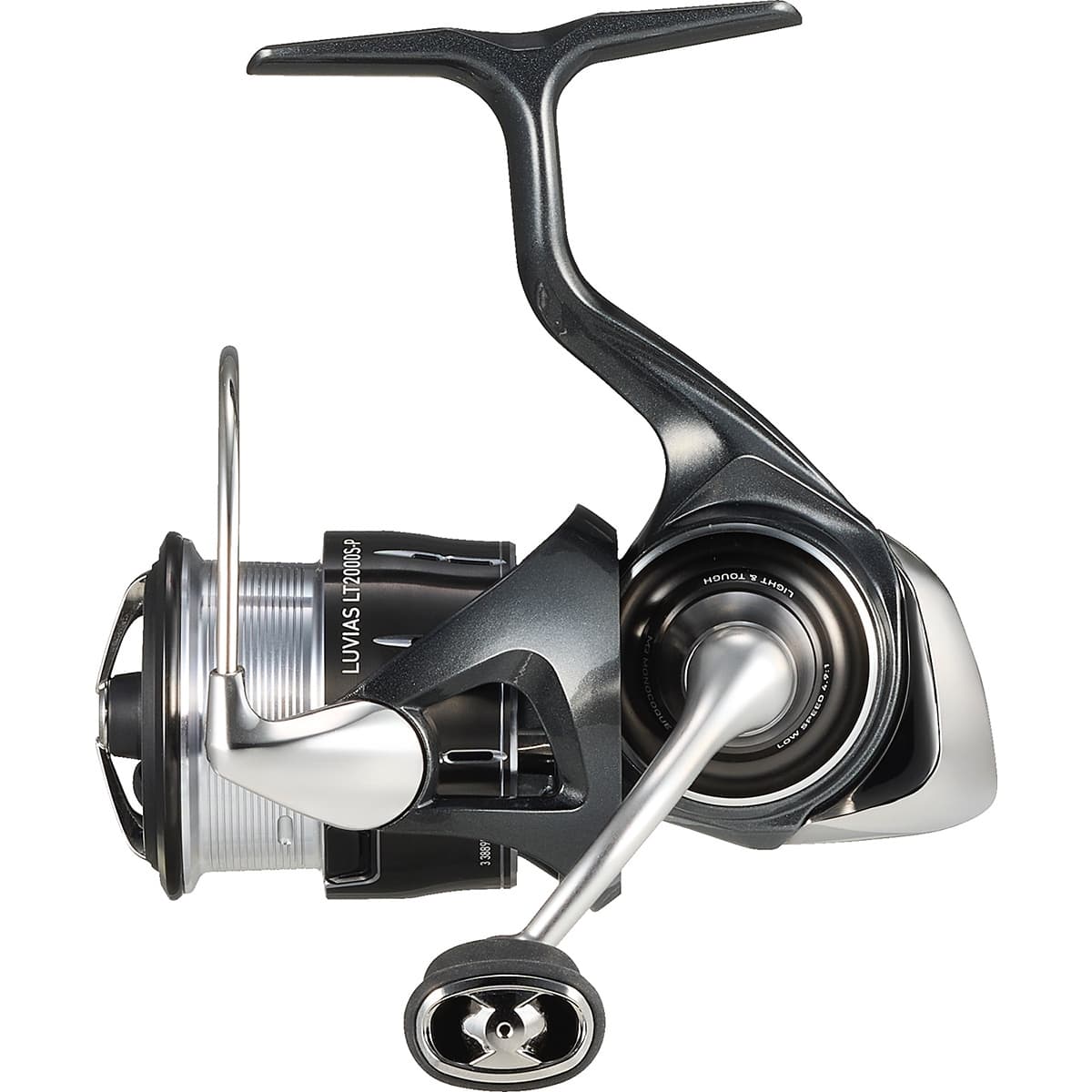

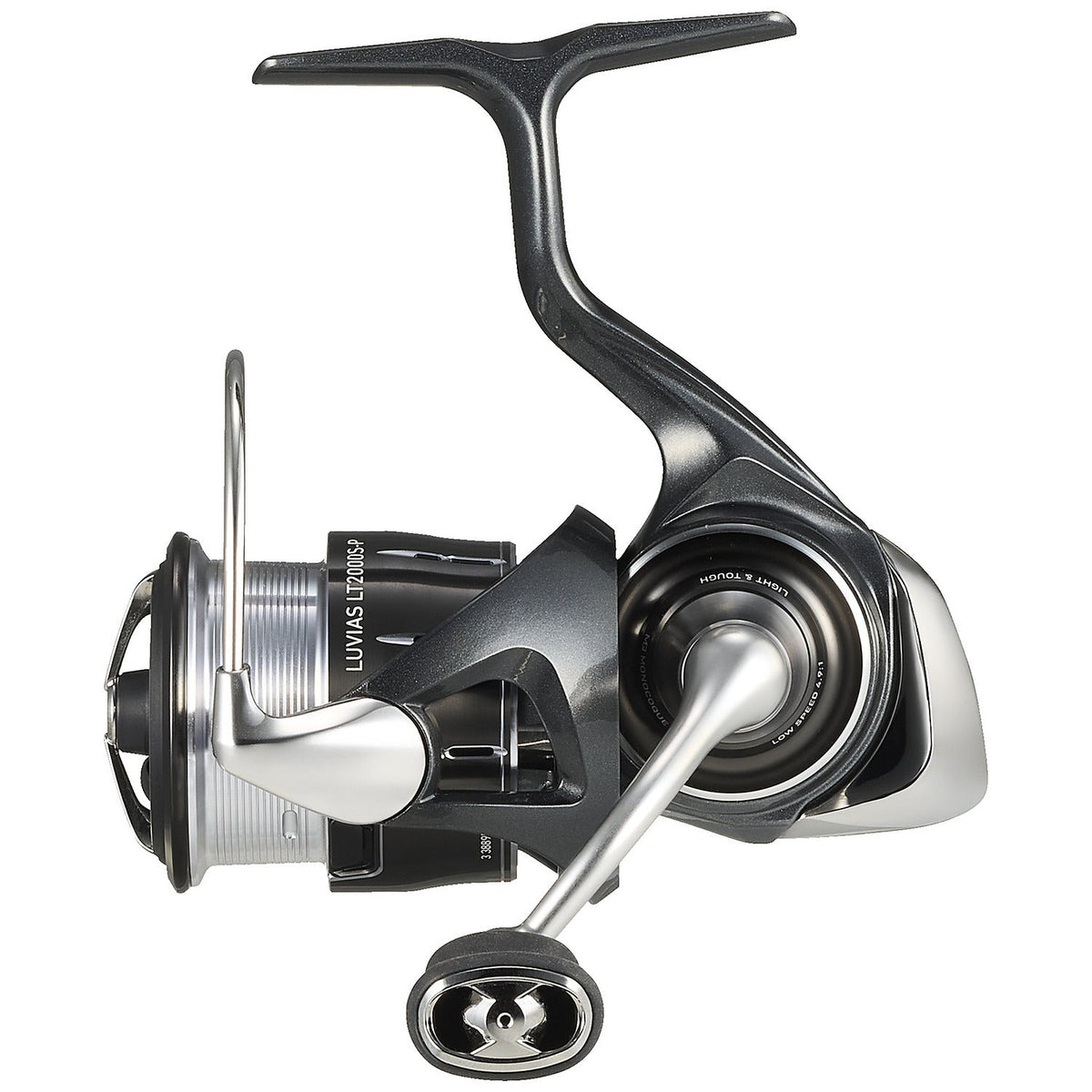

LT2000S-P	Left/Right	4.9	9+1	11	5.1	2/160		25

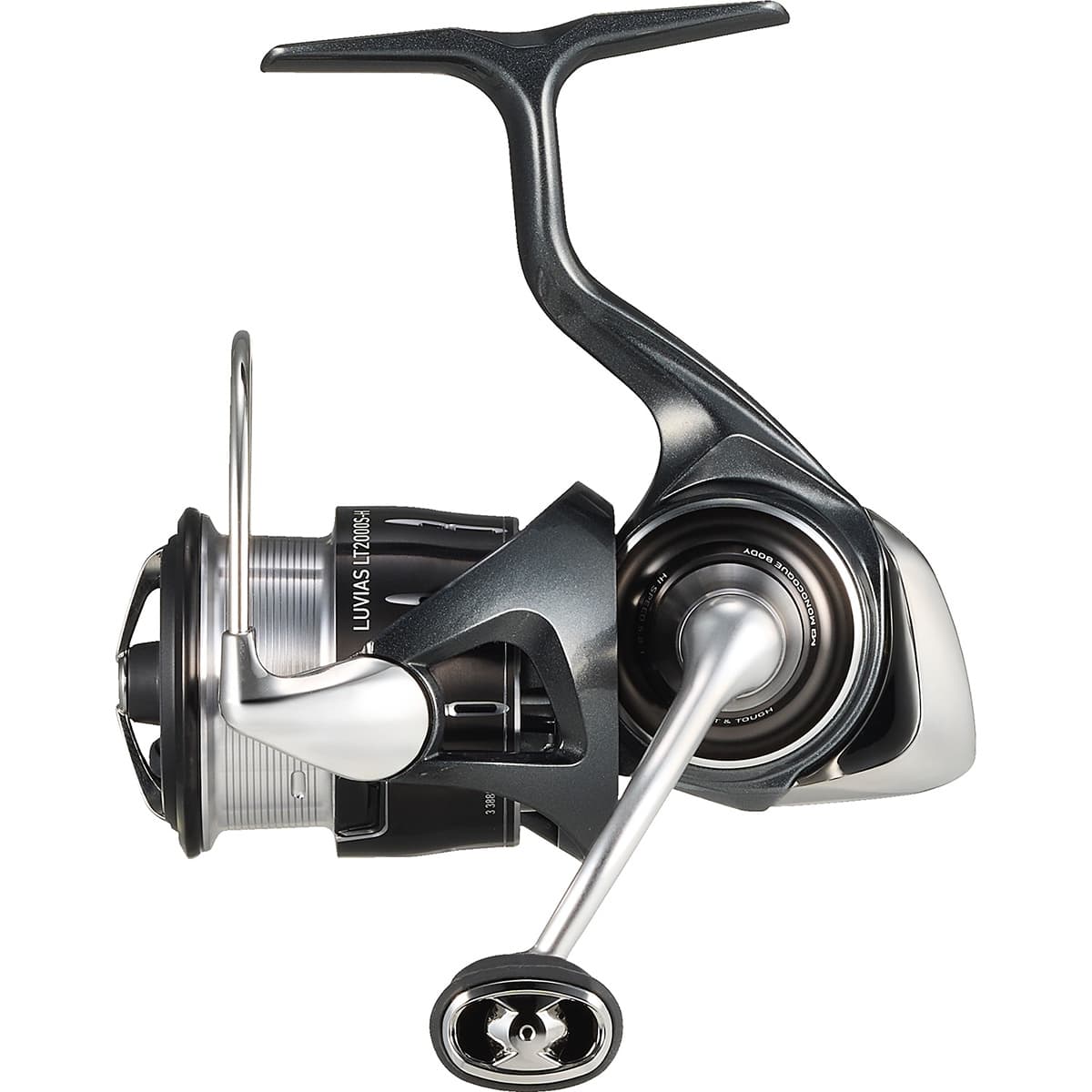

LT2000S-H	Left/Right	5.8	9+1	11	5.1	2/160		30

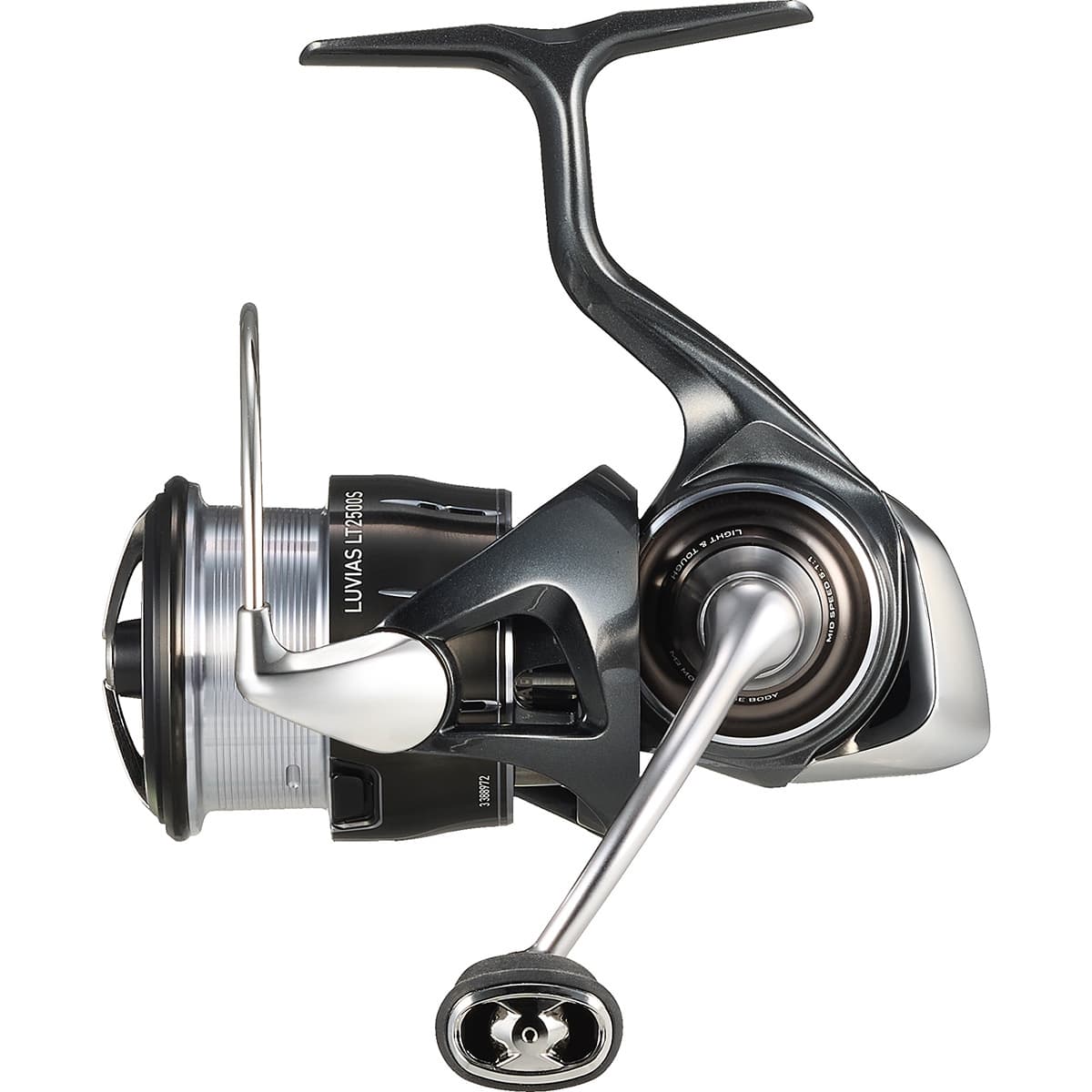

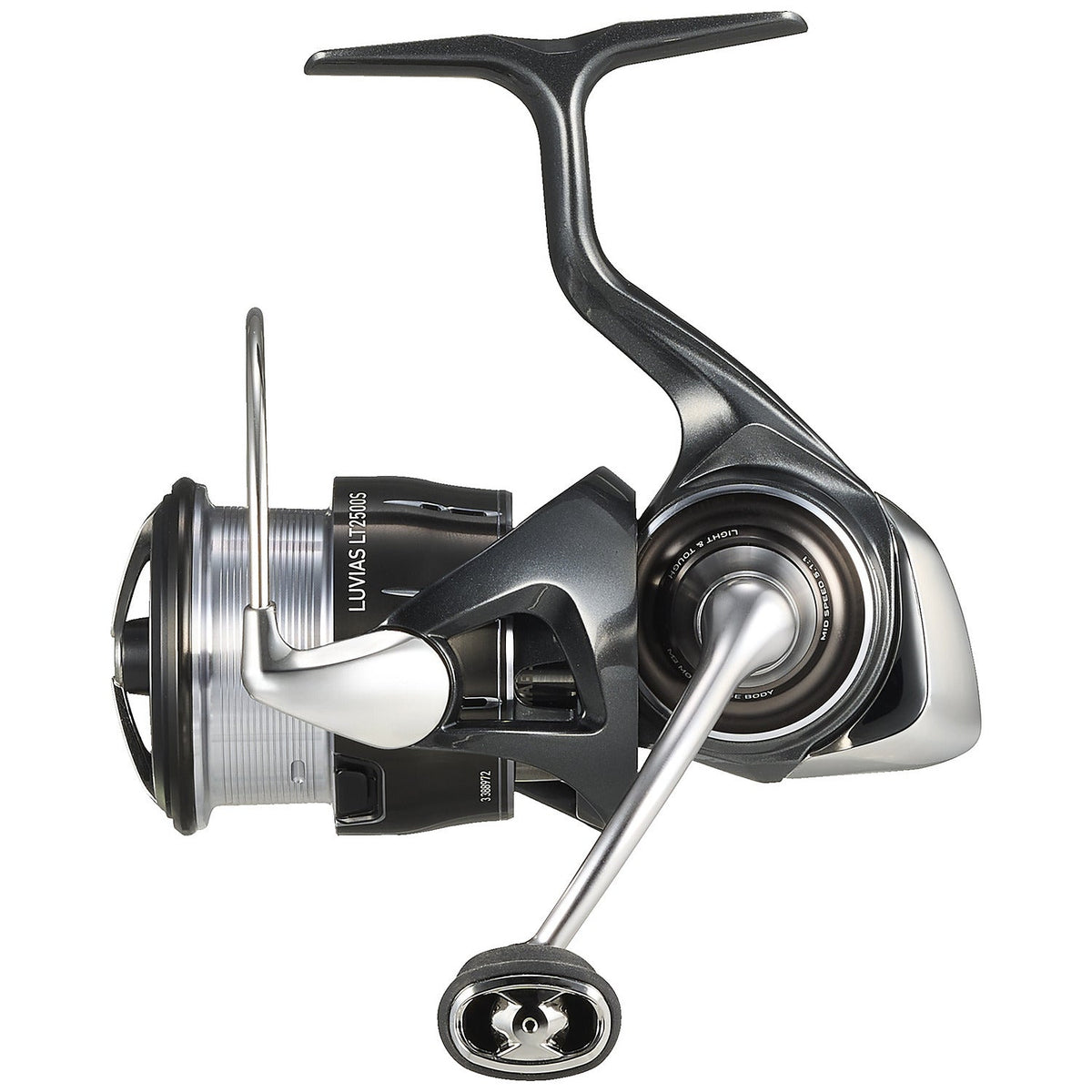

LT2500S	Left/Right	5.1	9+1	11	5.3	2.5/160		28

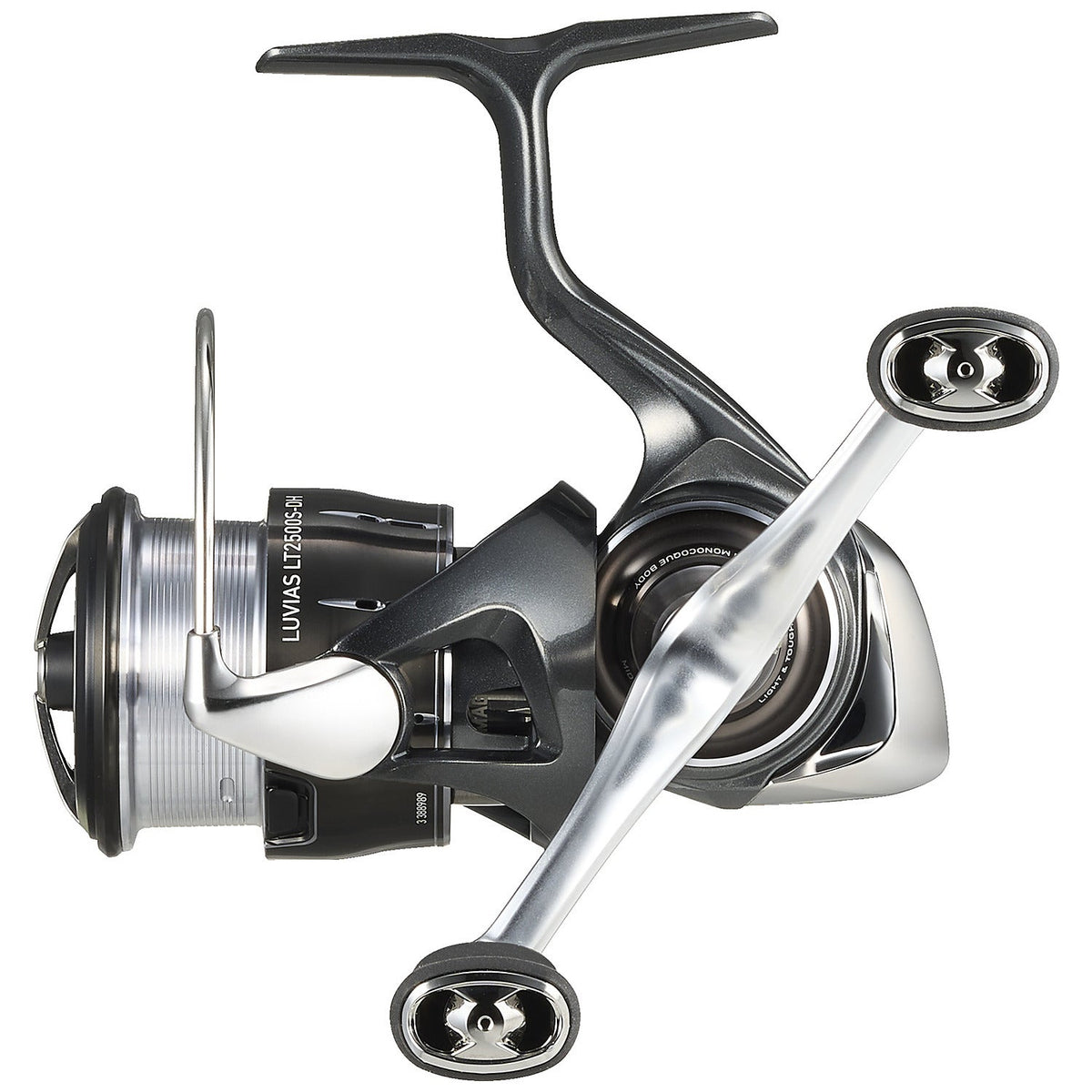

LT2500S-DH	Left/Right	5.1	9+1	11	5.8	2.5/160		28	Double Handle

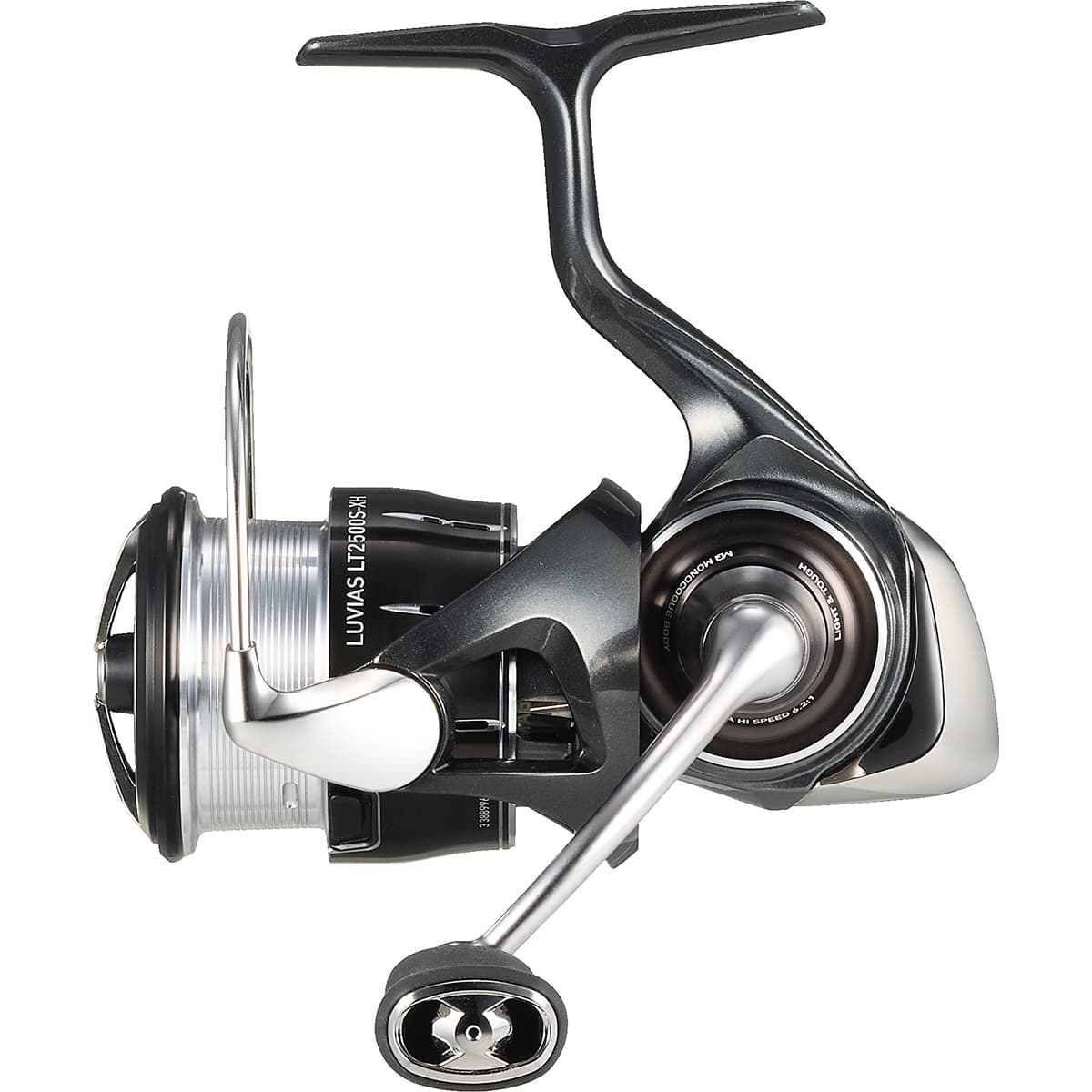

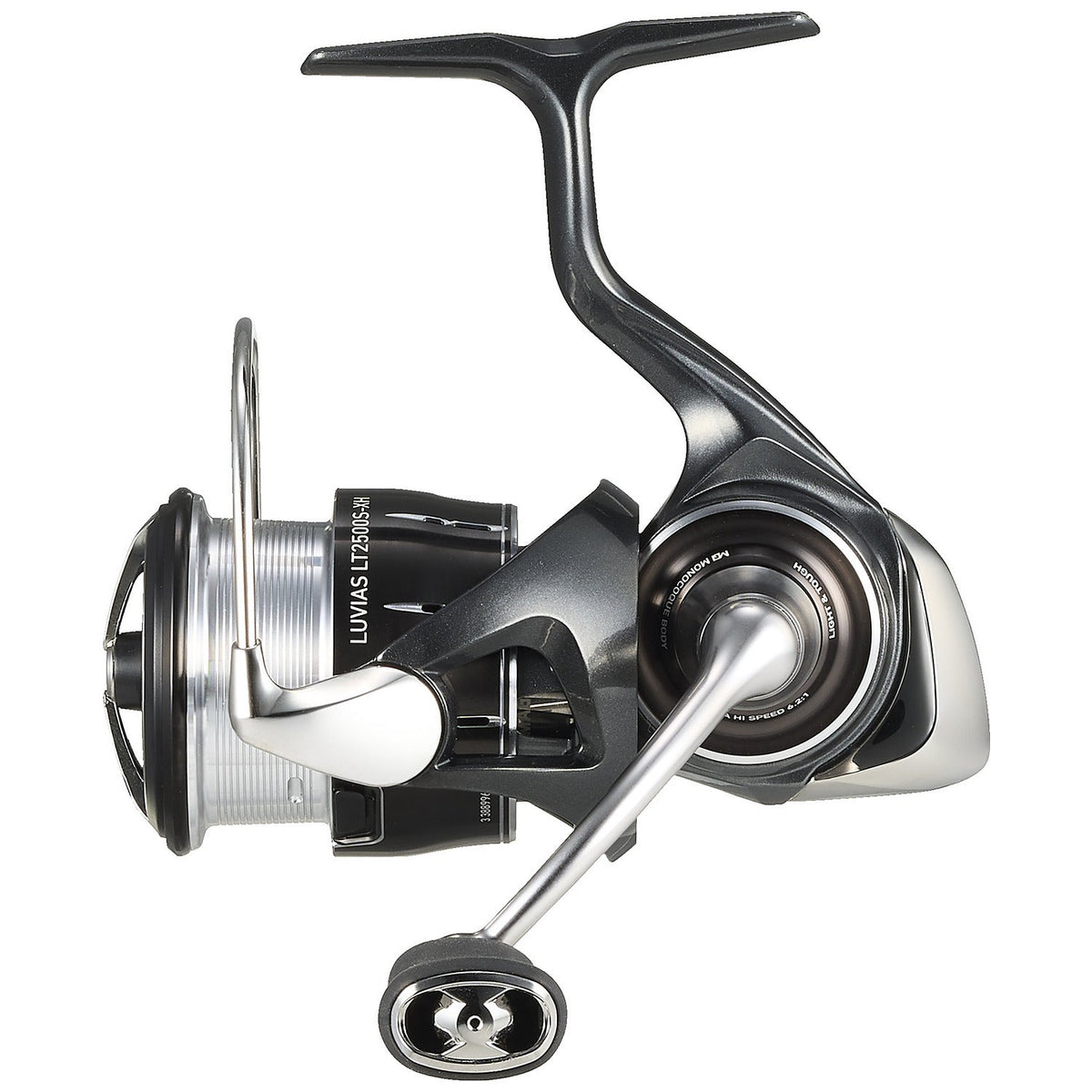

LT2500S-XH	Left/Right	6.2	9+1	11	5.3	2.5/160		34
PC LT2500	Left/Right	5.2	9+1	22.1	6	4/160		29

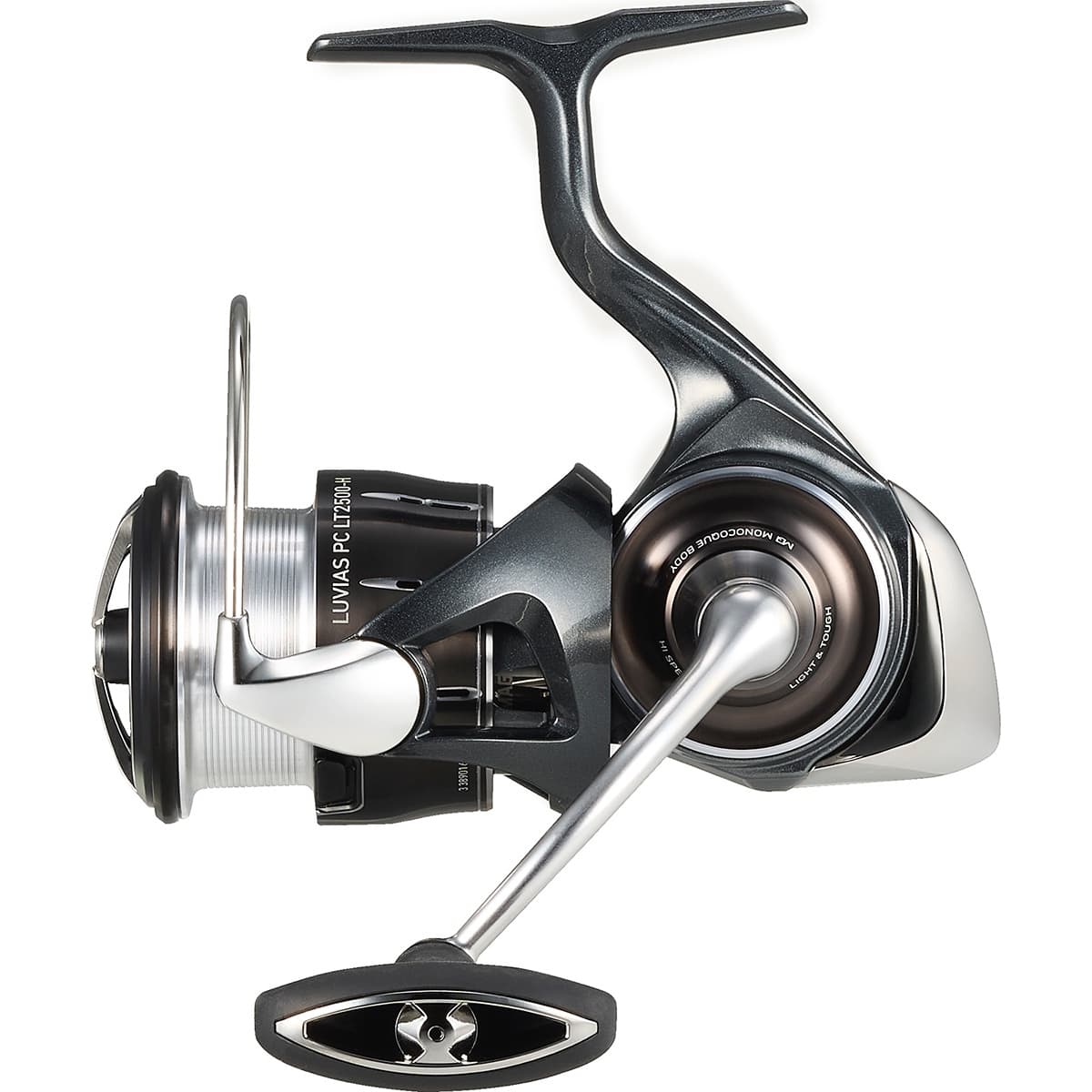

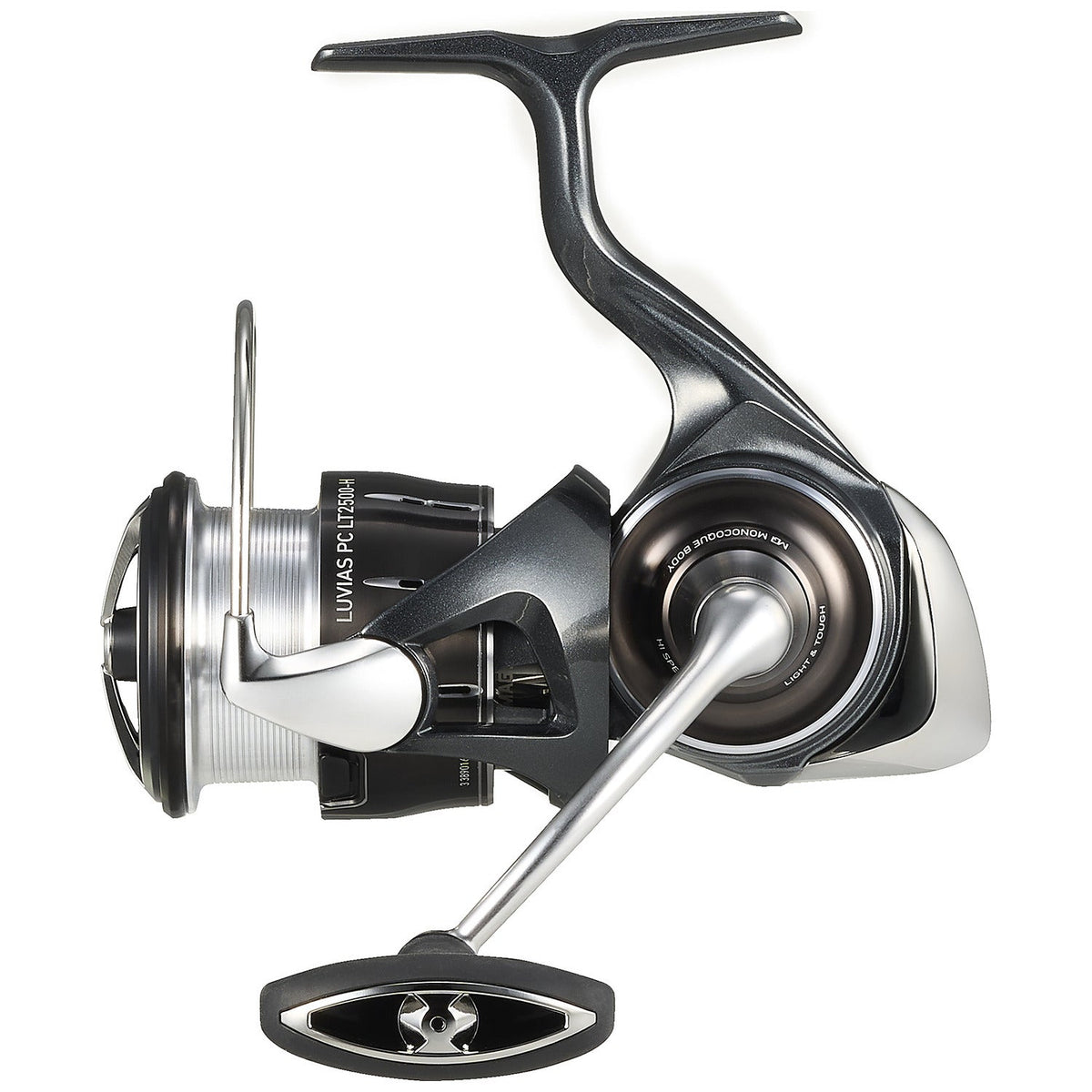

PC LT2500-H	Left/Right	5.7	9+1	22.1	6	4/160		31

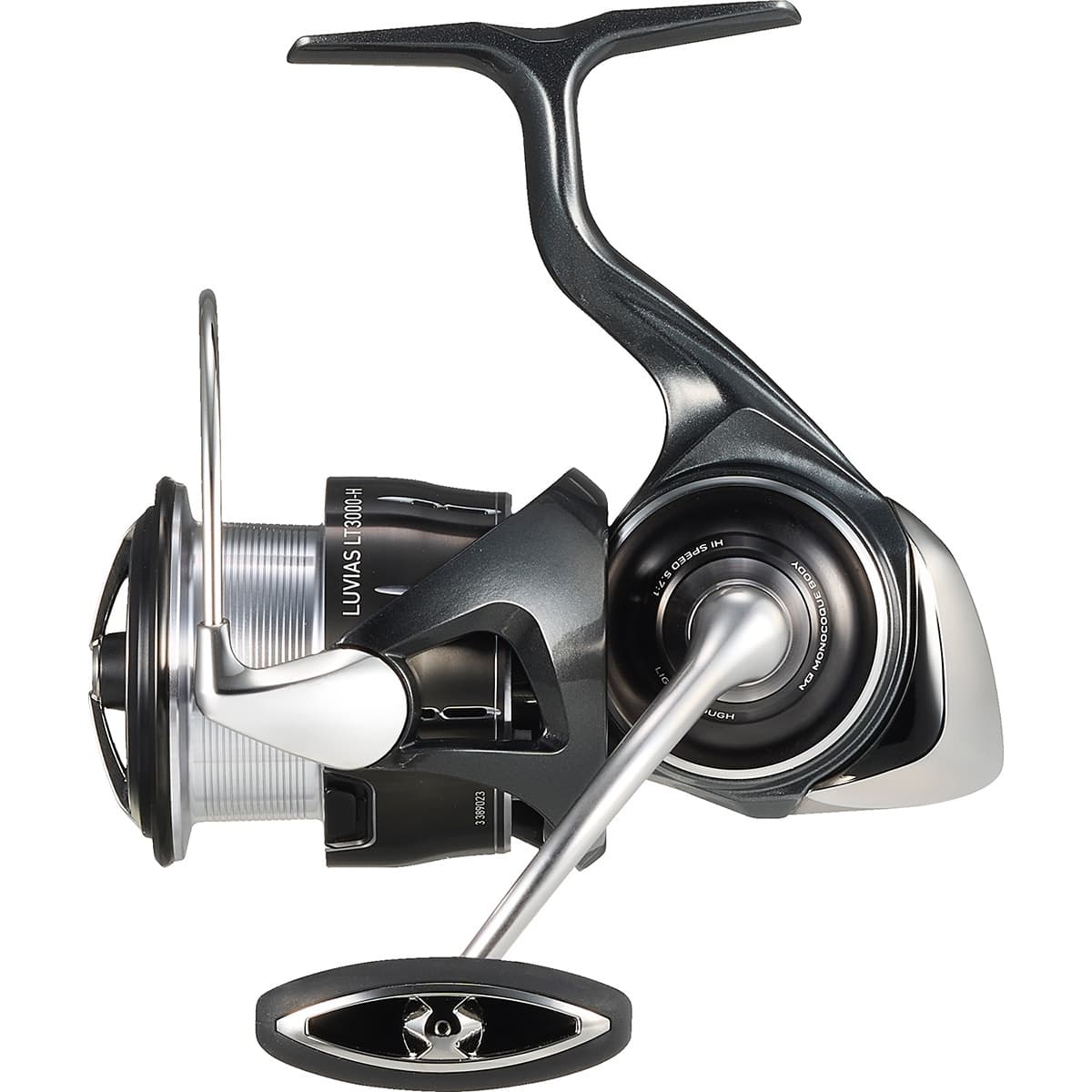

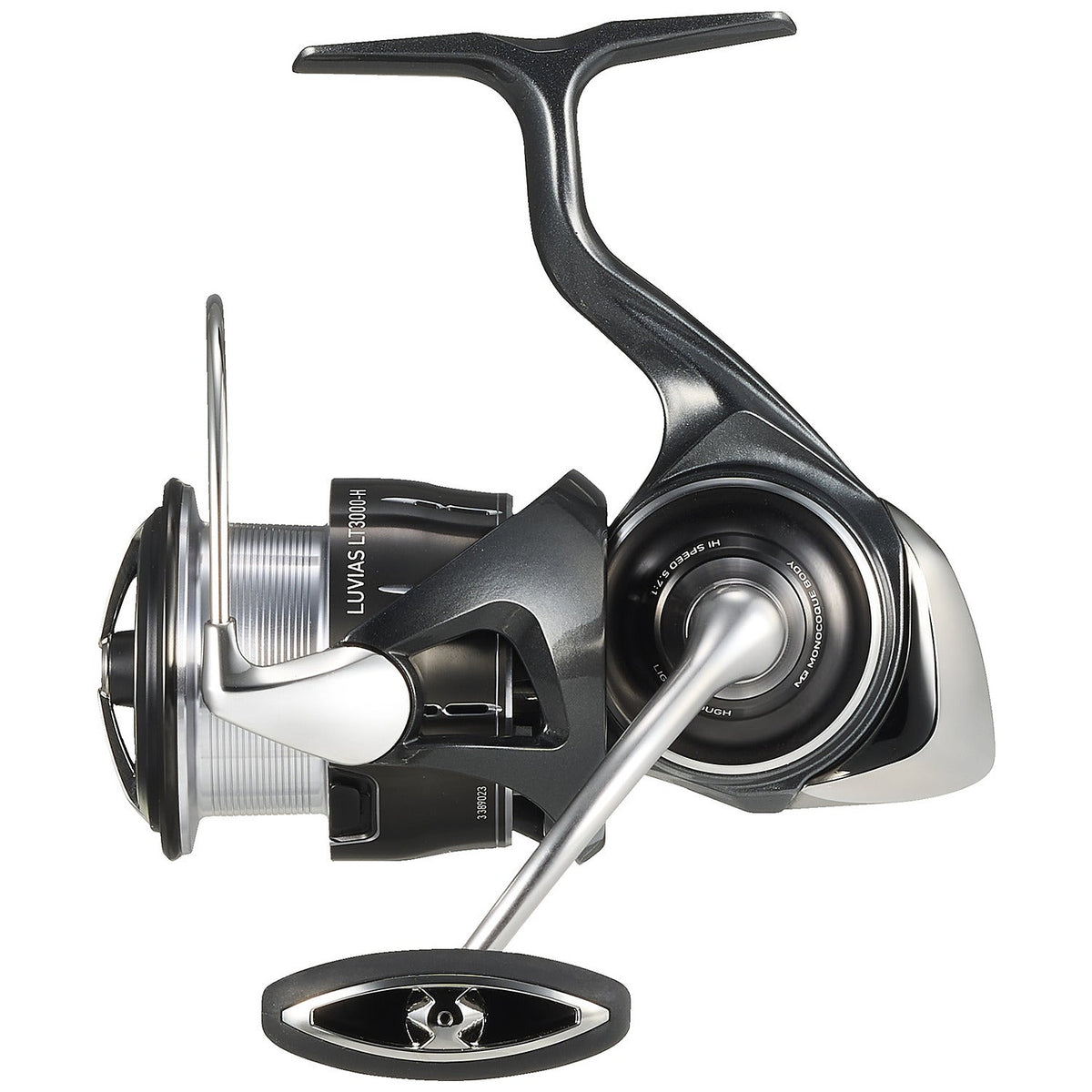

LT3000-H	Left/Right	5.7	9+1	22.1	6.2	6/160		33

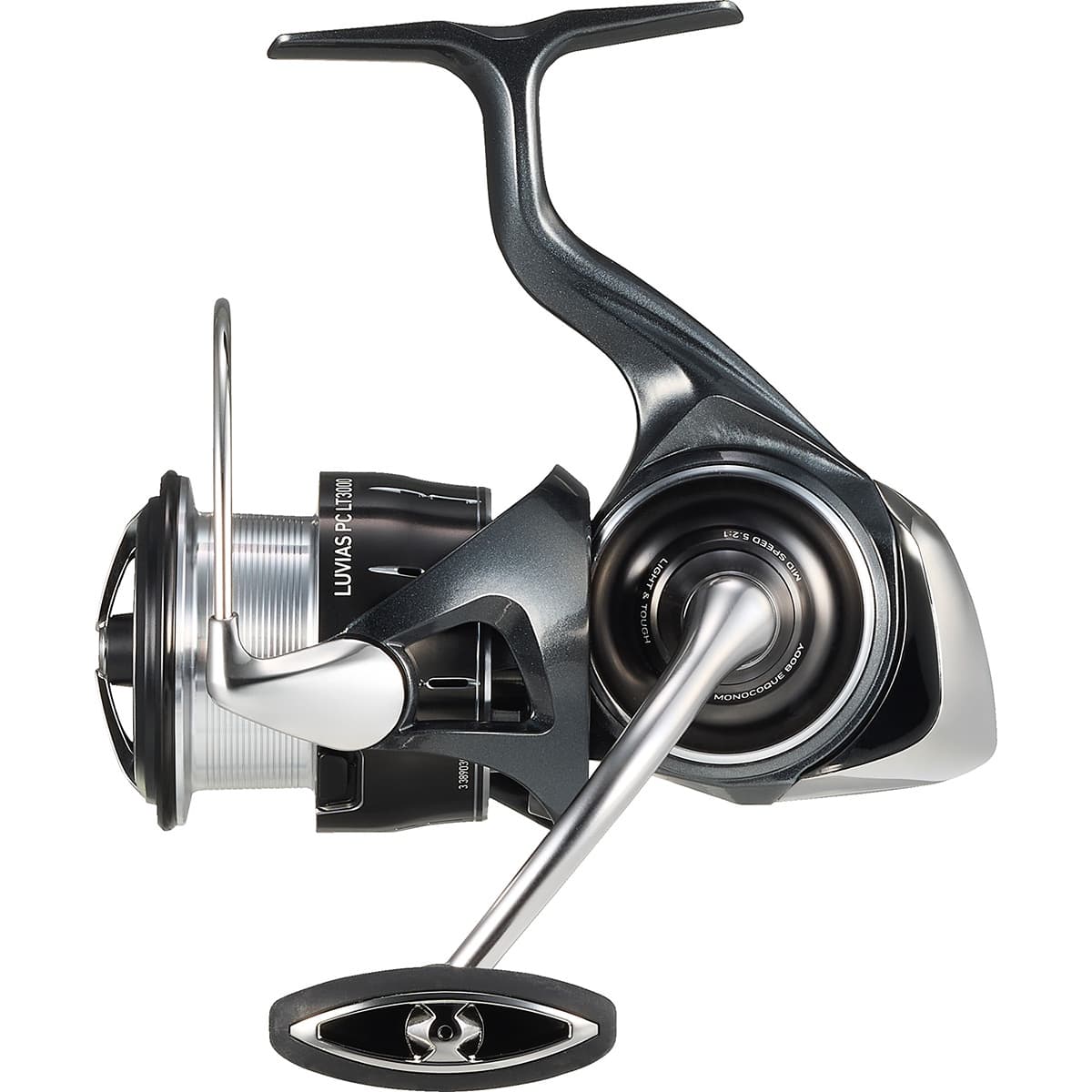

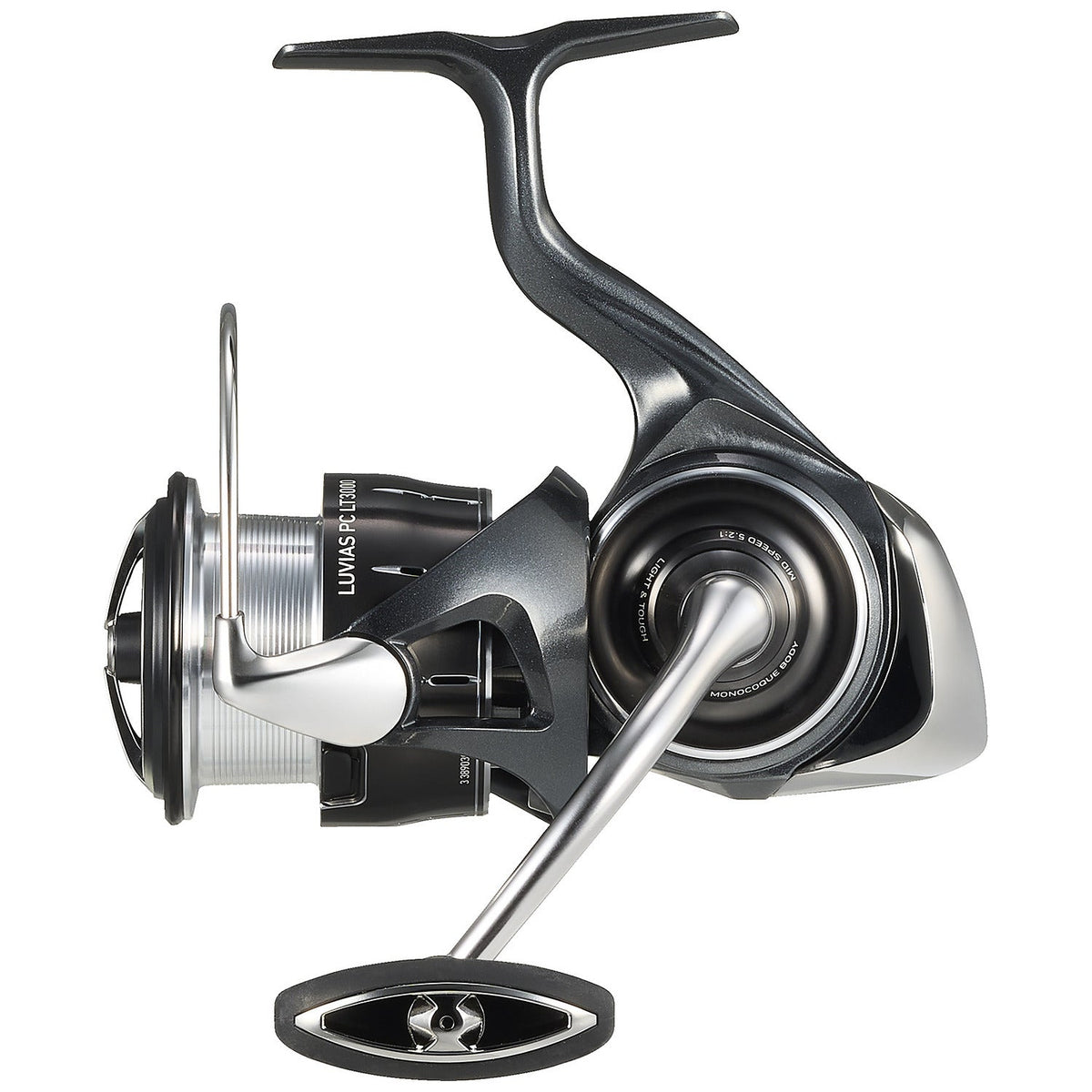

PC LT3000	Left/Right	5.2	9+1	22.1	7.2	6/160		30

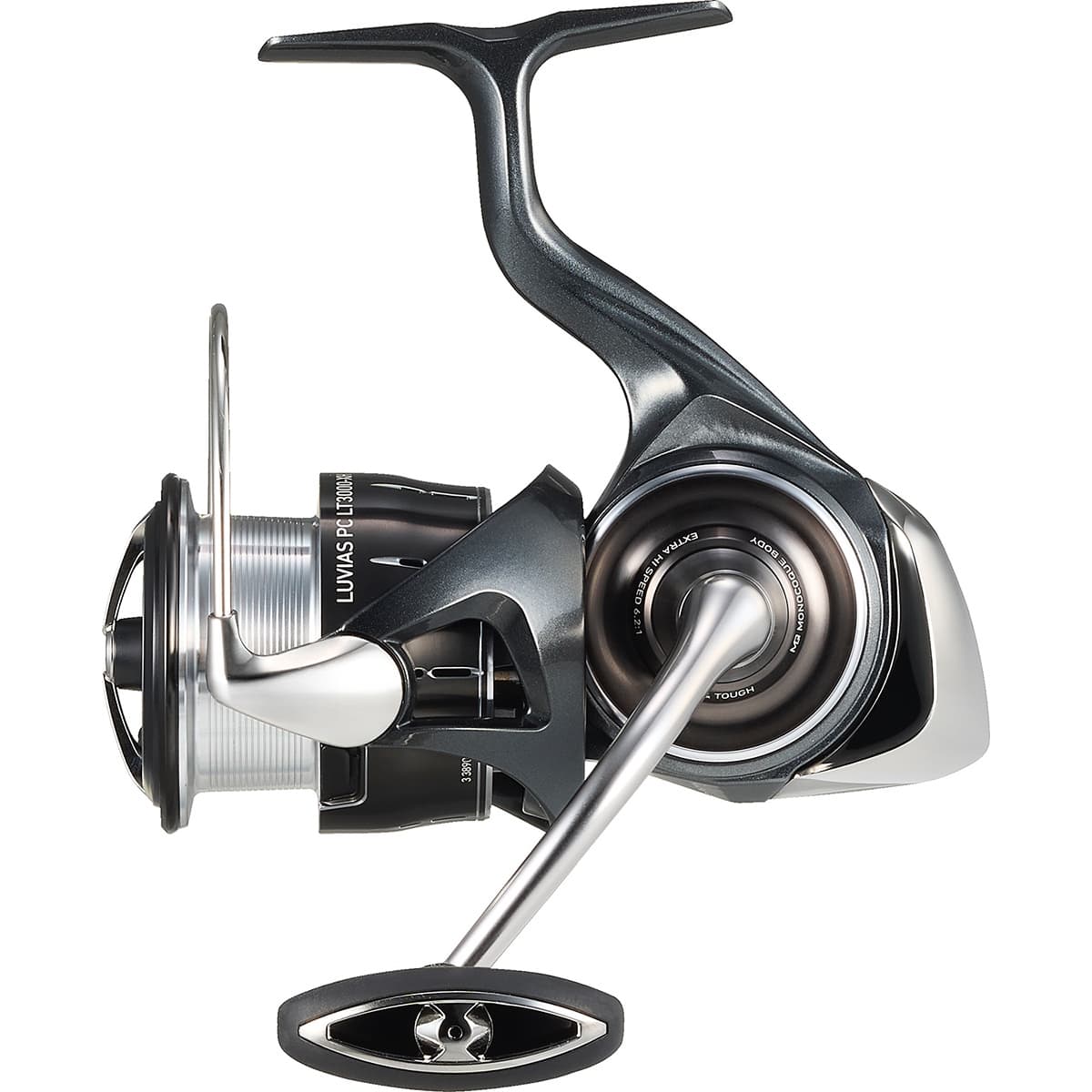

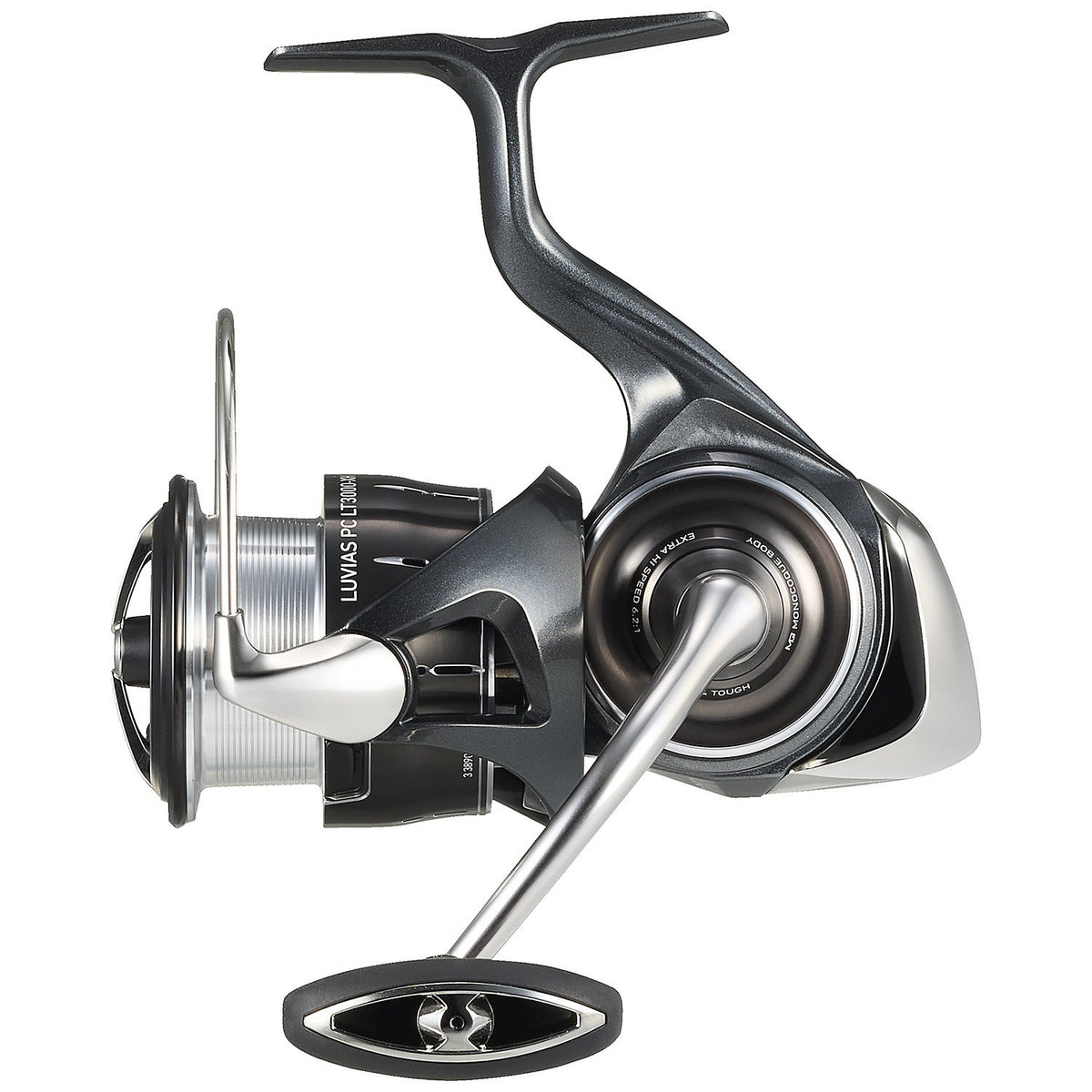

PC LT3000-XH	Left/Right	6.2	9+1	22.1	7.2	6/160		37

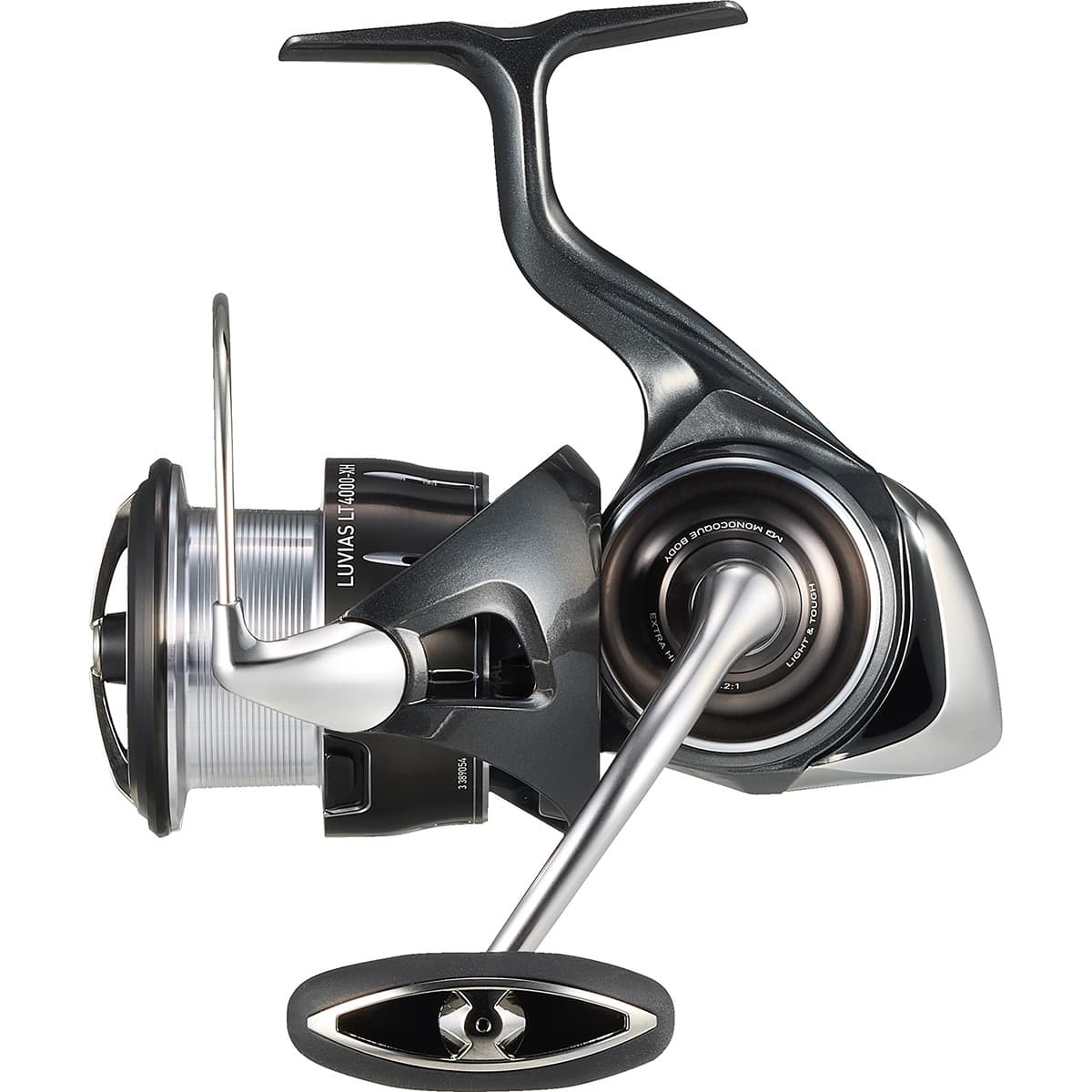

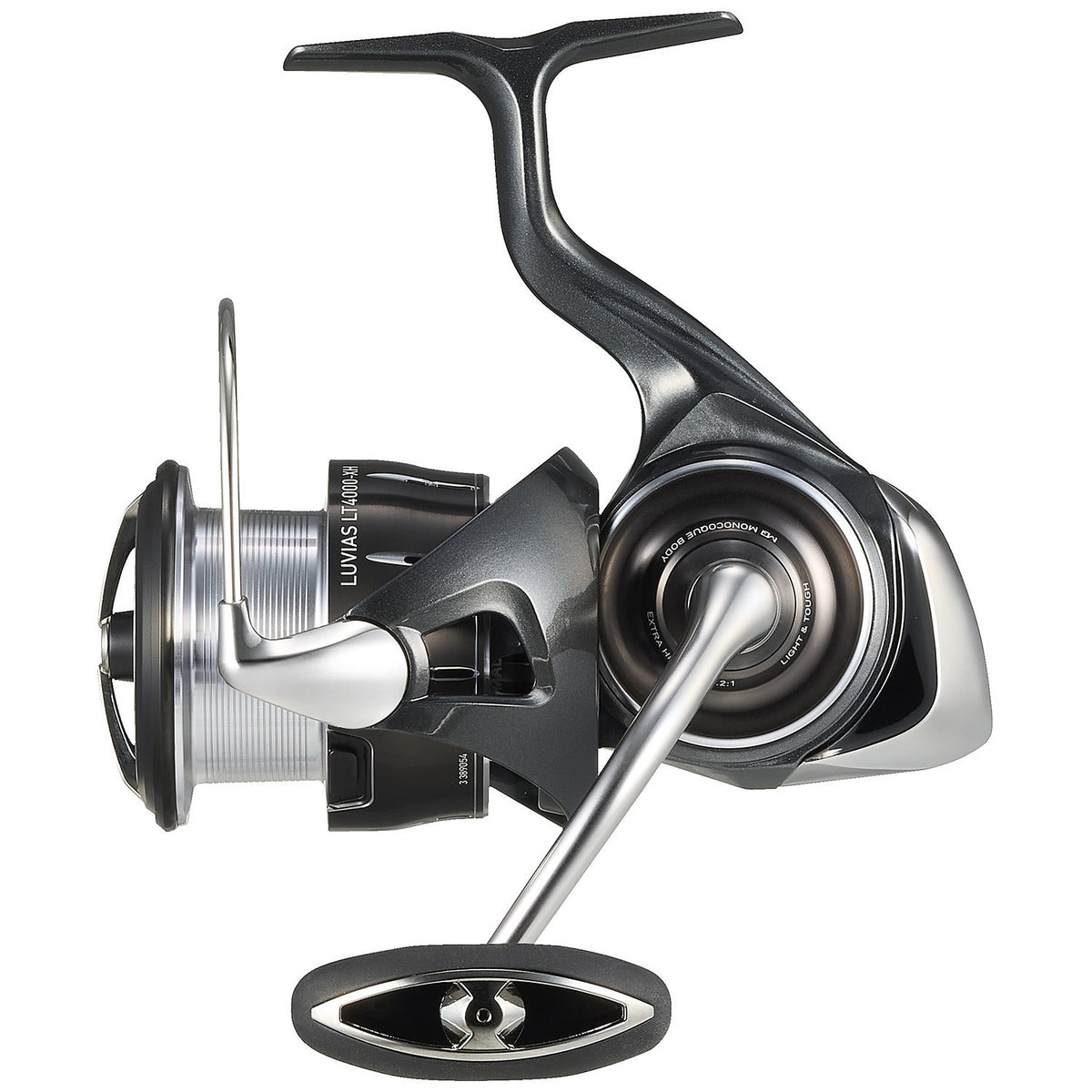

LT4000-XH	Left/Right	6.2	9+1	26.5	7.6	10/160		39

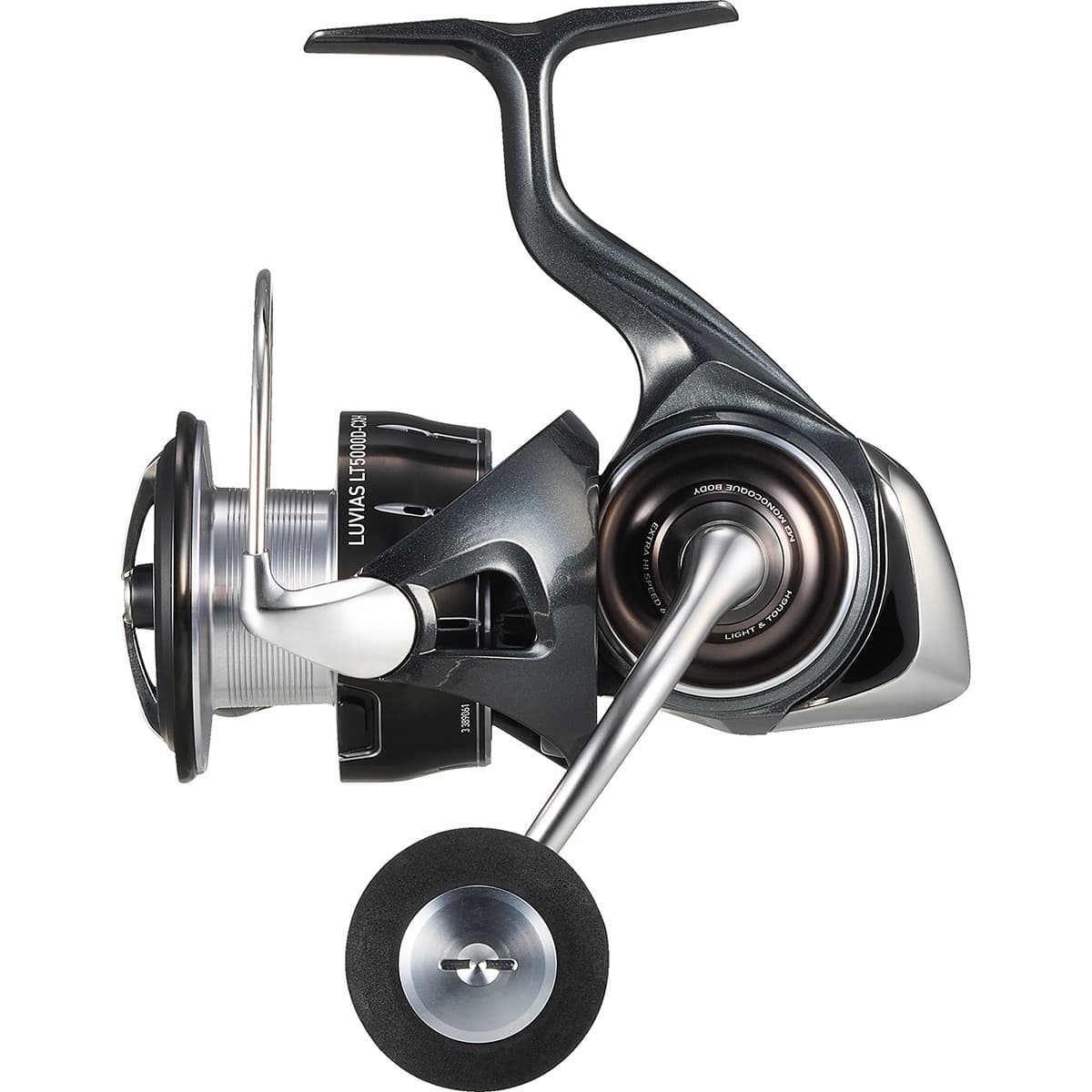

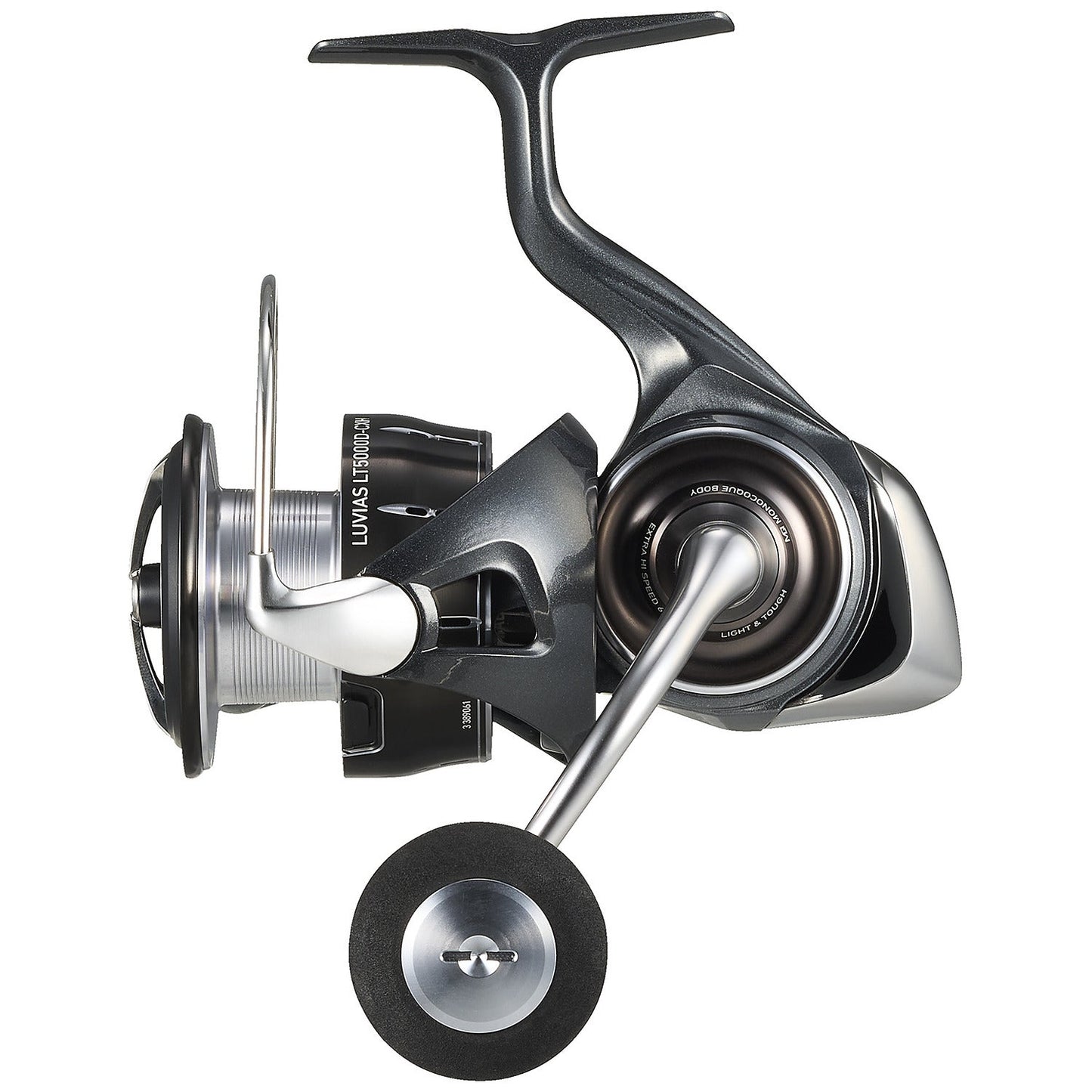

LT5000D-CXH	Left/Right	6.2	9+1	26.5	7.9	22/160		41

Scroll for more→

AIRDRIVE ROTOR

Low inertia is the key.
The newly developed AIRDRIVE ROTOR is made from ZAION. Maintaining the strength of the rotor from 18 EXIST, DAIWA has been able to reduce the weight significantly. Designed with focus to create a perfectly round structure, trouble free and flawless rotation have been achieved.
The rotor unit itself has seen a 16% weight reduction compared to the previous model (Based on 2500 size reel) and will set the standard for what future rotor design of small spinning reels will be.

AIRDRIVE BAIL

Trouble free future.
DAIWA has constructed a bail smaller in diameter whilst providing required strength to achieve a further weight reduction to the front unit. In comparison to 18 EXIST, AIRDRIVE BAIL reduces the weight of the bail by 33% (compared to 2500 size).
DAIWA has adjusted the angle of bail setting to improve the line movement into the roller. Careful attention was given to the roller and slider and individual design alterations were done for each size of 22 EXIST, perfectly adjusting the line management for each size of the reel.

AIRDRIVE SPOOL

Design reflects the future.
The stand out features of the AIRDRIVE SPOOL would have to be the newly shaped spool skirt and the simple single silver coloured cosmetic. Just by looking at the spool it is clear the structure has been redeveloped, reducing the weight and maximising the feeling of presence.

Reducing the spool weight creates many benefits for a reel; the total weight of reel is reduced, oscillation is improved, less resistance during winding and rotation, better balance when attached to the rod and of course the reel feels light and easy to fish.

AIRDRIVE SHAFT

Friction free rotation.
AIRDRIVE SHAFT has a non contact structure between the mainshaft and the pinion gear. In addition to this, both ends of pinion gear are now supported with bearings to relay the crank power from the handle to the rotor with a higher level of efficiency. By adding high quality collars to the mainshaft, rotational noise has been reduced significantly.

AIRDRIVE SHAFT creates the feel of smooth, quiet rotation and provides anglers with torque and power.

MONOCOQUE BODY

This design incorporates a one-piece frame and a one-piece threaded side plate. Because screws are not necessary to attach the side plate and hold the main gear, the interior space in the body is greater allowing for a larger more powerful gear held in place by the lighter, sturdier body rather than the traditional side plate
