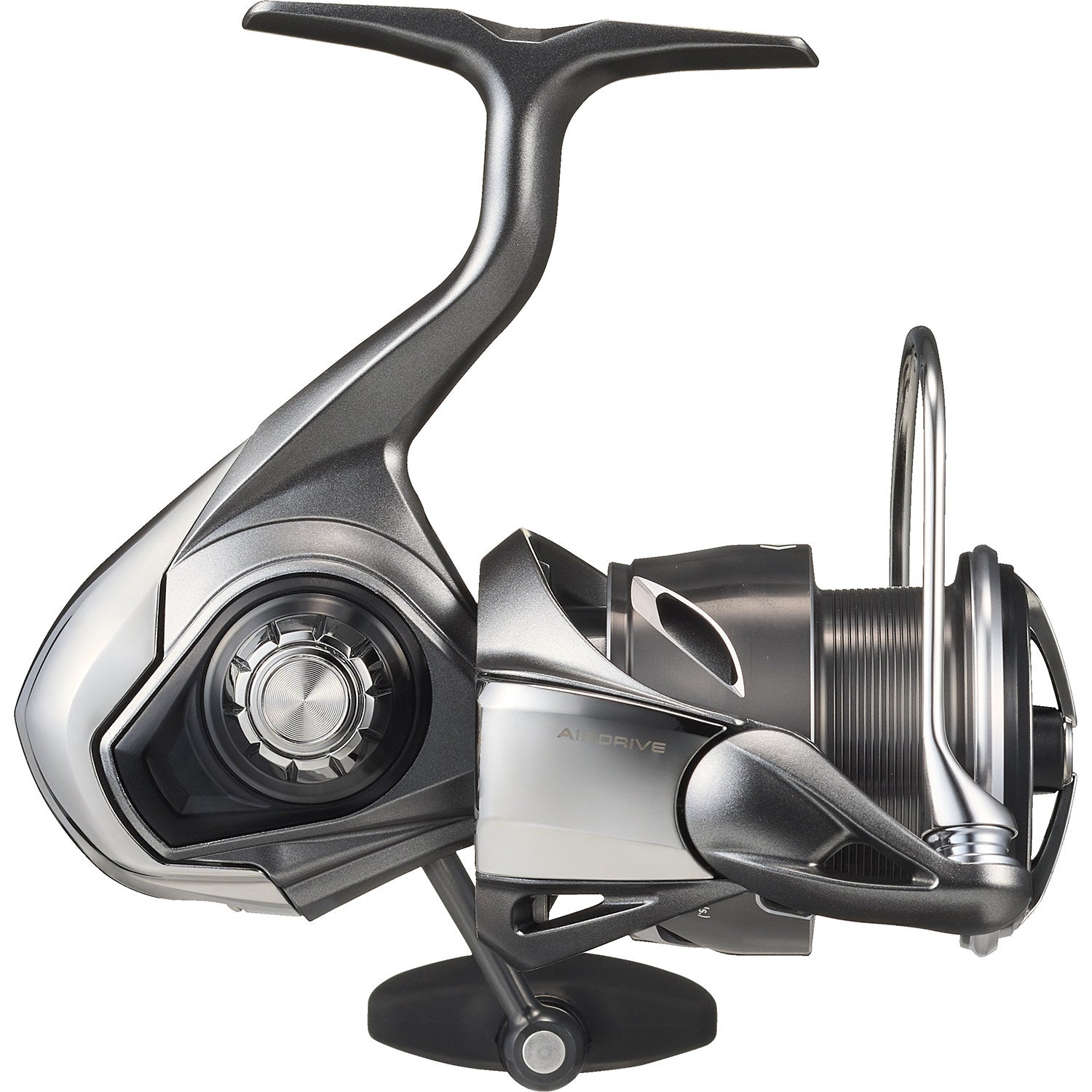

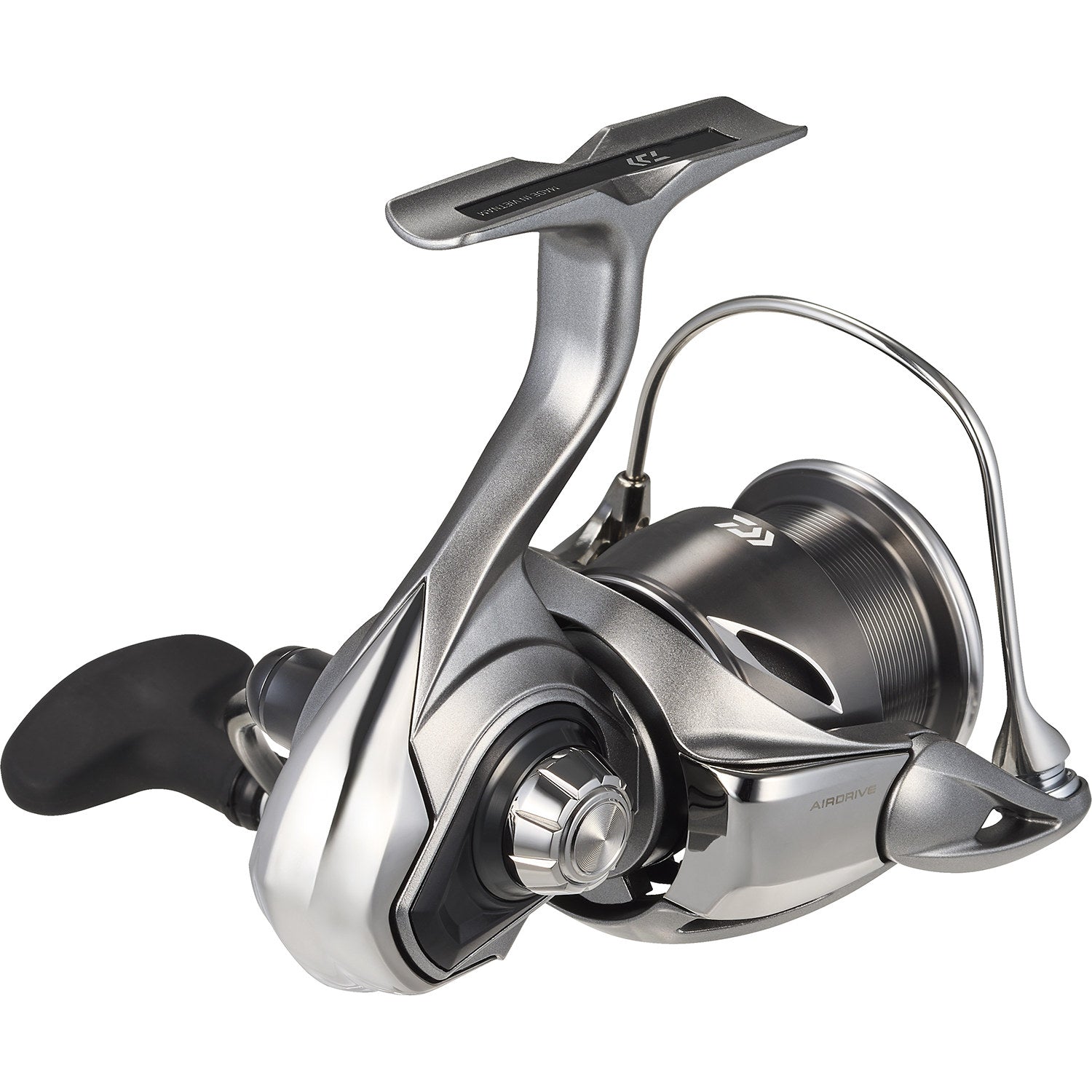

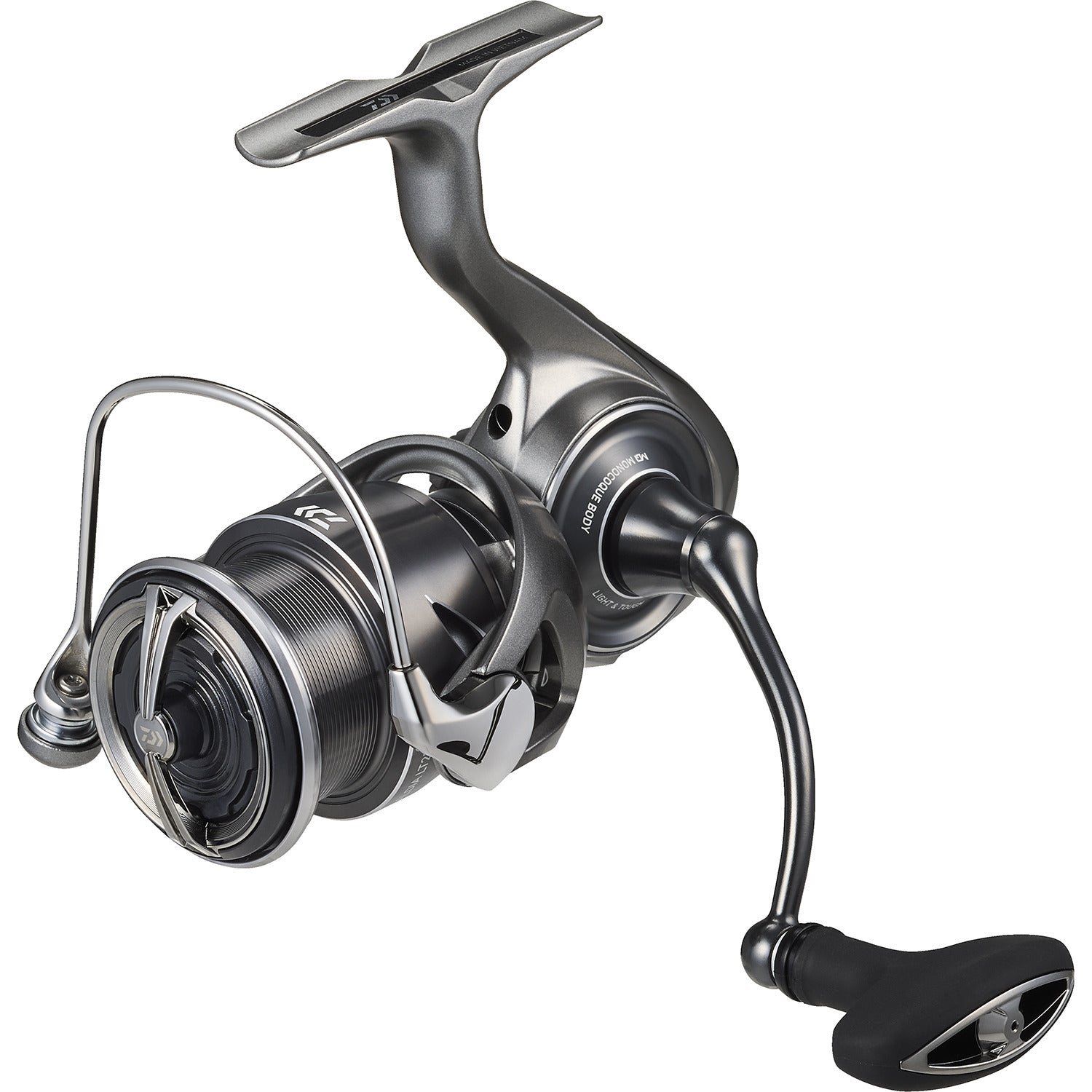

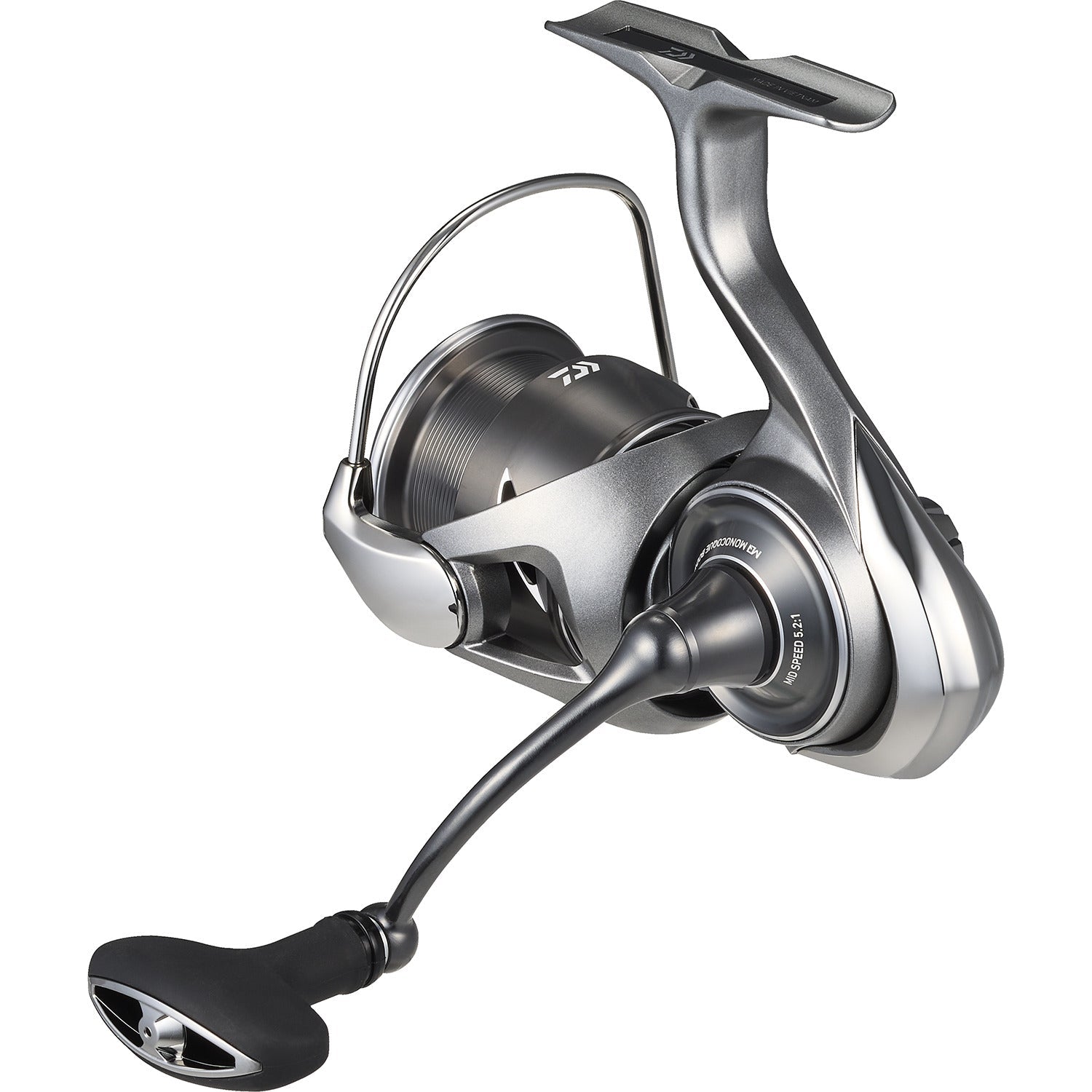

25 CALDIA

Specifications

Model	Retrieve	Gear Ratio	Ball Bearing	Max Drag (Ld.)	Reel Weight (Oz)	Line Capacity Mono(Ld./Yd)	Line Capacity Braid(Ld./Yd)	Recovery (In/Turn)	Features

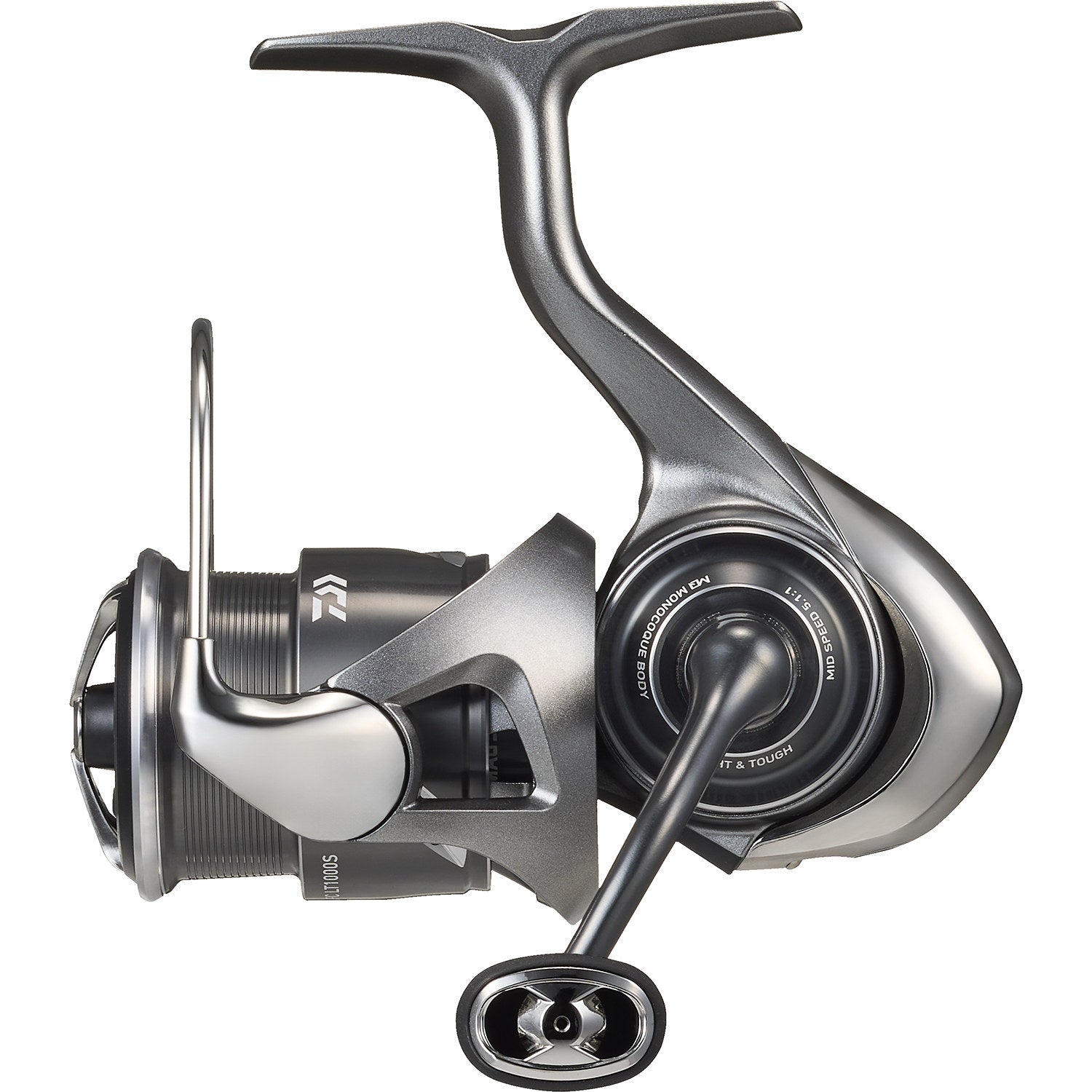

FC LT1000S	Right	5.1	6+1	11	5.8	1.5/130, 1.8/110, 2/90	3/230, 4/220, 5/160	25

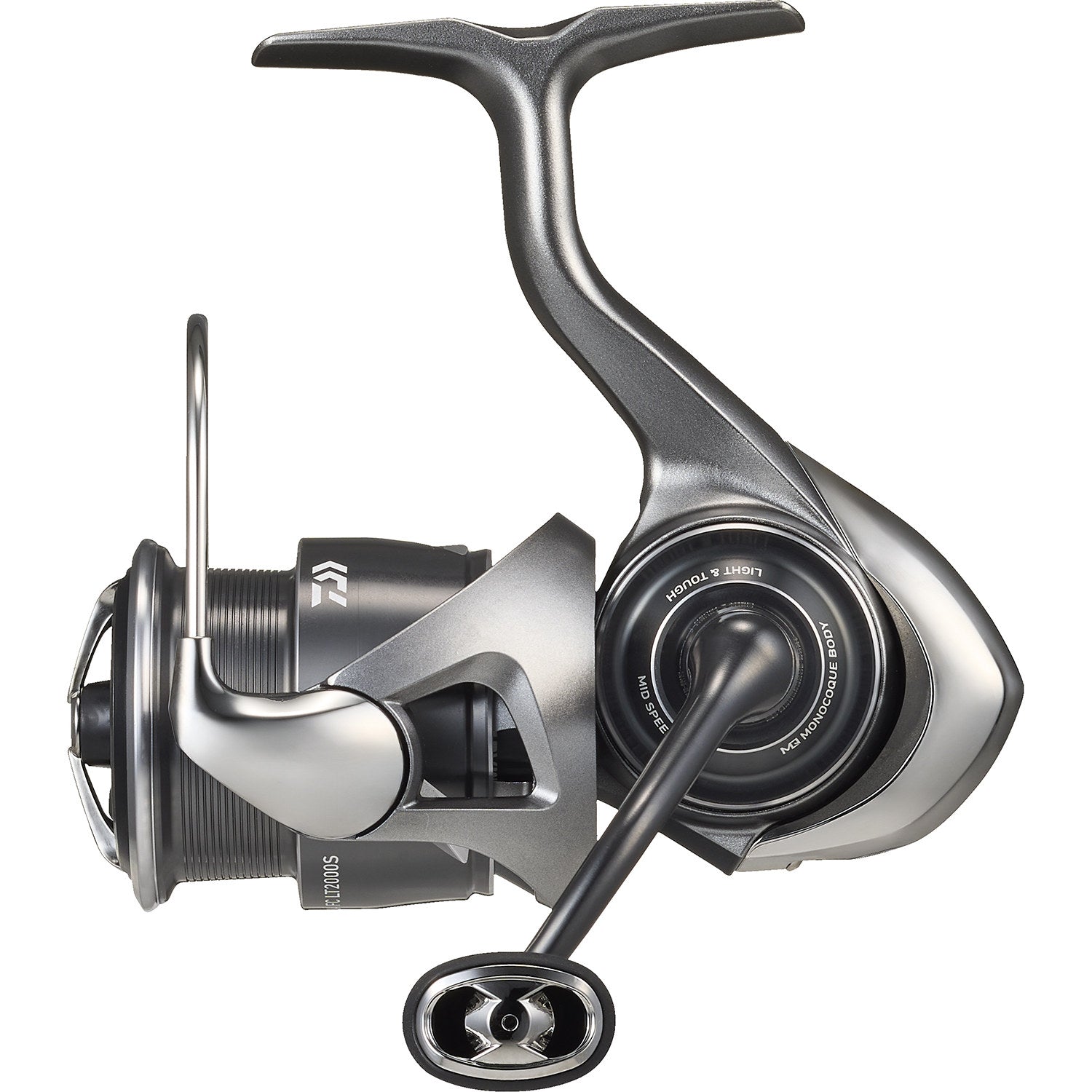

FC LT2000S	Right	5.1	6+1	11	5.8	1.5/130, 1.8/110, 2/90	3/230, 4/220, 5/160	26

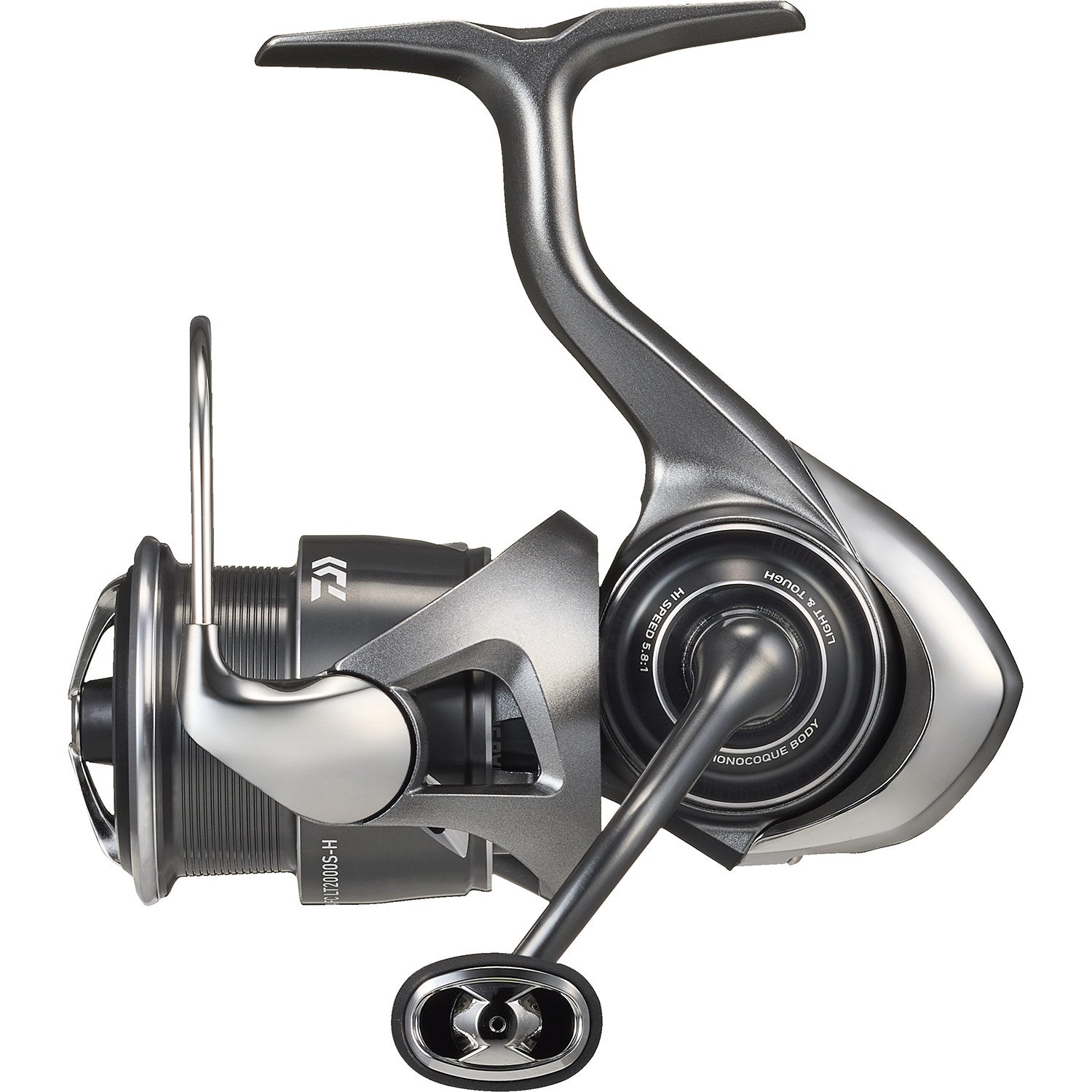

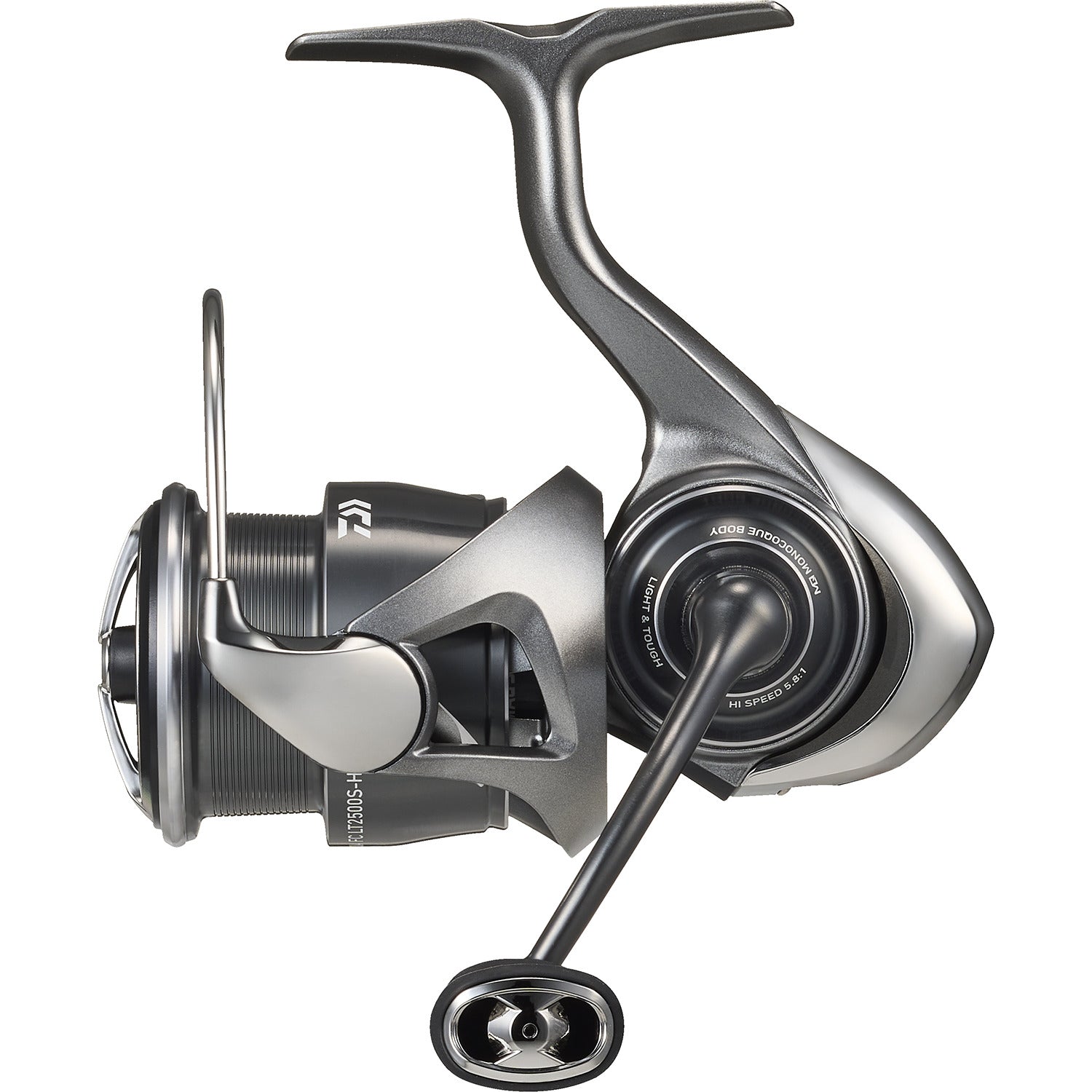

FC LT2000S-H	Right	5.8	6+1	11	5.8	1.5/130, 1.8/110, 2/90	3/230, 4/220, 5/160	30

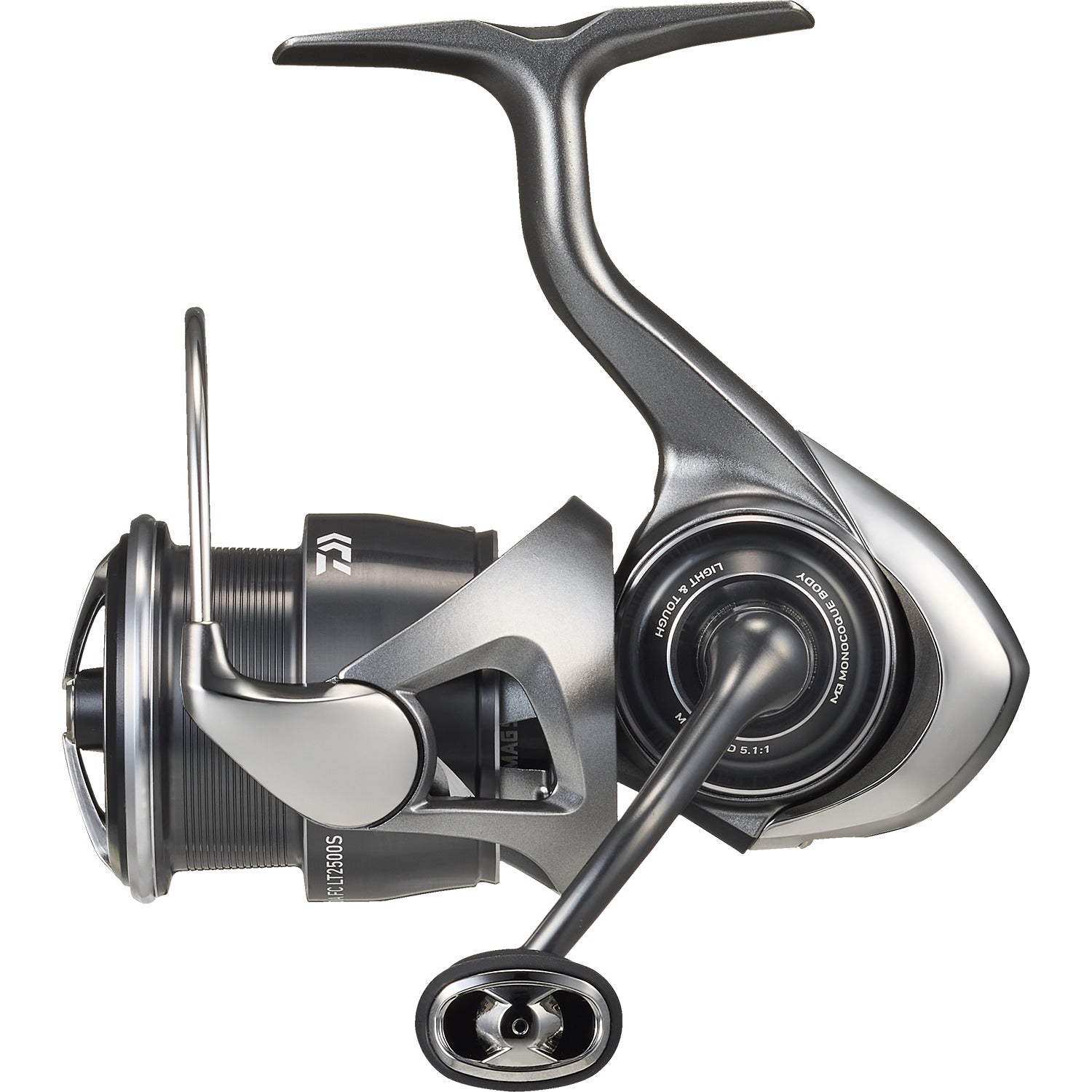

FC LT2500S	Right	5.1	6+1	11	6	1.5/130, 1.8/110, 2/90	3/230, 4/220, 5/160	28
FC LT2500S-H	Right	5.8	6+1	11	6	1.5/130, 1.8/110, 2/90	3/230, 4/220, 5/160	32

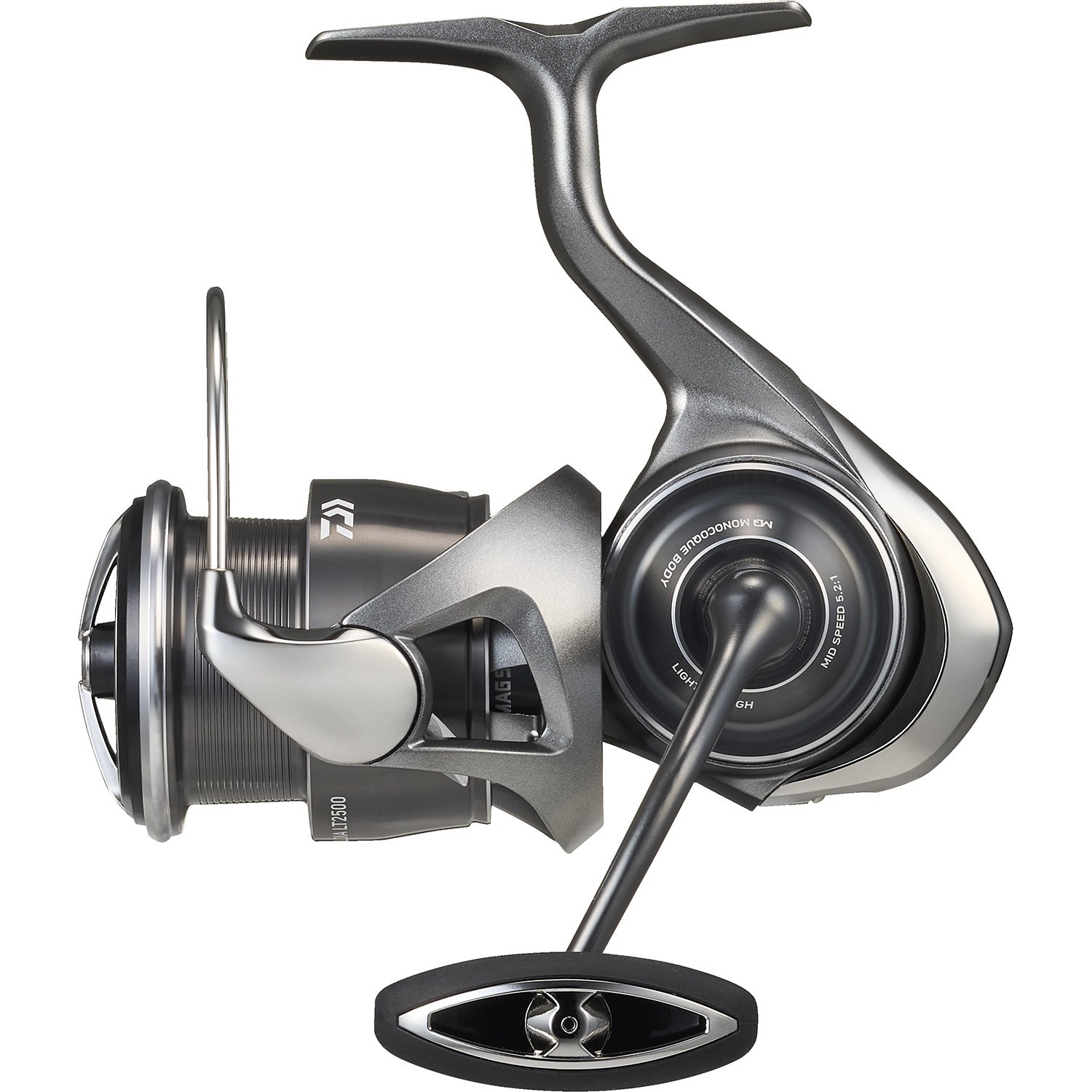

LT2500	Right	5.2	6+1	22.1	6.5	1.5/130, 1.8/110, 2/90	3/230, 4/220, 5/160	29

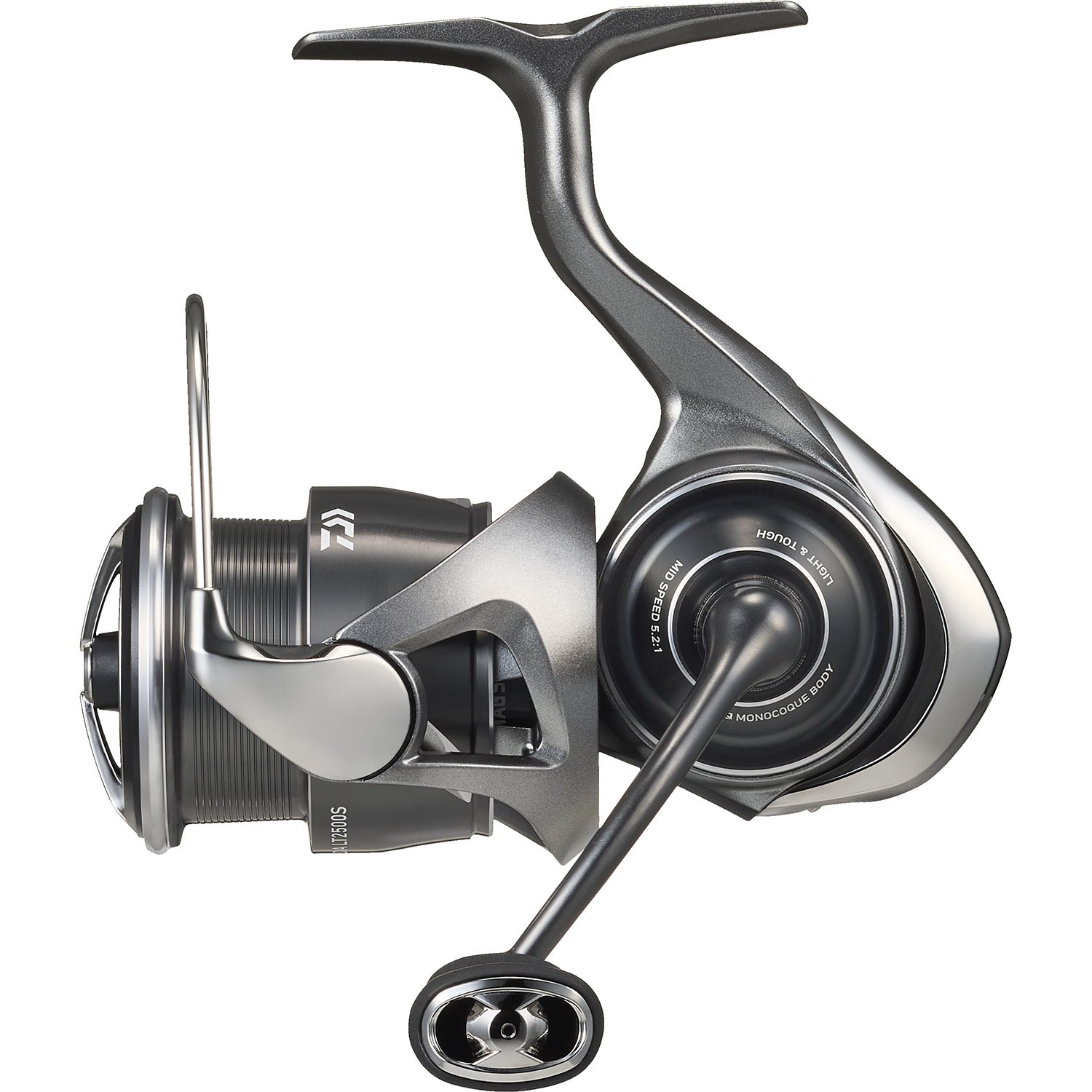

LT2500S	Right	5.2	6+1	11	6.3	1.5/130, 1.8/110, 2/90	3/230, 4/220, 5/160	29

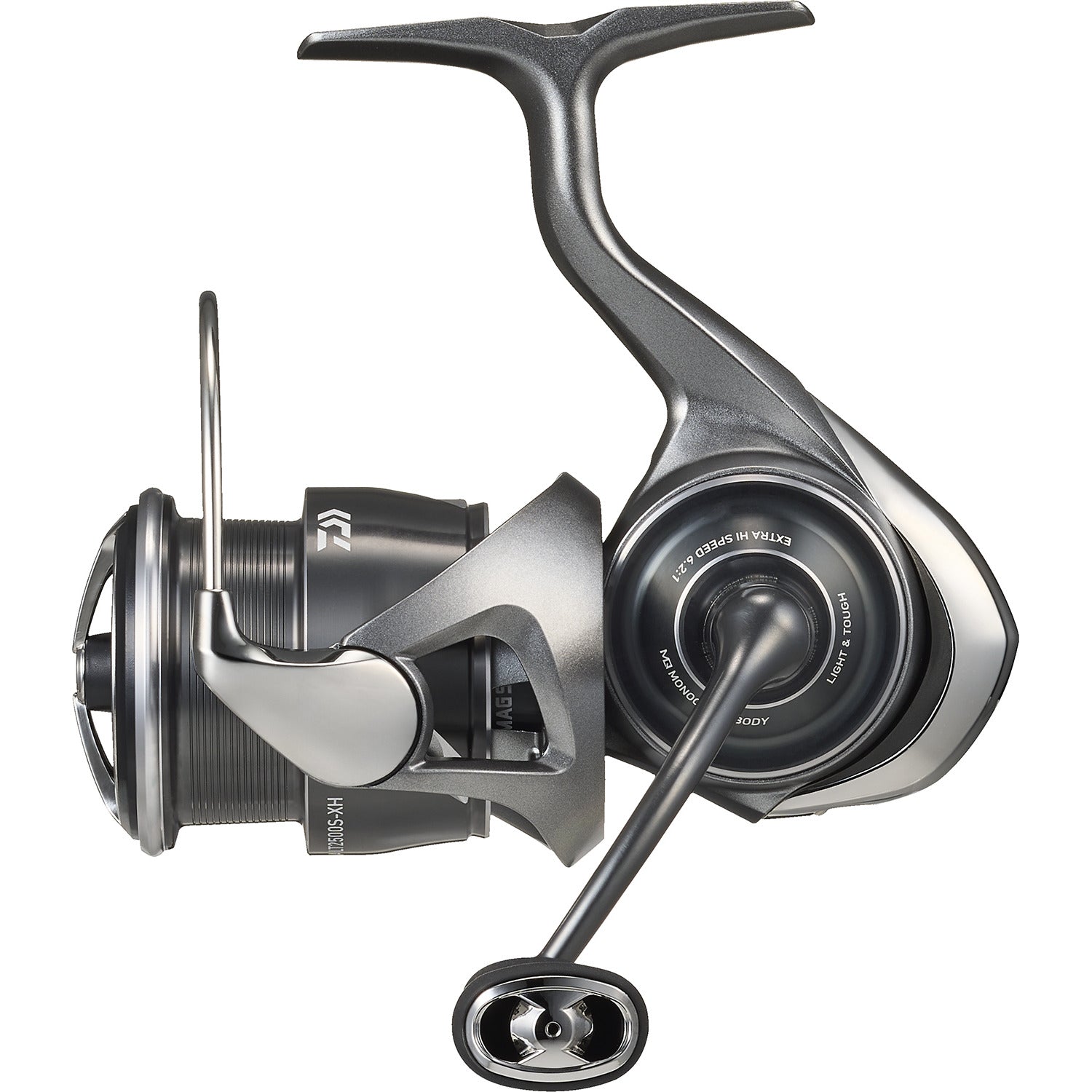

LT2500S-XH	Right	6.2	6+1	11	6.3	1.5/130, 1.8/110, 2/90	3/230, 4/220, 5/160	34

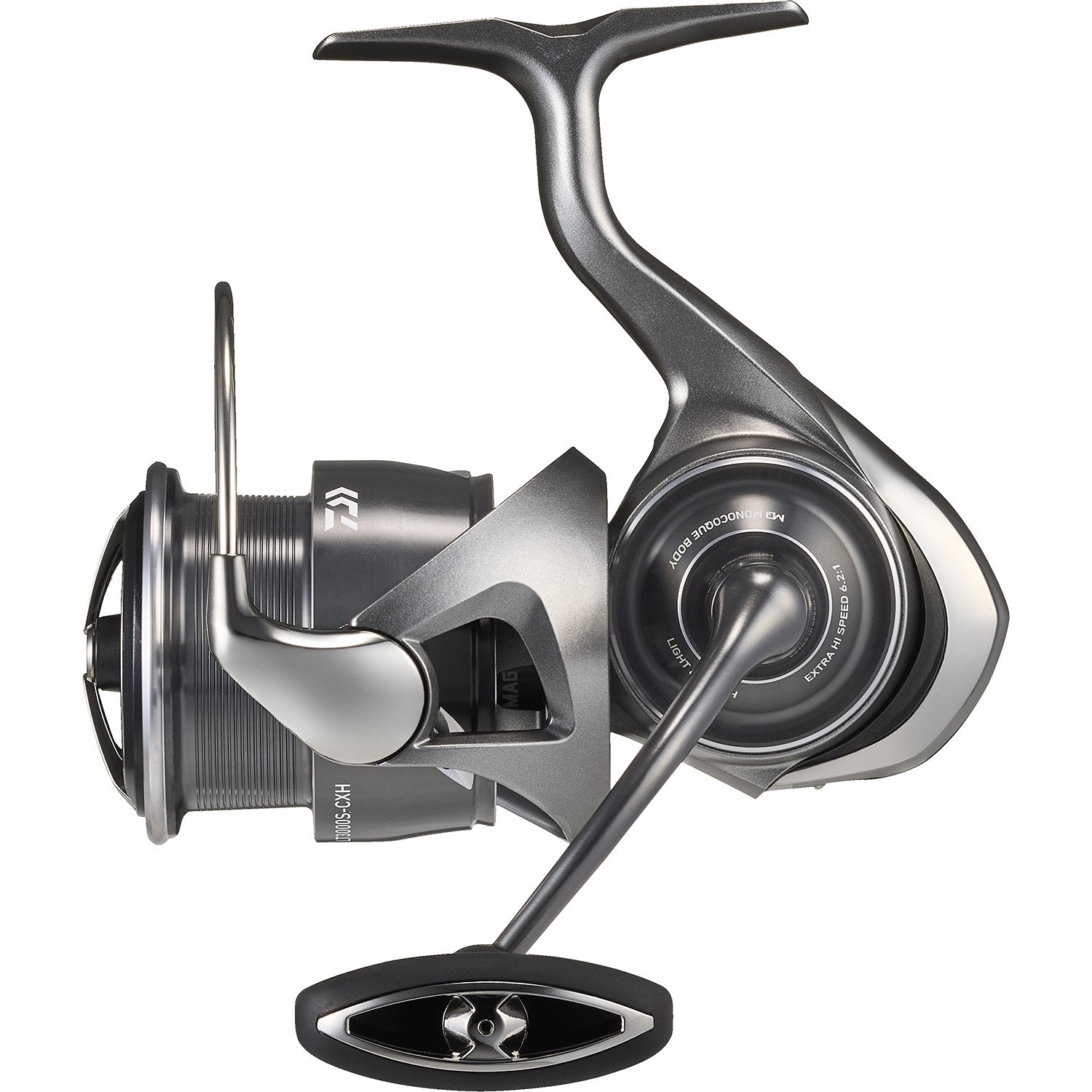

LT3000S-CXH	Right	6.2	6+1	22.1	6.9	1.5/130, 1.8/110, 2/90	3/230, 4/220, 5/160	37

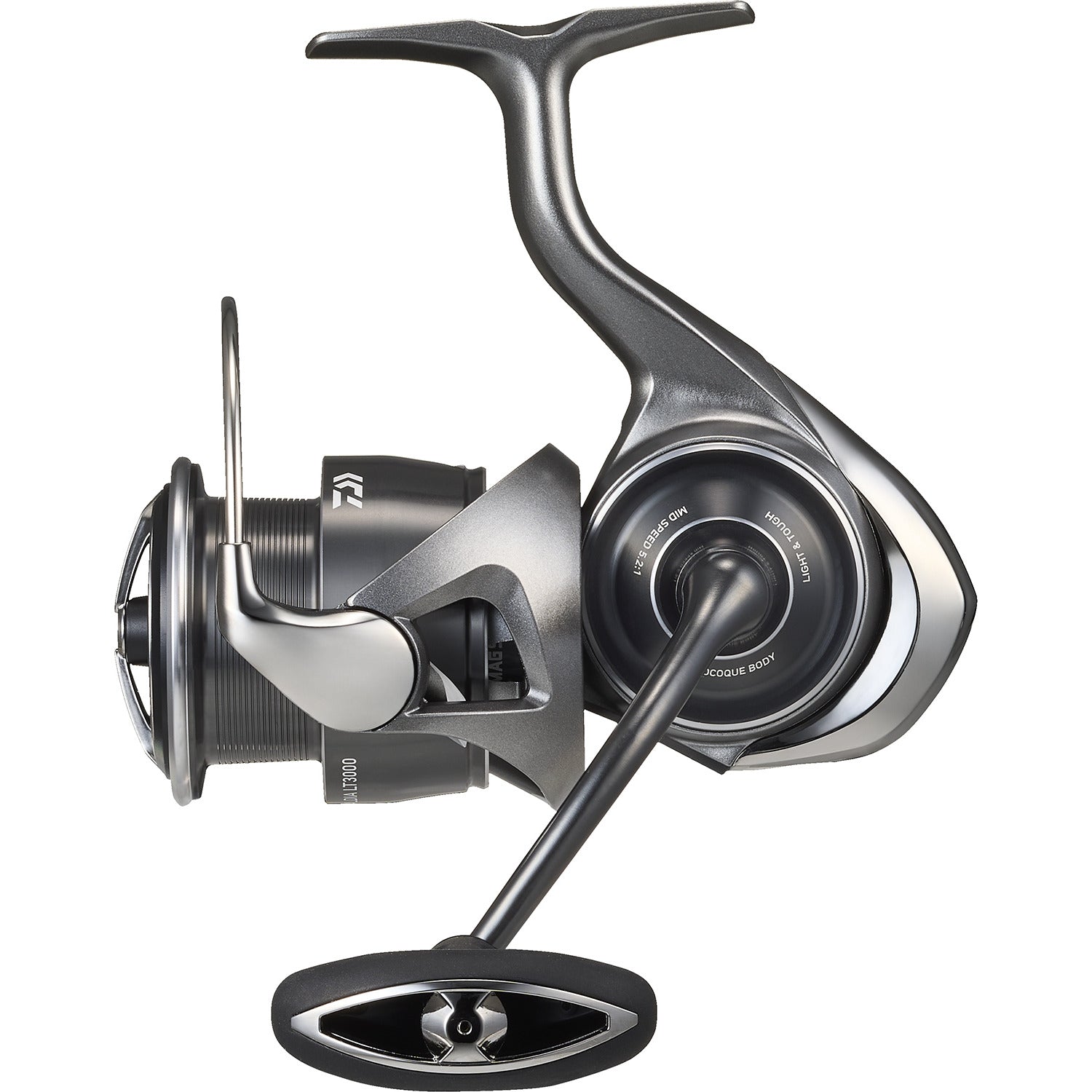

LT3000	Right	5.2	6+1	22.1	7.4	1.5/130, 1.8/110, 2/90	3/230, 4/220, 5/160	30

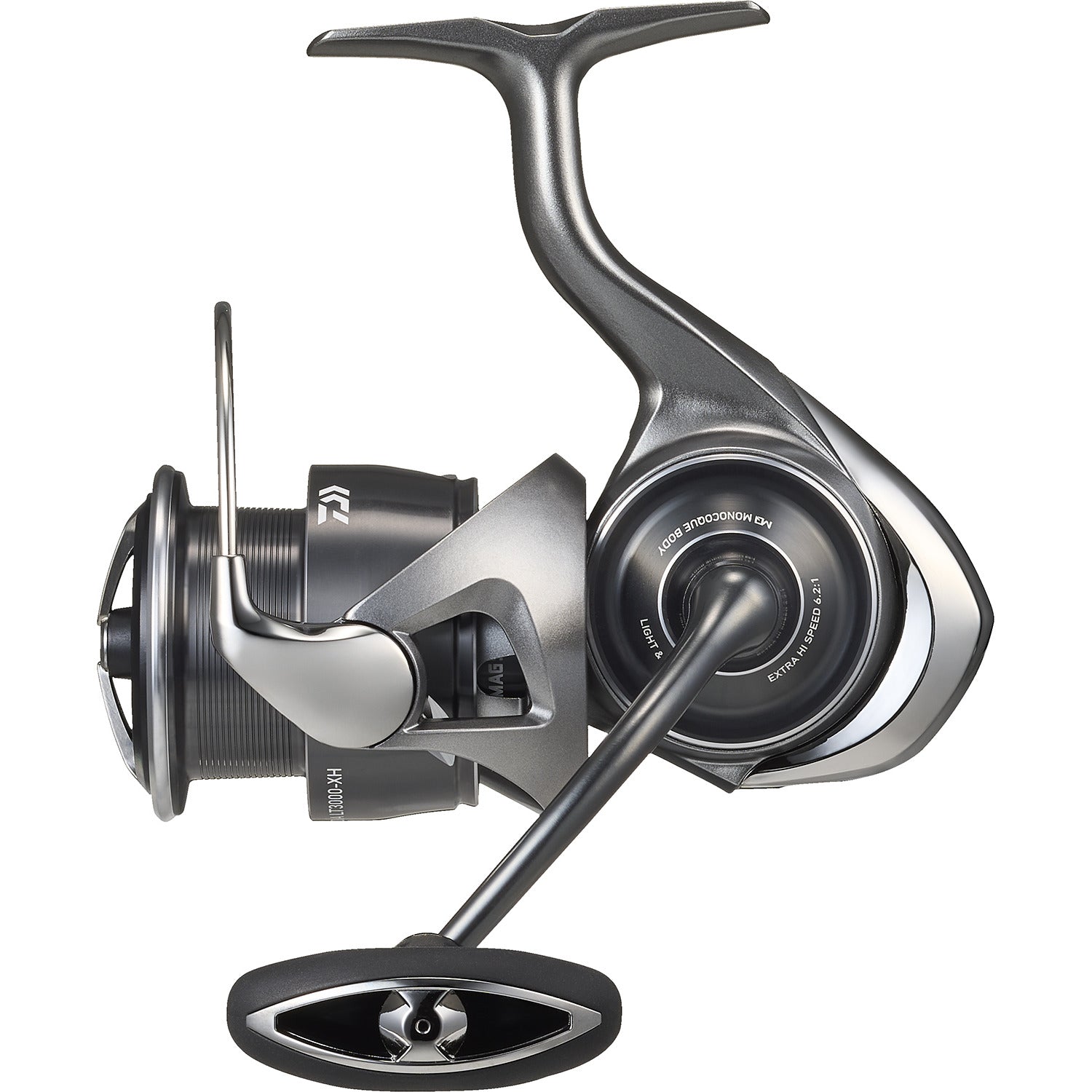

LT3000-XH	Right	6.2	6+1	22.1	7.4	1.5/130, 1.8/110, 2/90	3/230, 4/220, 5/160	37

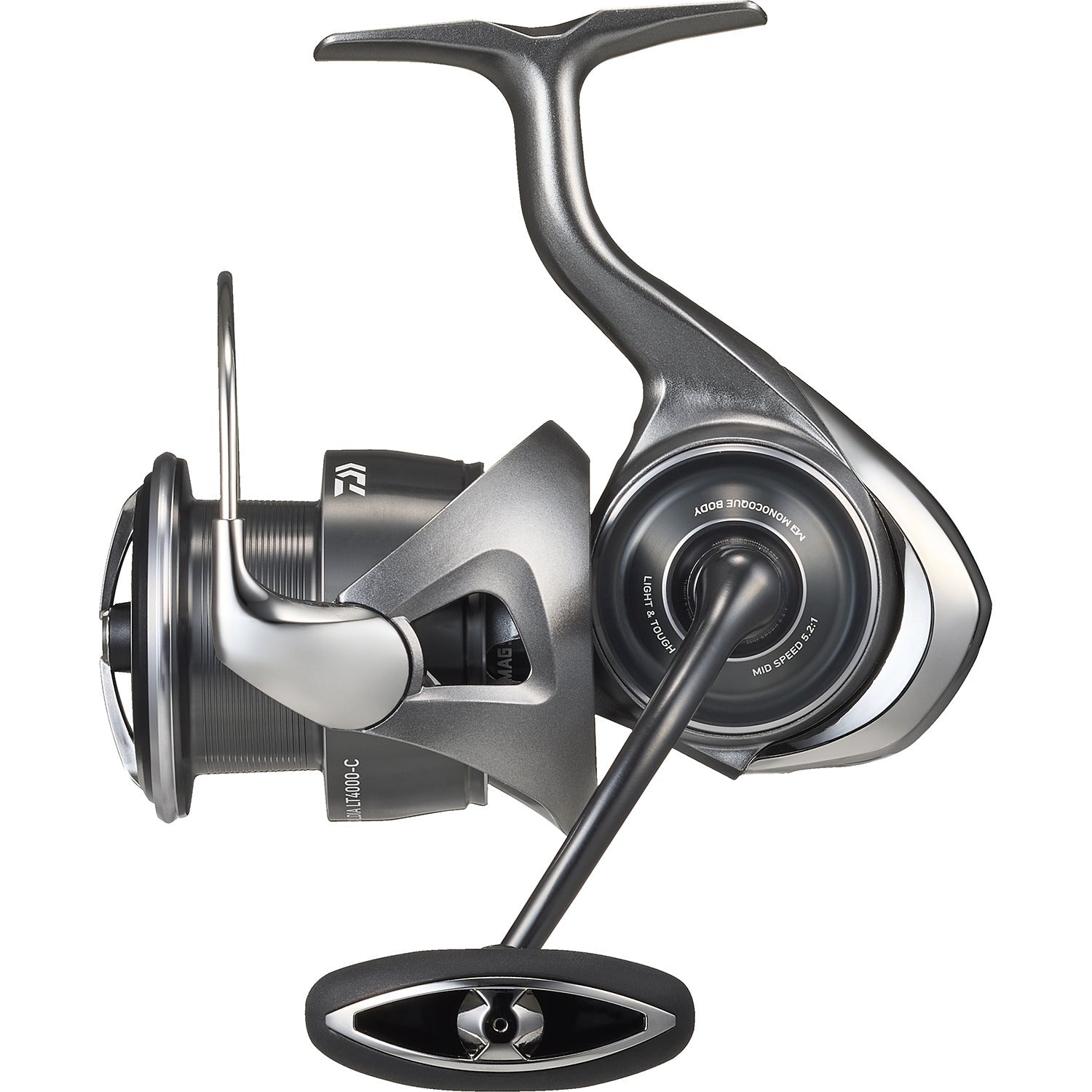

LT4000-C	Right	5.2	6+1	26.5	7.8	1.5/130, 1.8/110, 2/90	3/230, 4/220, 5/160	32

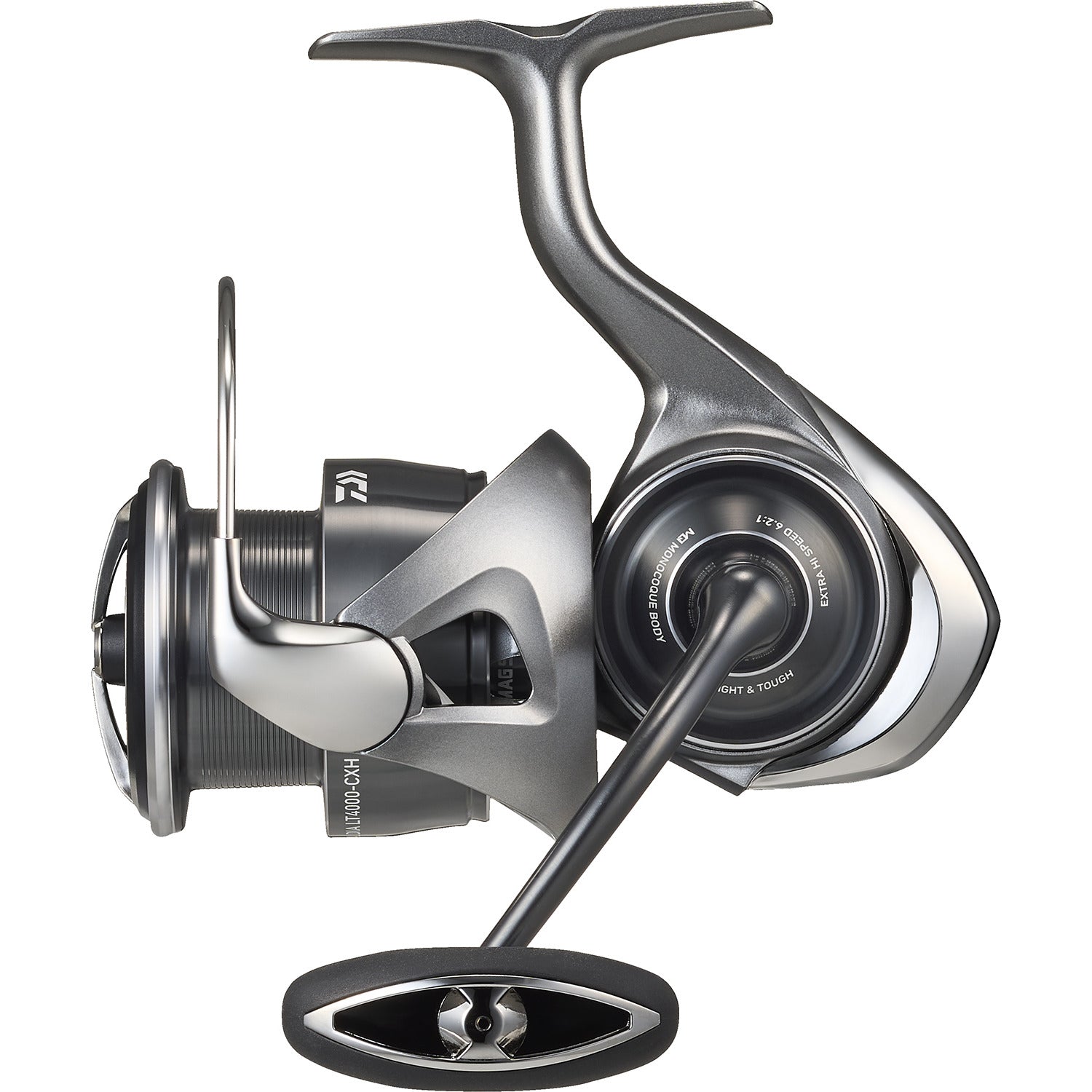

LT4000-CXH	Right	6.2	6+1	26.5	7.8	1.5/130, 1.8/110, 2/90	3/230, 4/220, 5/160	39

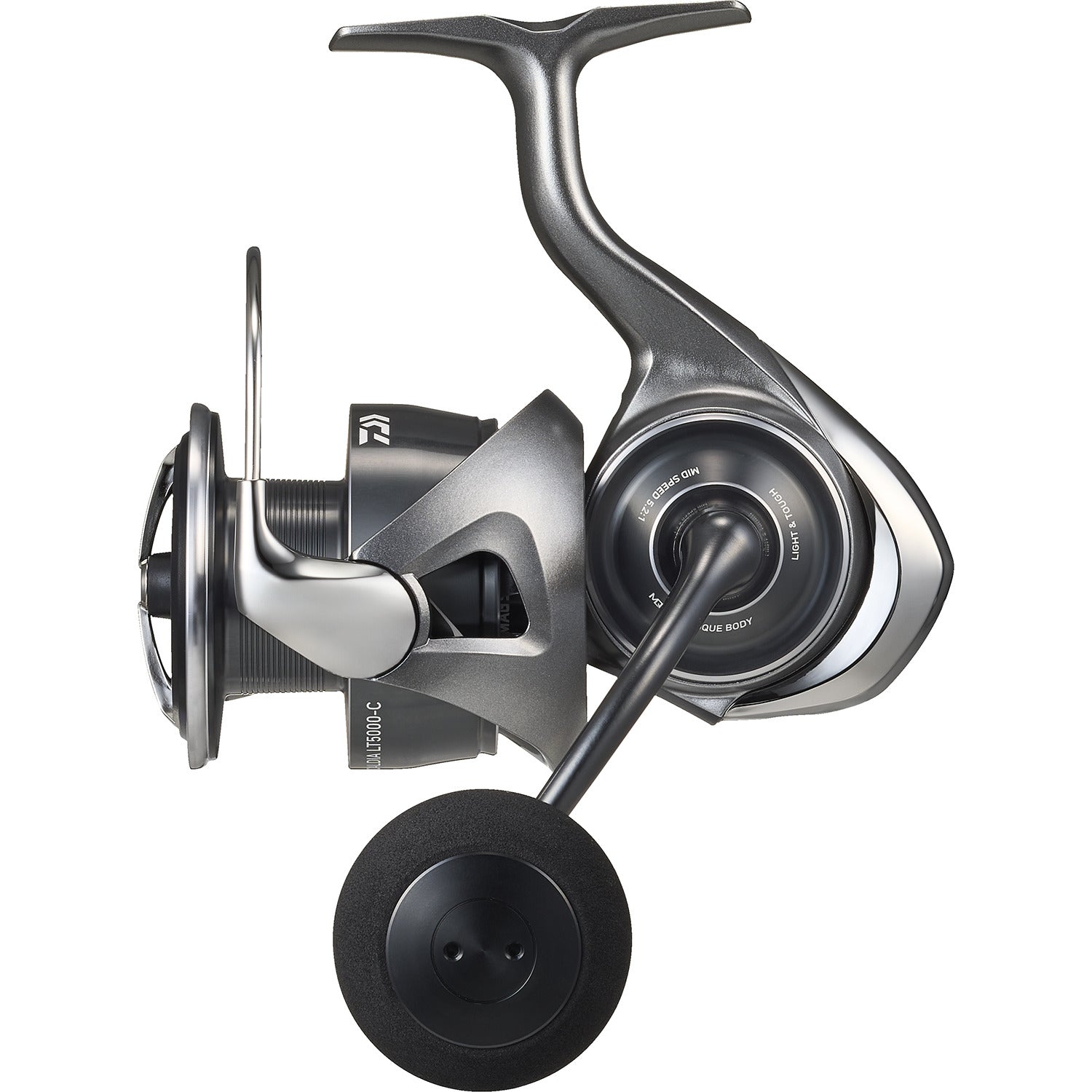

LT5000-C	Right	5.2	6+1	26.5	8.5	1.5/130, 1.8/110, 2/90	3/230, 4/220, 5/160	34

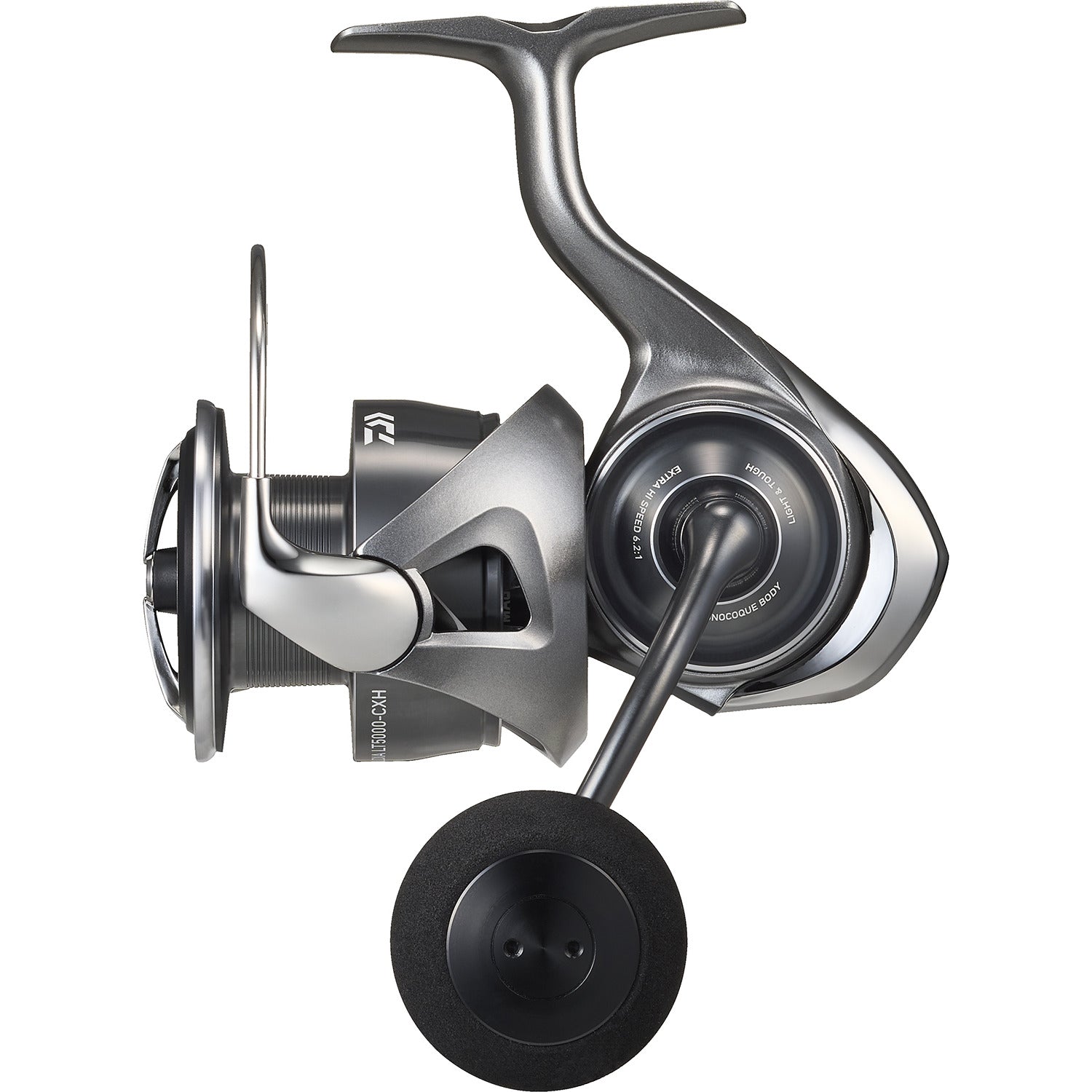

LT5000-CXH	Right	6.2	6+1	26.5	8.5	1.5/130, 1.8/110, 2/90	3/230, 4/220, 5/160	41

Scroll for more→

AIRDRIVE ROTOR

Low inertia is the key.
The newly developed AIRDRIVE ROTOR is made from ZAION. Maintaining the strength of the rotor from 18 EXIST, DAIWA has been able to reduce the weight significantly. Designed with focus to create a perfectly round structure, trouble free and flawless rotation have been achieved.
The rotor unit itself has seen a 16% weight reduction compared to the previous model (Based on 2500 size reel) and will set the standard for what future rotor design of small spinning reels will be.

AIRDRIVE BAIL

Trouble free future.
DAIWA has constructed a bail smaller in diameter whilst providing required strength to achieve a further weight reduction to the front unit. In comparison to 18 EXIST, AIRDRIVE BAIL reduces the weight of the bail by 33% (compared to 2500 size).
DAIWA has adjusted the angle of bail setting to improve the line movement into the roller. Careful attention was given to the roller and slider and individual design alterations were done for each size of 22 EXIST, perfectly adjusting the line management for each size of the reel.

AIRDRIVE SPOOL

Design reflects the future.
The stand out features of the AIRDRIVE SPOOL would have to be the newly shaped spool skirt and the simple single silver coloured cosmetic. Just by looking at the spool it is clear the structure has been redeveloped, reducing the weight and maximising the feeling of presence.

Reducing the spool weight creates many benefits for a reel; the total weight of reel is reduced, oscillation is improved, less resistance during winding and rotation, better balance when attached to the rod and of course the reel feels light and easy to fish.

MONOCOQUE BODY

This design incorporates a one-piece frame and a one-piece threaded side plate. Because screws are not necessary to attach the side plate and hold the main gear, the interior space in the body is greater allowing for a larger more powerful gear held in place by the lighter, sturdier body rather than the traditional side plate

MAGSEALED

The Mag Sealed principle is based on special magnetic oil, which has been developed by the NASA to transport fuel to the space ships based on the magnetic principle. Such oil for reel production is not available in the market. It has to be manufactured under most difficult circumstances. The embedded ferric oxide, which is necessary for the magnetic field, has a diameter of 1/100.000mm.
The molecules in this new "metal oil" are capable of changing. If they are exposed to a magnetic field, they change their shape and the oil forms a fluid seal.
Such a seal, based on the principle of liquid magnetic oil produces nearly no friction, isolates perfectly and prevents even penetration of dust particles.
The big challenge for the DAIWA engineers was the development of a reel, which is designed for the principle of the magnetic oil to generate a kind of liquid membrane that prevents water penetration.
The Mag Sealed design is based on the purpose to keep water away from a spinning reel. First of all for sea anglers this is an amazing idea - since delivers a longer life span; no corrosion and better, pro longed function. If salt water penetrates the reel and dries, it crystallizes, corrodes the gearing and affects the ball bearings. Mag Sealed halts the travel of salt particles.
