26 FREAMS

Specifications

Model	Retrieve	Gear Ratio	Ball Bearing	Max Drag (Ld.)	Reel Weight (Oz)	Line Capacity Mono(Ld./Yd)	Line Capacity Braid(Ld./Yd)	Recovery (In/Turn)	Features

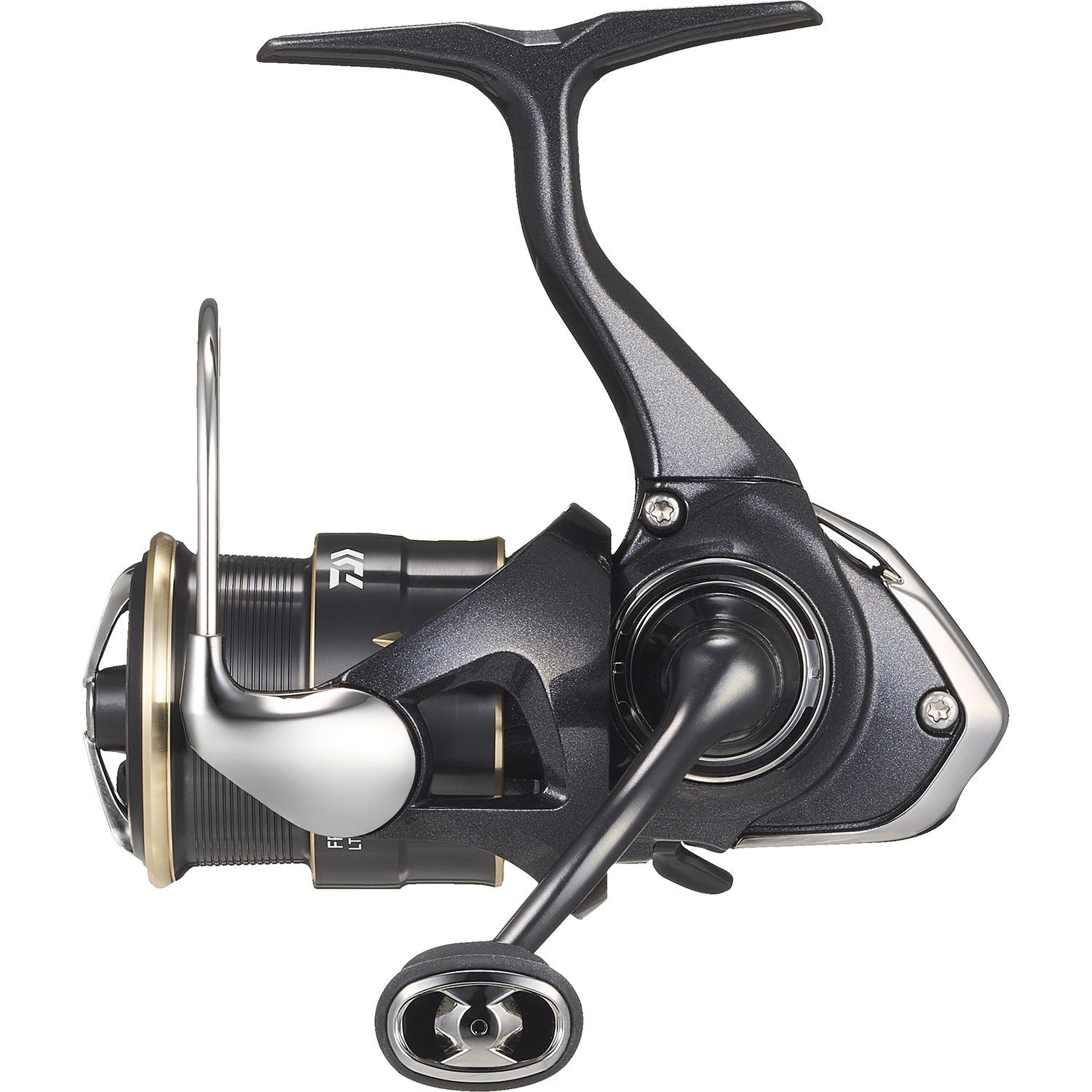

LT1000S-P	Right	4.8	5+1	11	6.2	1.5/130, 1.8/110, 2/80	3/230, 4/220, 5/160	24

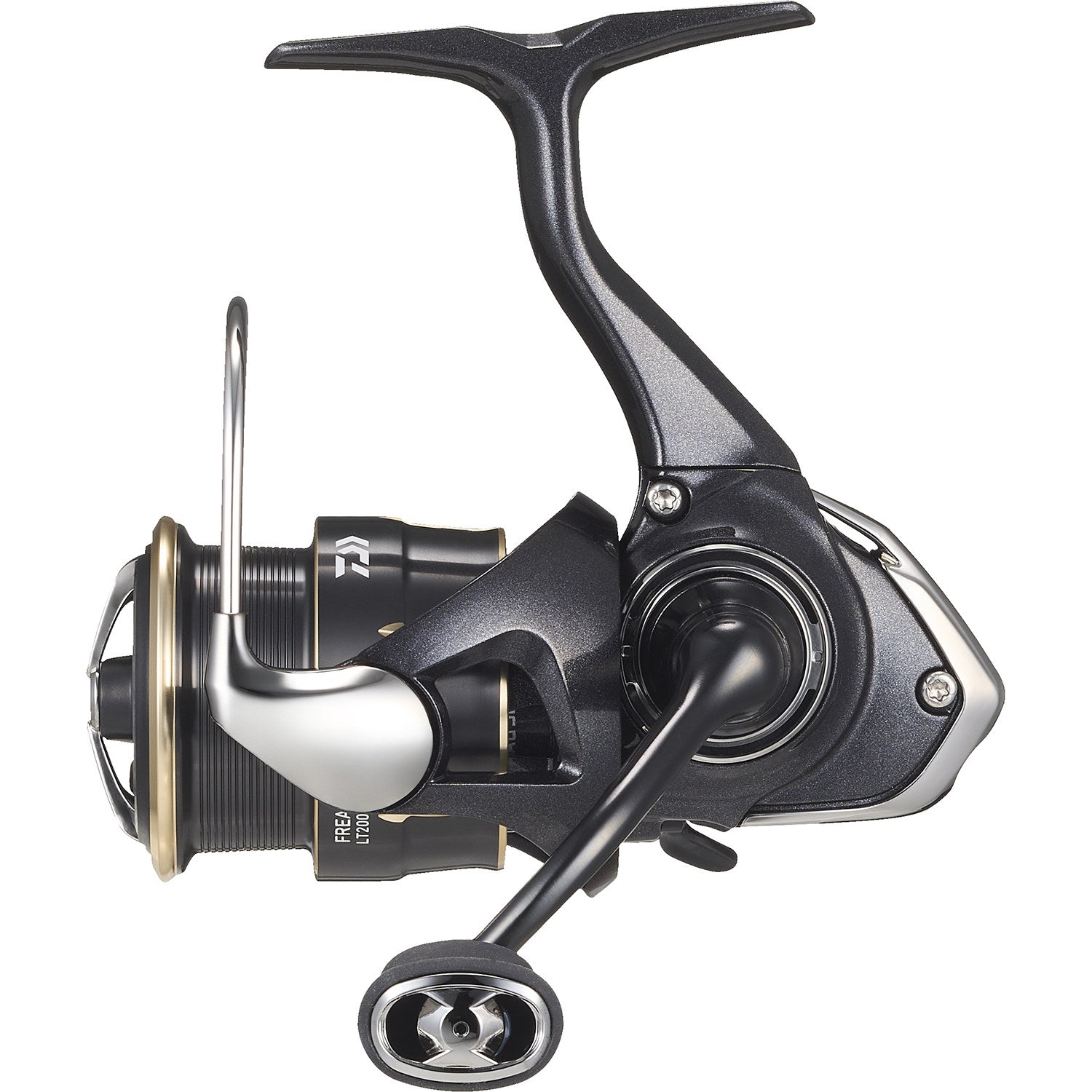

LT2000S-P	Right	4.8	5+1	11	6.2	1.5/130, 1.8/110, 2/80	3/230, 4/220, 5/160	25

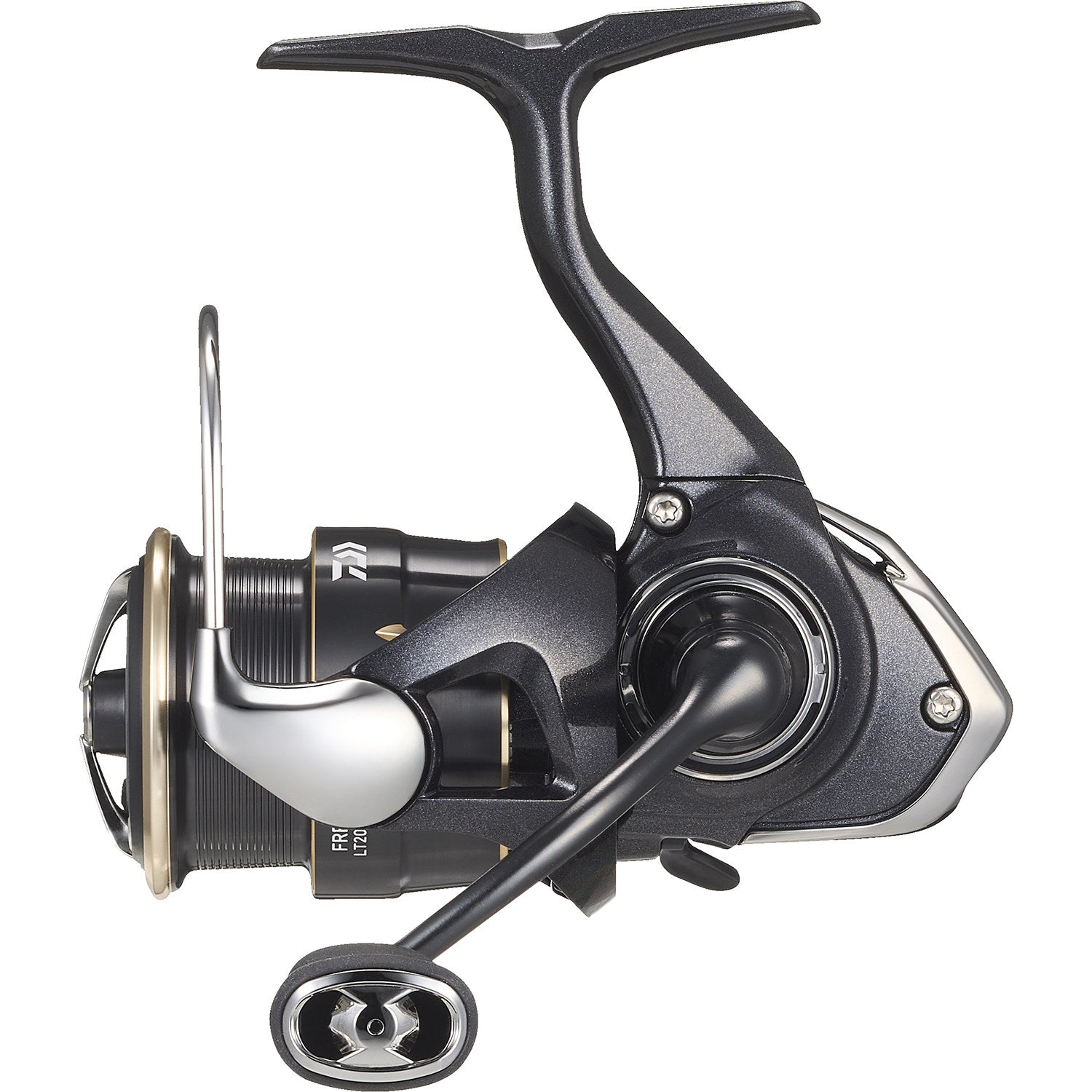

LT2000S-XH	Right	6.2	5+1	11	6.2	1.5/130, 1.8/110, 2/80	3/230, 4/220, 5/160	32

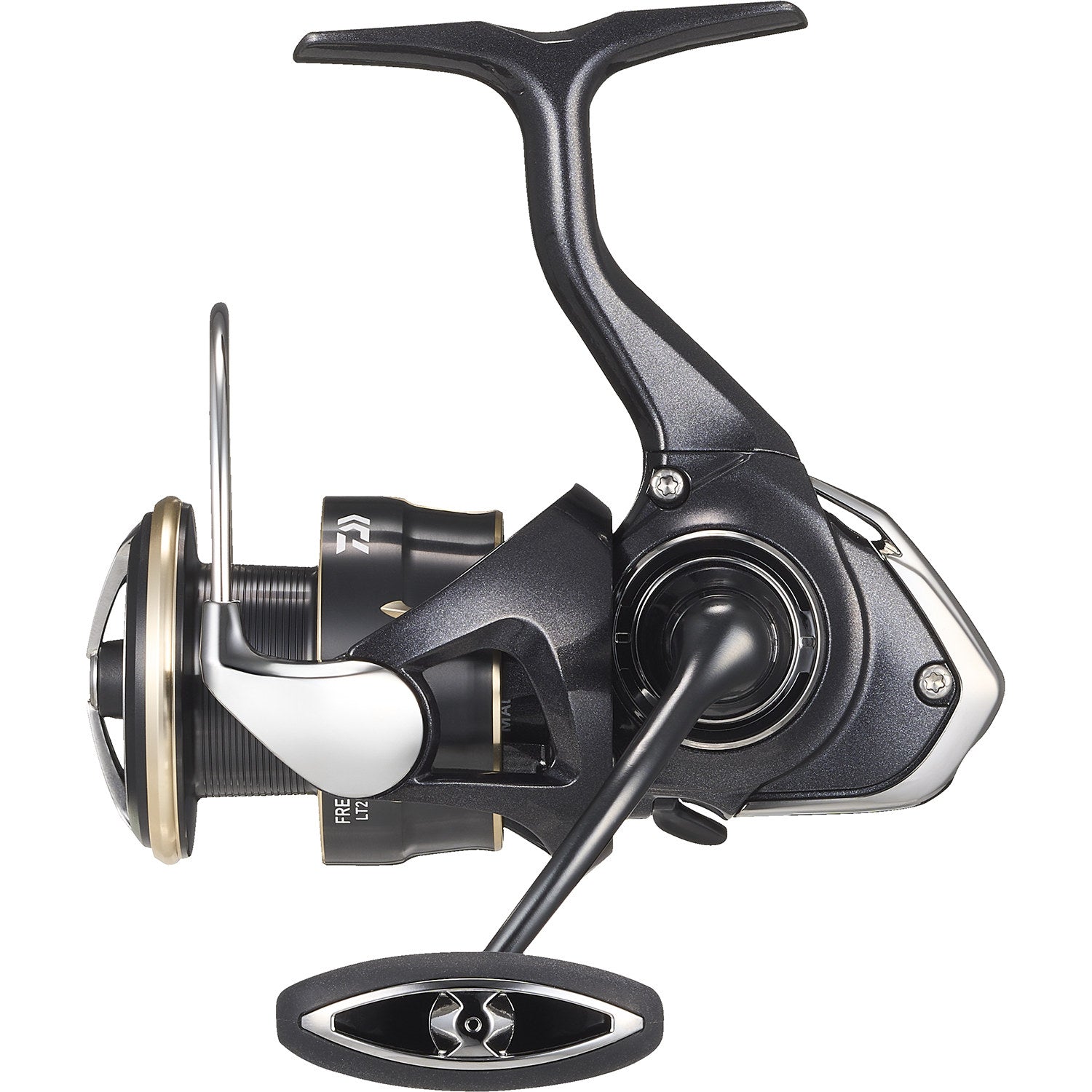

LT2500D	Right	5.3	5+1	22.1	6.9	1.5/130, 1.8/110, 2/80	3/230, 4/220, 5/160	30
LT2500	Right	5.3	5+1	22.1	6.9	1.5/130, 1.8/110, 2/80	3/230, 4/220, 5/160	30

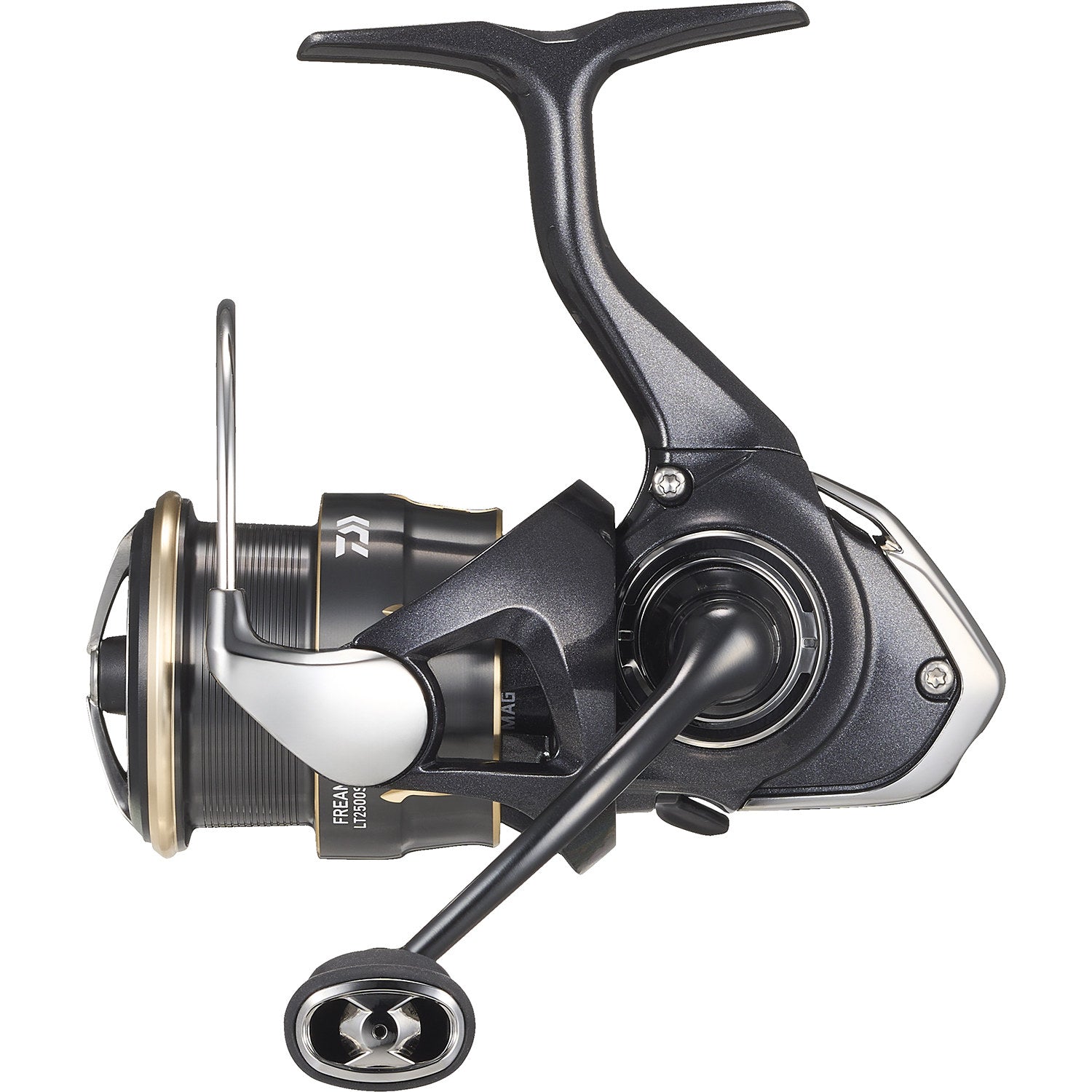

LT2500S-XH	Right	6.2	5+1	11	6.7	1.5/130, 1.8/110, 2/80	3/230, 4/220, 5/160	34

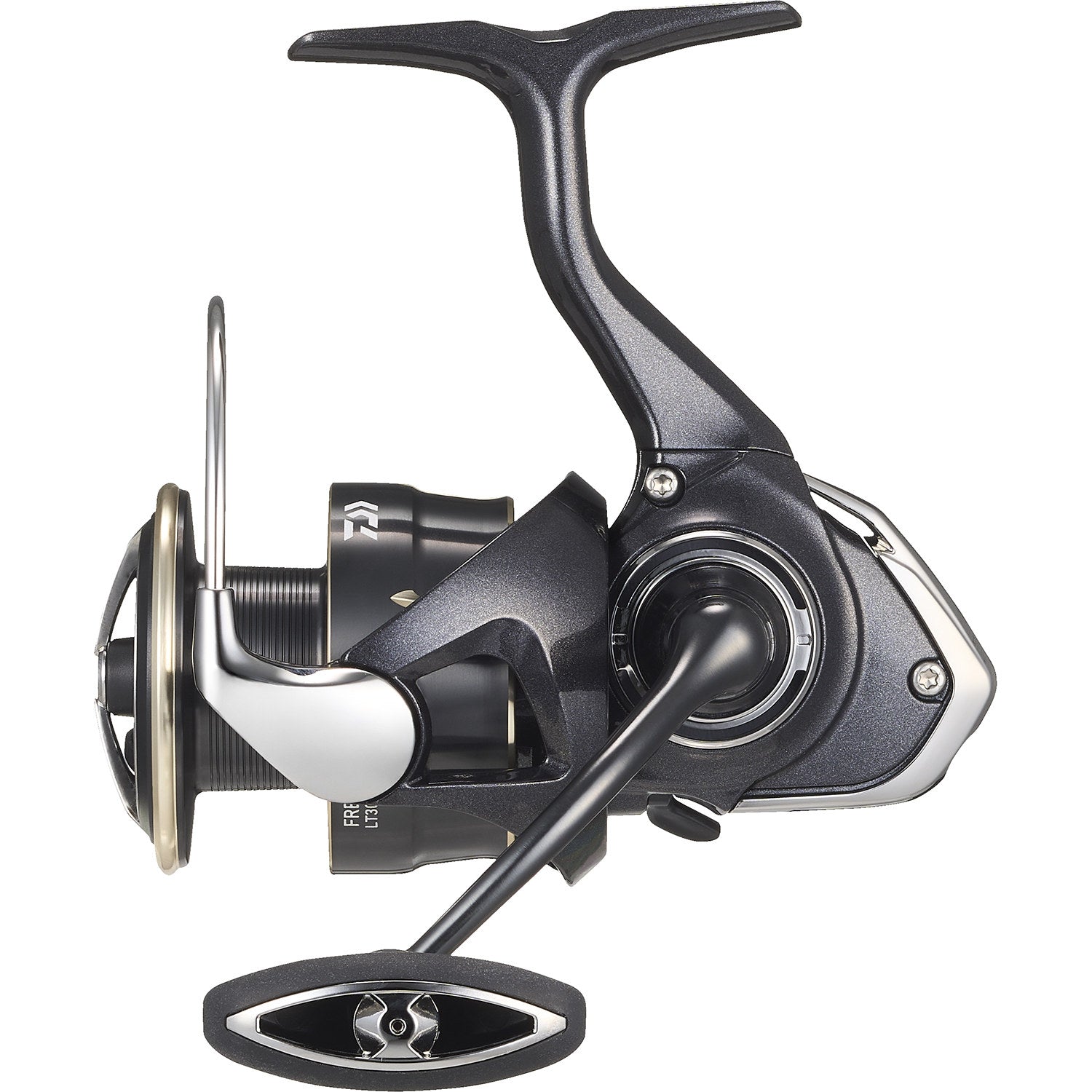

LT3000D-C	Right	5.3	5+1	22.1	7.1	1.5/130, 1.8/110, 2/80	3/230, 4/220, 5/160	31

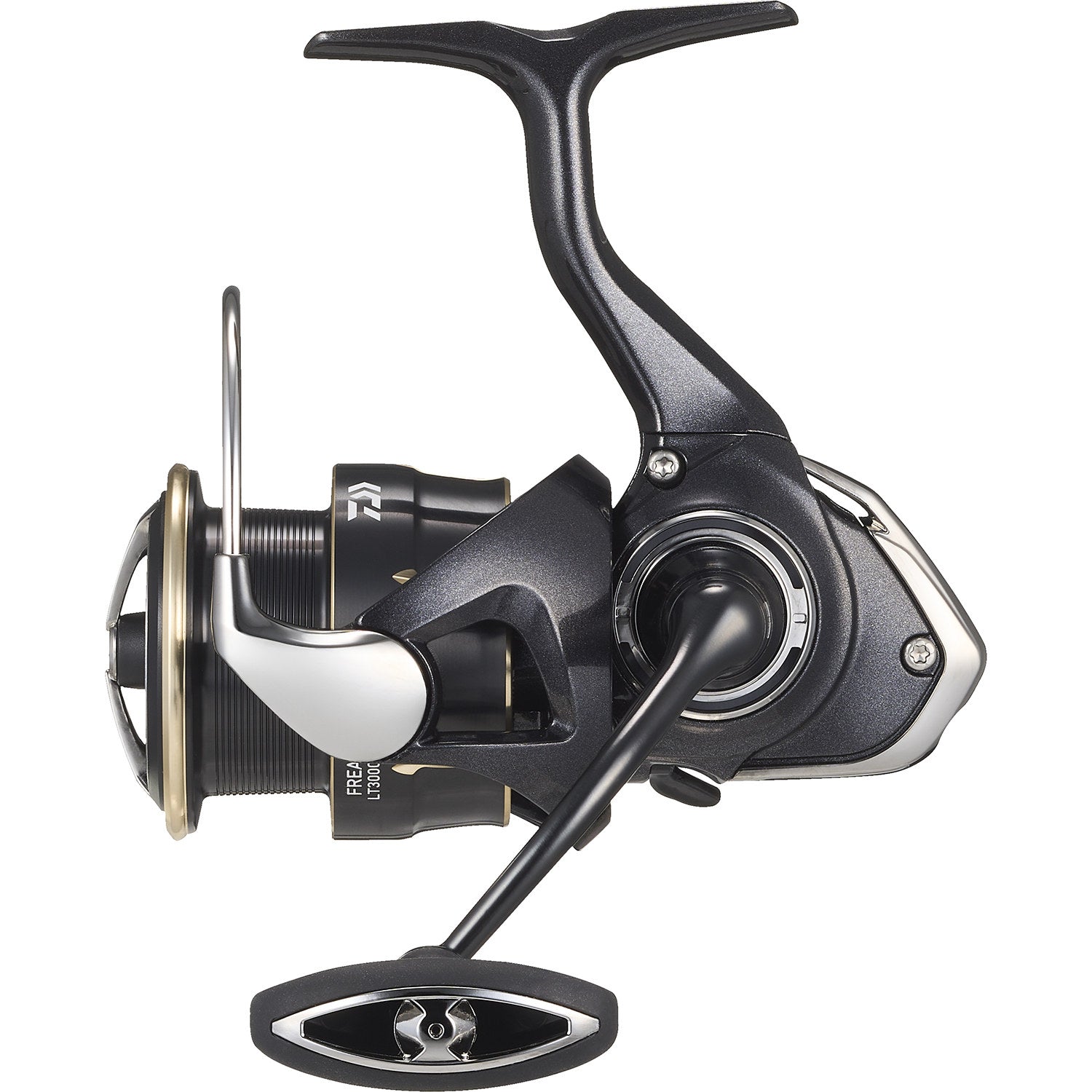

LT3000-CXH	Right	6.2	5+1	22.1	7.1	1.5/130, 1.8/110, 2/80	3/230, 4/220, 5/160	37

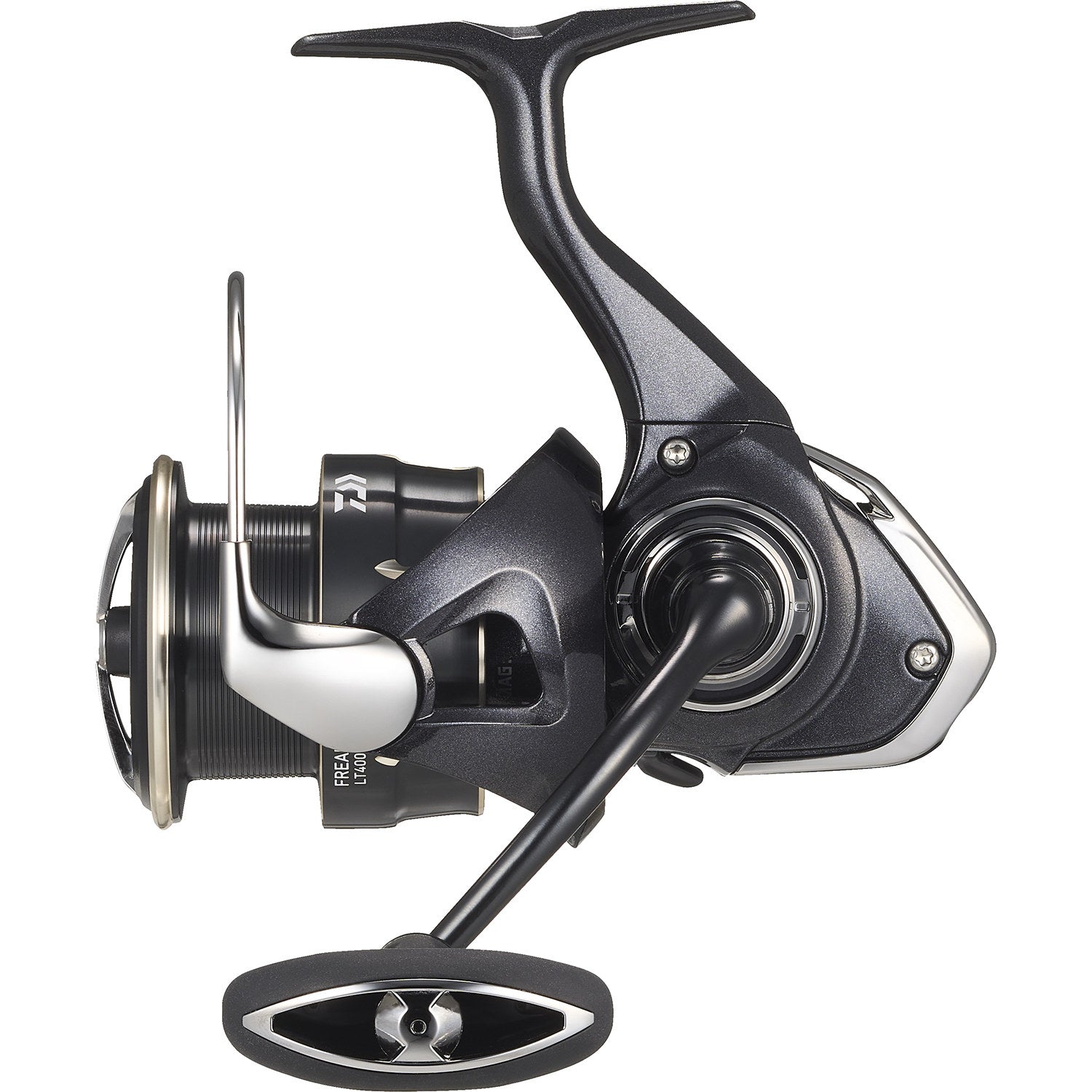

LT4000-C	Right	5.2	5+1	26.5	8.1	1.5/130, 1.8/110, 2/80	3/230, 4/220, 5/160	32

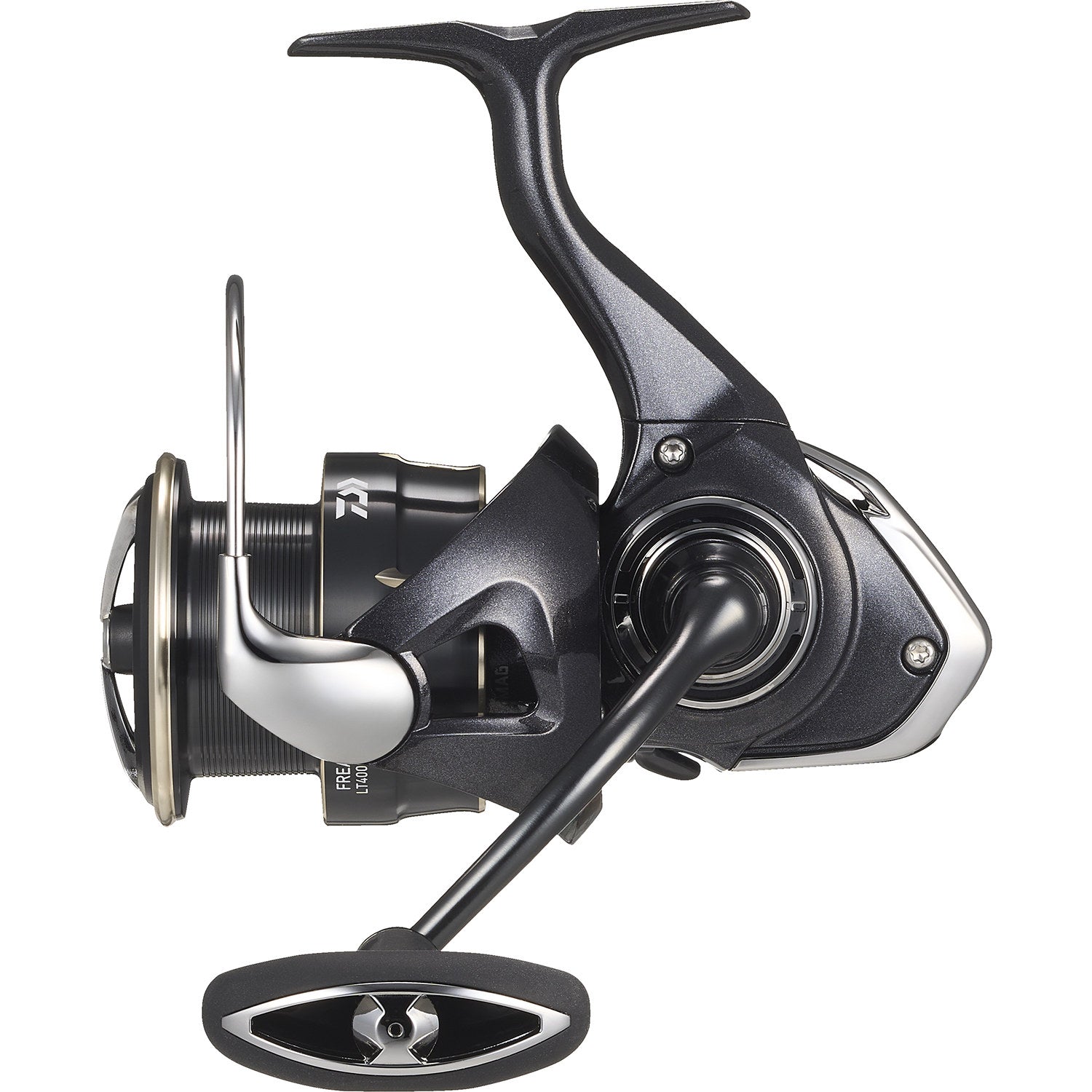

LT4000-CXH	Right	6.2	5+1	26.5	8.1	1.5/130, 1.8/110, 2/80	3/230, 4/220, 5/160	39

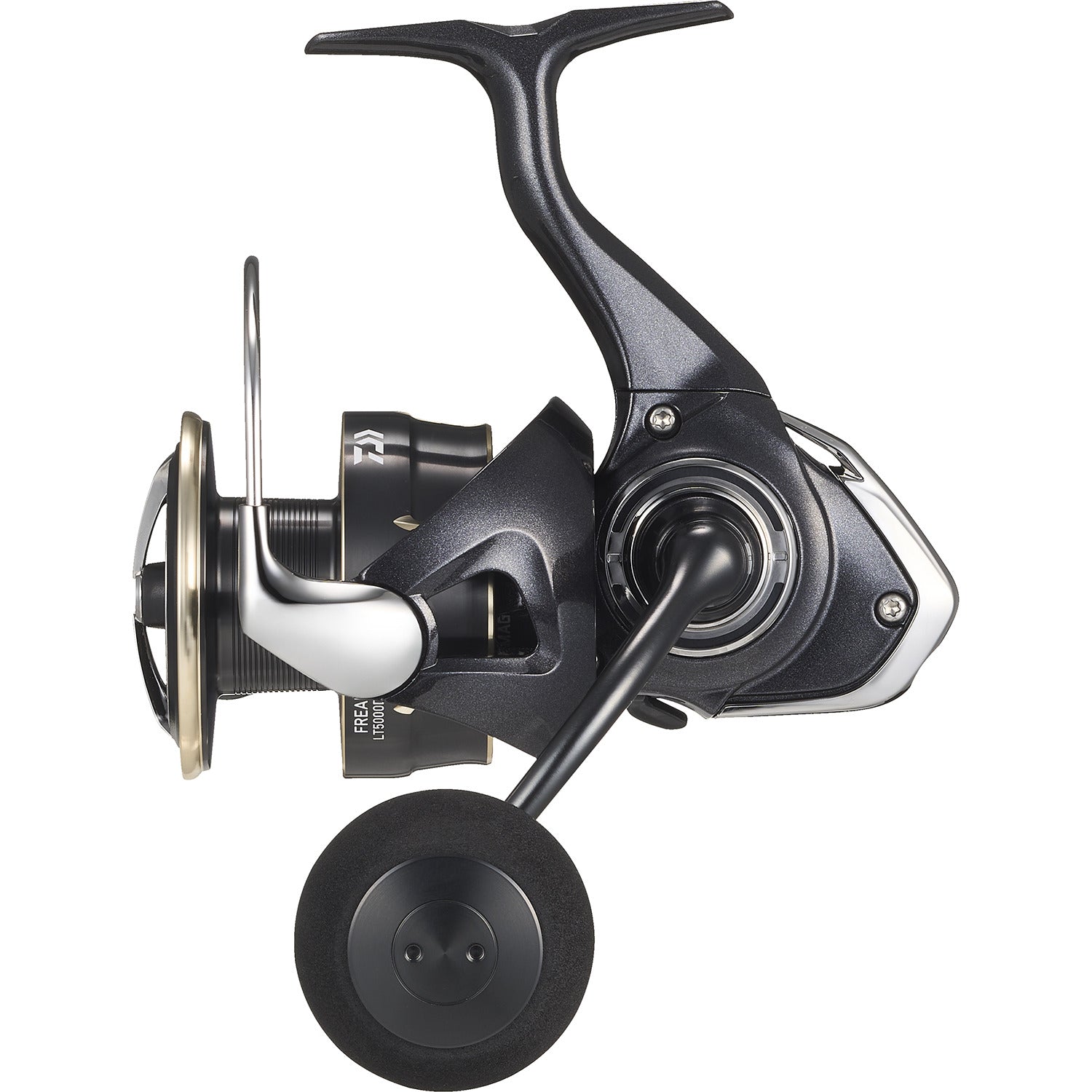

LT5000D-CXH	Right	6.2	5+1	26.5	8.5	1.5/130, 1.8/110, 2/80	3/230, 4/220, 5/160	41

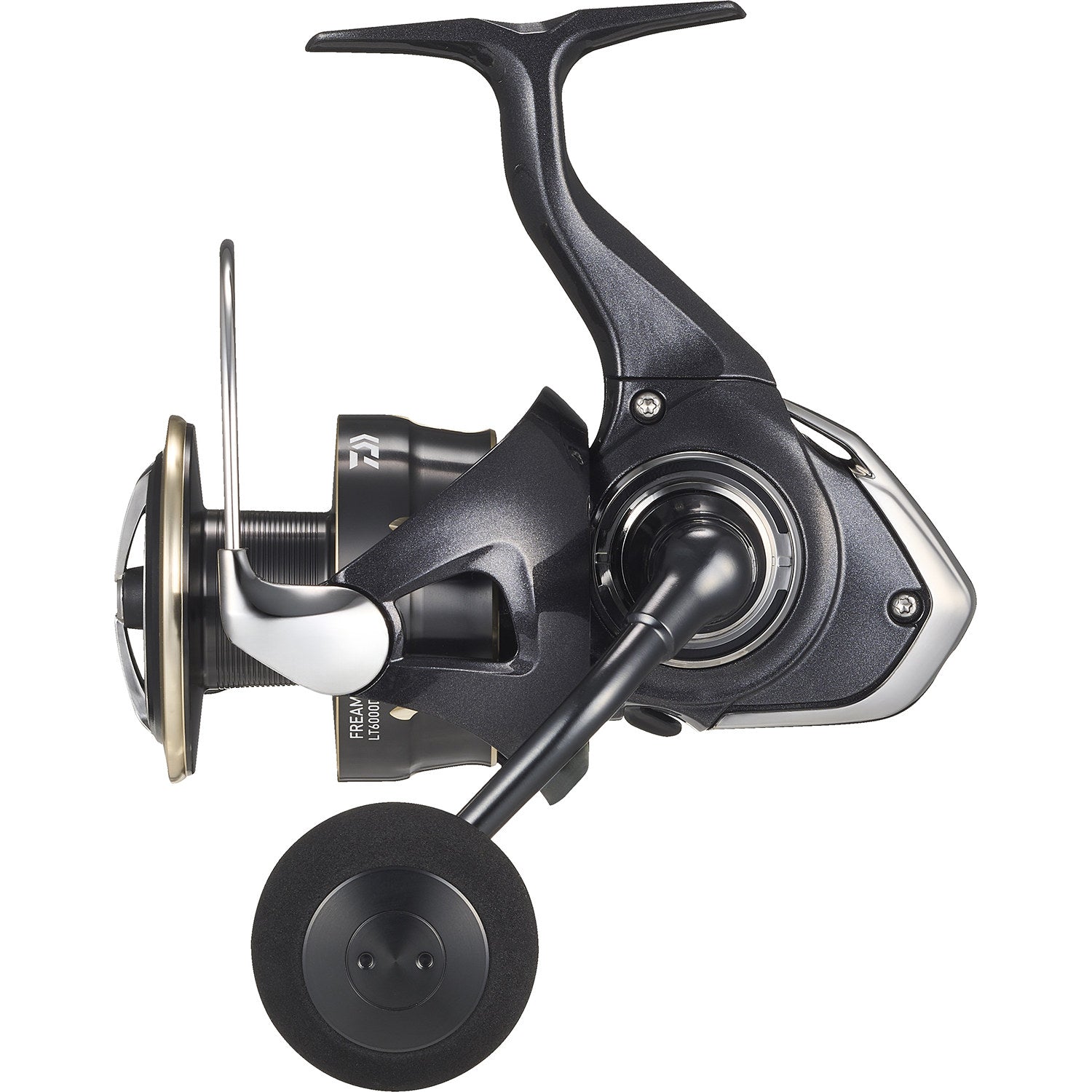

LT6000D-H	Right	5.7	5+1	26.5	11.3	1.5/130, 1.8/110, 2/80	3/230, 4/220, 5/160	40

Scroll for more→

AIRDRIVE ROTOR

Low inertia is the key.
The newly developed AIRDRIVE ROTOR is made from ZAION. Maintaining the strength of the rotor from 18 EXIST, DAIWA has been able to reduce the weight significantly. Designed with focus to create a perfectly round structure, trouble free and flawless rotation have been achieved.
The rotor unit itself has seen a 16% weight reduction compared to the previous model (Based on 2500 size reel) and will set the standard for what future rotor design of small spinning reels will be.

AIRDRIVE BAIL

Trouble free future.
DAIWA has constructed a bail smaller in diameter whilst providing required strength to achieve a further weight reduction to the front unit. In comparison to 18 EXIST, AIRDRIVE BAIL reduces the weight of the bail by 33% (compared to 2500 size).
DAIWA has adjusted the angle of bail setting to improve the line movement into the roller. Careful attention was given to the roller and slider and individual design alterations were done for each size of 22 EXIST, perfectly adjusting the line management for each size of the reel.

ZAION V

Lighter and stronger reels. The carbon hybrid resin developed for this purpose is ZION V (V = Versatile). By precisely controlling the amount of carbon used in the hybrid, we have achieved a high level of lightness that surpasses metal and strength that rivals metal, as well as versatility that allows it to be used in a wide range of reels. It inherits the essence of ZION, which can be said to be the MAX spec of carbon hybrid resin.

MAGSEALED

The Mag Sealed principle is based on special magnetic oil, which has been developed by the NASA to transport fuel to the space ships based on the magnetic principle. Such oil for reel production is not available in the market. It has to be manufactured under most difficult circumstances. The embedded ferric oxide, which is necessary for the magnetic field, has a diameter of 1/100.000mm.
The molecules in this new "metal oil" are capable of changing. If they are exposed to a magnetic field, they change their shape and the oil forms a fluid seal.
Such a seal, based on the principle of liquid magnetic oil produces nearly no friction, isolates perfectly and prevents even penetration of dust particles.
The big challenge for the DAIWA engineers was the development of a reel, which is designed for the principle of the magnetic oil to generate a kind of liquid membrane that prevents water penetration.
The Mag Sealed design is based on the purpose to keep water away from a spinning reel. First of all for sea anglers this is an amazing idea - since delivers a longer life span; no corrosion and better, pro longed function. If salt water penetrates the reel and dries, it crystallizes, corrodes the gearing and affects the ball bearings. Mag Sealed halts the travel of salt particles.

TOUGH DIGIGEAR

To withstand the harsh environment, the reel needs a strong heart to support it. Tough Digi Gear" keeps smooth rotation longer. The synergistic effect with Mag-Shield refines durability.
